Infiniti I35 (A33). Manual - part 117





SEF233G

SEF234G

How to Perform Trouble Diagnoses for Quick
and Accurate Repair

NHBR0153

INTRODUCTION

NHBR0153S01

The ABS/TCS system has an electronic control unit to control major
functions. The control unit accepts input signals from sensors and
instantly drives actuator. It is essential that both kinds of signals are
proper and stable. It is also important to check for conventional
incidents: such as air leaks in the booster or lines, lack of brake
fluid, or other incidents with the brake system.
It is much more difficult to diagnose an incident that occurs inter-
mittently rather than continuously. Most intermittent incidents are
caused by poor electric connections or faulty wiring. In this case,
careful checking of suspicious circuits may help prevent the
replacement of good parts.
A visual check only may not find the cause of the incidents, so a
road test should be performed.
Before undertaking actual checks, take just a few minutes to talk
with a customer who approaches with an ABS/TCS complaint. The
customer is a very good source of information on such incidents;
especially intermittent ones. Through the talks with the customer,
find out what symptoms are present and under what conditions
they occur.
Start your diagnosis by looking for “conventional” incidents first.
This is one of the best ways to troubleshoot brake incidents on an
ABS/TCS controlled vehicle. Also check related Service Bulletins
for information.

GI

MA

EM

LC

EC

FE

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — INTRODUCTION

TCS

How to Perform Trouble Diagnoses for Quick and Accurate Repair

BR-53

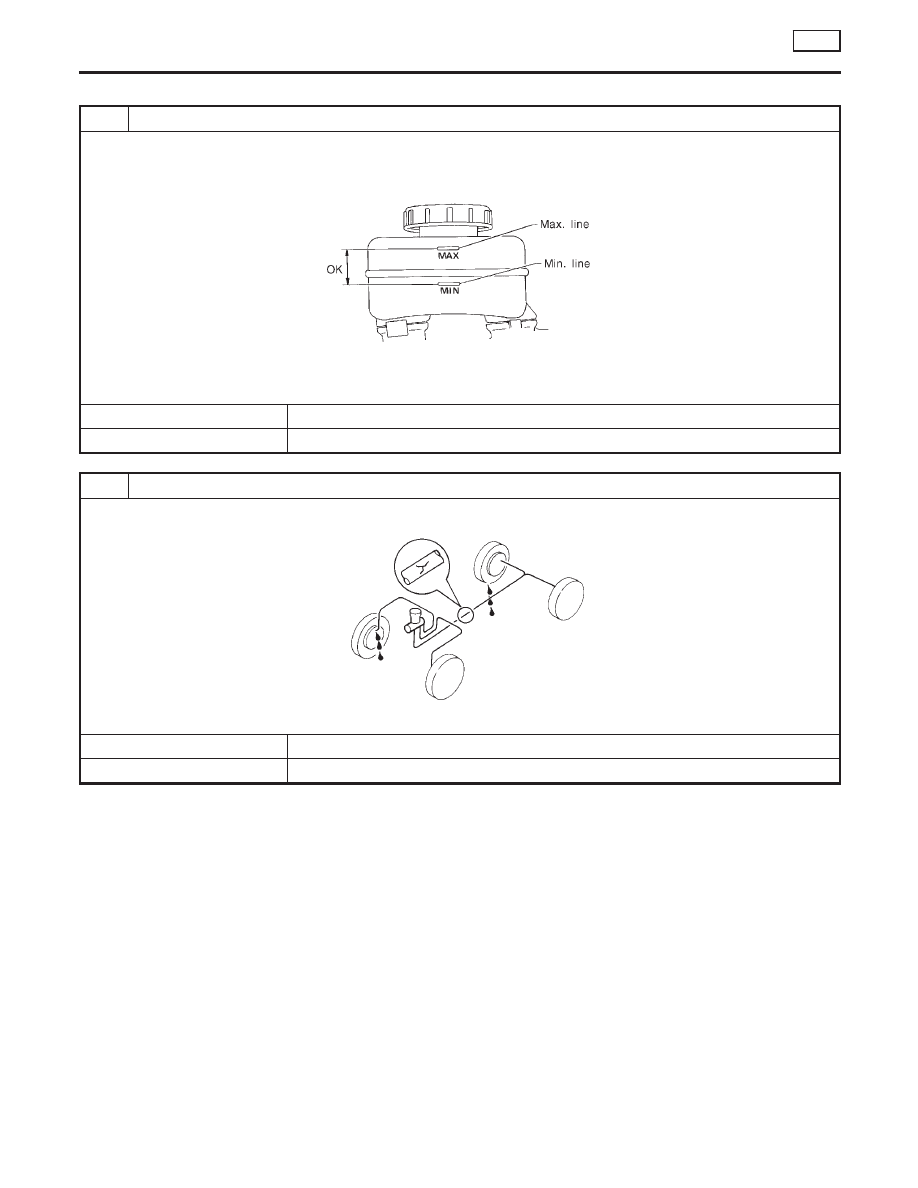

Preliminary Check

NHBR0155

1

CHECK BRAKE FLUID LEVEL

Check brake fluid level in reservoir tank.
Low fluid level may indicate brake pad wear or leakage from brake line.

SBR451D

Is brake fluid filled between MAX and MIN lines on reservoir tank and/or has brake fluid been contaminated?

Yes

©

GO TO 2.

No

©

Repair. GO TO 2.

2

CHECK BRAKE LINE

Check brake line for leakage.

SBR389C

Is leakage present at or around brake lines, tubes or hoses or are any of these parts cracked or damaged?

Yes

©

GO TO 3.

No

©

Repair. GO TO 3.

TROUBLE DIAGNOSIS — BASIC INSPECTION

TCS

Preliminary Check

BR-54

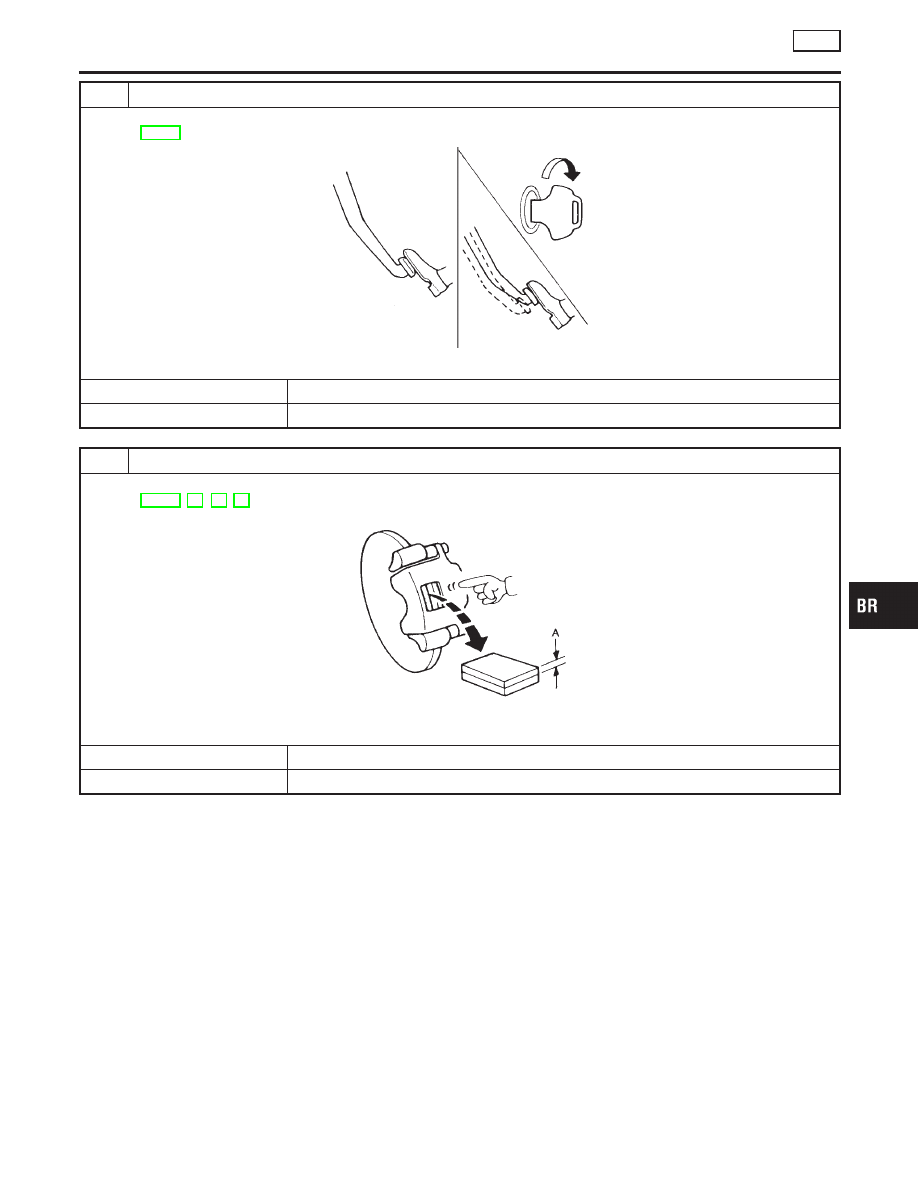

3

CHECK BRAKE BOOSTER OPERATION

Check brake booster for operation and air tightness.
Refer to BR-19.

SBR058C

Is brake booster airtight and functioning properly?

Yes

©

GO TO 4.

No

©

Replace. GO TO 4.

4

CHECK BRAKE PAD AND ROTOR

Check brake pad and rotor.
Refer to BR-22, 24, 26, 30.

SBR059C

Are brake pads and rotors functioning properly?

Yes

©

GO TO 5.

No

©

Replace.

GI

MA

EM

LC

EC

FE

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — BASIC INSPECTION

TCS

Preliminary Check (Cont’d)

BR-55

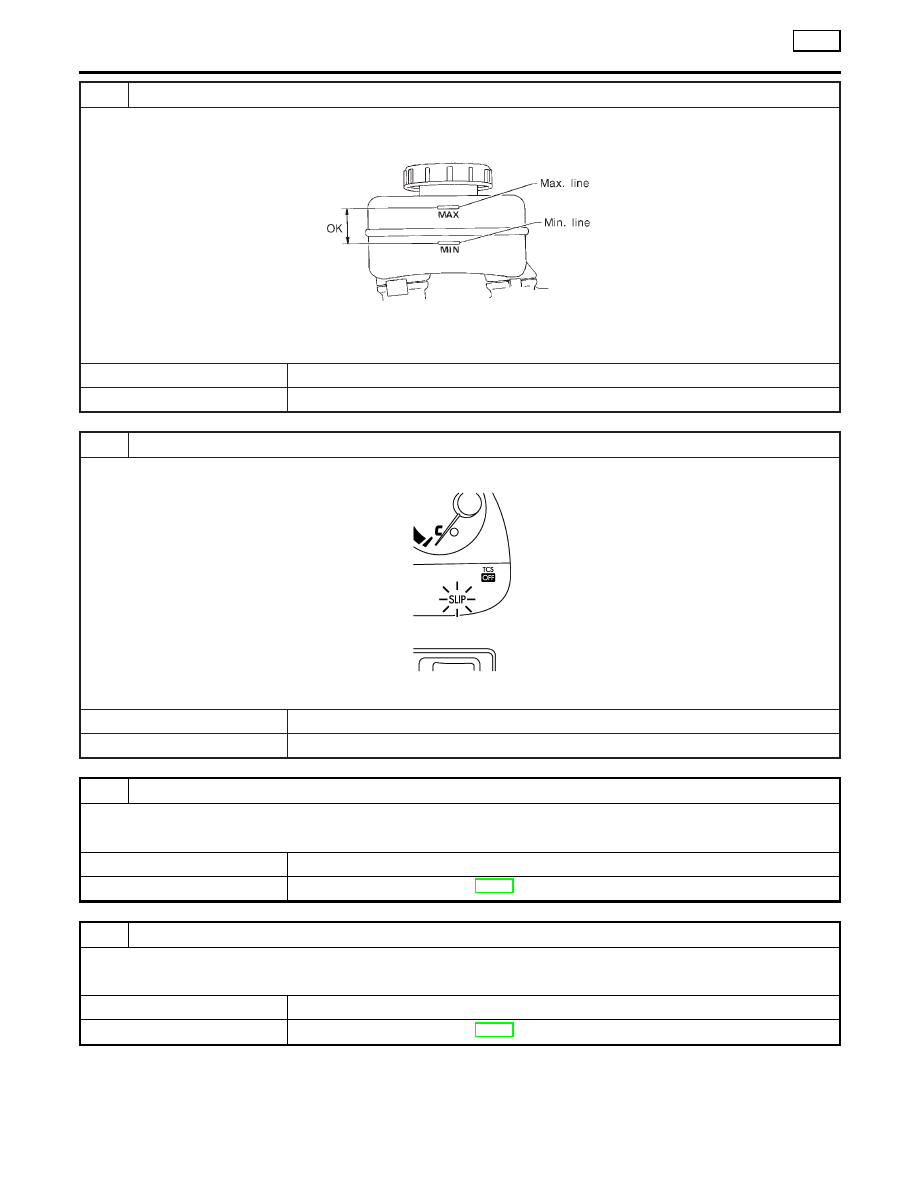

5

RECHECK BRAKE FLUID LEVEL

Check brake fluid level in reservoir tank again.

SBR451D

Is brake fluid filled between MAX and MIN lines on reservoir tank and/or has brake fluid been contaminated?

Yes

©

GO TO 6.

No

©

Fill up brake fluid.

6

CHECK WARNING LAMP ACTIVATION

Check warning lamp activation.

SBR655E

Does warning lamp turn on when ignition switch is turned “ON”?

Yes

©

GO TO 7.

No

©

Check fuse, warning lamp bulb and warning lamp circuit.

7

CHECK WARNING LAMP DEACTIVATION

Check warning lamp for deactivation after engine is started.

Does warning lamp turn off when engine is started?

Yes

©

GO TO 8.

No

©

Go to Self-diagnosis. Refer to BR-46.

8

DRIVE VEHICLE

Drive vehicle at speeds over 30 km/h (19 MPH) or more for at least one minute.

Does warning lamp remain off after vehicle has been driven at 30 km/h (19 MPH) or more for at least one minute?

Yes

©

END

No

©

Go to Self-diagnosis. Refer to BR-46.

TROUBLE DIAGNOSIS — BASIC INSPECTION

TCS

Preliminary Check (Cont’d)

BR-56
