SBR234E

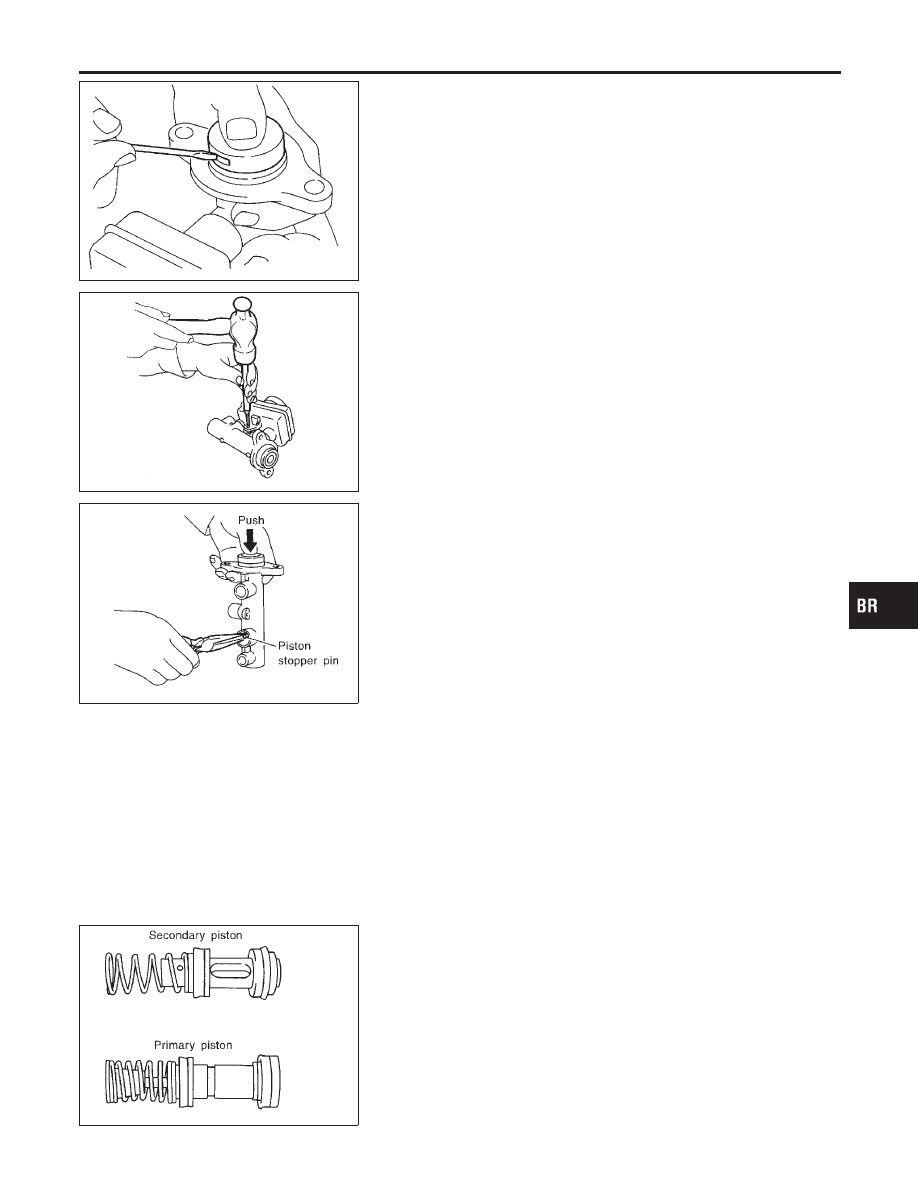

Disassembly

NHBR0096

1.

Bend claws of stopper cap outward and remove stopper cap.

SBR231E

2.

Drive out spring pin from cylinder body.

3.

Draw out reservoir tank and seals.

SBR232E

4.

Remove piston stopper pin while piston is pushed into cylinder.

5.

Remove piston assemblies.
If it is difficult to remove secondary piston assembly,
gradually apply compressed air through fluid outlet.

Inspection

NHBR0097

Check for the following items.
Replace any part if damaged.
Master cylinder:

I

Pin holes or scratches on inner wall.

Piston:

I

Deformation of or scratches on piston cups.

SBR233E

Assembly

NHBR0098

1.

Insert secondary piston assembly. Then insert primary piston
assembly.

I

Pay attention to alignment of secondary piston slit with
valve stopper mounting hole of cylinder body.

GI

MA

EM

LC

EC

FE

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

MASTER CYLINDER [BOSCH (NABCO)]

Disassembly

BR-17

SBR232E

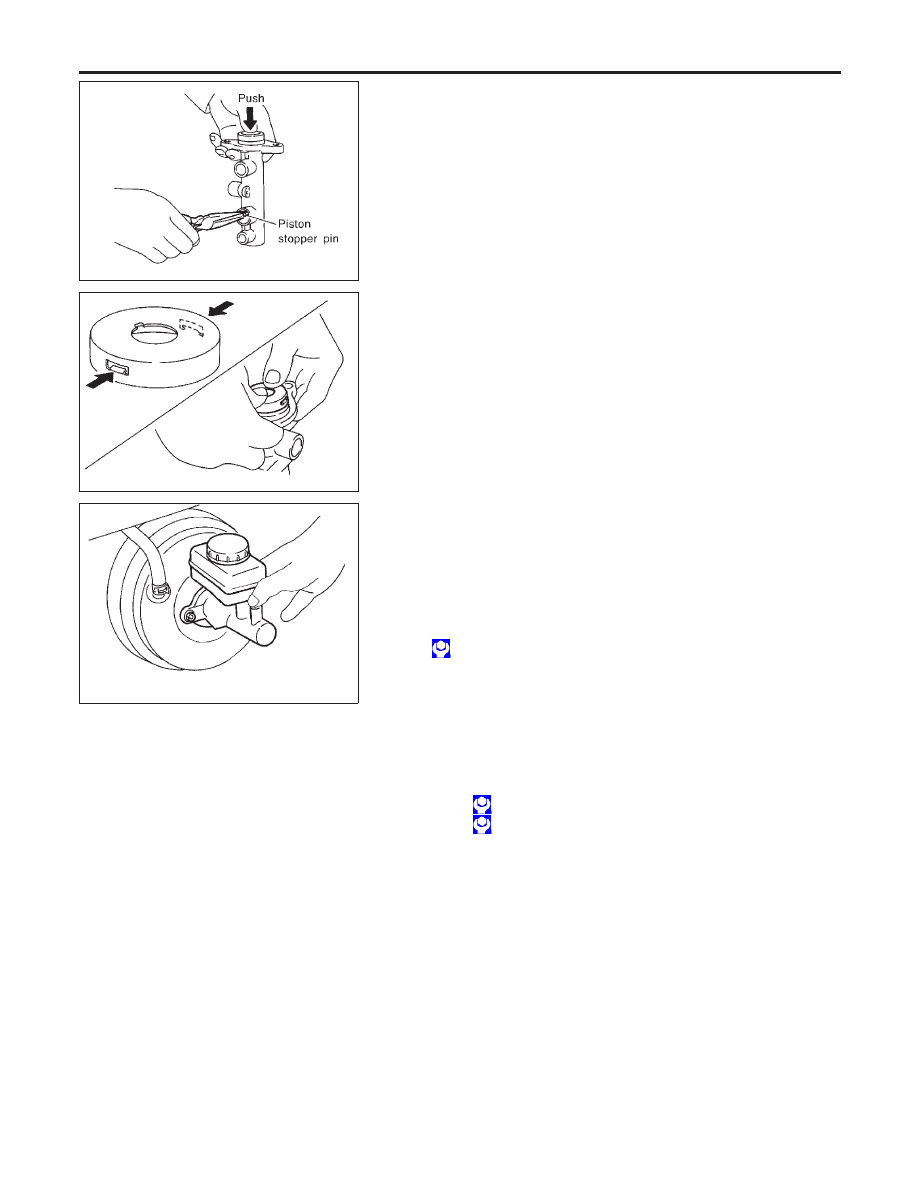

2.

Install piston stopper pin while piston is pushed into cylinder.

3.

Push reservoir tank seals and reservoir tank into cylinder body.

4.

Install spring pin.

SBR235E

5.

Install stopper cap.

Before installing stopper cap, ensure that claws are bent
inward.

SBR236E

Installation

NHBR0099

CAUTION:

I

Refill with new brake fluid “DOT 3”.

I

Never reuse drained brake fluid.

1.

Place master cylinder onto brake booster and secure mount-
ing nuts lightly.

2.

Torque mounting nuts.

: 12 - 15 N·m (1.3 - 1.5 kg-m, 9 - 11 ft-lb)

3.

Fill up reservoir tank with new brake fluid.

4.

Plug all ports on master cylinder with fingers to prevent air
suction while releasing brake pedal.

5.

Have driver depress brake pedal slowly several times until no
air comes out of master cylinder.

6.

Fit brake lines to master cylinder.

7.

Tighten flare nuts.

M10:

14.8 - 17.6 N·m (1.5 - 1.7 kg-m, 11 - 12 ft-lb)

M12:

16.7 - 19.6 N·m (1.7 - 1.9 kg-m, 13 - 14 ft-lb)

8.

Bleed air from brake system.

MASTER CYLINDER [BOSCH (NABCO)]

Assembly (Cont’d)

BR-18

SBR002A

SBR365AA

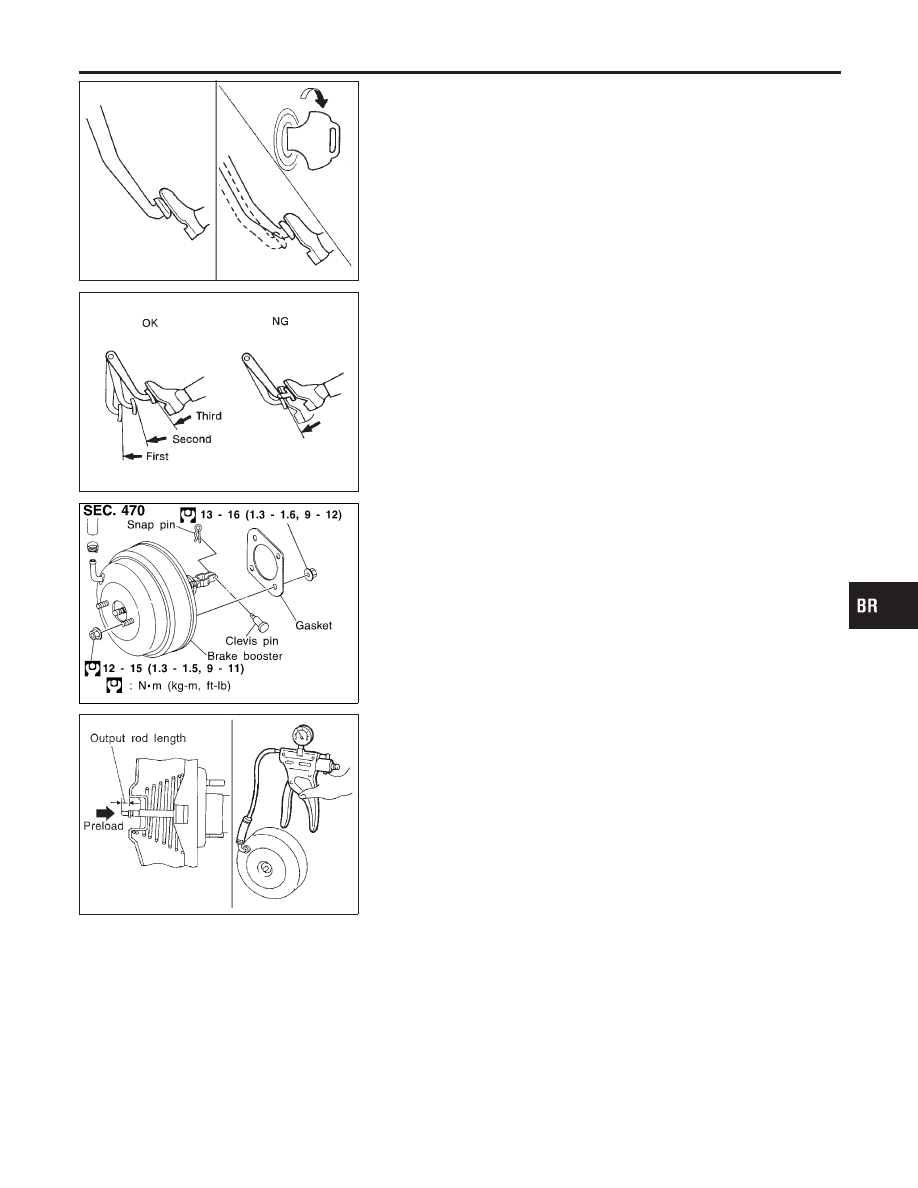

On-vehicle Service

NHBR0023

OPERATING CHECK

NHBR0023S01

1.

Stop engine and depress brake pedal several times. Check
that pedal stroke does not change.

2.

Depress brake pedal, then start engine. If pedal goes down
slightly, operation is normal.

AIRTIGHT CHECK

NHBR0023S02

1.

Start engine, and stop it after one or two minutes. Depress
brake pedal several times slowly. The pedal should go further
down the first time, and then it should gradually rise thereaf-
ter.

2.

Depress brake pedal while engine is running, and stop engine
with pedal depressed. The pedal stroke should not change
after holding pedal down for 30 seconds.

SBR888E

Removal

NHBR0024

CAUTION:

I

Be careful not to splash brake fluid on painted areas; it
may cause paint damage. If brake fluid is splashed on
painted areas, wash it away with water immediately.

I

Be careful not to deform or bend brake pipes, during
removal of booster.

SBR208E

Inspection

NHBR0025

OUTPUT ROD LENGTH CHECK

NHBR0025S01

1.

Apply vacuum of −66.7 kPa (−500 mmHg, −19.69 inHg) to
brake booster with a handy vacuum pump.

2.

Add preload of 19.6 N (2 kg, 4.4 lb) to output rod.

3.

Check output rod length.

Specified length:

10.275 - 10.525 mm (0.4045 - 0.4144 in)

Installation

NHBR0026

CAUTION:

I

Be careful not to deform or bend brake pipes, during
installation of booster.

I

Replace clevis pin if damaged.

I

Refill with new brake fluid “DOT 3”.

I

Never reuse drained brake fluid.

I

Take care not to damage brake booster mounting bolt
thread when installing. Due to the acute angle of
installation, the threads can be damaged with the dash
panel.

GI

MA

EM

LC

EC

FE

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

BRAKE BOOSTER

On-vehicle Service

BR-19

SBR889E

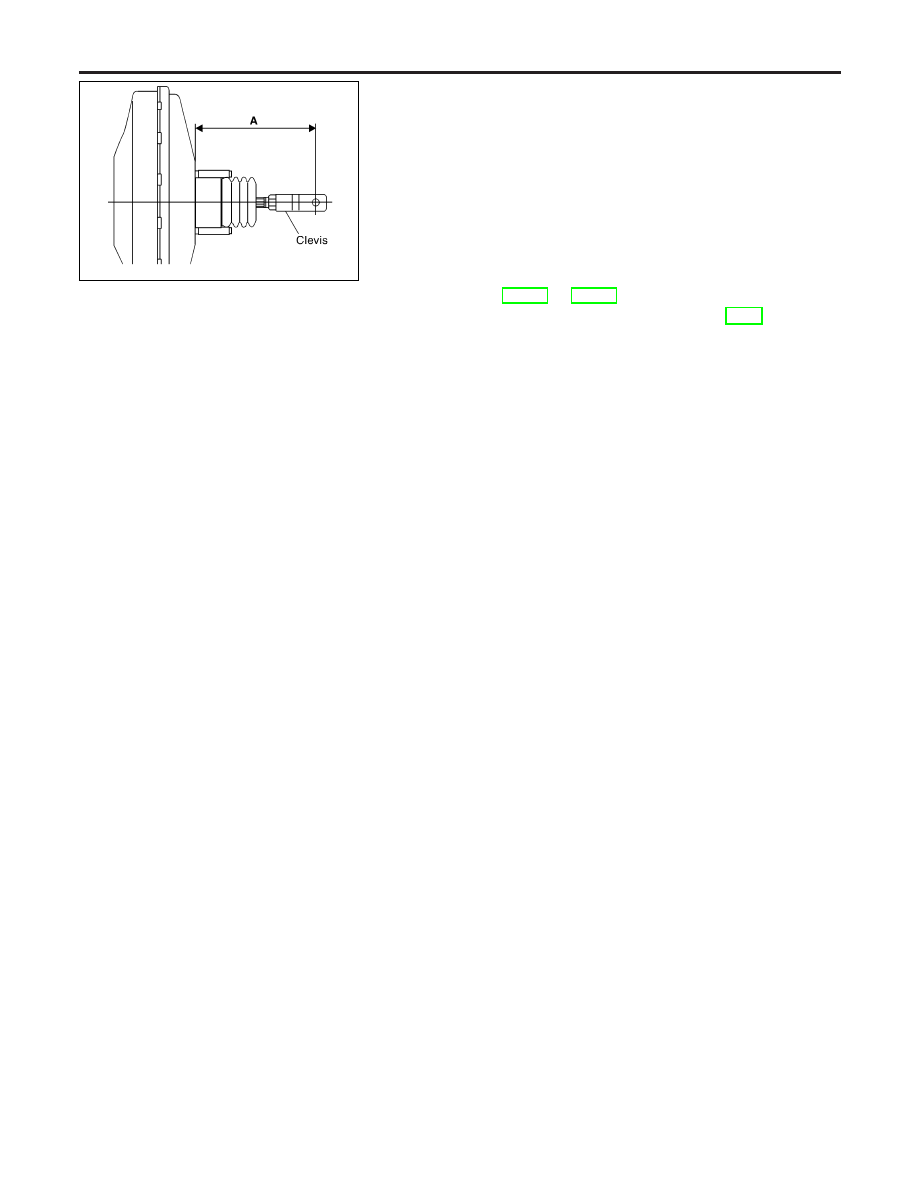

1.

Before fitting booster, temporarily adjust clevis to dimension
“A” shown.

Specification:

130 mm (5.12 in)

2.

Fit booster, then secure mounting nuts (brake pedal bracket to
master cylinder) lightly.

3.

Connect brake pedal and booster input rod with clevis pin.

4.

Secure mounting nuts.

Specification:

16 - 22 N·m (1.7 - 2.2 kg-m, 12 - 16 ft-lb)

5.

Install master cylinder. Refer to “Installation” in “MASTER
CYLINDER”, BR-15 or BR-18.

6.

Bleed air. Refer to “Bleeding Brake System”, BR-8.

BRAKE BOOSTER

Installation (Cont’d)

BR-20
