Infiniti I35 (A33). Manual - part 91





SMT699B

4.

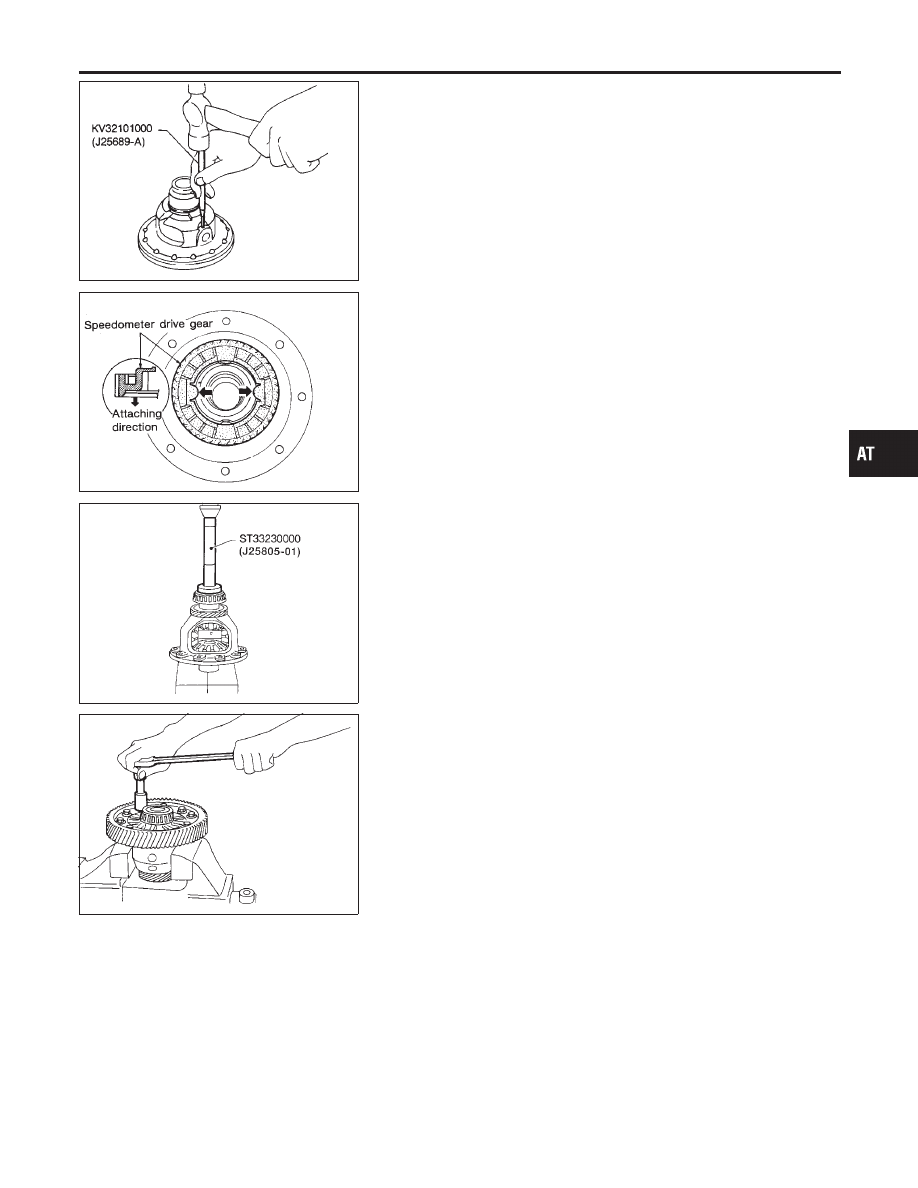

Install lock pin.

I

Make sure that lock pin is flush with case.

SAT313D

5.

Install speedometer drive gear on differential case.

I

Align the projection of speedometer drive gear with the
groove of differential case.

AAT663

6.

Press on differential side bearings.

SAT546F

7.

Install final gear and tighten fixing bolts in a crisscross pattern.

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Final Drive (Cont’d)

AT-361

SAT181FB

SAT182F

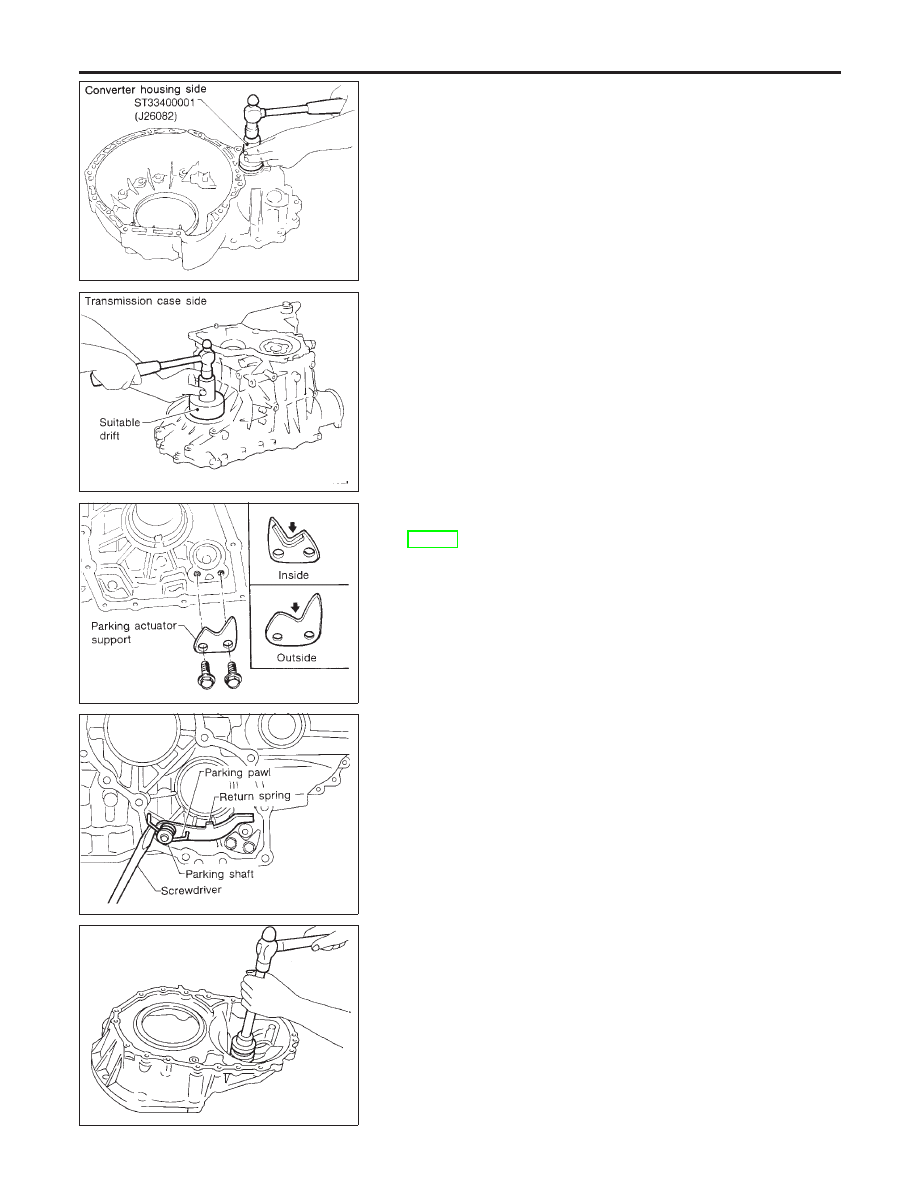

Assembly (1)

NHAT0177

1.

Install differential side oil seals on transmission case and con-
verter housing.

SAT183F

2.

Install parking actuator support to transmission case. Tighten
parking actuator support bolts to the specified torque. Refer to
AT-288.

I

Pay attention to direction of parking actuator support.

SAT039F

3.

Install parking pawl on transmission case and fix it with park-
ing shaft.

4.

Install return spring.

SAT870D

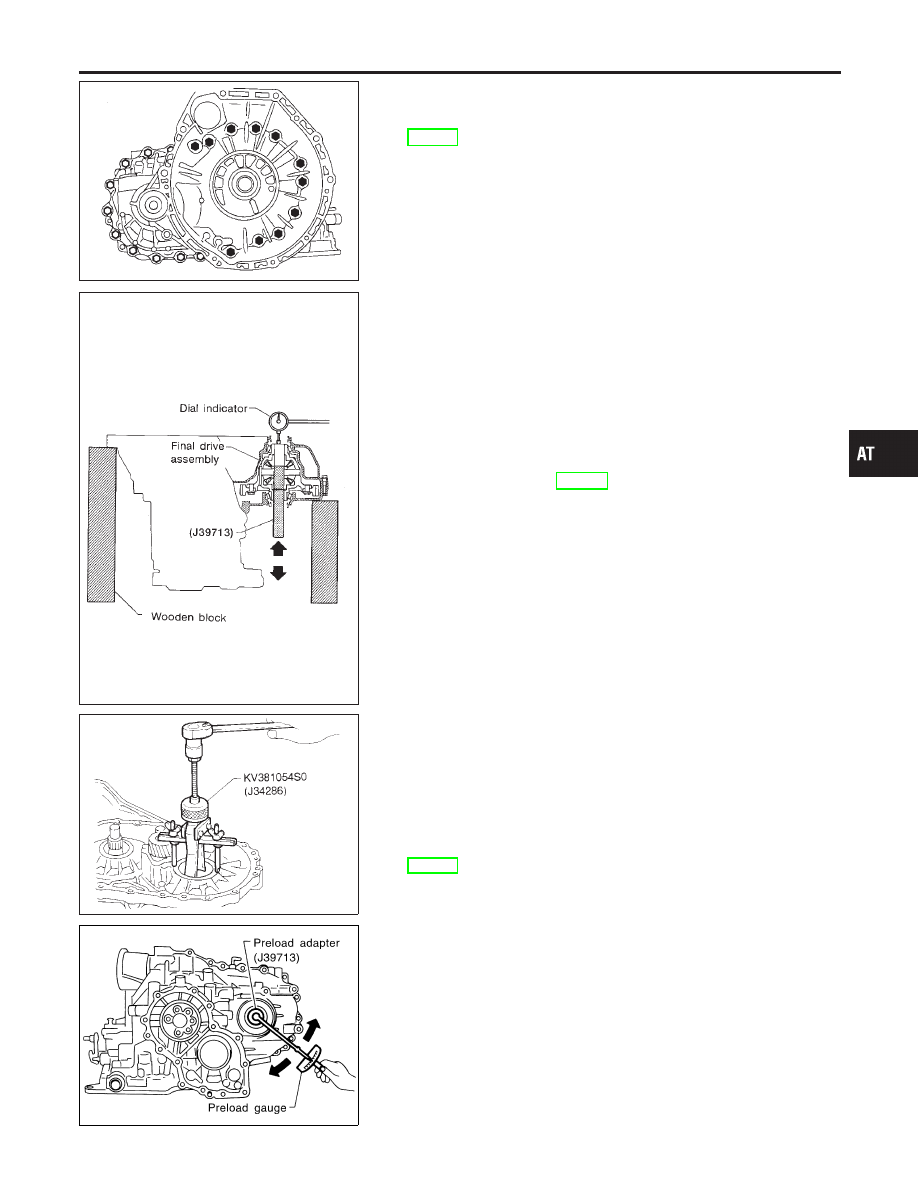

Adjustment (1)

NHAT0178

DIFFERENTIAL SIDE BEARING PRELOAD

NHAT0178S01

1.

Install differential side bearing outer race without adjusting
shim on transmission case.

2.

Install differential side bearing outer race on converter housing.

ASSEMBLY

Assembly (1)

AT-362

SAT008F

3.

Place final drive assembly on transmission case.

4.

Install transmission case on converter housing. Tighten trans-
mission case fixing bolts to the specified torque. Refer to
AT-288.

AAT665

5.

Attach dial indicator on differential case at converter housing
side.

6.

Insert Tool into differential side gear from transmission case
side.

7.

Move Tool up and down and measure dial indicator deflection.

8.

Select proper thickness of differential side bearing adjusting
shim(s).
Suitable shim thickness = Dial indicator deflection +
Specified bearing preload

Differential side bearing preload adjusting shim:

Refer to SDS, AT-386.

Bearing preload:

0.05 - 0.09 mm (0.0020 - 0.0035 in)

SAT010FB

9.

Remove converter housing from transmission case.

10. Remove final drive assembly from transmission case.
11. Remove differential side bearing outer race from transmission

case.

12. Reinstall differential side bearing outer race and shim(s)

selected from SDS table on transmission case.

13. Reinstall converter housing on transmission case and tighten

transmission case fixing bolts to the specified torque. Refer to
AT-288.

SAT188FE

14. Insert Tool and measure turning torque of final drive assembly.

I

Turn final drive assembly in both directions several times
to seat bearing rollers correctly.

Turning torque of final drive assembly (New bearing):

0.78 - 1.37 N·m (8.0 - 14.0 kg-cm, 6.9 - 12.2 in-lb)

I

When old bearing is used again, turning torque will be
slightly less than the above.

I

Make sure torque is close to the specified range.

Preload adapter:

RE4F04B-(J39713)

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ASSEMBLY

Adjustment (1) (Cont’d)

AT-363

SAT332DA

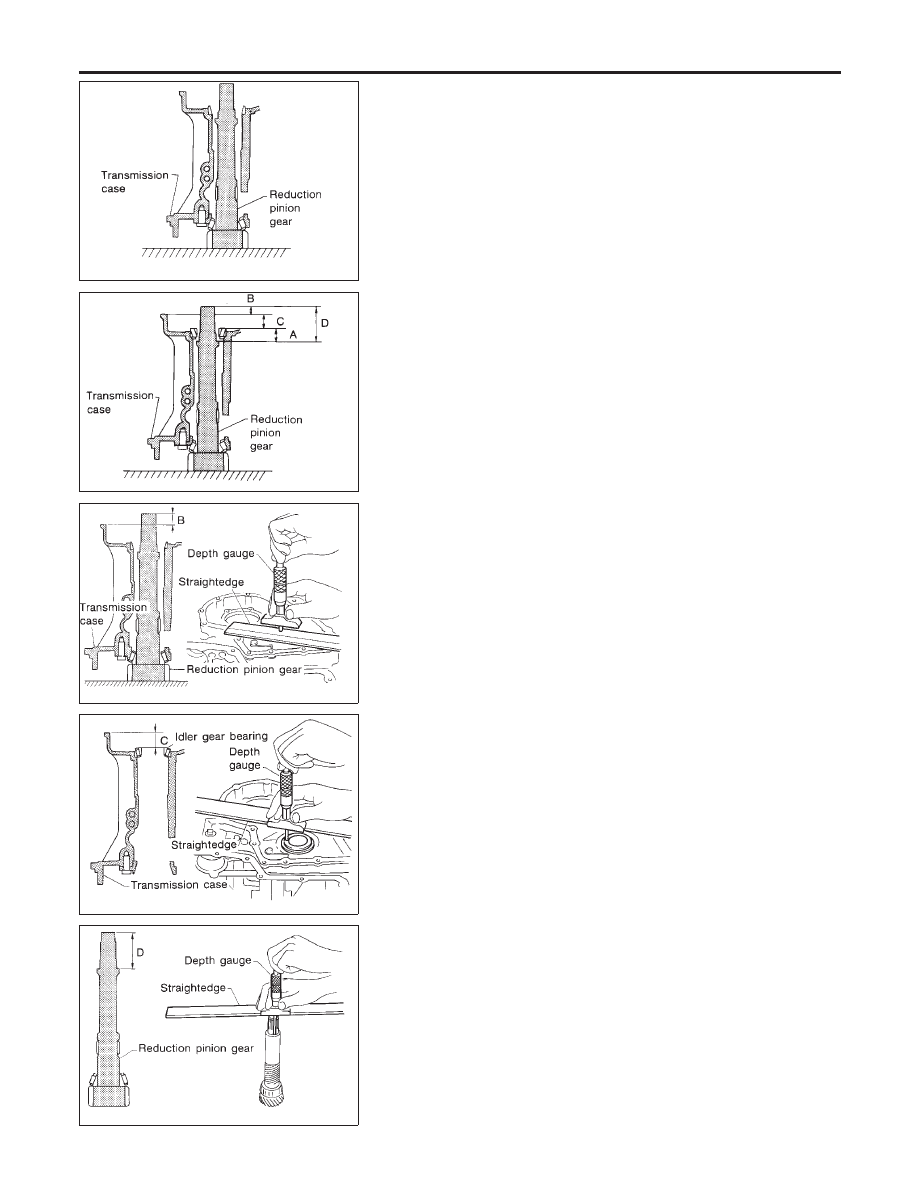

REDUCTION PINION GEAR BEARING PRELOAD

NHAT0178S02

1.

Remove transmission case and final drive assembly from con-
verter housing.

2.

Select proper thickness of reduction pinion gear bearing
adjusting shim using the following procedures.

a.

Place reduction pinion gear on transmission case as shown.

SAT333DA

b.

Place idler gear bearing on transmission case.

c.

Measure dimensions “B” “C” and “D” and calculate dimension
“A”.

A = D − (B + C)
“A”: Distance between the surface of idler gear bear-
ing inner race and the adjusting shim mating surface
of reduction pinion gear.

SAT334DA

I

Measure dimension “B” between the end of reduction pinion
gear and the surface of transmission case.

I

Measure dimension “B” in at least two places.

SAT335D

I

Measure dimension “C” between the surface of idler gear bear-
ing inner race and the surface of transmission case.

I

Measure dimension “C” in at least two places.

SAT336DA

I

Measure dimension “D” between the end of reduction pinion
gear and the adjusting shim mating surface of reduction pin-
ion gear.

I

Measure dimension “D” in at least two places.

I

Calculate dimension “A”.

A = D − (B + C)

ASSEMBLY

Adjustment (1) (Cont’d)

AT-364
