Infiniti I35 (A33). Manual - part 81





SAT081FA

a.

Install and tighten bolts to specified torque.

: 6.9 - 8.8 N·m (0.7 - 0.9 kg-m, 61 - 78 in-lb)

SAT062F

b.

Install solenoid valve assembly and line pressure solenoid
valve to lower body.

SAT841K

c.

Set oil strainer, then tighten bolts acand nuts to speci-
fied torque.

: 6.9 - 8.8 N·m (0.7 - 0.9 kg-m, 61 - 78 in-lb)

SAT842K

d.

Tighten bolts to specified torque.

: 3.5 - 4.4 N·m (0.36 - 0.44 kg-m, 31 - 38 in-lb)

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Control Valve Assembly (Cont’d)

AT-321

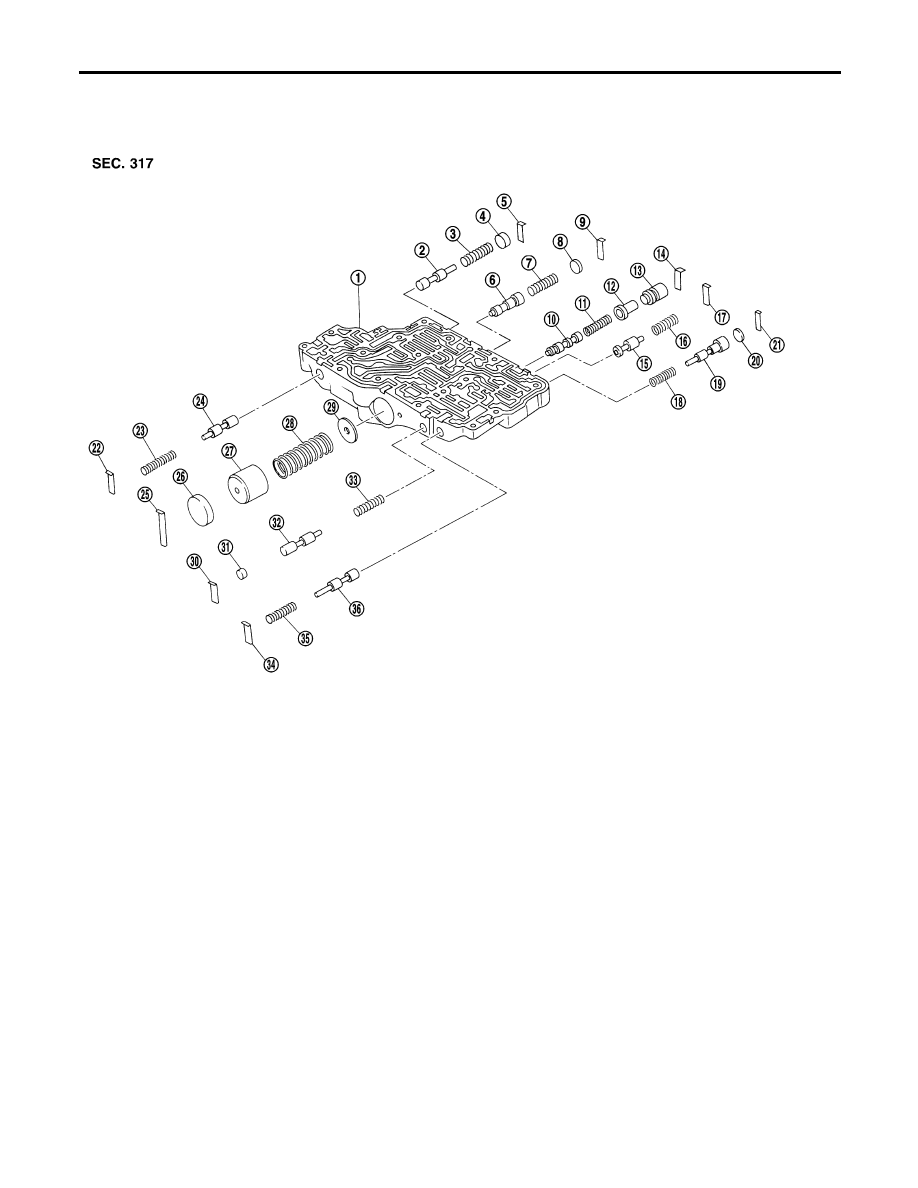

Control Valve Upper Body

COMPONENTS

=NHAT0137

Apply ATF to all components before installation.

SAT772J

1.

Upper body

2.

Cooler check valve

3.

Return spring

4.

Plug

5.

Retainer plate

6.

1-2 accumulator valve

7.

Return spring

8.

Plug

9.

Retainer plate

10. Torque converter clutch control

valve

11. Return spring
12. Torque converter clutch control

plug

13. Torque converter clutch control

sleeve

14. Retainer plate
15. Torque converter relief valve
16. Return spring
17. Retainer plate
18. Return spring
19. Overrun clutch reducing valve
20. Plug
21. Retainer plate
22. Retainer plate
23. Return spring
24. Pilot valve

25. Retainer plate
26. Plug
27. 1-2 accumulator piston
28. Return spring
29. 1-2 accumulator retainer plate
30. Retainer plate
31. Plug
32. 1st reducing valve
33. Return spring
34. Retainer plate
35. Return spring
36. 3-2 timing valve

REPAIR FOR COMPONENT PARTS

Control Valve Upper Body

AT-322

SAT551G

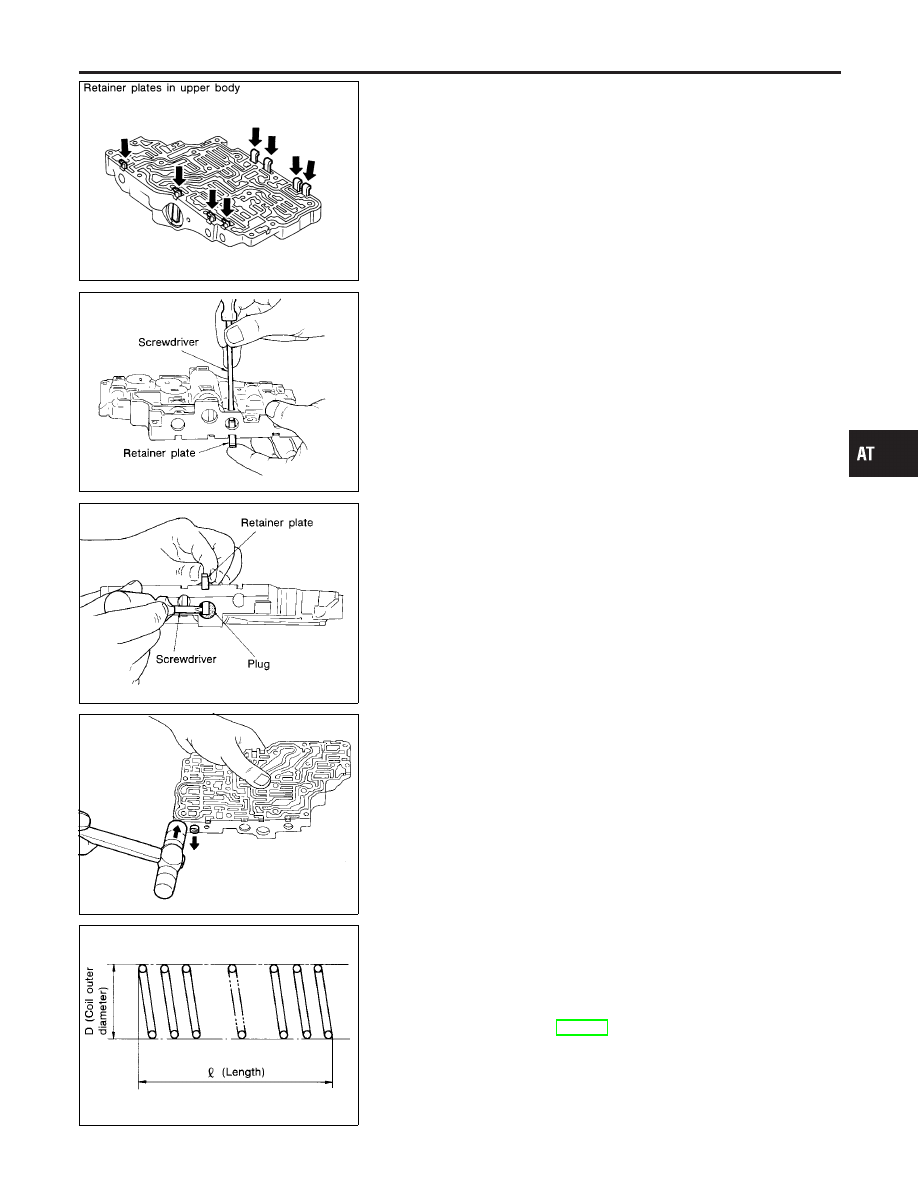

DISASSEMBLY

NHAT0138

1.

Remove valves at retainer plates.

I

Do not use a magnetic pick-up tool.

SAT553G

a.

Use a screwdriver to remove retainer plates.

SAT554G

b.

Remove retainer plates while holding spring, plugs or sleeves.

I

Remove plugs slowly to prevent internal parts from jump-
ing out.

SAT137D

c.

Place mating surface of valve body face down, and remove
internal parts.

I

If a valve is hard to remove, place valve body face down
and lightly tap it with a soft hammer.

I

Be careful not to drop or damage valves and sleeves.

SAT138D

INSPECTION

NHAT0139

Valve Spring

NHAT0139S01

I

Measure free length and outer diameter of each valve spring.
Also check for damage or deformation.

Inspection standard:

Refer to SDS, AT-382.

I

Replace valve springs if deformed or fatigued.

Control Valves

NHAT0139S02

I

Check sliding surfaces of valves, sleeves and plugs.

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Control Valve Upper Body (Cont’d)

AT-323

SAT139D

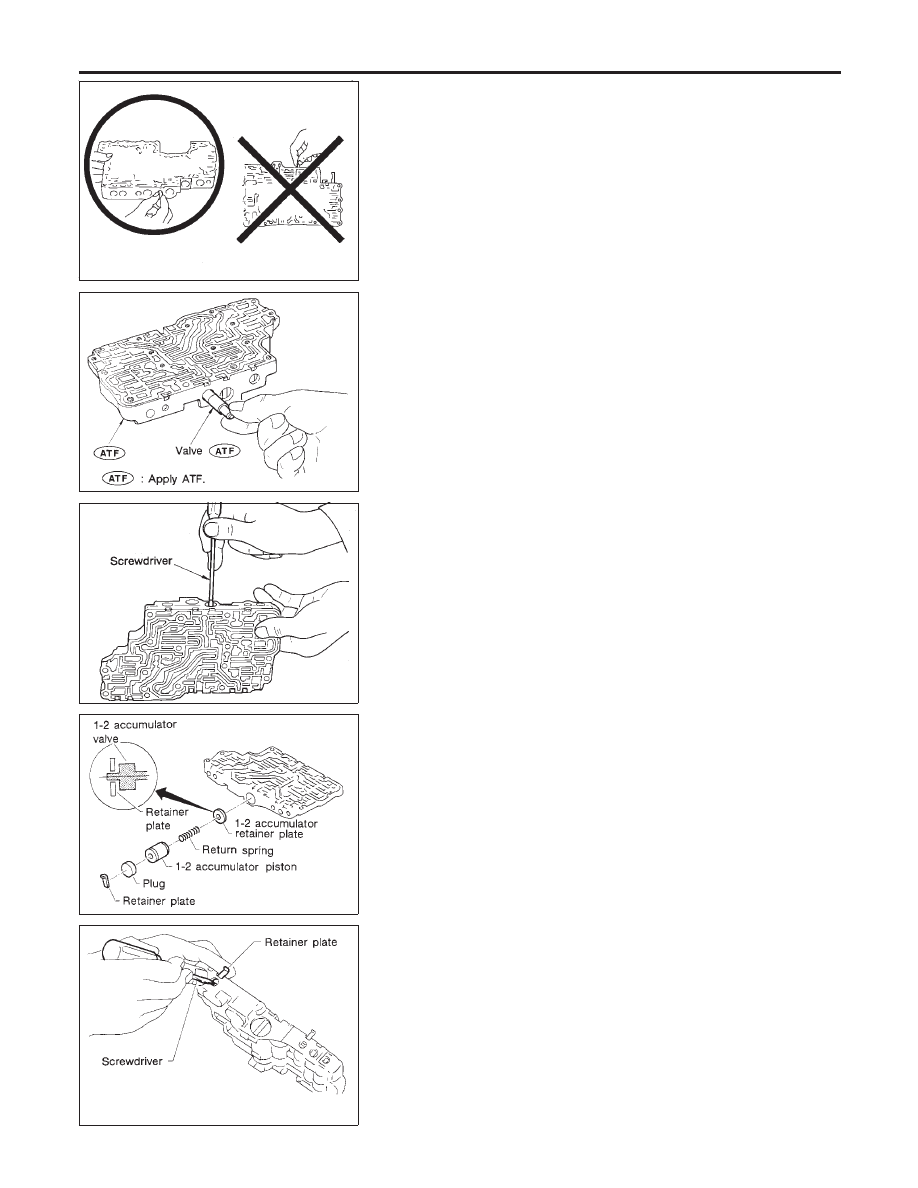

ASSEMBLY

NHAT0140

I

Lay control valve body down when installing valves. Do
not stand the control valve body upright.

SAT140DA

1.

Lubricate the control valve body and all valves with ATF. Install
control valves by sliding them carefully into their bores.

I

Be careful not to scratch or damage valve body.

SAT141D

I

Wrap a small screwdriver with vinyl tape and use it to insert the
valves into their proper positions.

SAT142D

1-2 Accumulator Valve

NHAT0140S01

I

Install 1-2 accumulator valve. Align 1-2 accumulator retainer
plate from opposite side of control valve body.

I

Install return spring, 1-2 accumulator piston and plug.

SAT143D

1.

Install retainer plates.

I

While pushing plug or return spring, install retainer plate.

REPAIR FOR COMPONENT PARTS

Control Valve Upper Body (Cont’d)

AT-324
