Infiniti I35 (A33). Manual - part 68





5

DETECT MALFUNCTIONING ITEM

Check the following items:

I

Park/neutral position (PNP) switch

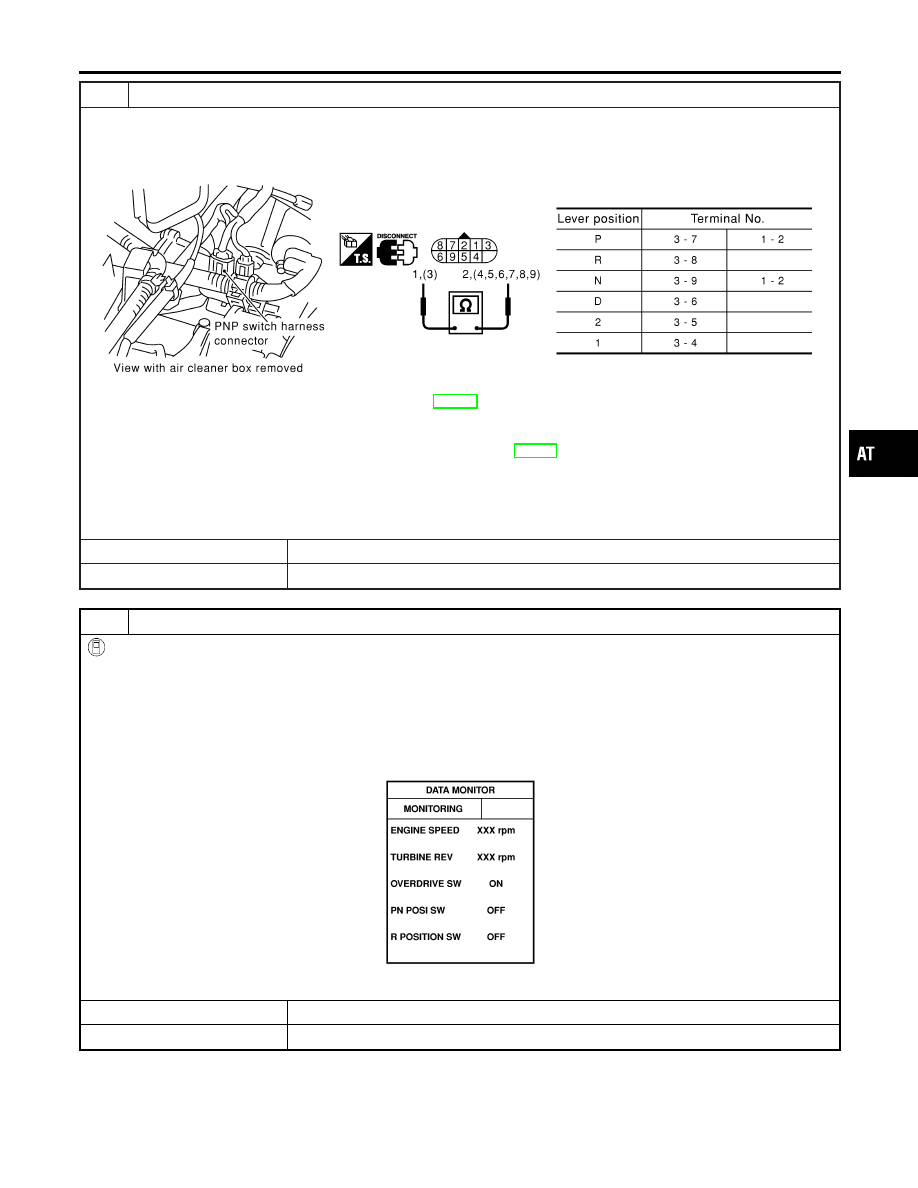

a. Check continuity between PNP switch harness connector F94 terminals 1 (G/OR) and 2 (B) and between terminals 3

(OR) and 4 (PU/W), 5 (P/B), 6 (Y/PU), 7 (BR), 8 (G/W), 9 (GY/R) while moving manual shaft through each position.

SAT615JA

b. If NG, check again with manual control cable disconnected from manual shaft of A/T assembly. Refer to step a.
c. If OK on step b, adjust manual control cable. Refer to AT-284.
d. If NG on step b, remove park/neutral position (PNP) switch from A/T and check continuity of park/neutral position (PNP)

switch terminals. Refer to step a.

e. If OK on step d, adjust park/neutral position (PNP) switch. Refer to AT-283.
f. If NG on step d, replace park/neutral position (PNP) switch.

I

Harness for short or open between ignition switch and park/neutral position (PNP) switch

I

Harness for short or open between park/neutral position (PNP) switch and TCM

OK or NG

OK

©

GO TO 8.

NG

©

Repair or replace damaged parts.

6

CHECK 3RD POSITION SWITCH CIRCUIT (With CONSULT-II)

With CONSULT-II

1. Turn ignition switch to “ON” position.

(Do not start engine.)

2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “OVERDRIVE SW”*.

Check the signal of the overdrive control switch is indicated properly.
(Overdrive control switch “ON” displayed on CONSULT-II means overdrive “OFF”.)
*: “OVERDRIVE SW” means 3rd position switch

SAT645J

OK or NG

OK

©

GO TO 10.

NG

©

GO TO 7.

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSES FOR SYMPTOMS

TCM Self-diagnosis Does Not Activate (Cont’d)

AT-269

7

DETECT MALFUNCTIONING ITEM

Check the following items:

I

3rd position switch.

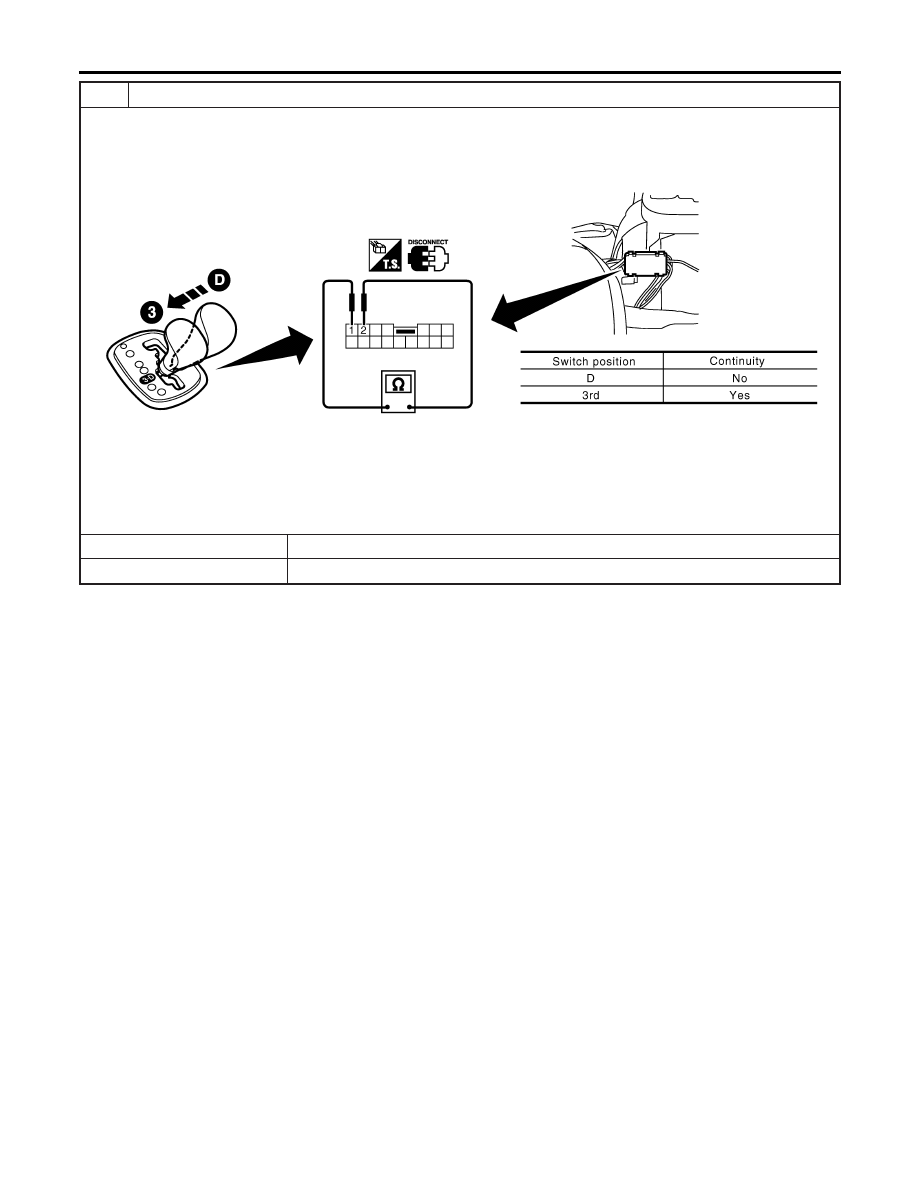

a. Check continuity between A/T device (3rd position switch) harness connector M165 terminals 1 (G/Y) and 2 (B).

SAT855K

I

Harness for short or open between TCM and 3rd position switch

I

Harness of ground circuit for 3rd position switch for short or open

OK or NG

OK

©

GO TO 10.

NG

©

Repair or replace damaged parts.

TROUBLE DIAGNOSES FOR SYMPTOMS

TCM Self-diagnosis Does Not Activate (Cont’d)

AT-270

8

CHECK 3RD POSITION SWITCH CIRCUIT (Without CONSULT-II)

Without CONSULT-II

1. Turn ignition switch to ON position.

(Do not start engine.)

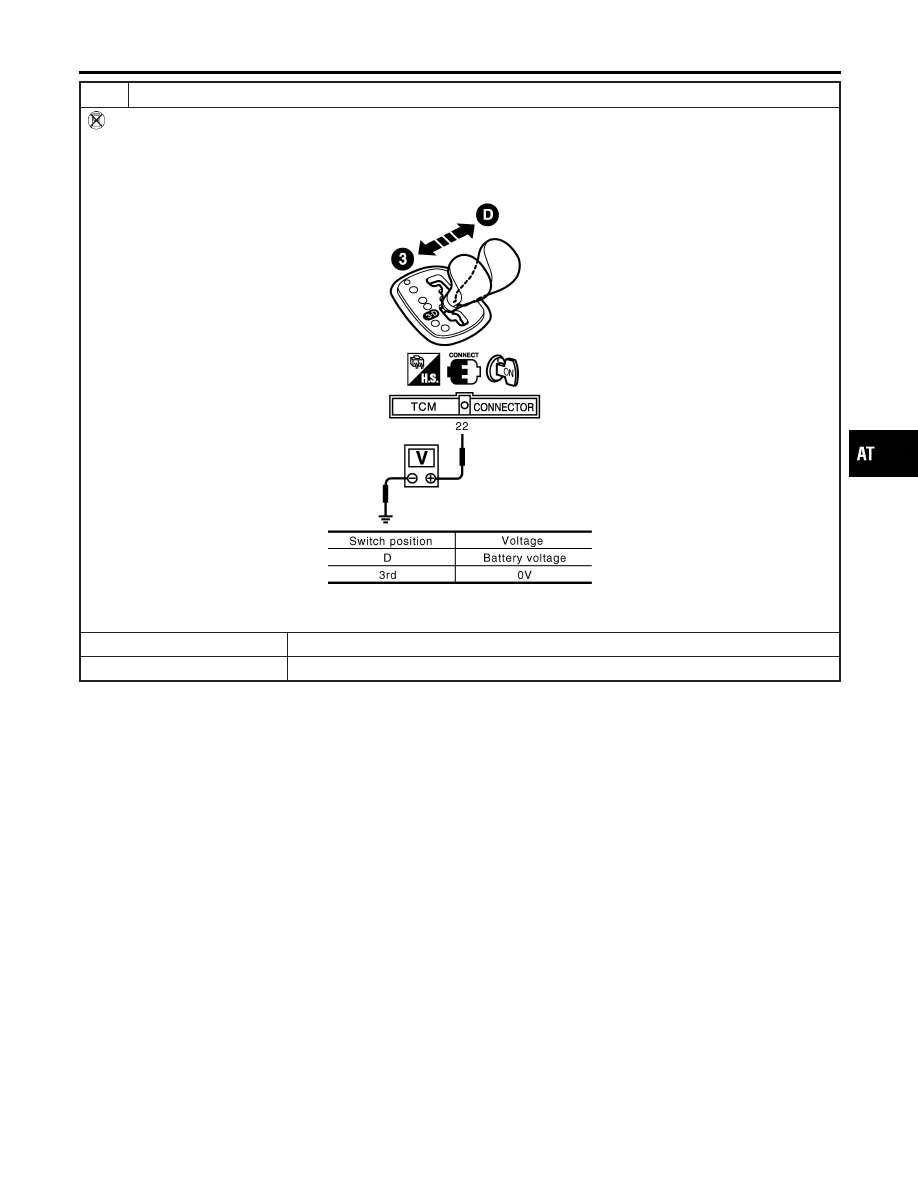

2. Check voltage between TCM harness connector F51 terminal 22 (G/Y) and ground when 3rd position switch is ON and

OFF.

SAT617KA

OK or NG

OK

©

GO TO 12.

NG

©

GO TO 9.

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSES FOR SYMPTOMS

TCM Self-diagnosis Does Not Activate (Cont’d)

AT-271

9

DETECT MALFUNCTIONING ITEM

Check the following items:

I

3rd position switch.

a. Check continuity between A/T device (3rd positions witch) harness connector M165 terminals 1 (G/Y) and 2 (B).

SAT855K

I

Harness for short or open between TCM and 3rd position switch

I

Harness of ground circuit for 3rd position switch for short or open

OK or NG

OK

©

GO TO 12.

NG

©

Repair or replace damaged parts.

TROUBLE DIAGNOSES FOR SYMPTOMS

TCM Self-diagnosis Does Not Activate (Cont’d)

AT-272
