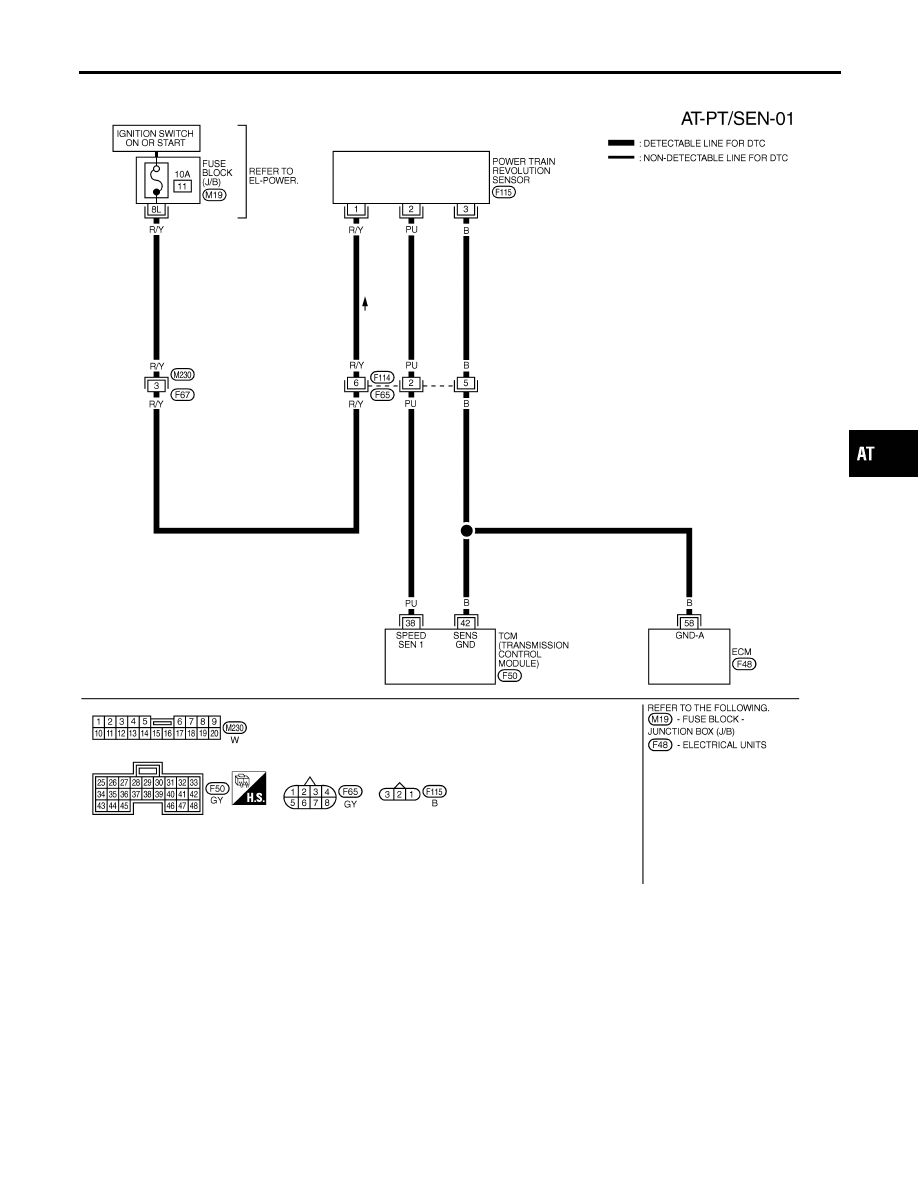

Wiring Diagram — AT — P/T SEN-01

NHAT0276

MAT489B

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC POWER TRAIN REVOLUTION SENSOR

Wiring Diagram — AT — P/T SEN-01

AT-213

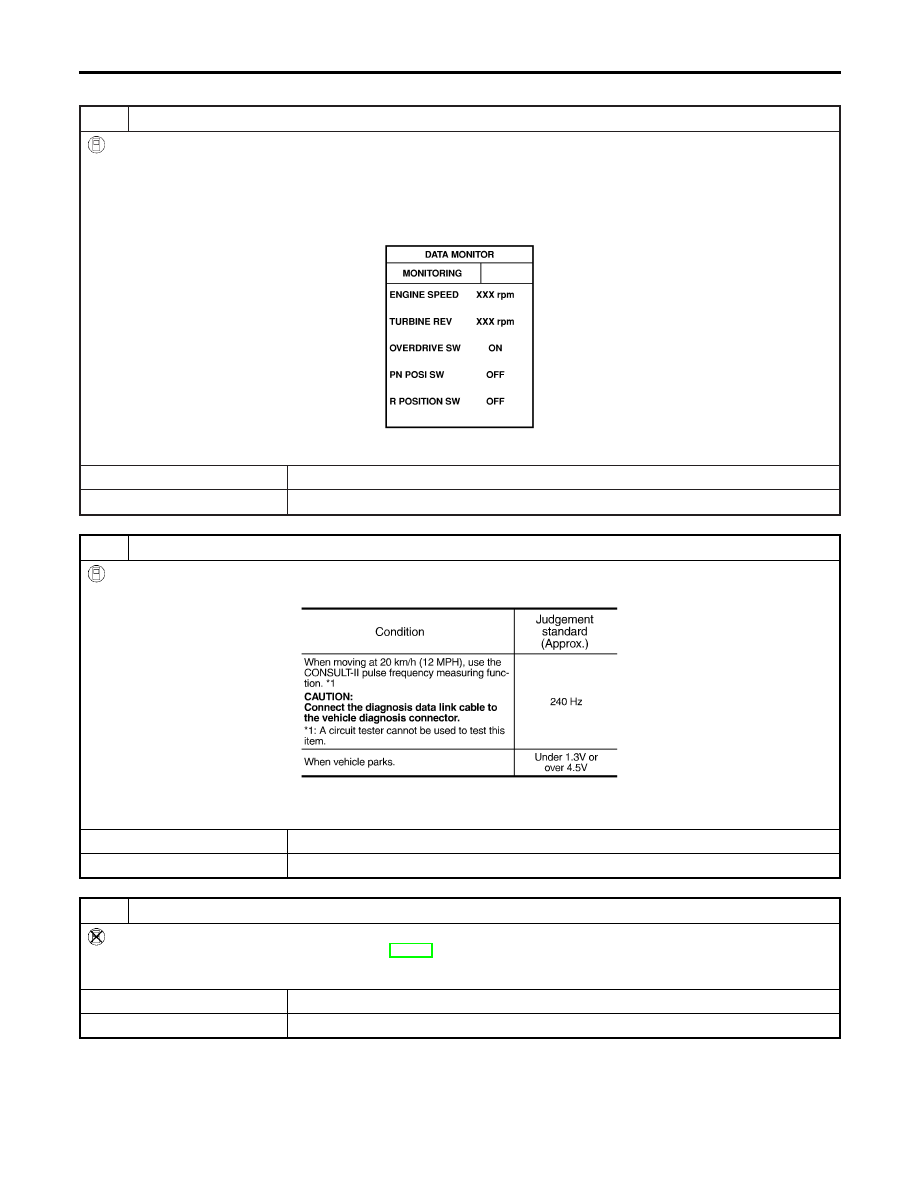

Diagnostic Procedure

NHAT0274

1

CHECK INPUT SIGNAL

With CONSULT-II

1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “TURBINE REV”. Check the value changes according to engine speed.

NOTE:
“TURBINE REV” in “TCM INPUT SIGNALS” means power train revolution sensor.

SAT740J

OK or NG

OK

©

GO TO 4.

NG

©

GO TO 2.

2

CHECK POWER TRAIN REVOLUTION SENSOR (With CONSULT-II)

With CONSULT-II

1. Start engine.

MTBL1177

OK or NG

OK

©

GO TO 4.

NG

©

GO TO 3.

3

CHECK POWER TRAIN REVOLUTION SENSOR (Without CONSULT-II)

Without CONSULT-II

Check the power train revolution sensor. Refer to AT-215, “Component Inspection”.

OK or NG

OK

©

Harness for short or open between TCM, ECM and revolution sensor

NG

©

Replace power train revolution sensor.

DTC POWER TRAIN REVOLUTION SENSOR

Diagnostic Procedure

AT-214

4

CHECK DTC

Perform “Diagnostic Trouble Code (DTC) confirmation procedure”, AT-212.

OK or NG

OK

©

INSPECTION END

NG

©

GO TO 5.

5

CHECK TCM INSPECTION

1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminal for damage or loose connection with harness connector.

OK or NG

OK

©

INSPECTION END

NG

©

Repair or replace damaged parts.

SAT578K

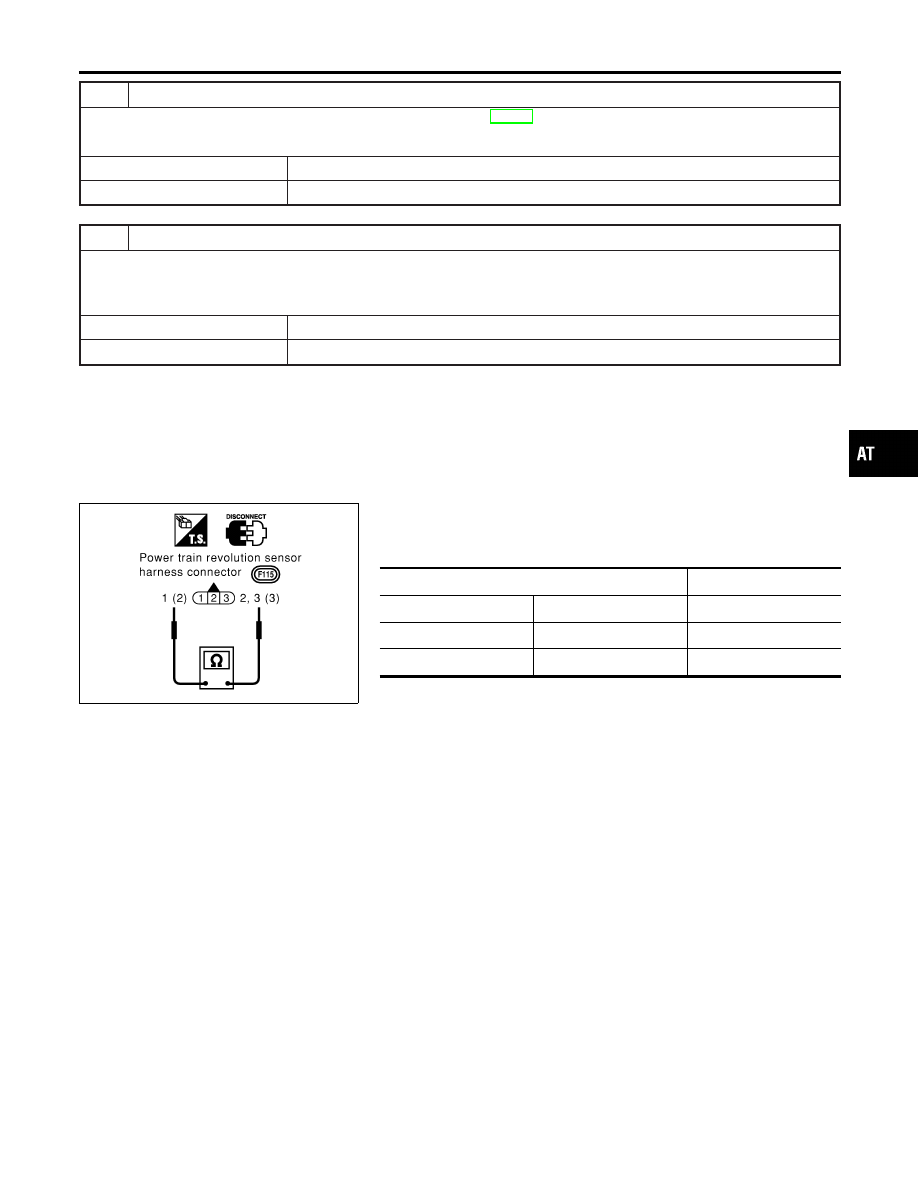

Component Inspection

NHAT0275

POWER TRAIN REVOLUTION SENSOR

NHAT0275S01

I

Check resistance between terminals 1 (R/Y), 2 (PU) and 3 (B).

Terminal No. (Wire color)

Resistance (Approx.)

1 (R/Y)

2 (PU)

No continuity

1 (R/Y)

3 (B)

No continuity

2 (PU)

3 (B)

2.4 - 2.8 k

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC POWER TRAIN REVOLUTION SENSOR

Diagnostic Procedure (Cont’d)

AT-215

SAT574J

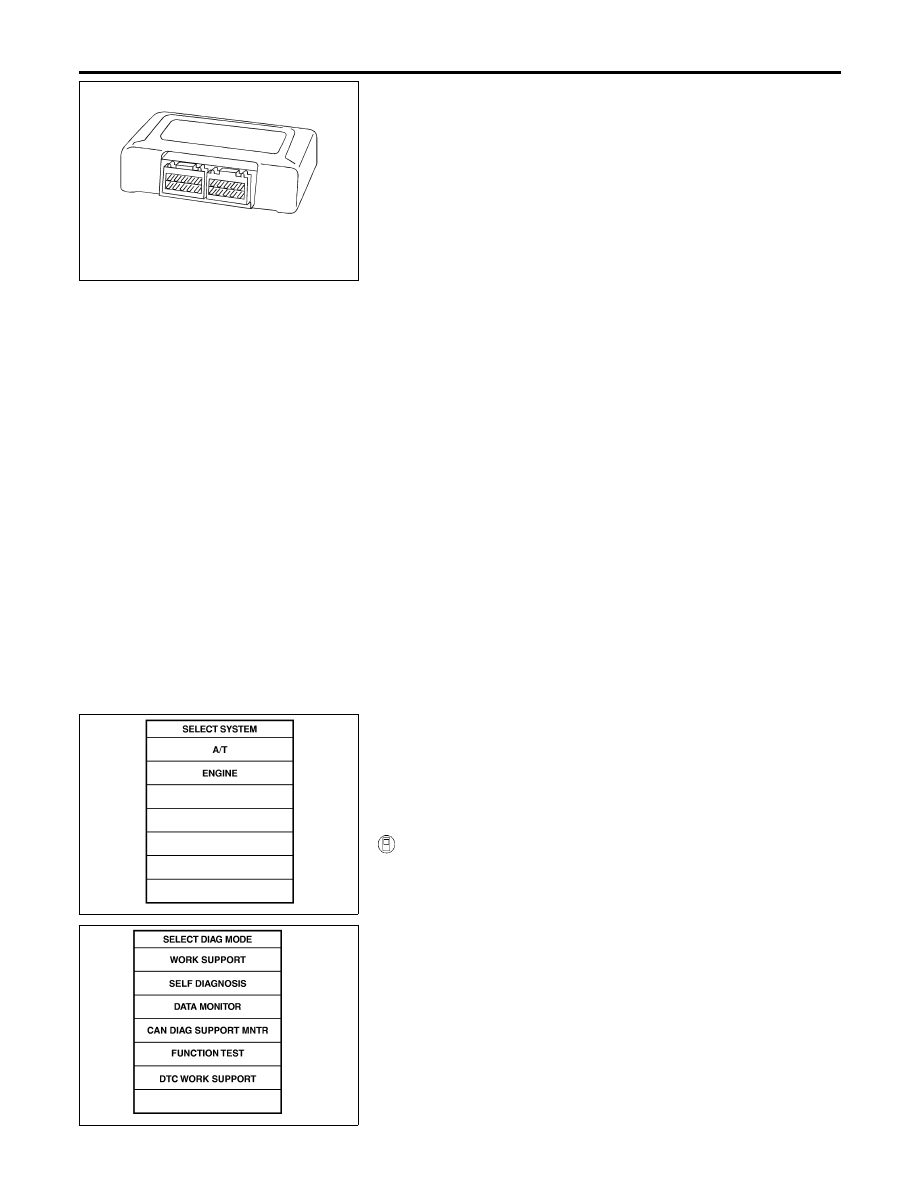

Description

NHAT0085

The TCM consists of a microcomputer and connectors for signal
input and output and for power supply. The unit controls the A/T.

On Board Diagnosis Logic

NHAT0258

Diagnostic trouble code CONTROL UNIT (RAM), CONTROL UNIT
(ROM) with CONSULT-II is detected when TCM memory (RAM) or
(ROM).

Possible Cause

NHAT0269

TCM

SAT014K

SAT860K

Diagnostic Trouble Code (DTC) Confirmation
Procedure

NHAT0259

NOTE:
If “DTC Confirmation Procedure” has been previously
conducted, always turn ignition switch OFF and wait at least
10 seconds before conducting the next test.

WITH CONSULT-II

NHAT0259S01

1)

Turn ignition switch ON and select “DATA MONITOR” mode for
A/T with CONSULT-II.

2)

Start engine.

3)

Run engine for at least 2 seconds at idle speed.

DTC CONTROL UNIT (RAM), CONTROL UNIT (ROM)

Description

AT-216
