Infiniti I35 (A33). Manual - part 53





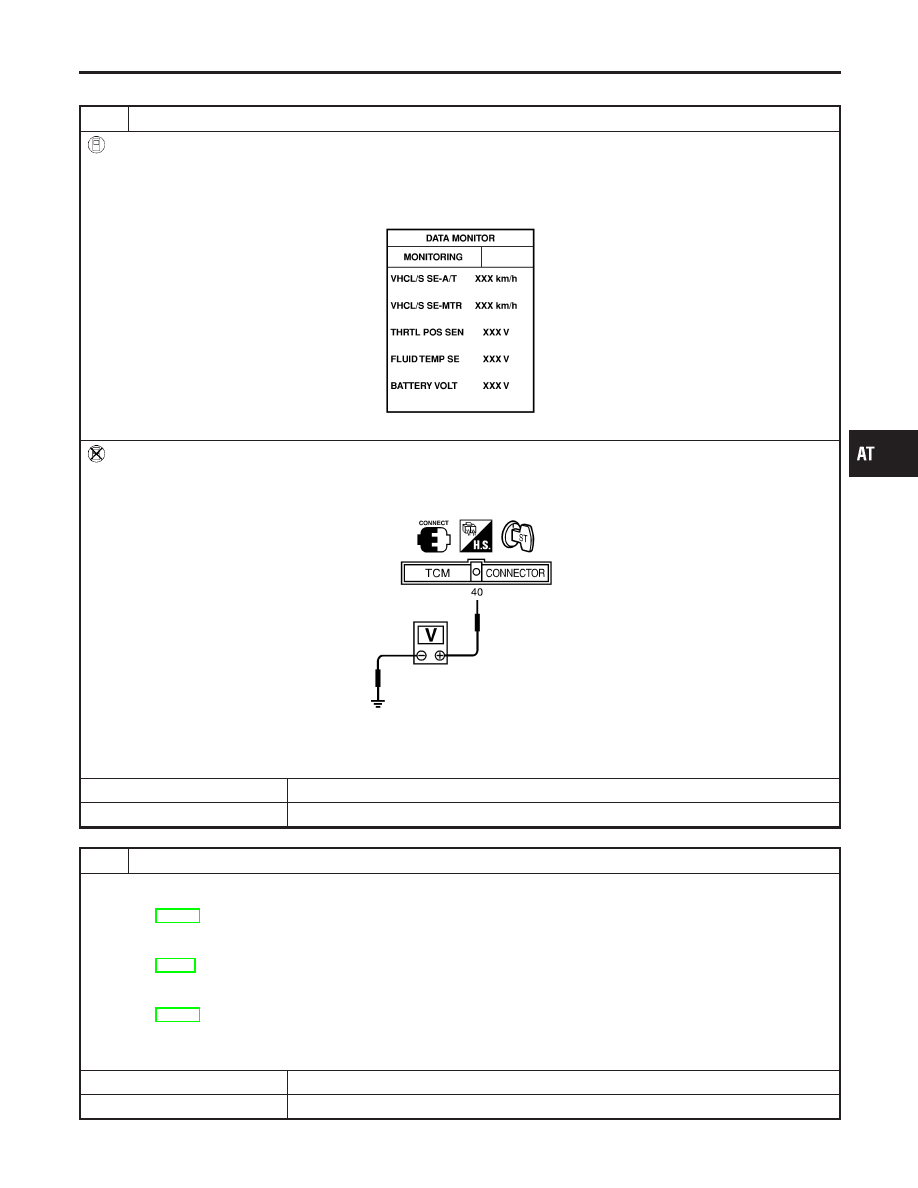

Diagnostic Procedure

NHAT0084

1

CHECK INPUT SIGNAL

With CONSULT-II

1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “VHCL/S SE·MTR” while driving.

Check the value changes according to driving speed.

SAT614J

Without CONSULT-II

1. Start engine.
2. Check voltage between TCM harness connector F50 terminal 40 (PU/R) and ground while driving at 2 to 3 km/h (1 to 2

MPH) for 1 m (3 ft) or more.

SAT356JB

Voltage:

Intermittently changes between approx. 0V and approx. 4.5V.

OK or NG

OK

©

GO TO 3.

NG

©

GO TO 2.

2

DETECT MALFUNCTIONING ITEM

Check the following items:

I

Combination meter
Refer to EL-125, “METERS AND GAUGES”.

I

Harness for short or open between TCM and combination meter

I

ABS/TCS control unit (with TCS)
Refer to BR-46, “ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION”.

I

Harness for short or open between combination meter and ABS/TCS control unit (with TCS)

I

Vehicle speed sensor and ground circuit for vehicle speed sensor (with VDC)
Refer to EL-125, “METERS AND GAUGES”.

I

Harness for short or open between combination meter and vehicle speed sensor (with VDC)

OK or NG

OK

©

GO TO 3.

NG

©

Repair or replace damaged parts.

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC VEHICLE SPEED SENSOR·MTR

Diagnostic Procedure

AT-209

3

CHECK DTC

Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-207.

OK or NG

OK

©

INSPECTION END

NG

©

GO TO 4.

4

CHECK TCM INSPECTION

1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

©

INSPECTION END

NG

©

Repair or replace damaged parts.

DTC VEHICLE SPEED SENSOR·MTR

Diagnostic Procedure (Cont’d)

AT-210

SAT576K

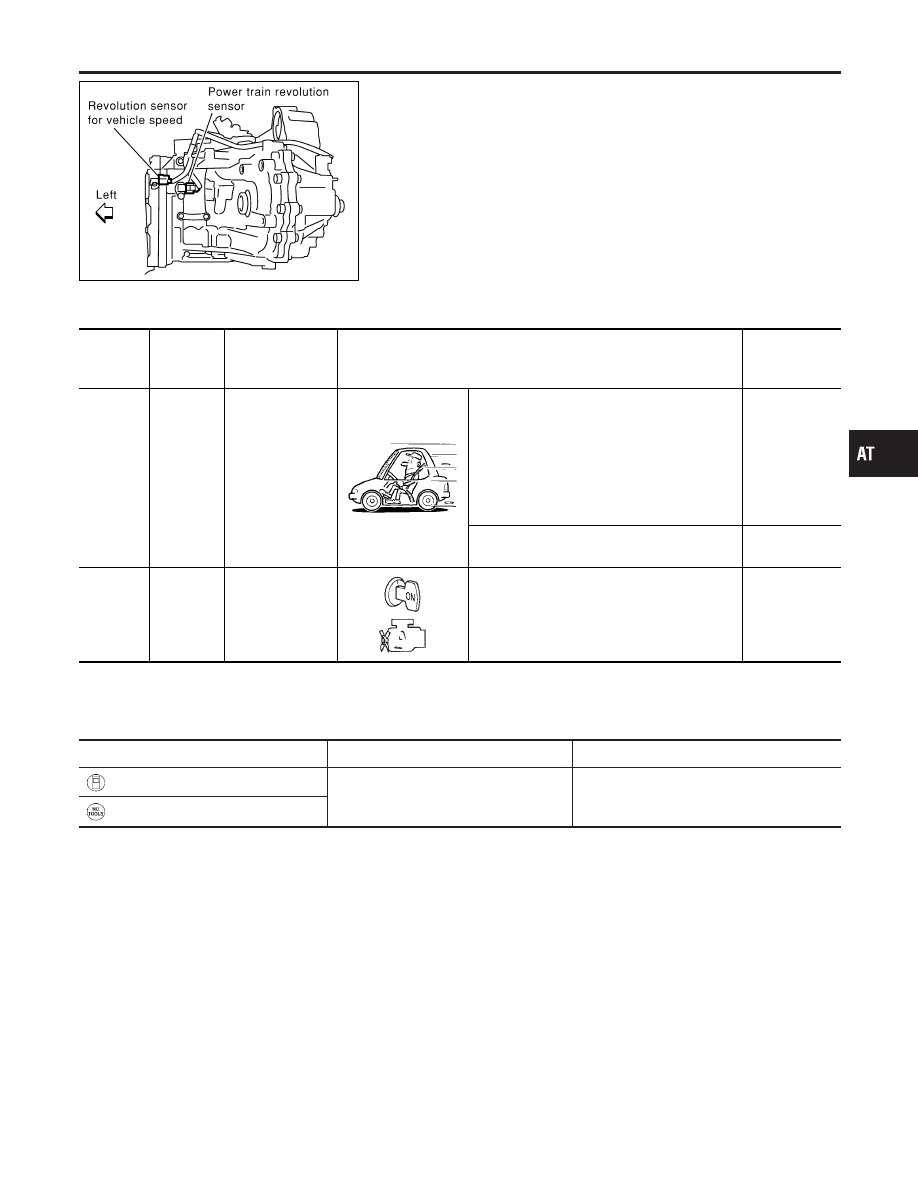

Description

NHAT0272

The power train revolution sensor detects foward clutch drum rpm
(revolutions per minute). It is located on the input side of the auto-
matic transmission. The vehicle speed sensor A/T (Revolution sen-
sor) is located on the output side of the automatic transmission.
With the two sensors, input and output shaft rpms are accurately
detected. The result is optimal shift timing during deceleration and
improved shifting.

TCM TERMINALS AND REFERENCE VALUE

NHAT0272S01

Remarks: Specification data are reference values.

Terminal

No.

Wire color

Item

Condition

Judgement

standard

(Approx.)

38

PU

Power train revo-
lution sensor

When moving at 20 km/h (12 MPH), use the
CONSULT-II pulse frequency measuring func-
tion.*1

CAUTION:

Connect the diagnosis data link cable to
the vehicle diagnosis connector.
*1: A circuit tester cannot be used to test this
item.

240 Hz

When vehicle parks.

Under 1.3V or
over 4.5V

42

B

Sensor ground

0V

On Board Diagnosis Logic

NHAT0279

Diagnostic trouble code

Malfunction is detected when ...

Check item (Possible cause)

: TURBINE REV

TCM does not receive the proper voltage
signal from the sensor.

I

Harness or connectors
(The sensor circuit is open or shorted.)

I

Power train revolution sensor

: 10th judgement flicker

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC POWER TRAIN REVOLUTION SENSOR

Description

AT-211

SAT014K

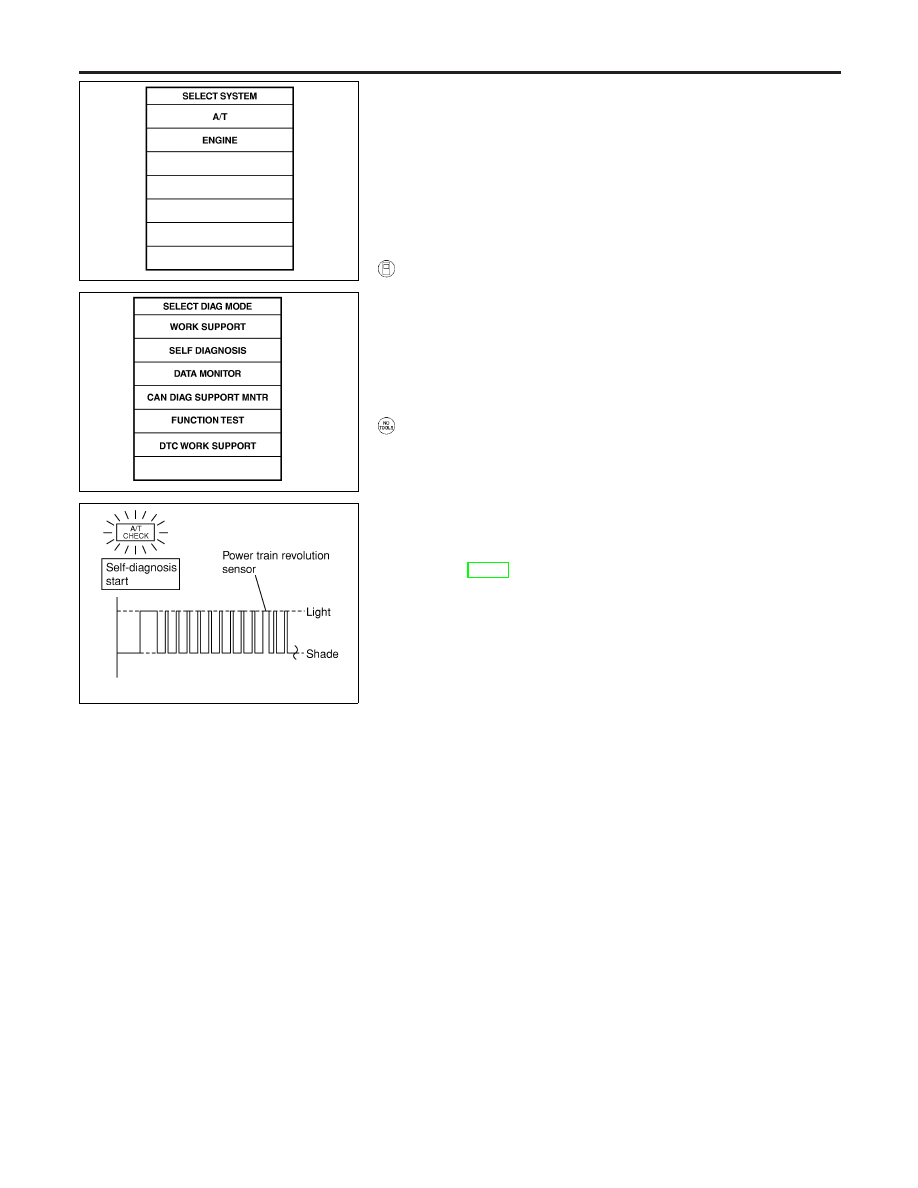

Diagnostic Trouble Code (DTC) Confirmation
Procedure

=NHAT0277

SAT860K

SAT552K

CAUTION:

I

Always drive vehicle at a safe speed.

I

If conducting this “DTC CONFIRMATION PROCEDURE”
again, always turn ignition switch “OFF” and wait at least
5 seconds before continuing.

After the repair, perform the following procedure to confirm the
malfunction is eliminated.

WITH CONSULT-II

NHAT0277S01

1)

Start engine.

2)

Select “DATA MONITOR” mode for “A/T” with CONSULT-II.

3)

Drive vehicle under the following conditions:
Selector lever in “D”, vehicle speed higher than 40 km/h (25
MPH), engine speed higher than 1,500 rpm, throttle opening
greater than 1.0/8 of the full throttle position and driving for
more than 5 seconds.

NO TOOLS

NHAT0277S02

1)

Start engine.

2)

Drive vehicle under the following conditions:
Selector lever in “D”, vehicle speed higher than 40 km/h (25
MPH), engine speed higher than 1,500 rpm, throttle opening
greater than 1.0/8 of the full throttle position and driving for
more than 5 seconds.

3)

Perform self-diagnosis.
Refer to AT-52, “TCM SELF-DIAGNOSTIC PROCEDURE (NO
TOOLS)”.

DTC POWER TRAIN REVOLUTION SENSOR

Diagnostic Trouble Code (DTC) Confirmation Procedure

AT-212
