Diagnostic Trouble Code (DTC) Confirmation
Procedure
NHAT0209
SAT860K
SAT014K
SEF949Y
CAUTION:
I
Always drive vehicle at a safe speed.
I
Be careful not to rev engine into the red zone on the
tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted,
always turn ignition switch OFF and wait at least 10 seconds before
conducting the next test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.
WITH CONSULT-II
NHAT0209S01
1)

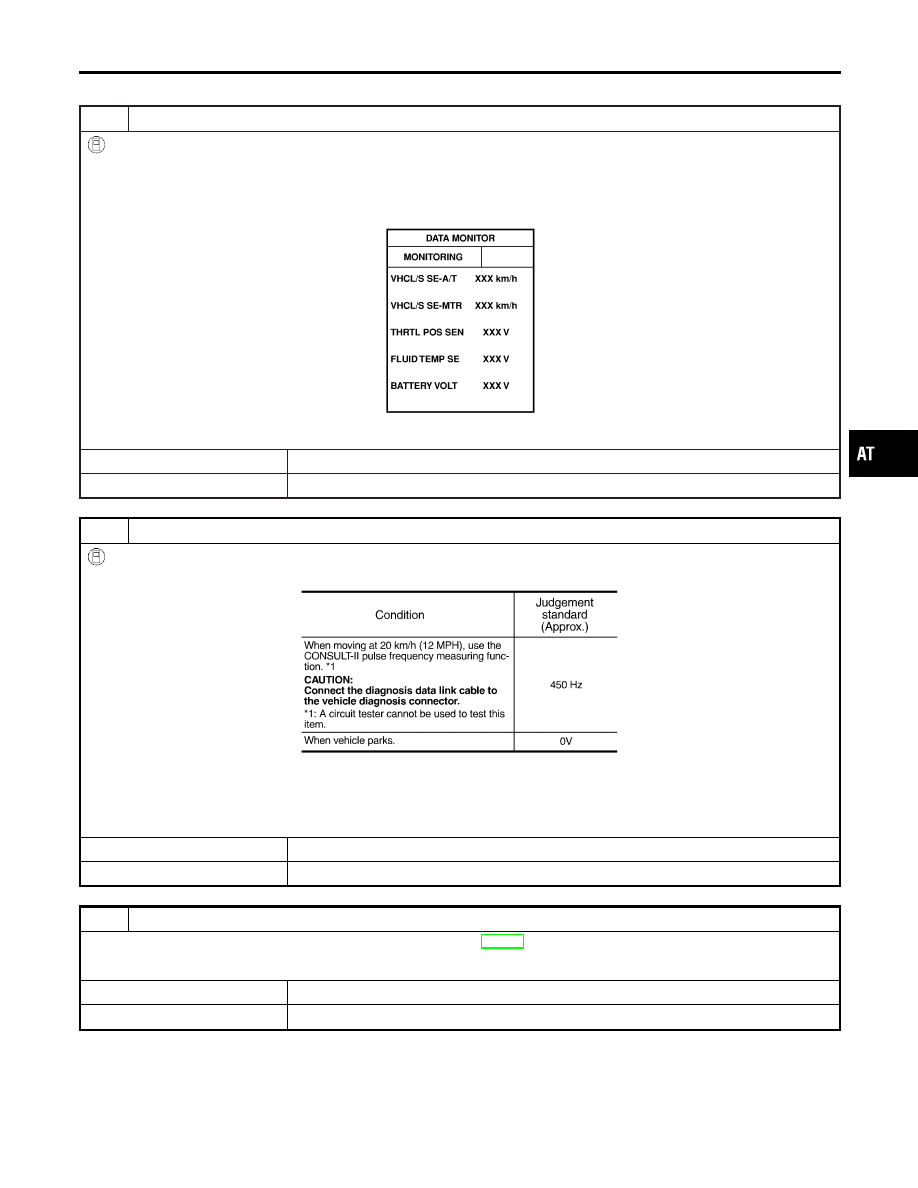

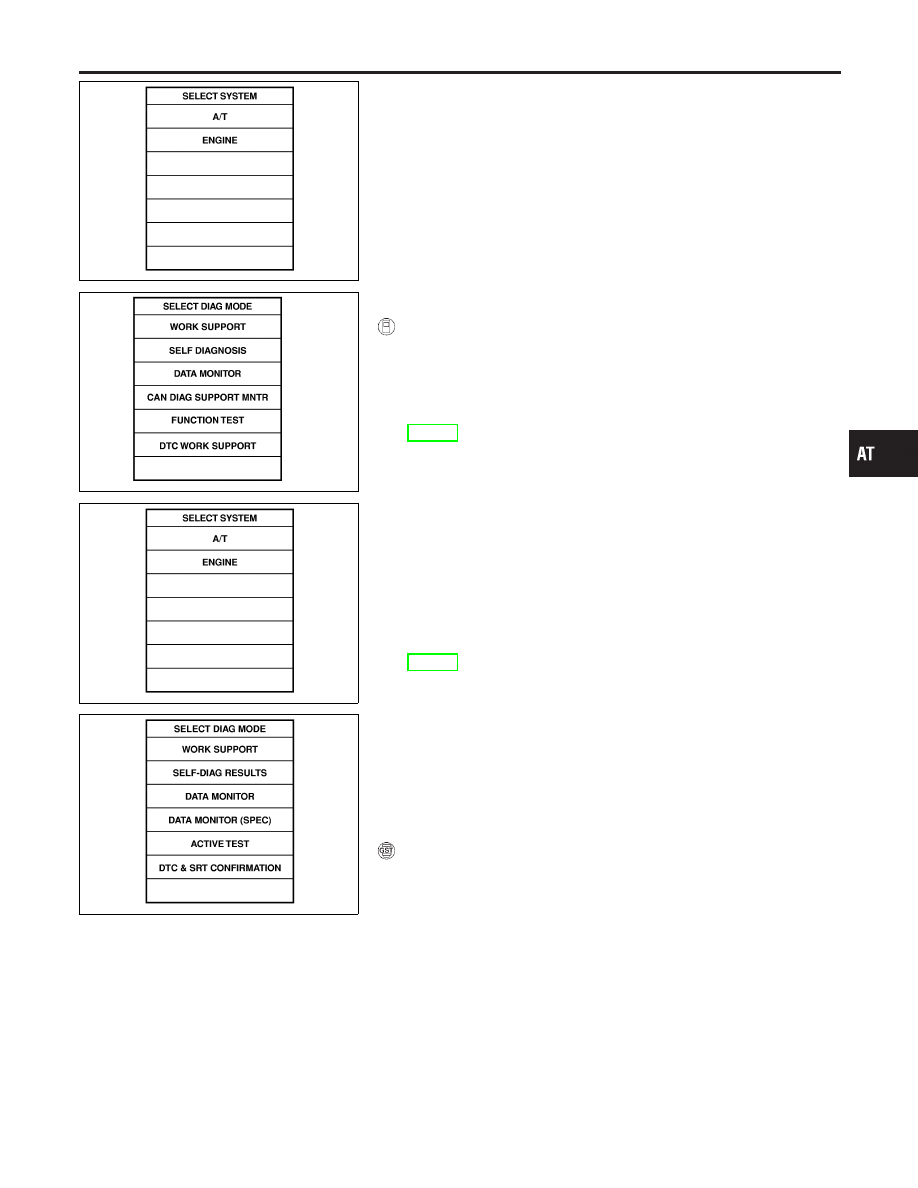

Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
2)
Drive vehicle and check for an increase of “VHCL/S SE·MTR”
value.
If the check result is NG, go to “DIAGNOSTIC PROCEDURE”,
AT-207.
If the check result is OK, go to following step.
3)
Select “DATA MONITOR” mode for “ENGINE” with CONSULT-
II.
4)
Start engine and maintain the following conditions for at least
5 consecutive seconds.
VHCL SPEED SE: 30 km/h (19 MPH) or more
THRTL POS SEN: More than 1.2V
Selector lever: D position
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
If the check result is NG, go to “DIAGNOSTIC PROCEDURE”,
AT-123.
If the check result is OK, go to following step.
5)
Maintain the following conditions for at least 5 consecutive
seconds.
CMPS·RPM (REF): 3,500 rpm or more
THRTL POS SEN: More than 1.2V
Selector lever: D position
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
WITH GST
NHAT0209S02
Follow the procedure “With CONSULT-II”.
GI
MA
EM
LC
EC
FE
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX

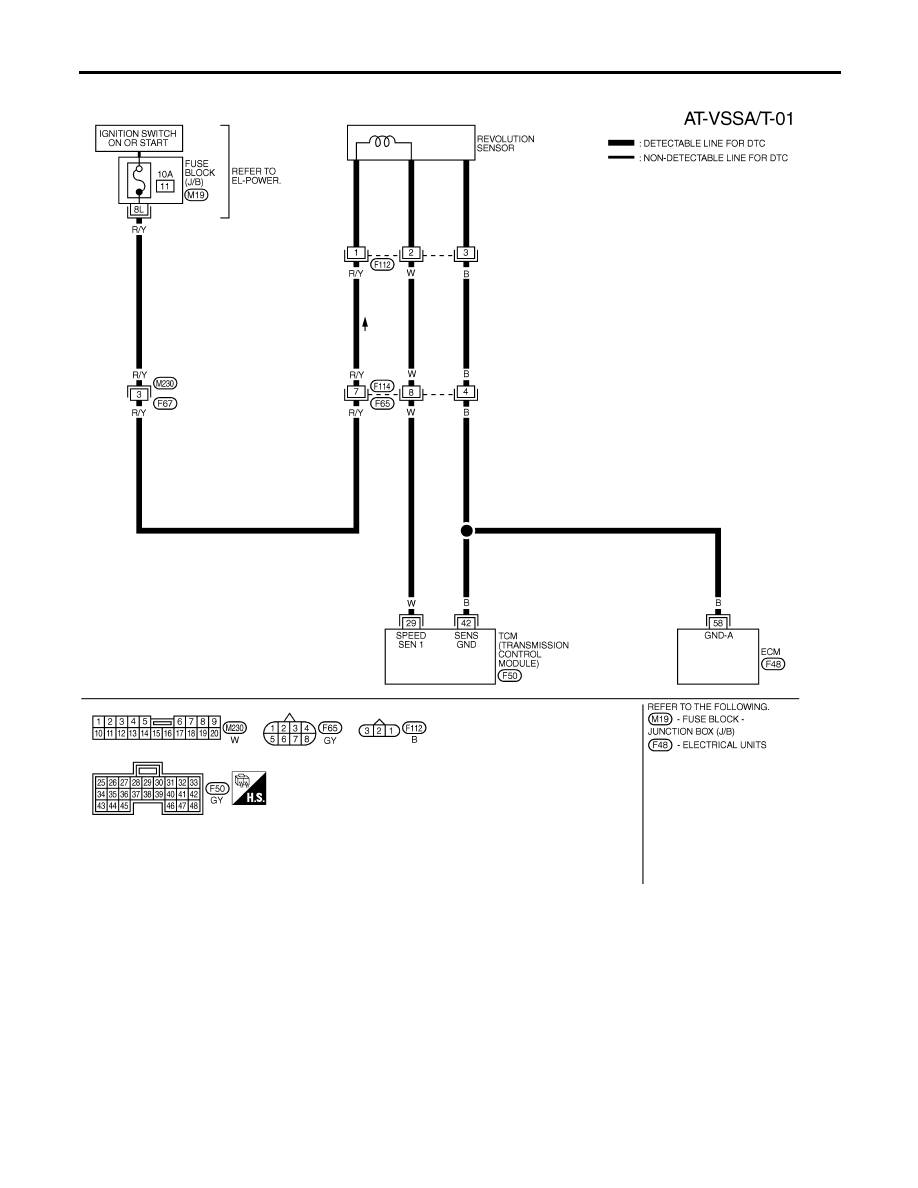

DTC P0720 VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)
Diagnostic Trouble Code (DTC) Confirmation Procedure
AT-121
