Infiniti I35 (A33). Manual - part 30





Diagnostic Procedure

=NHAT0039

1

INSPECTION START

Do you have CONSULT-II?

Yes or No

Yes

©

GO TO 2.

No

©

GO TO 6.

2

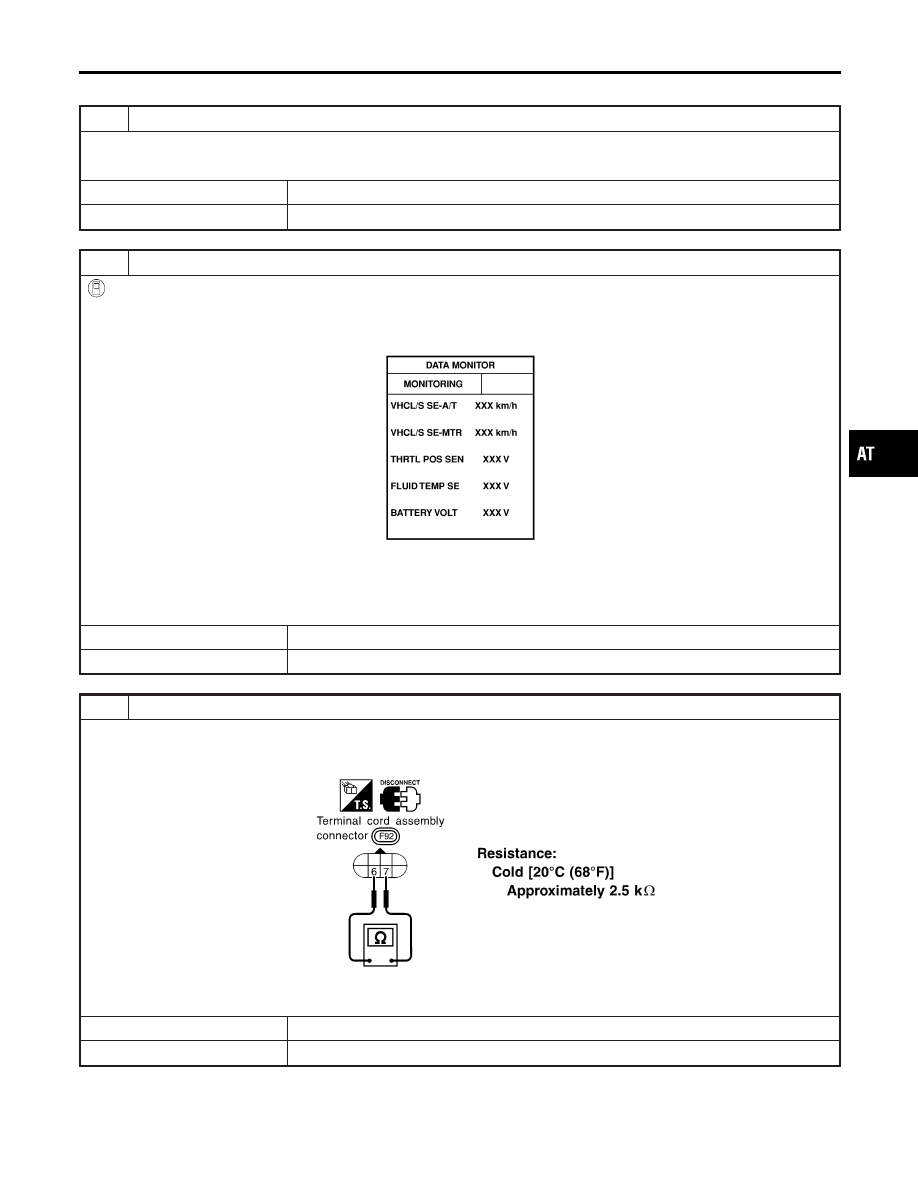

CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (With CONSULT-II)

With CONSULT-II

1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “FLUID TEMP SE”.

SAT614J

Voltage:

Cold [20°C (68°F)]

Hot [80°C (176°F)]:

Approximately 1.5V

0.5V

OK or NG

OK

©

GO TO 7.

NG

©

GO TO 3.

3

CHECK A/T FLUID TEMPERATURE SENSOR WITH TERMINAL CORD ASSEMBLY

1. Turn ignition switch to OFF position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminals 6 (G) and 7 (B) when A/T is cold.

SAT616JA

4. Reinstall any part removed.

OK or NG

OK

©

GO TO 4.

NG

©

GO TO 5.

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

Diagnostic Procedure

AT-117

4

DETECT MALFUNCTIONING ITEM

Check the following items:

I

Harness for short to ground or short to power or open between TCM, ECM and terminal cord assembly

I

Ground circuit for ECM
Refer to EC-153, “TROUBLE DIAGNOSIS FOR POWER SUPPLY”.

OK or NG

OK

©

GO TO 7.

NG

©

Repair or replace damaged parts.

5

DETECT MALFUNCTIONING ITEM

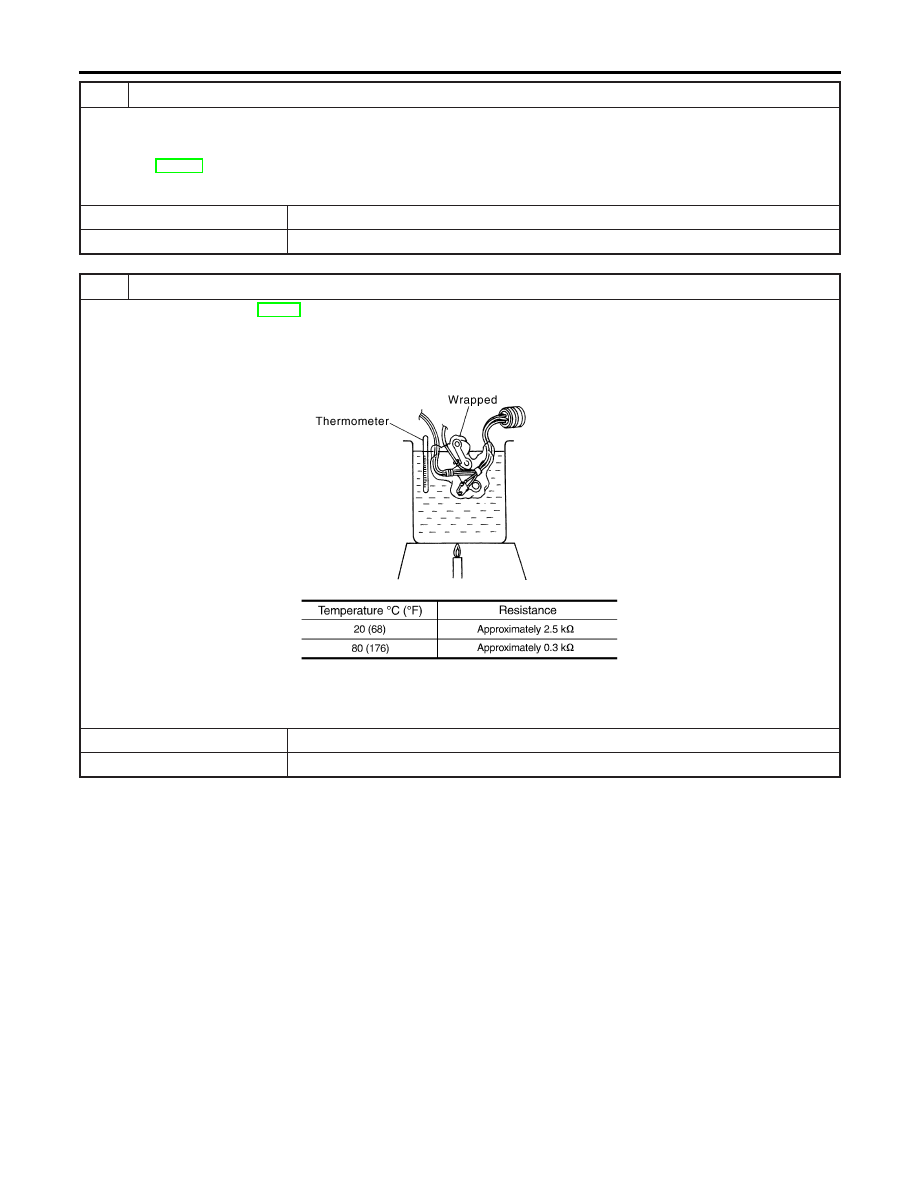

1. Remove oil pan, refer to AT-282.
2. Check the following items:

I

A/T fluid temperature sensor
Check resistance between A/T fluid temperature sensor harness connector F92 terminals 6 (G) and 7 (B) while chang-
ing temperature as shown at below.

SAT821K

MTBL0210

I

Harness of terminal cord assembly for short or open

OK or NG

OK

©

GO TO 7.

NG

©

Repair or replace damaged parts.

DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

Diagnostic Procedure (Cont’d)

AT-118

6

CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (Without CONSULT-II)

Without CONSULT-II

1. Start engine.

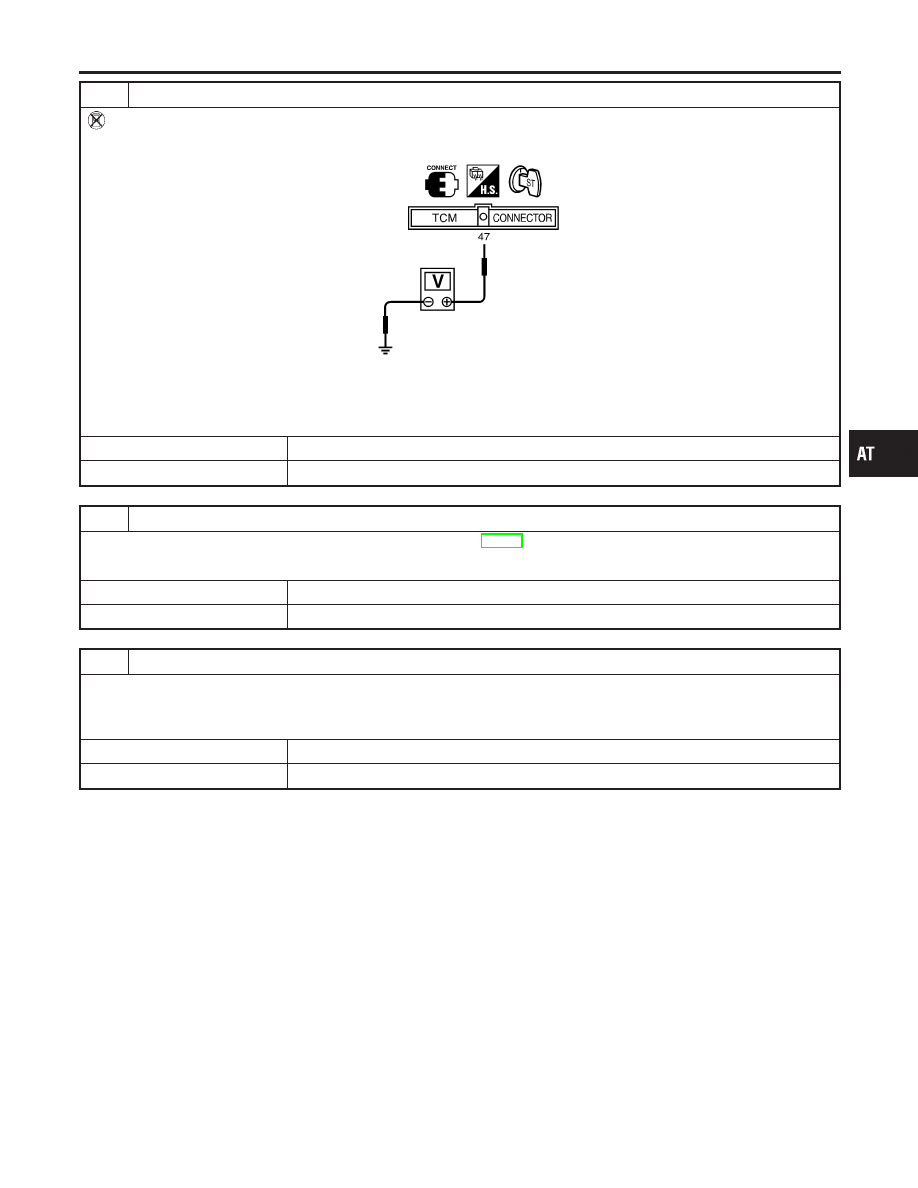

2. Check voltage between TCM harness connector F50 terminal 47 (G) and ground while warming up A/T.

SAT335JA

Voltage:

Cold [20°C (68°F)]

Hot [80°C (176°F)]:

Approximately 1.5V

0.5V

OK or NG

OK

©

GO TO 7.

NG

©

GO TO 3.

7

CHECK DTC

Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-115.

OK or NG

OK

©

INSPECTION END

NG

©

GO TO 8.

8

CHECK TCM INSPECTION

1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

©

INSPECTION END

NG

©

Repair or replace damaged parts.

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

Diagnostic Procedure (Cont’d)

AT-119

SAT644J

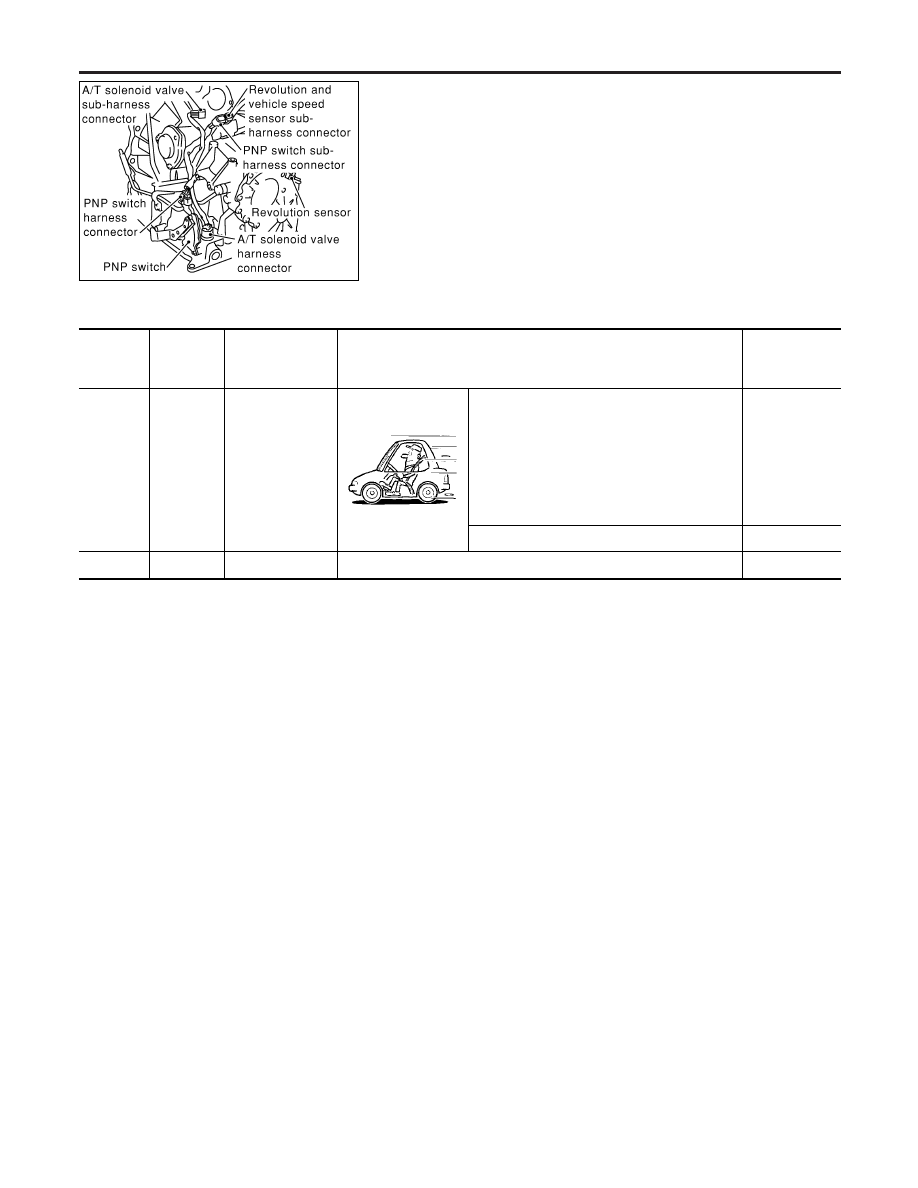

Description

NHAT0040

The revolution sensor detects the revolution of the idler gear park-
ing pawl lock gear and emits a pulse signal. The pulse signal is sent
to the TCM which converts it into vehicle speed.

TCM TERMINALS AND REFERENCE VALUE

NHAT0040S01

Remarks: Specification data are reference values.

Terminal

No.

Wire color

Item

Condition

Judgement

standard

(Approx.)

29

W

Revolution
sensor

When moving at 20 km/h (12 MPH), use the
CONSULT-II pulse frequency measuring func-
tion.*1

CAUTION:

Connect the diagnosis data link cable to
the vehicle diagnosis connector.
*1: A circuit tester cannot be used to test this
item.

450 Hz

When vehicle parks.

0V

42

B

Sensor ground

0V

On Board Diagnosis Logic

NHAT0207

Diagnostic trouble code VEH SPD SEN/CIR AT with CONSULT-II
or P0720 without CONSULT-II is detected when TCM does not
receive the proper voltage signal from the sensor.

Possible Cause

NHAT0208

Check the following items.

I

Harness or connectors
(The sensor circuit is open or shorted.)

I

Revolution sensor

DTC P0720 VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)

Description

AT-120
