Infiniti I35 (A33). Manual - part 19





5

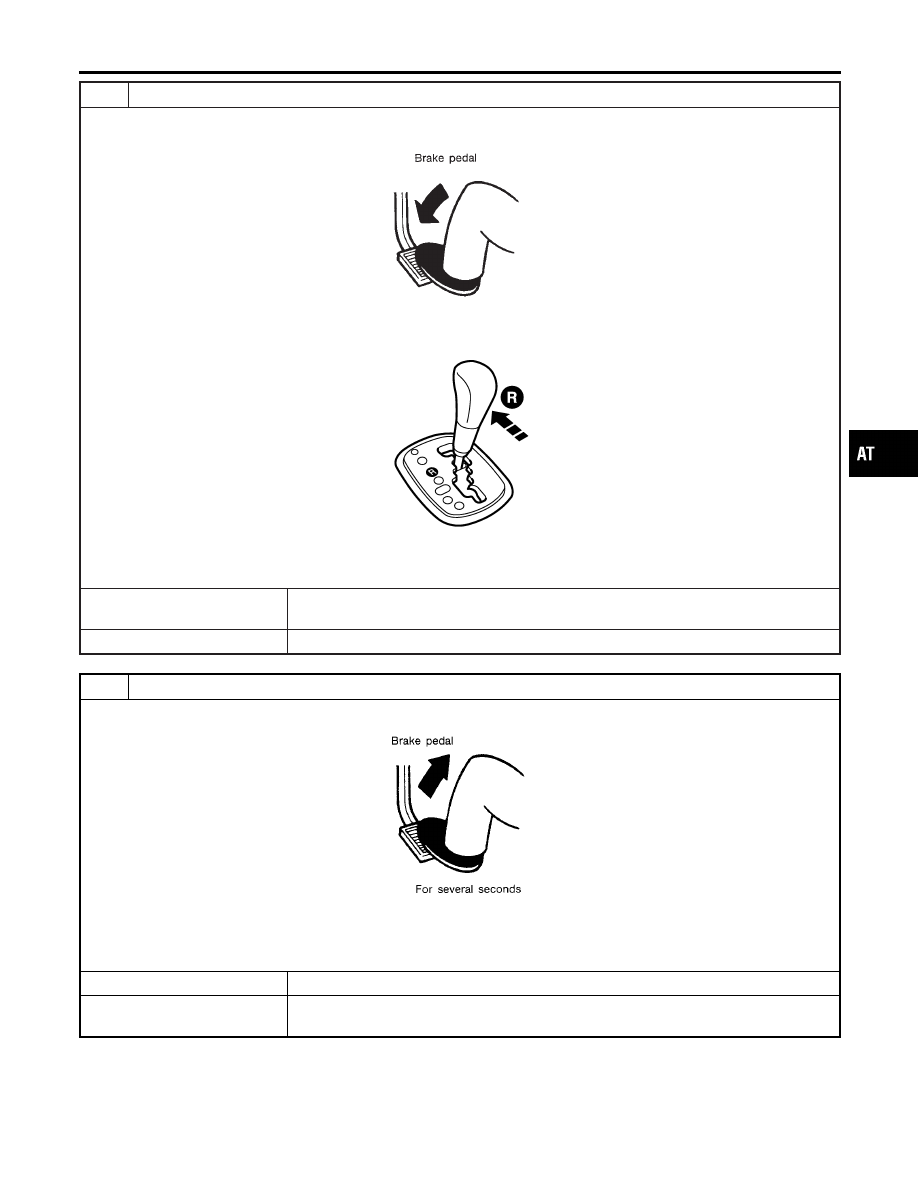

CHECK SHIFT SHOCK

1. Apply foot brake.

SAT797A

2. Move selector lever to R position.

SAT506K

3. Is there large shock when changing from N to R position?

Yes or No

Yes

©

Mark the box of “Large Shock N

,

R Position” on the DIAGNOSTIC WORKSHEET.

Continue ROAD TEST.

No

©

GO TO 6.

6

CHECK VEHICLE MOVE

1. Release foot brake for several seconds.

SAT799A

2. Does vehicle creep backward when foot brake is released?

Yes or No

Yes

©

GO TO 7.

No

©

Mark the box of “Vehicle Does Not Creep Backward In R Position” on the DIAGNOSTIC
WORKSHEET. Continue ROAD TEST.

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — BASIC INSPECTION

Road Test (Cont’d)

AT-73

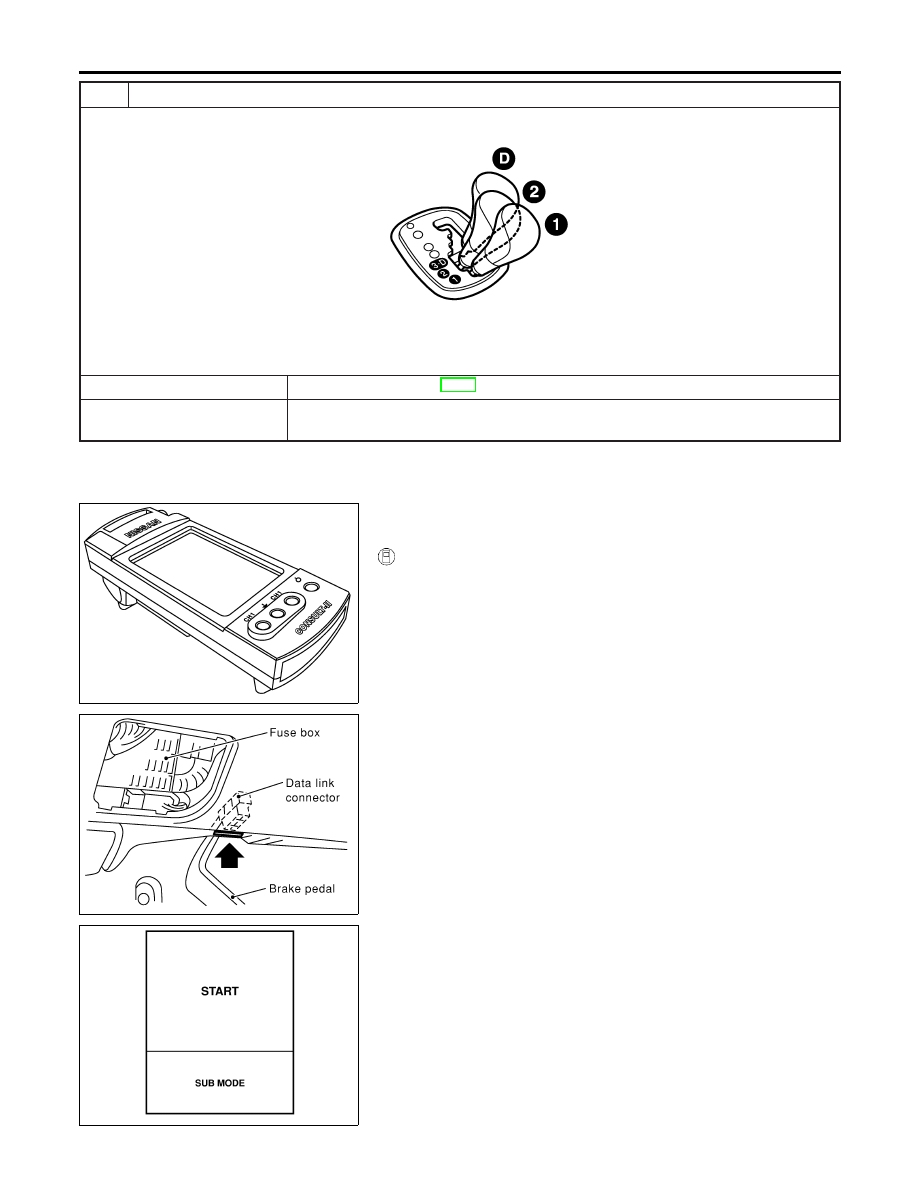

7

CHECK VEHICLE MOVE

1. Move selector lever to D, 2nd and 1st positions and check if vehicle creeps forward.

SAT507K

2. Does vehicle creep forward in all three positions?

Yes or No

Yes

©

Go to 3. CRUISE TEST, AT-74.

No

©

Mark the box of “Vehicle Does Not Creep Forward In D, 2nd Or 1st Position” on the
DIAGNOSTIC WORKSHEET. Continue ROAD TEST.

SAT601J

3. CRUISE TEST

NHAT0029S04

I

Check all items listed in Parts 1 through 3.

With CONSULT-II

NHAT0029S0401

I

Using CONSULT-II, conduct a cruise test and record the result.

I

Print the result and ensure that shifts and lock-ups take place
as per Shift Schedule.

SAT585J

CONSULT-II Setting Procedure

NHAT0029S0402

1.

Turn ignition switch OFF.

2.

Connect CONSULT-II and CONSULT-II CONVERTER to data
link connector, which is located in left side dash panel.

SAT586J

3.

Turn ignition switch ON.

4.

Touch “START”.

TROUBLE DIAGNOSIS — BASIC INSPECTION

Road Test (Cont’d)

AT-74

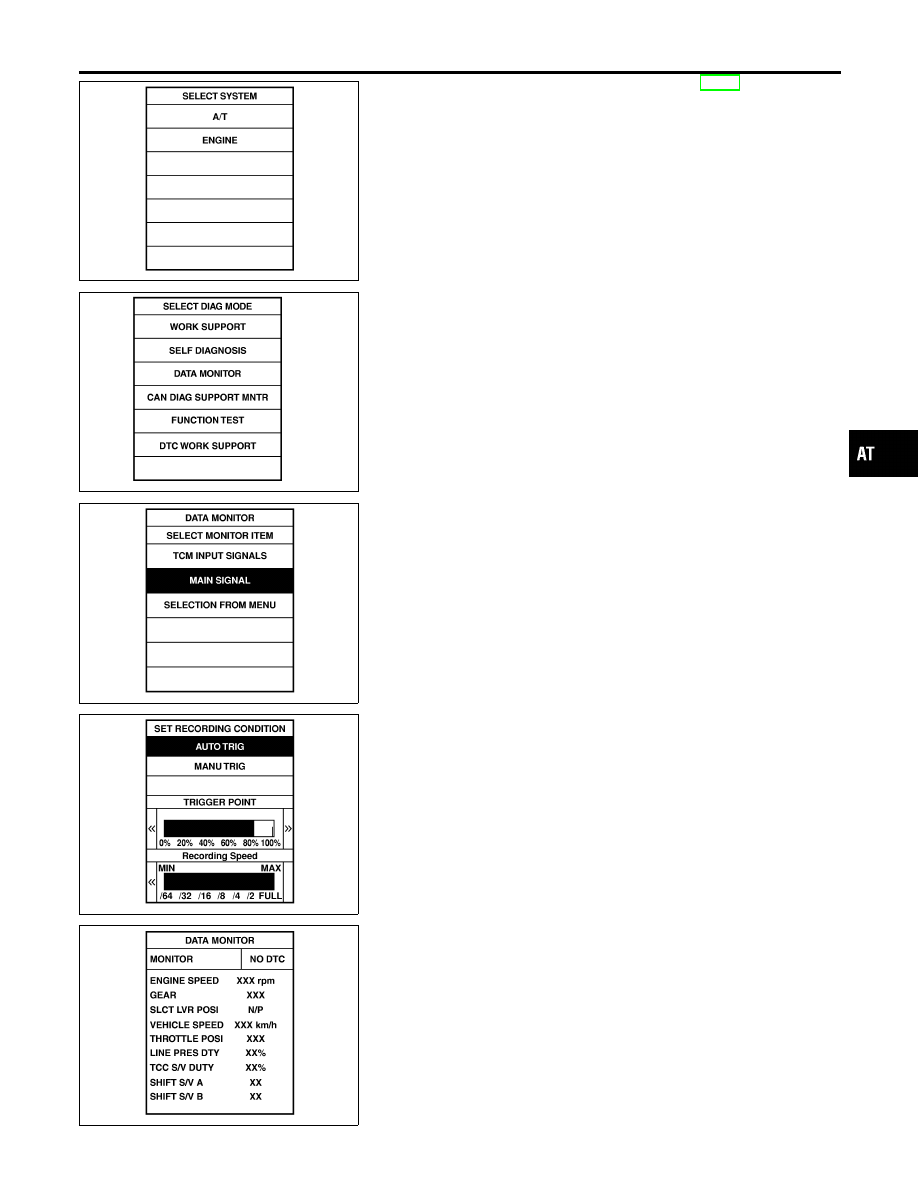

SAT014K

5.

Touch “A/T”. If “A/T” is not indicated, go to GI-42, “CONSULT-II
Data Link Connector (DLC) Circuit”.

SAT860K

6.

Touch “DATA MONITOR”.

SAT175K

7.

Touch “MAIN SIGNALS” or “TCM INPUT SIGNALS”.

8.

See “Numerical Display”, “Barchart Display” or “Line Graph
Display”.

SAT973J

9.

Touch “SETTING” to set recording condition (“AUTO TRIG” or
“MANU TRIG”) and touch “BACK”.

10. Touch “Start”.

SAT134K

11. When performing cruise test, touch “RECORD”.

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — BASIC INSPECTION

Road Test (Cont’d)

AT-75

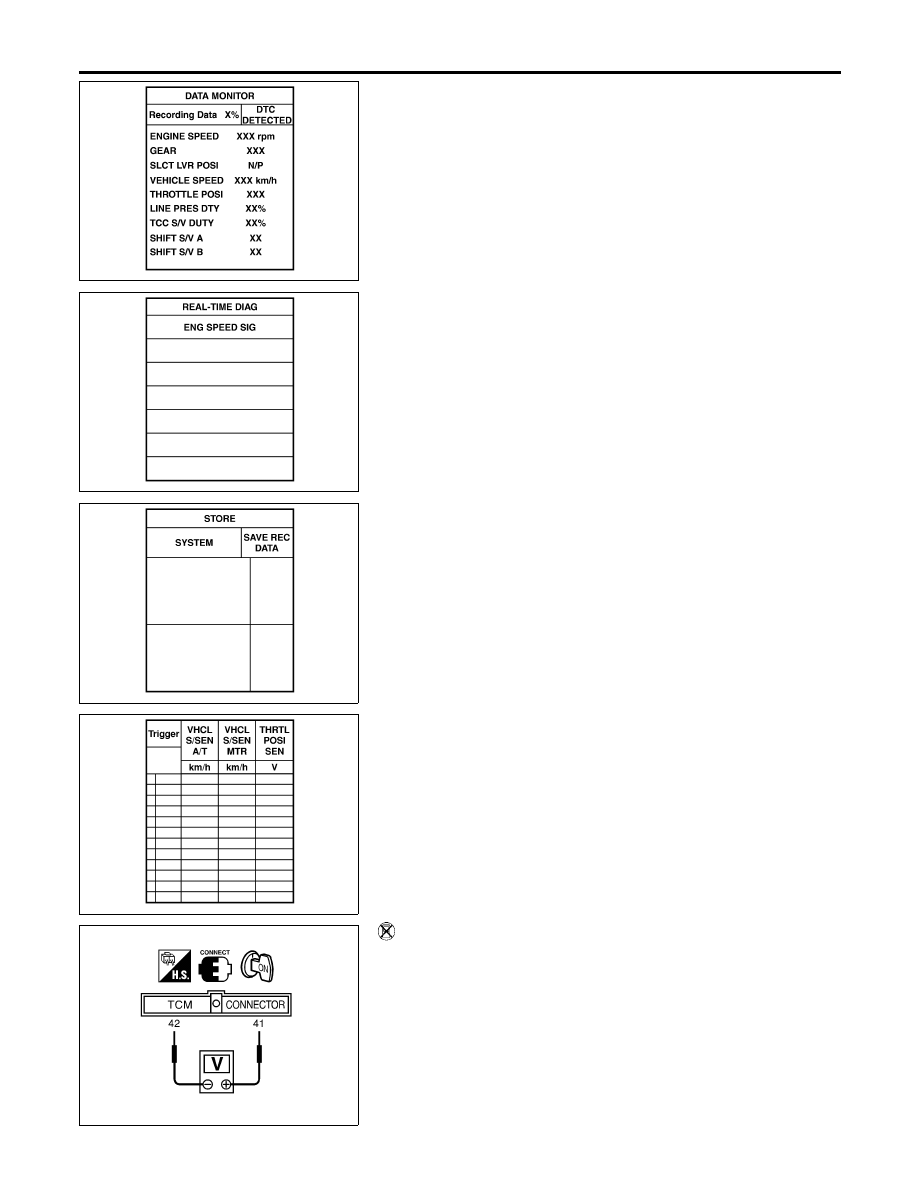

SAT135K

12. After finishing cruise test part 1, touch “STOP”.

SAT987J

SAT974J

13. Touch “STORE” and touch “BACK”.

SAT975J

14. Touch “DISPLAY”.
15. Touch “PRINT”.
16. Check the monitor data printed out.
17. Continue cruise test part 2 and 3.

SAT331JB

Without CONSULT-II

NHAT0029S0403

I

Accelerator pedal position sensor can be checked by voltage
between terminals 41 (W) and 42 (B) of TCM.

TROUBLE DIAGNOSIS — BASIC INSPECTION

Road Test (Cont’d)

AT-76
