Infiniti I35 (A33). Manual - part 12





Item

Display

Selection monitor item

Description

Remarks

TCM

INPUT

SIGNALS

MAIN

SIGNALS

SELEC-

TION

FROM
MENU

2 position switch

2 POSITION
SW
[ON/OFF]

X

H

I

ON/OFF status, com-
puted from signal of 2
position switch, is dis-
played.

1 position switch

1 POSITION
SW
[ON/OFF]

X

H

I

ON/OFF status, com-
puted from signal of 1
position switch, is dis-
played.

ASCD cruise signal

ASCD-CRUISE
[ON/OFF]

X

H

I

Status of ASCD
cruise signal is dis-
played.
ON ... Cruising state
OFF ... Normal run-
ning state

This is displayed even
when no ASCD is
mounted.

ASCD OD cut signal

ASCD-OD CUT
[ON/OFF]

X

H

I

Status of ASCD OD
release signal is dis-
played.
ON ... OD released
OFF ... OD not
released

This is displayed even
when no ASCD is
mounted.

Kickdown switch

KICKDOWN
SW
[ON/OFF]

X

H

I

ON/OFF status, com-
puted from signal of
kickdown switch, is
displayed.

This is displayed even
when no kickdown
switch is equipped.

A/T mode switch

POWER SHIFT
SW
[ON/OFF]

X

H

Not mounted but dis-
played.

Closed throttle position
signal

CLOSED
THL/SW
[ON/OFF]

X

H

I

ON/OFF status, com-
puted from signal of
closed throttle posi-
tion signal, is dis-
played.

This means closed
throttle position signal
input via CAN communi-
cation line.

Wide open throttle posi-
tion signal

W/O THRL/
P-SW
[ON/OFF]

X

H

I

ON/OFF status, com-
puted from signal of
wide open throttle
position signal, is dis-
played.

This means wide open
throttle position signal
input via CAN communi-
cation line.

Shift solenoid valve A

*SHIFT S/V A
[ON/OFF]

H

I

Displays status of
check signal (re-input
signal) for TCM con-
trol signal output.
Remains unchanged
when solenoid valves
are open or shorted.

Shift solenoid valve B

*SHIFT S/V B
[ON/OFF]

H

Overrun clutch solenoid
valve

*OVRRUN/C
S/V
[ON/OFF]

H

A/T mode switch

HOLD SW
[ON/OFF]

X

H

Not mounted but dis-
played.

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

CONSULT-II (Cont’d)

AT-45

Item

Display

Selection monitor item

Description

Remarks

TCM

INPUT

SIGNALS

MAIN

SIGNALS

SELEC-

TION

FROM
MENU

Stop lamp switch

BRAKE SW
[ON/OFF]

X

H

I

ON/OFF status is dis-
played.
ON ... Brake pedal is
depressed.
OFF ... Brake pedal is
released.

Gear position

GEAR

X

H

I

Gear position data
used for computation
by TCM, is displayed.

Selector lever position

SLCT LVR
POSI

X

H

I

Selector lever position
data, used for compu-
tation by TCM, is dis-
played.

A specific value used for
control is displayed if
fail-safe is activated due
to error.

Vehicle speed

VEHICLE
SPEED
[km/h] or [mph]

X

H

I

Vehicle speed data,
used for computation
by TCM, is displayed.

Throttle position

THROTTLE
POSI
[/8]

X

H

I

Throttle position data,
used for computation
by TCM, is displayed.

A specific value used for
control is displayed if
fail-safe is activated due
to error.

Line pressure duty

LINE PRES
DTY
[%]

X

H

I

Control value of line
pressure solenoid
valve, computed by
TCM from each input
signal, is displayed.

Torque converter clutch
solenoid valve duty

TCC S/V DUTY
[%]

X

H

I

Control value of
torque converter
clutch solenoid valve,
computed by TCM
from each input
signal, is displayed.

Shift solenoid valve A

SHIFT S/V A
[ON/OFF]

X

H

I

Control value of shift
solenoid valve A,
computed by TCM
from each input
signal, is displayed.

Control value of sole-
noid is displayed even if
solenoid circuit is dis-
connected.
The “OFF” signal is dis-
played if solenoid circuit
is shorted.

Shift solenoid valve B

SHIFT S/V B
[ON/OFF]

X

H

I

Control value of shift
solenoid valve B,
computed by TCM
from each input
signal, is displayed.

Overrun clutch solenoid
valve

OVERRUN/C
S/V
[ON/OFF]

X

H

I

Control value of over-
run clutch solenoid
valve computed by
TCM from each input
signal is displayed.

Self-diagnosis display
lamp
(A/T CHECK indicator
lamp)

SELF-D DP
LMP
[ON/OFF]

X

H

I

Control status of A/T
CHECK indicator
lamp is displayed.

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

CONSULT-II (Cont’d)

AT-46

Item

Display

Selection monitor item

Description

Remarks

TCM

INPUT

SIGNALS

MAIN

SIGNALS

SELEC-

TION

FROM
MENU

Torque converter slip
ratio

TC SLIP RATIO
[0.000]

H

I

Ratio of engine revo-
lution to input shaft
revolution of torque
converter

Torque converter slip
speed

TC SLIP
SPEED
[rpm]

H

I

Difference in revolu-
tion between input
shaft revolution and
input shaft revolution
of torque converter

Display doesn’t indicate
0 rpm even if engine is
stopped.
But this isn’t malfunc-
tion.

Voltage

Voltage
[V]

H

I

Value measured by
voltage probe is dis-
played.

Frequency

Frequency
[Hz]

H

I

Value measured by
pulse probe is dis-
played. If measure-
ment is impossible,
“#” sign is displayed.
“#” sign is also dis-
played at the final
data value until the
measurement result is
obtained.

Duty cycle (high)

DUTY-HI
[%]

H

I

Duty cycle value for
measurement probe
is displayed.

Duty cycle (low)

DUTY-LOW
[%]

H

Plus width (high)

PLS WIDTH-HI
[msec]

H

I

Measured pulse width
of measurement
probe is displayed.

Plus width (low)

PLS WIDTH-
LOW
[msec]

H

X: Applicable

—: Not applicable

H

: Option

SAT585J

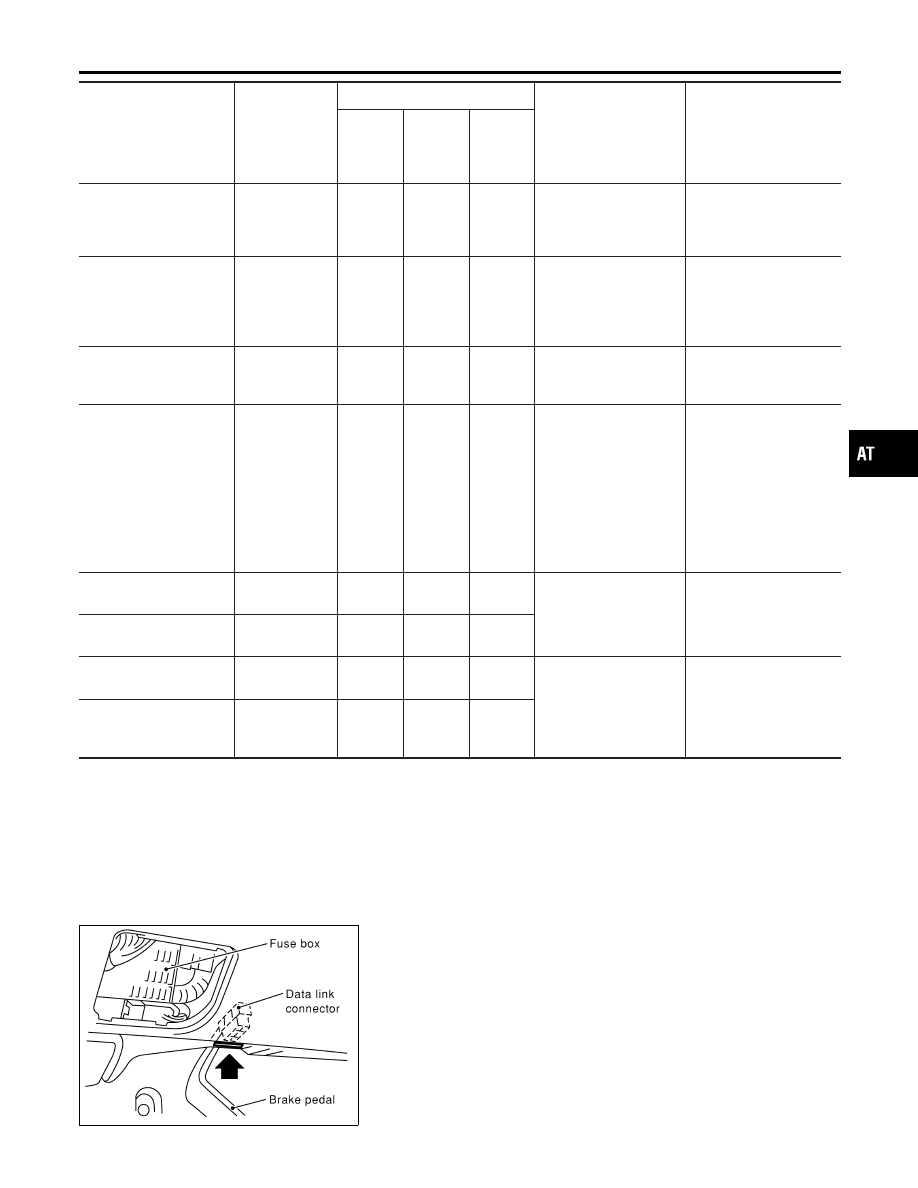

DTC WORK SUPPORT MODE WITH CONSULT-II

NHAT0022S04

CONSULT-II Setting Procedure

NHAT0022S0401

1.

Turn ignition switch OFF.

2.

Connect CONSULT-II and CONSULT-II CONVERTER to Data
link connector, which is located in left side dash panel.

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

CONSULT-II (Cont’d)

AT-47

SAT586J

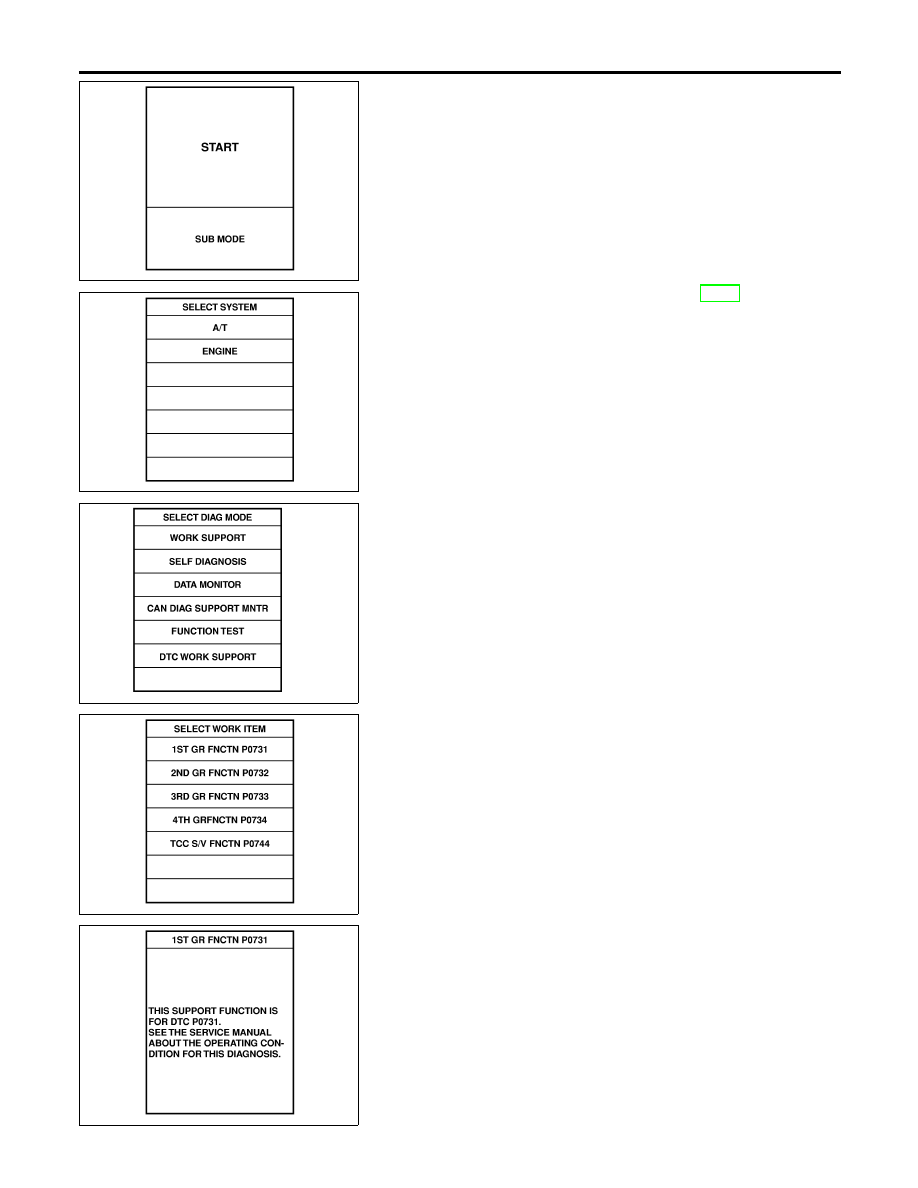

3.

Turn ignition switch ON.

4.

Touch “START”.

SAT014K

5.

Touch “A/T”. If “A/T” is not indicated, go to GI-42, “CONSULT-II
Data Link Connector (DLC) Circuit”.

SAT860K

6.

Touch “DTC WORK SUPPORT”.

SAT018K

7.

Touch select item menu (1ST, 2ND, etc.).

SAT589J

8.

Touch “START”.

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

CONSULT-II (Cont’d)

AT-48
