ENGINE AND EMISSION CONTROL OVERALL SYSTEM

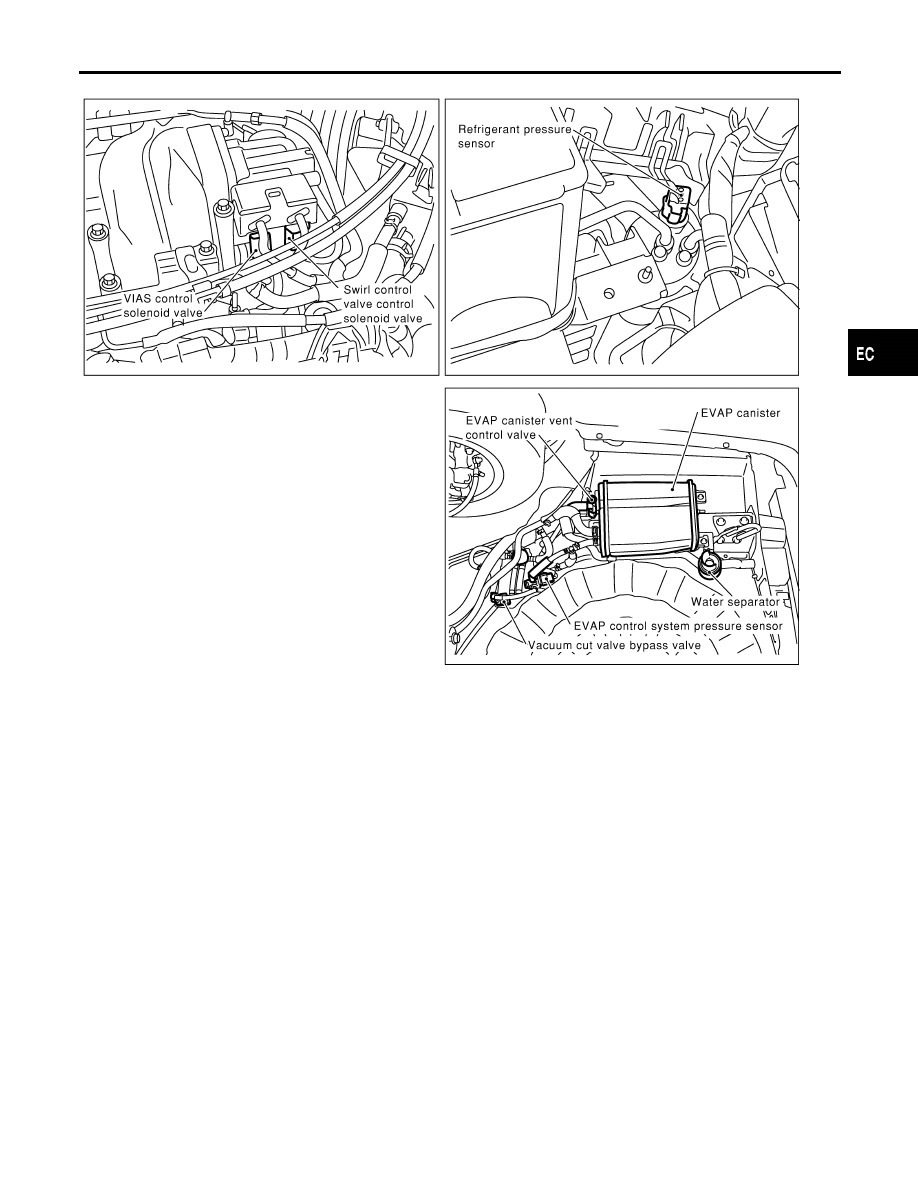

Engine Control Component Parts Location (Cont’d)

EC-23

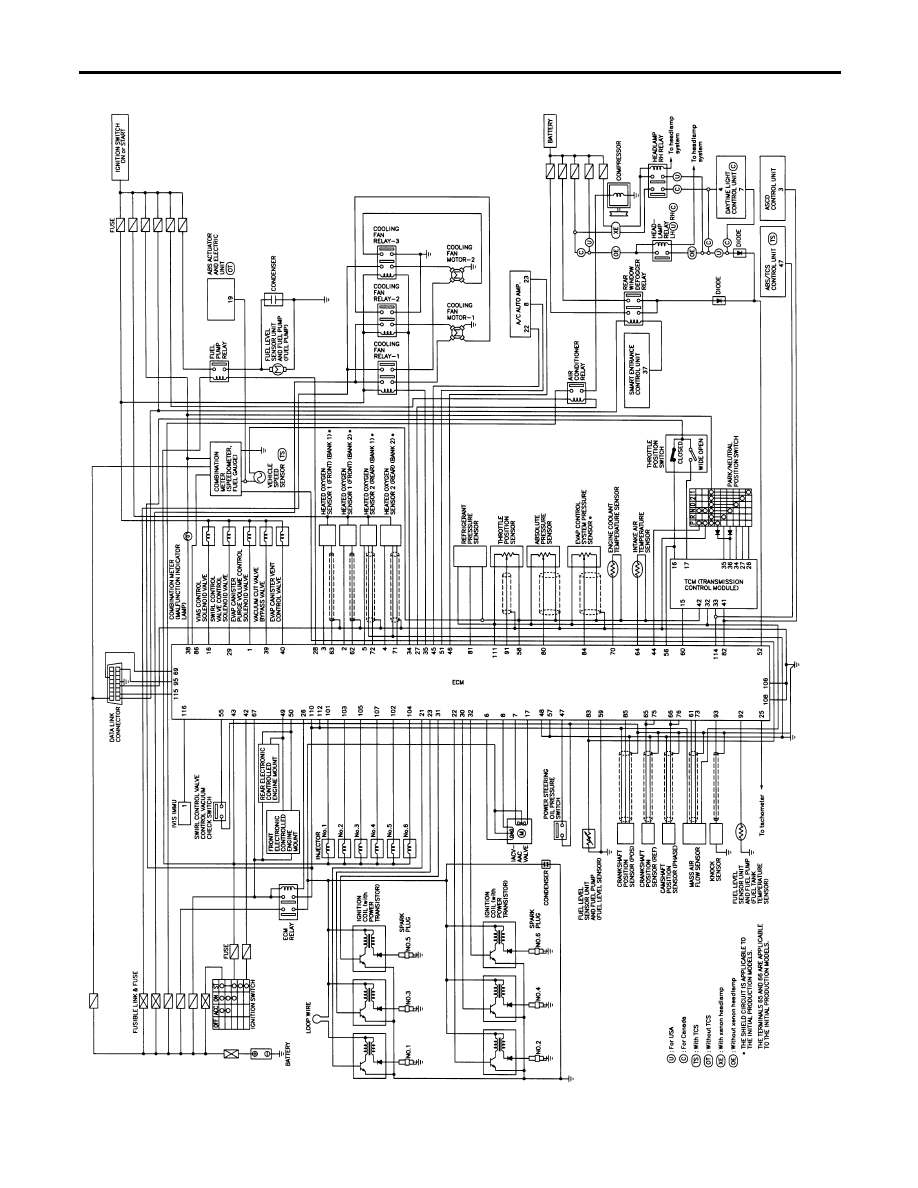

Circuit Diagram

NHEC0010

MEC359D

ENGINE AND EMISSION CONTROL OVERALL SYSTEM

Circuit Diagram

EC-24

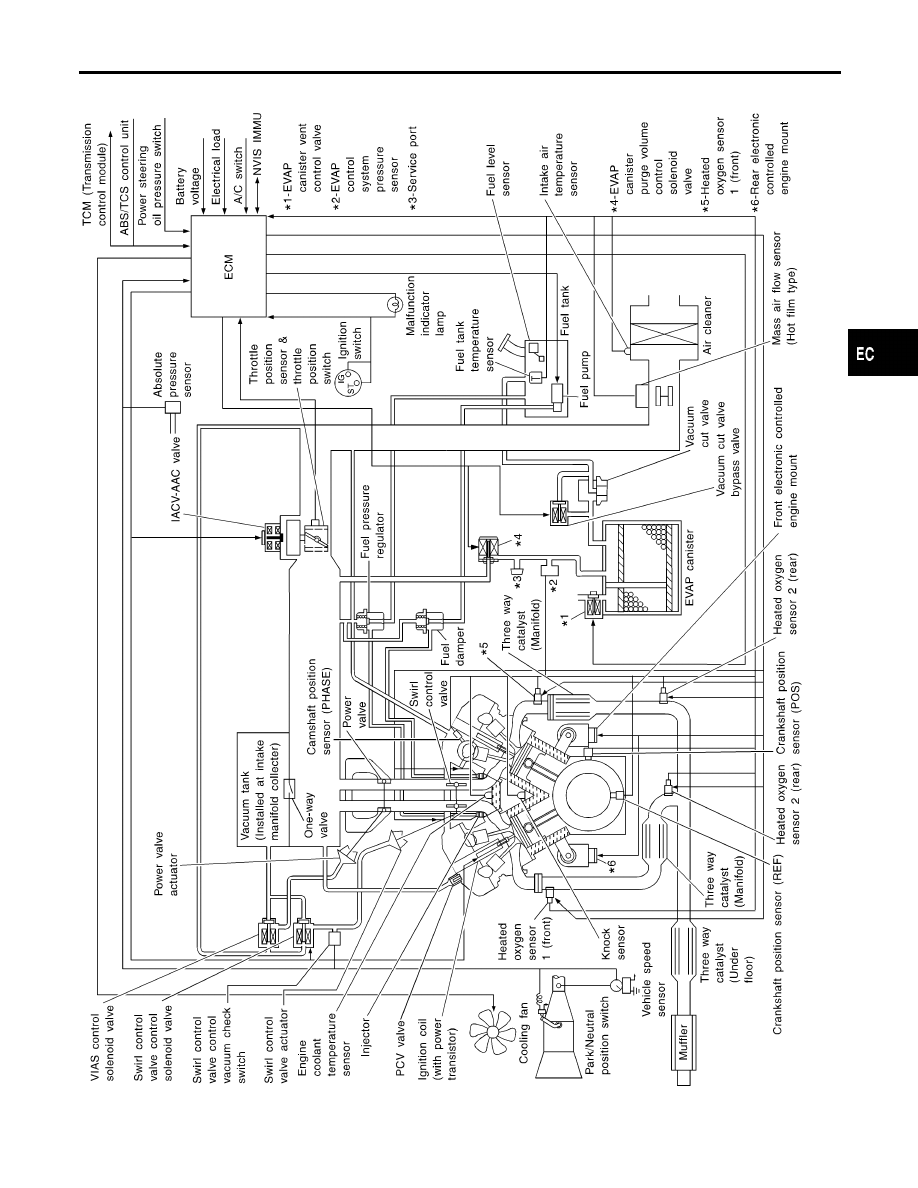

System Diagram

NHEC0011

SEF994Z

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ENGINE AND EMISSION CONTROL OVERALL SYSTEM

System Diagram

EC-25

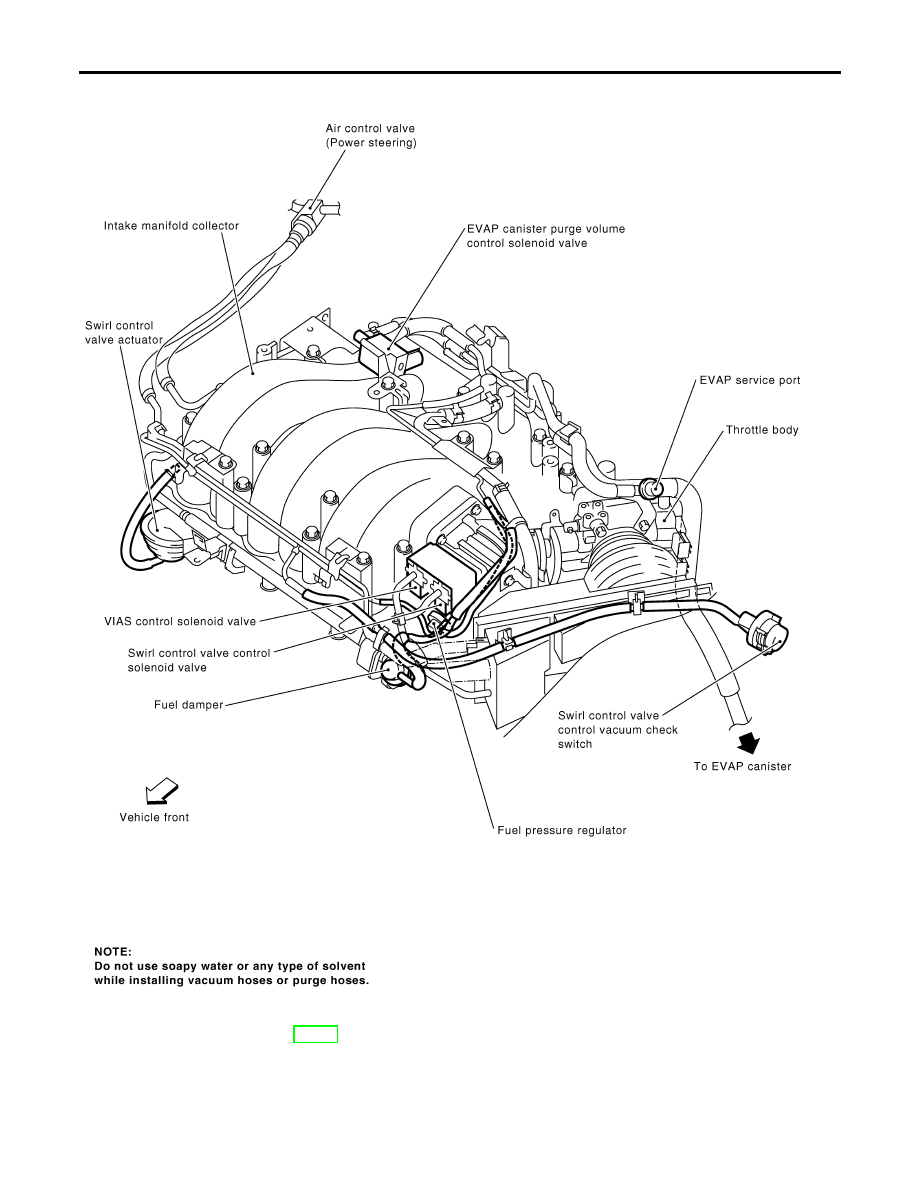

Vacuum Hose Drawing

NHEC0012

SEF995Z

Refer to “System Diagram”, EC-25 for Vacuum Control System.

ENGINE AND EMISSION CONTROL OVERALL SYSTEM

Vacuum Hose Drawing

EC-26
