POWER SUPPLY ROUTING CIRCUIT

PG-27

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWA0879GB

PG-28

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

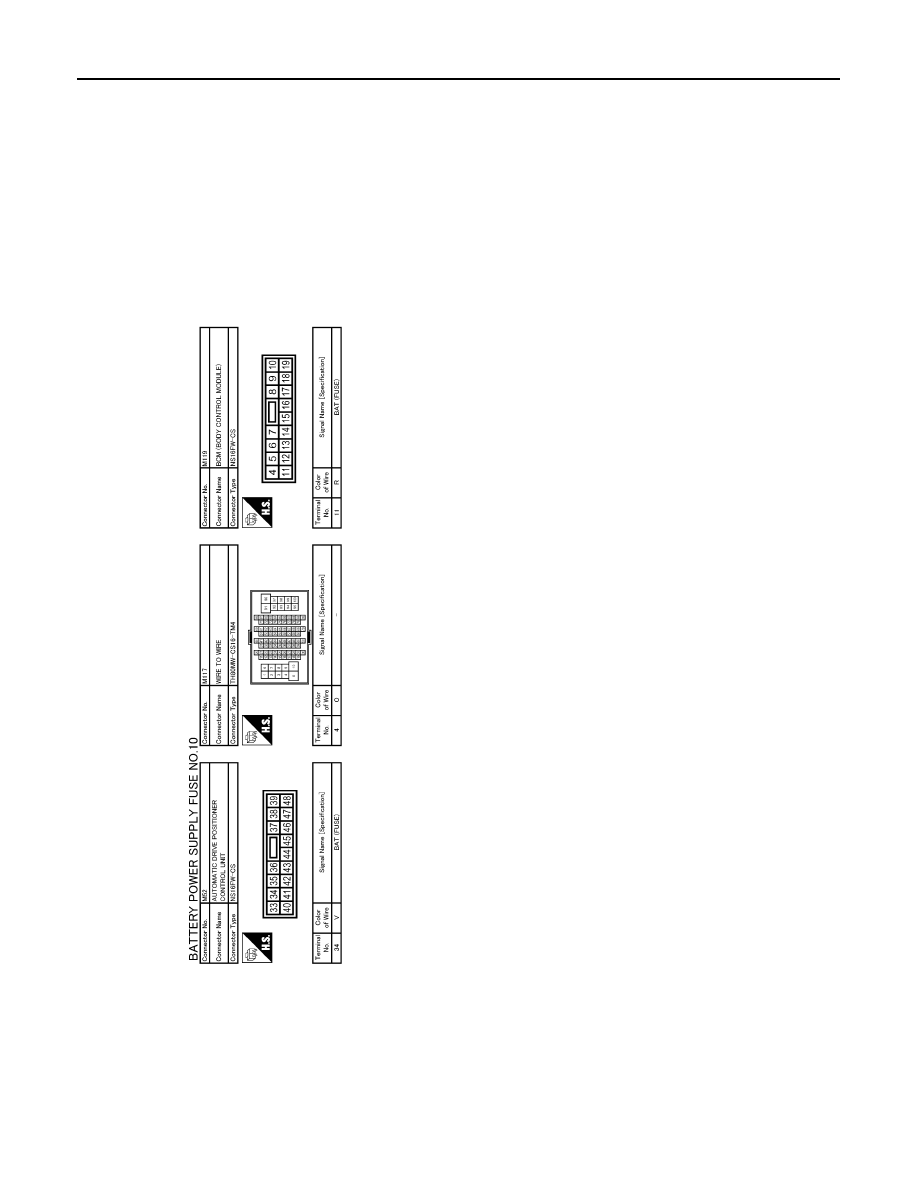

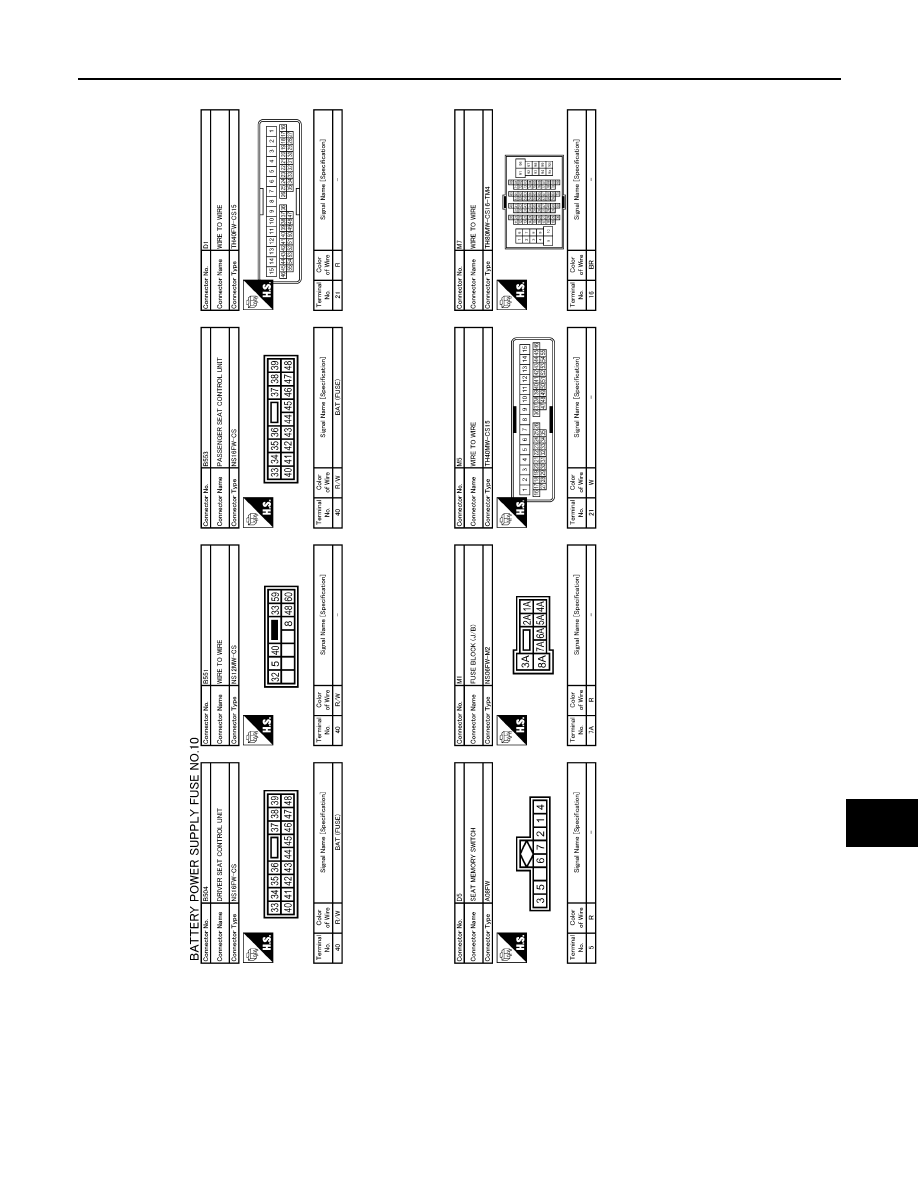

POWER SUPPLY ROUTING CIRCUIT

JCMWA0880GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-29

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

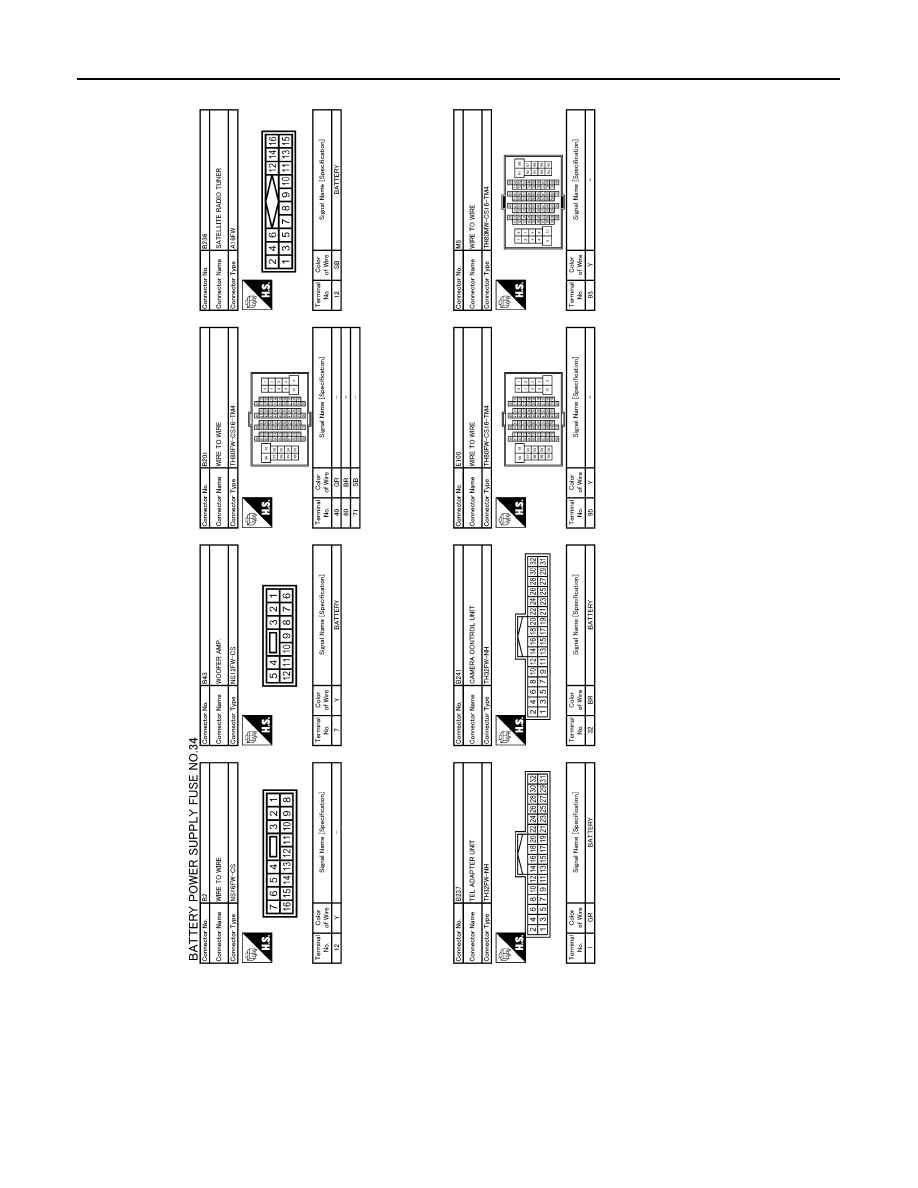

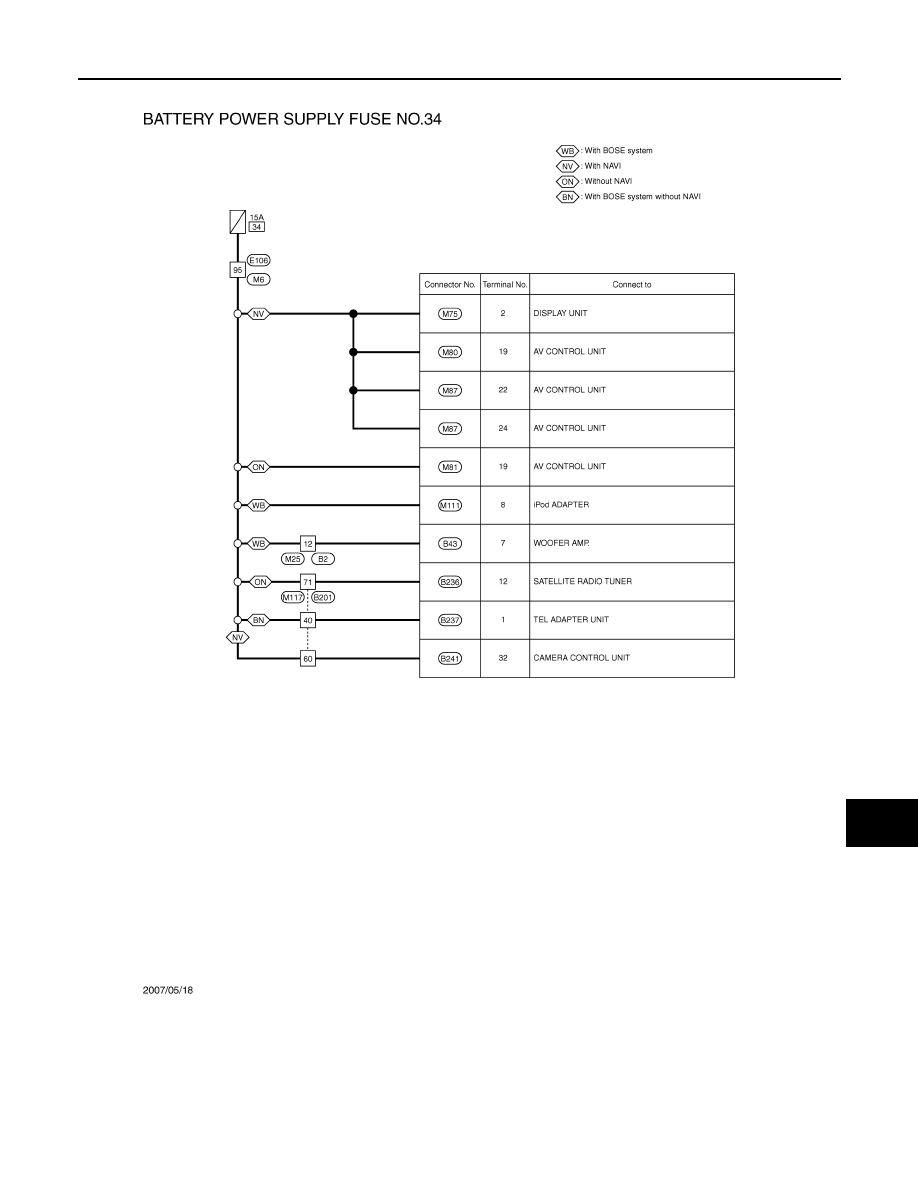

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 34 -

INFOID:0000000001841341

JCMWA0881GB

PG-30

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

JCMWA0882GB
