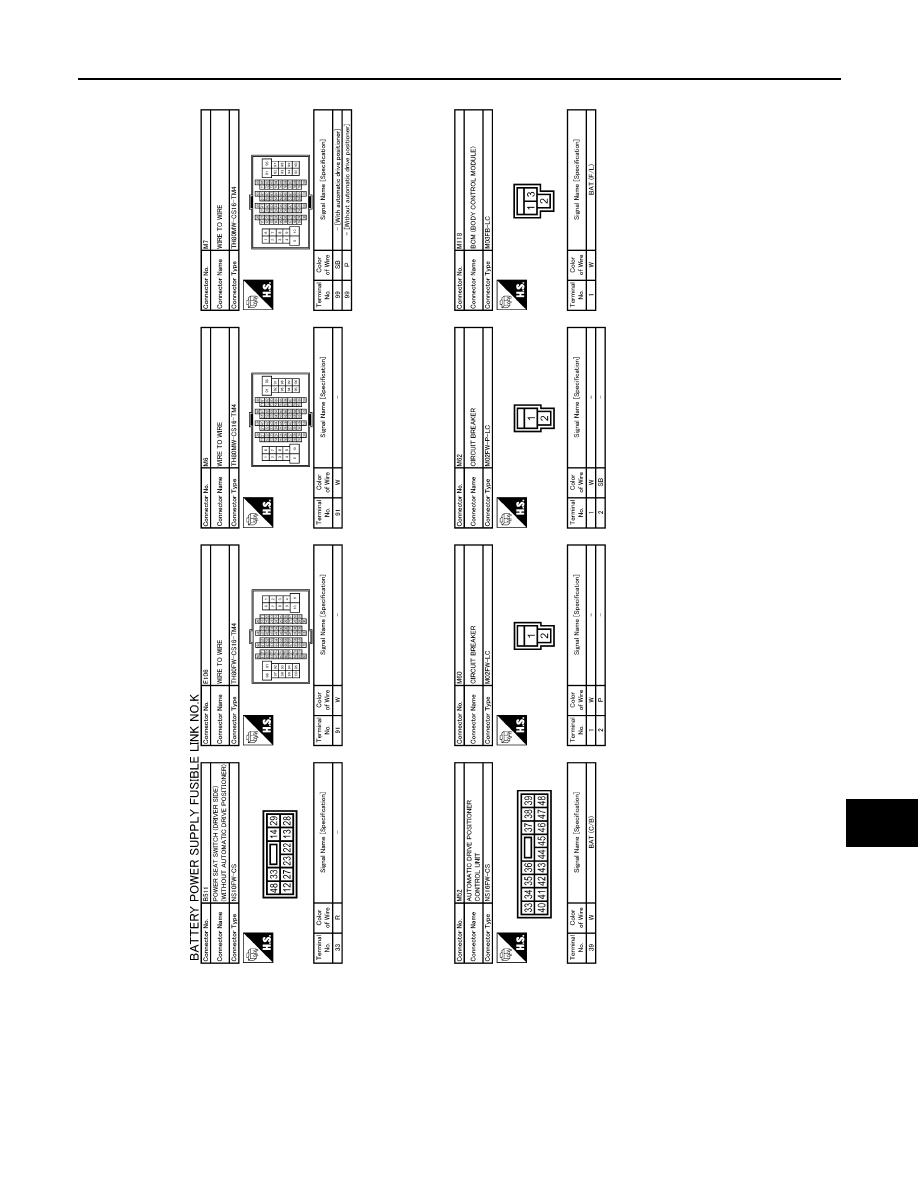

Wiring Diagram - BATTERY POWER SUPPLY FUSIBLE LINK No. K -

INFOID:0000000001841335

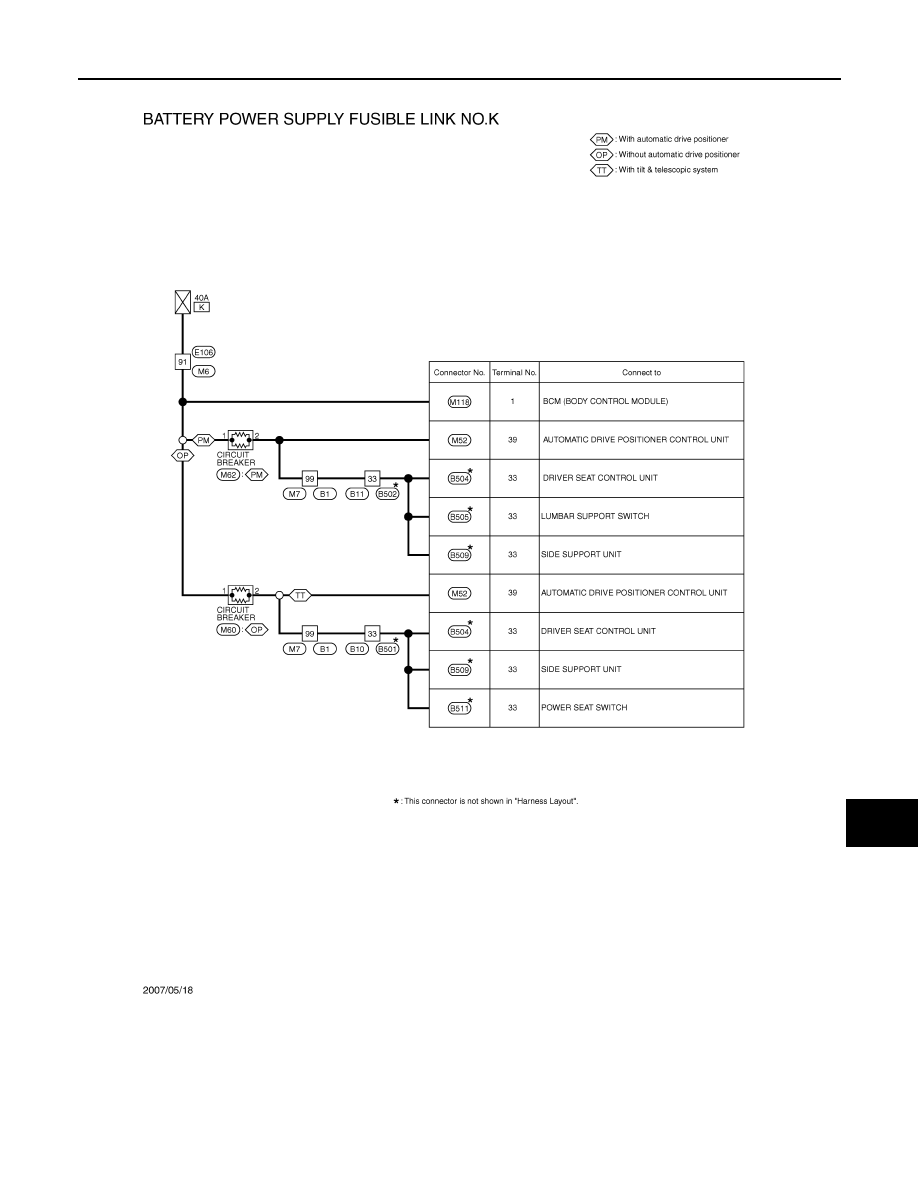

JCMWA0869GB

PG-16

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

JCMWA0870GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-17

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

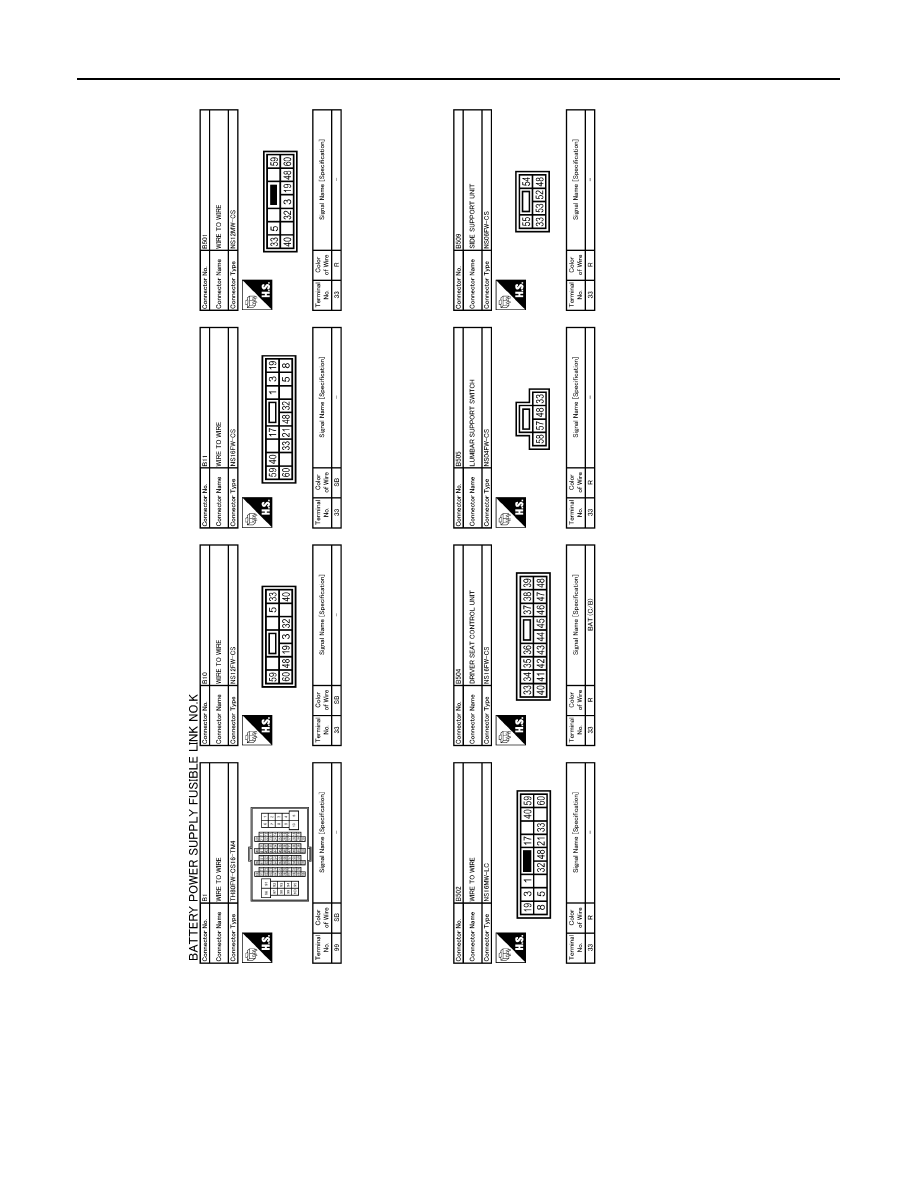

JCMWA0871GB

PG-18

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 6 -

INFOID:0000000001841337

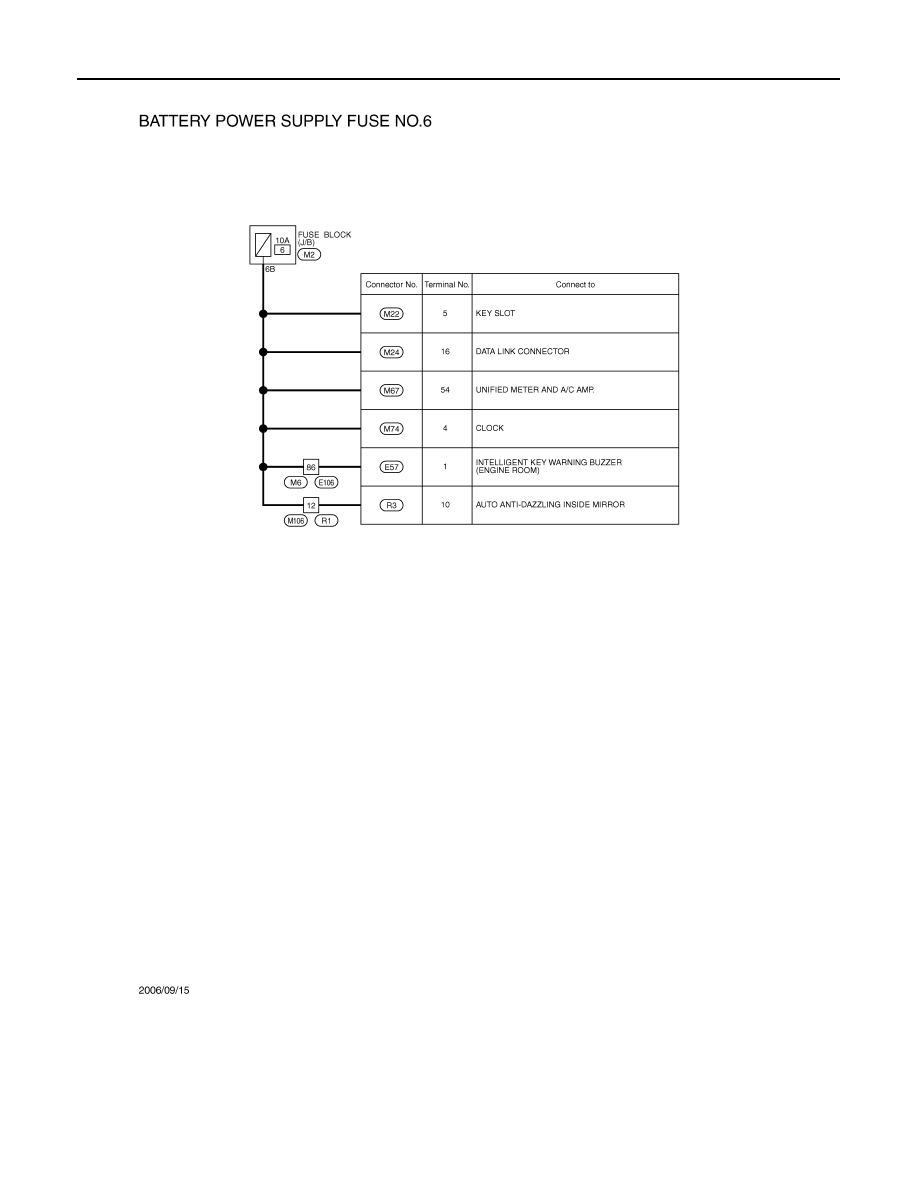

JCMWA0049GB
