PARKING BRAKE SYSTEM

PB-5

< ON-VEHICLE MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

Never reuse the adjusting nut if the nut is removed.

c.

Operate the parking brake lever with a force of 196 N (20 kg, 44lb). Check that the lever stroke is within
the specified number of notches. (Check it by listening to the clicks of the ratchet.)

d.

Rotate the disc rotor with the parking brake lever released and check that there is no drag.

Standard

Number of notches

: Refer to

PB-12, "Parking Brake Control"

PB-6

< ON-VEHICLE MAINTENANCE >

PARKING BRAKE SHOE

PARKING BRAKE SHOE

Inspection

INFOID:0000000001647901

Rotate the disc rotor and check for any drag.

PARKING BRAKE CONTROL

PB-7

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

ON-VEHICLE REPAIR

PARKING BRAKE CONTROL

PEDAL TYPE

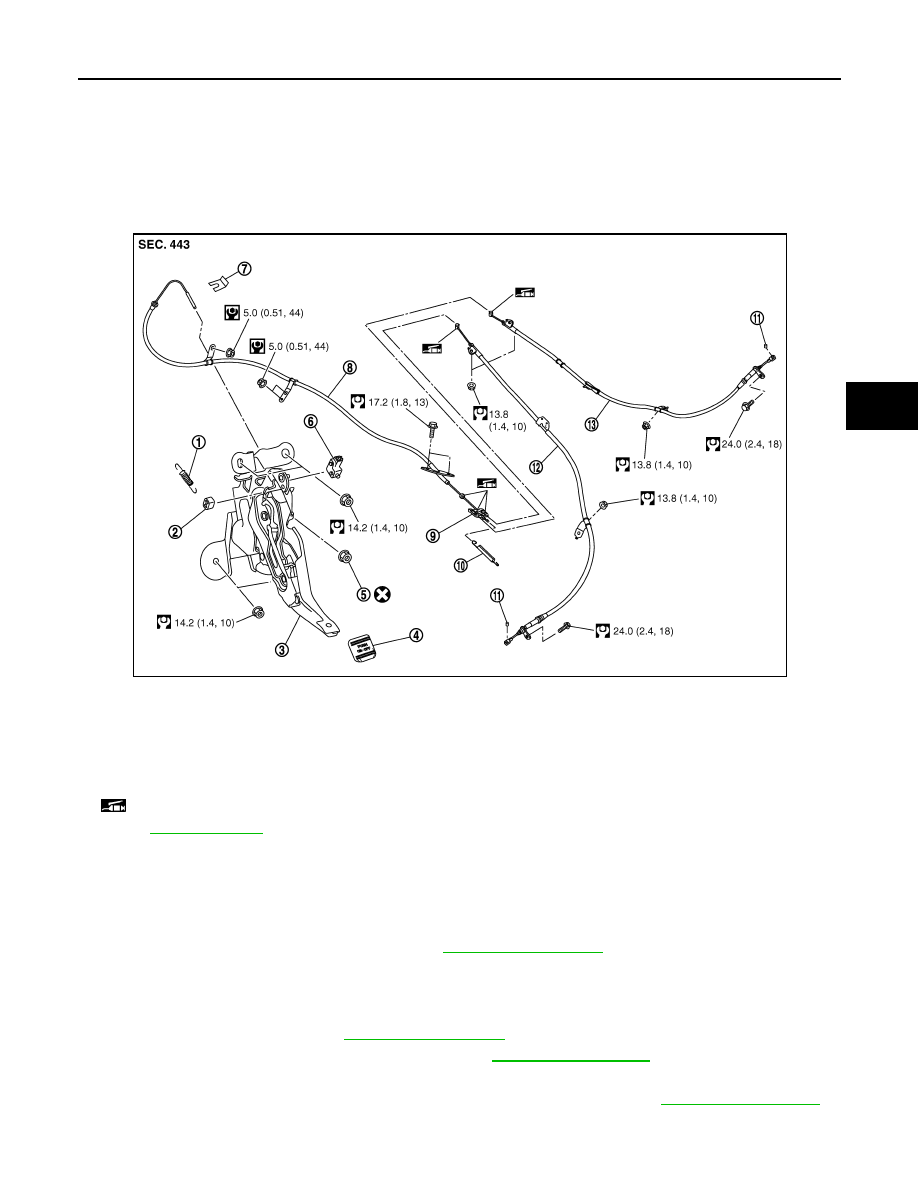

PEDAL TYPE : Exploded View

INFOID:0000000001647902

PEDAL TYPE : Removal and Installation

INFOID:0000000001647903

REMOVAL

1.

Remove rear tires with power tool.

2.

Remove instrument driver lower panel. Refer to

IP-11, "Exploded View"

.

3.

Disconnect parking brake switch harness connector.

4.

Remove adjusting nut and loosen front cable.

5.

Remove device assembly.

6.

Remove center console. Refer to

IP-23, "Exploded View"

.

7.

Remove the heat insulator and center muffler. Refer to

EX-5, "Exploded View"

.

8.

Separate front cable from rear cable, and remove front cable.

9.

Remove parking brake shoe, and remove rear cable from toggle lever. Refer to

PB-9, "Exploded View"

10. Remove rear cable mounting bolts and nuts, pull out rear cable from vehicle.

1.

Return spring

2.

Stopper rubber

3.

Device assembly

4.

Pedal pad

5.

Adjusting nut

6.

Parking brake switch

7.

Lock plate

8.

Front cable

9.

Equalizer

10. Spring

11. Pin

12. Rear cable (LH)

13. Rear cable (RH)

: Apply multi-purpose grease.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPFIB0004GB

PB-8

< ON-VEHICLE REPAIR >

PARKING BRAKE CONTROL

INSTALLATION

Install in the reverse order of the removal.

PEDAL TYPE : Adjustment

INFOID:0000000001647904

ADJUSTMENT AFTER INSTALLATION

Adjust the parking brake pedal stroke. Refer to

PB-3, "PEDAL TYPE : Inspection and Adjustment"

.

LEVER TYPE

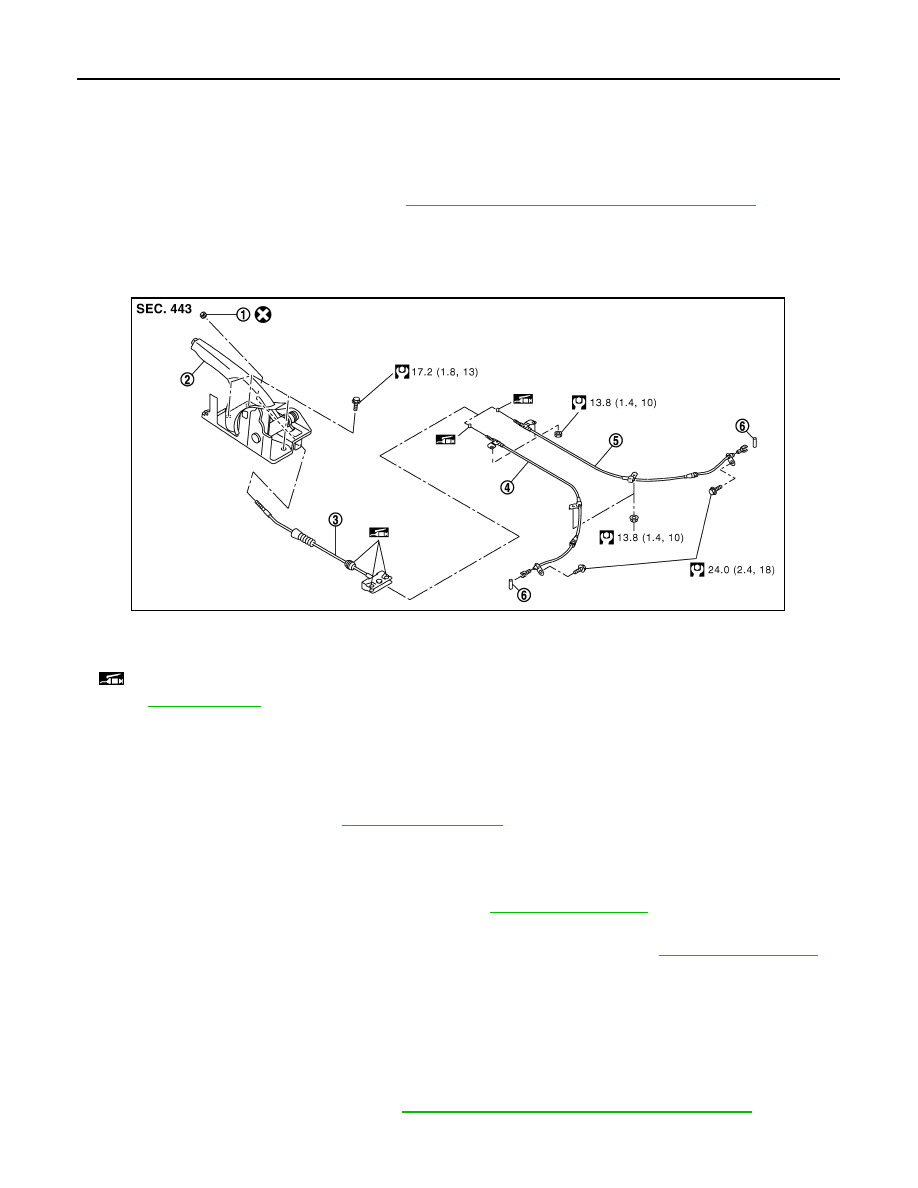

LEVER TYPE : Exploded View

INFOID:0000000001647905

LEVER TYPE : Removal and Installation

INFOID:0000000001647906

RMOVAL

1.

Remove rear tires with power tool.

2.

Remove center console. Refer to

IP-23, "Exploded View"

.

3.

Disconnect parking brake switch harness connector.

4.

Remove adjusting nut and loosen front cable.

5.

Remove device assembly.

6.

Remove the heat insulator and center muffler. Refer to

EX-5, "Exploded View"

.

7.

Separate front cable from rear cable, and remove front cable.

8.

Remove parking brake shoe, and remove rear cable from toggle lever. Refer to

PB-9, "Exploded View"

.

9.

Remove rear cable mounting bolts and nuts, pull out rear cable from vehicle.

INSTALLATION

Install in the reverse order of the removal.

LEVER TYPE : Adjustment

INFOID:0000000001647907

ADJUSTMENT AFTER INSTALLATION

Adjust the parking brake lever stroke. Refer to

PB-4, "LEVER TYPE : Inspection and Adjustment"

.

1.

Adjusting nut

2.

Device assembly

3.

Front cable

4.

Rear cable (LH)

5.

Rear cable (RH)

6.

Pin

 : Apply multi-purpose grease.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPFIB0005GB
