Infiniti G37 Coupe. Manual - part 930





MWI-66

< COMPONENT DIAGNOSIS >

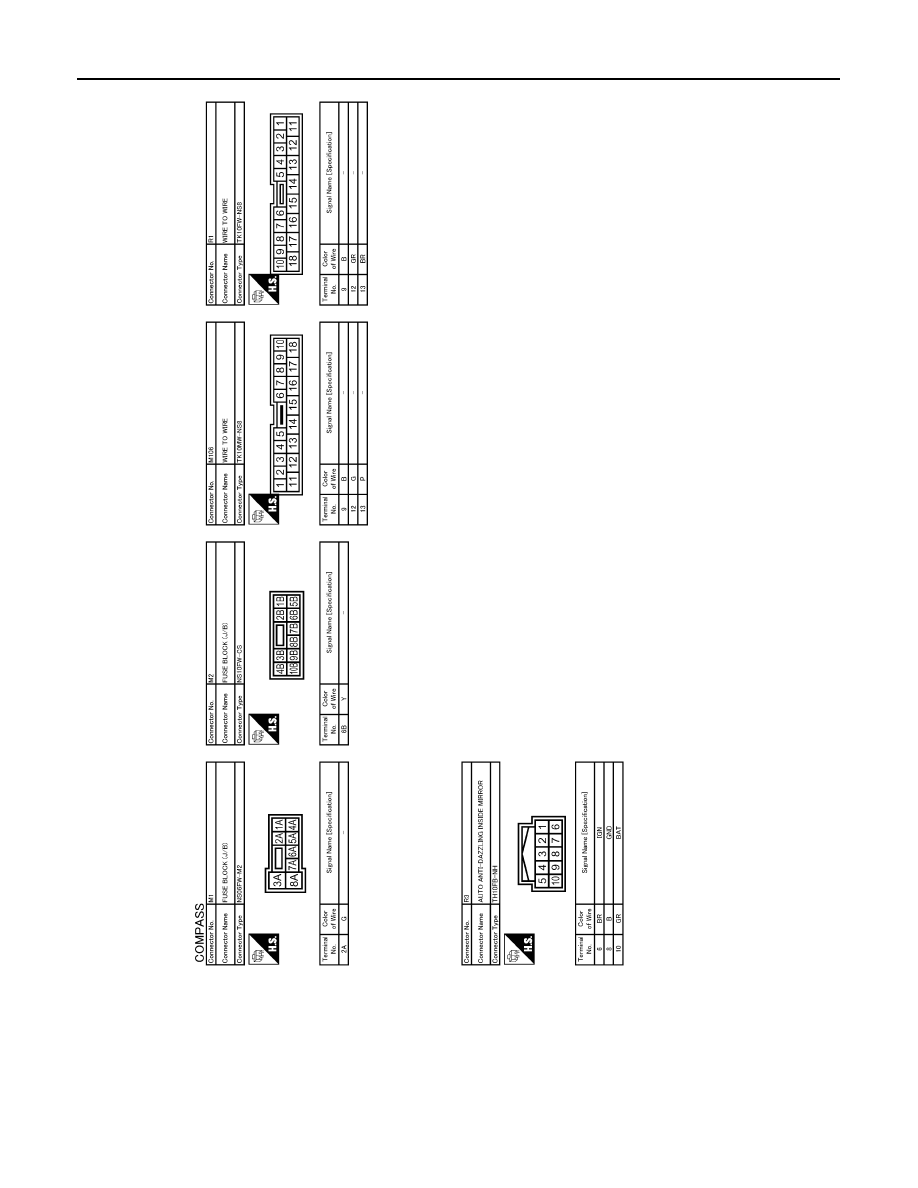

COMPASS

JCNWA0446GB

MWI

CLOCK

MWI-67

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

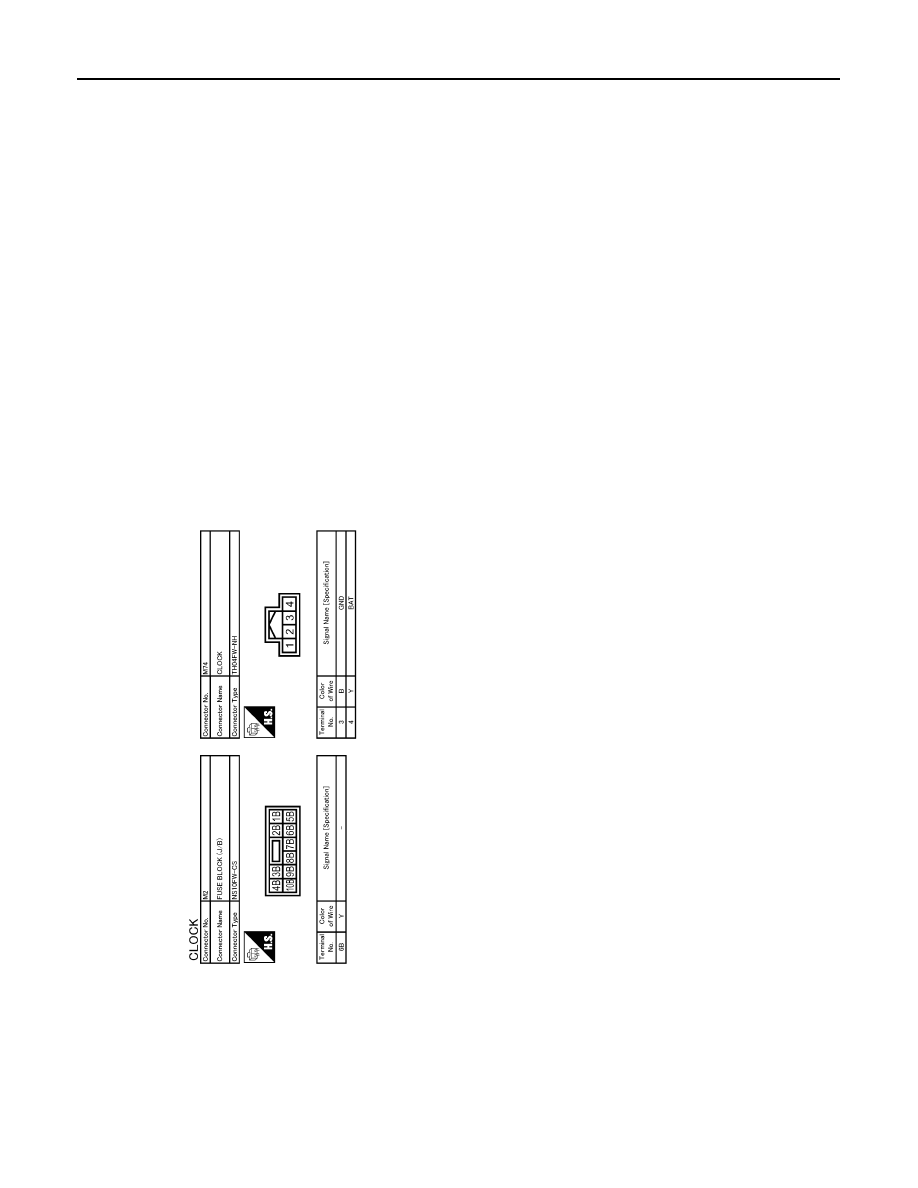

CLOCK

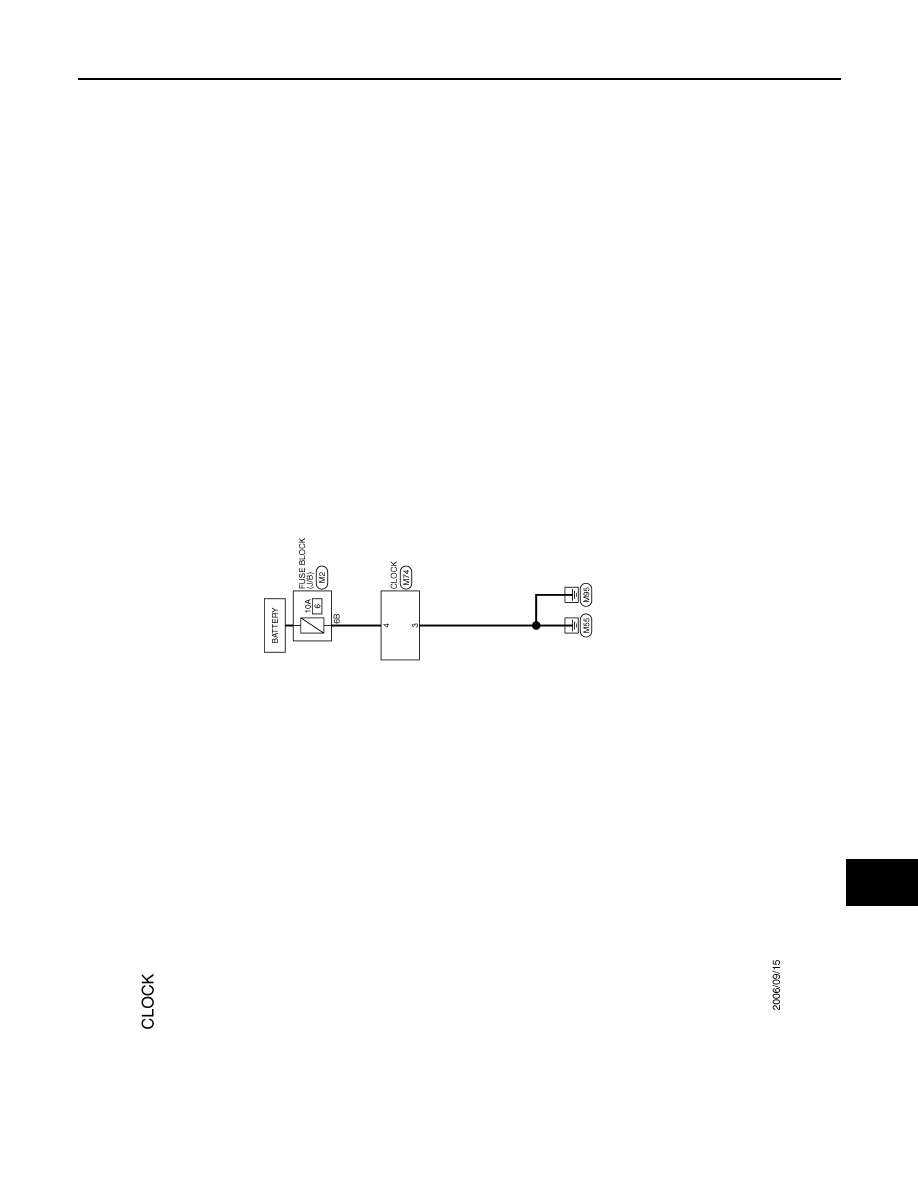

Wiring Diagram - CLOCK -

INFOID:0000000001606693

JCNWA0014GB

MWI-68

< COMPONENT DIAGNOSIS >

CLOCK

JCNWA0447GB

MWI

COMBINATION METER

MWI-69

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

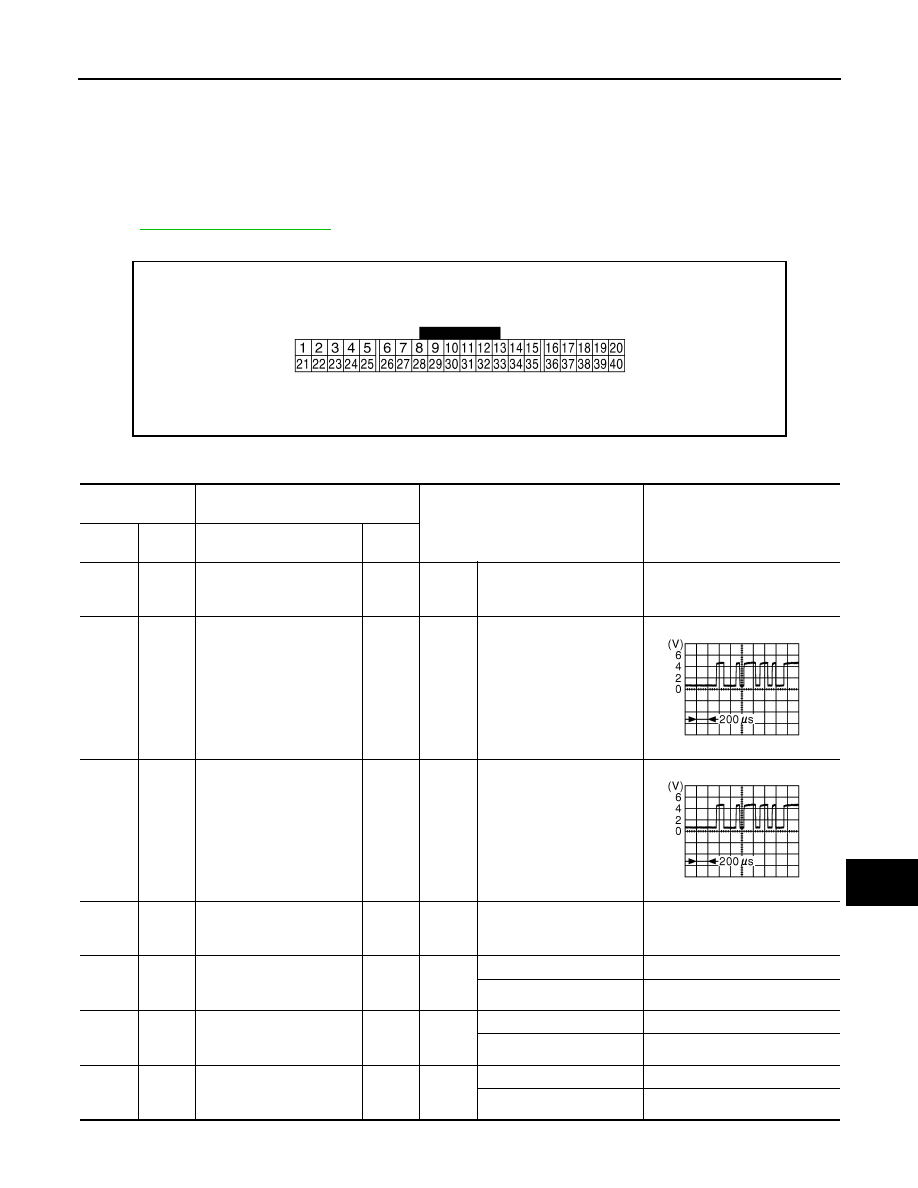

ECU DIAGNOSIS

COMBINATION METER

Reference Value

INFOID:0000000001606694

VALUES ON THE DAIAGNOSIS TOOL

Refer to

MWI-83, "Reference Value"

.

TERMINAL LAYOUT

PHYSICAL VALUES

JSNIA0457ZZ

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

Signal name

Input/

Output

1

(V)

Ground

Battery power supply

Input

Ignition
switch
OFF

Battery voltage

2

(LG)

Ground

Communication signal
(METER

 AMP.)

Output

Ignition
switch
ON

3

(GR)

Ground

Communication signal
(AMP.

 METER)

Input

Ignition
switch
ON

5

(B)

Ground

Ground

Ignition
switch
ON

0  V

6

(W)

Ground

Alternator signal

Input

Ignition
switch
ON

Charge warning lamp ON

0 V

Charge warning lamp OFF

12 V

7

(LG)

Ground

Air bag signal

Input

Ignition
switch
ON

Air bag warning lamp ON

4 V

Air bag warning lamp OFF

0 V

10

(R)

Ground

Security signal

Input

Ignition
switch
OFF

Security warning lamp ON

0 V

Security warning lamp OFF

12 V

JSNIA0027GB

JSNIA0027GB
