MWI-18

< FUNCTION DIAGNOSIS >

METER SYSTEM

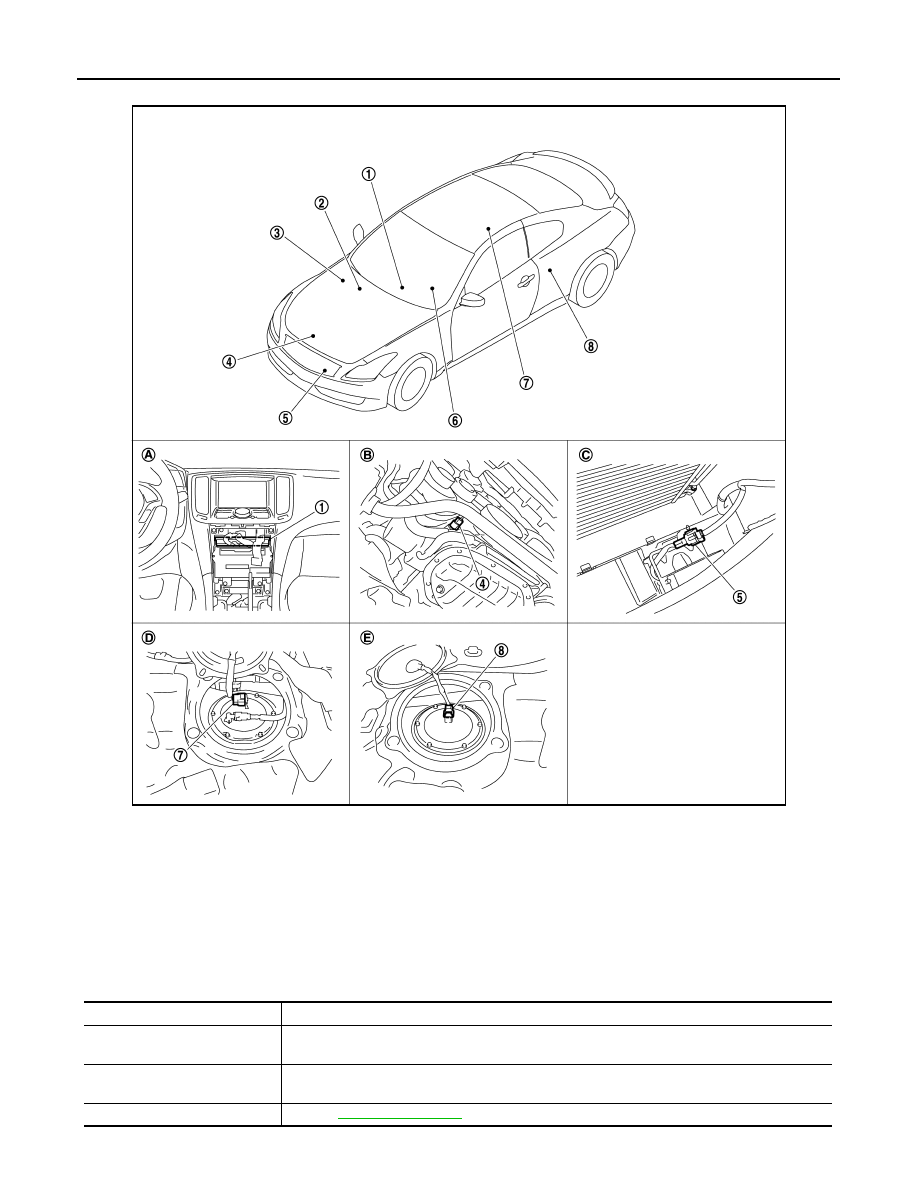

FUEL GAUGE : Component Parts Location

INFOID:0000000001672048

FUEL GAUGE : Component Description

INFOID:0000000001606621

JPNIA0501ZZ

1.

Unified meter and A/C amp.

2.

BCM

3.

IPDM E/R

4.

Oil pressure switch

5.

Ambient sensor

6.

Combination meter

7.

Fuel level sensor unit and fuel pump
(main)

8.

Fuel level sensor unit (sub)

A.

Behind cluster lid C

B.

Oil pan (upper) RH side

C.

Condenser (front)

D.

Rear seat (lower right)

E.

Rear seat (lower left)

Unit

Description

Combination meter

Indicates the fuel gauge according to the fuel level sensor signal received from the unified meter
and A/C amp. by means of communication line.

Unified meter and A/C amp.

Transmits the fuel level sensor signal from the fuel level sensor unit to the combination meter by
means of communication line.

Fuel level sensor unit

Refer to

MWI-54, "Description"

.

MWI

METER SYSTEM

MWI-19

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ODO/TRIP METER

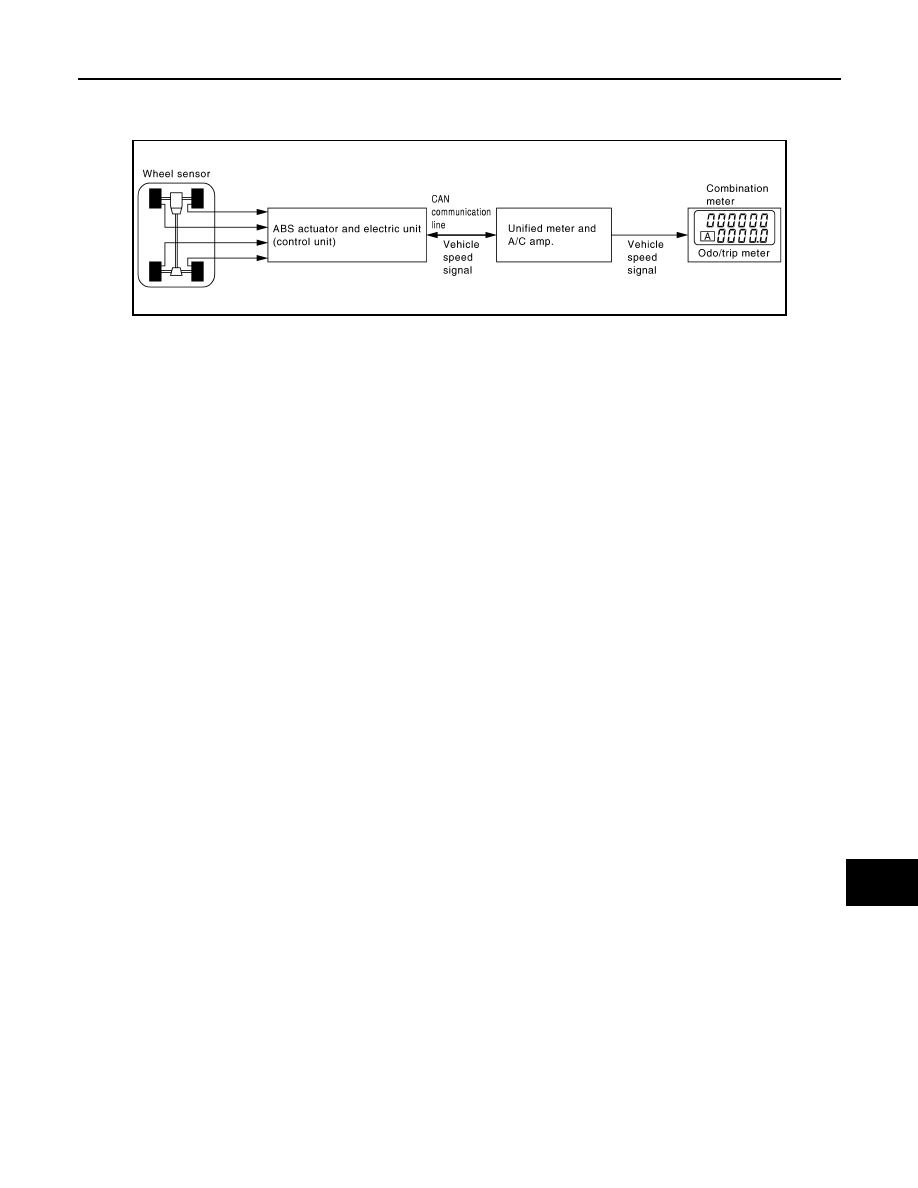

ODO/TRIP METER : System Diagram

INFOID:0000000001606622

ODO/TRIP METER : System Description

INFOID:0000000001606623

• The unified meter and A/C amp. transmits the vehicle speed signal from ABS actuator and electric unit (con-

trol unit) to the combination meter.

• The combination meter calculates the vehicle distance according to the vehicle speed signal. The vehicle

distance is displayed.

JSNIA0613GB

MWI-20

< FUNCTION DIAGNOSIS >

METER SYSTEM

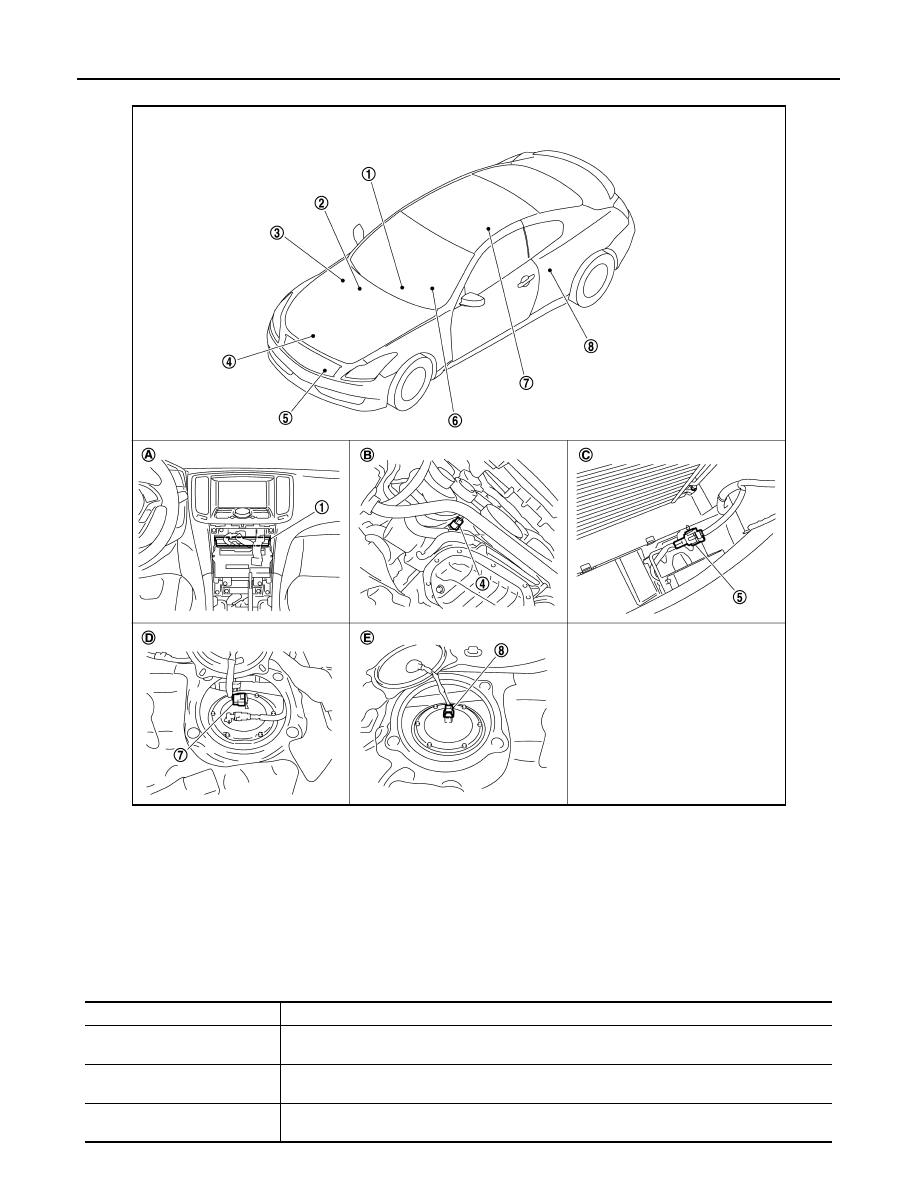

ODO/TRIP METER : Component Parts Location

INFOID:0000000001672049

ODO/TRIP METER : Component Description

INFOID:0000000001606625

JPNIA0501ZZ

1.

Unified meter and A/C amp.

2.

BCM

3.

IPDM E/R

4.

Oil pressure switch

5.

Ambient sensor

6.

Combination meter

7.

Fuel level sensor unit and fuel pump
(main)

8.

Fuel level sensor unit (sub)

A.

Behind cluster lid C

B.

Oil pan (upper) RH side

C.

Condenser (front)

D.

Rear seat (lower right)

E.

Rear seat (lower left)

Unit

Description

Combination meter

The combination meter calculates the vehicle distance according to the vehicle speed signal. The
vehicle distance is displayed.

Unified meter and A/C amp.

The unified meter and A/C amp. transmits the vehicle speed signal from ABS actuator and electric
unit (control unit) to the combination meter.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the unified meter and A/C amp. with CAN communication
line.

MWI

METER SYSTEM

MWI-21

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SHIFT POSITION INDICATOR

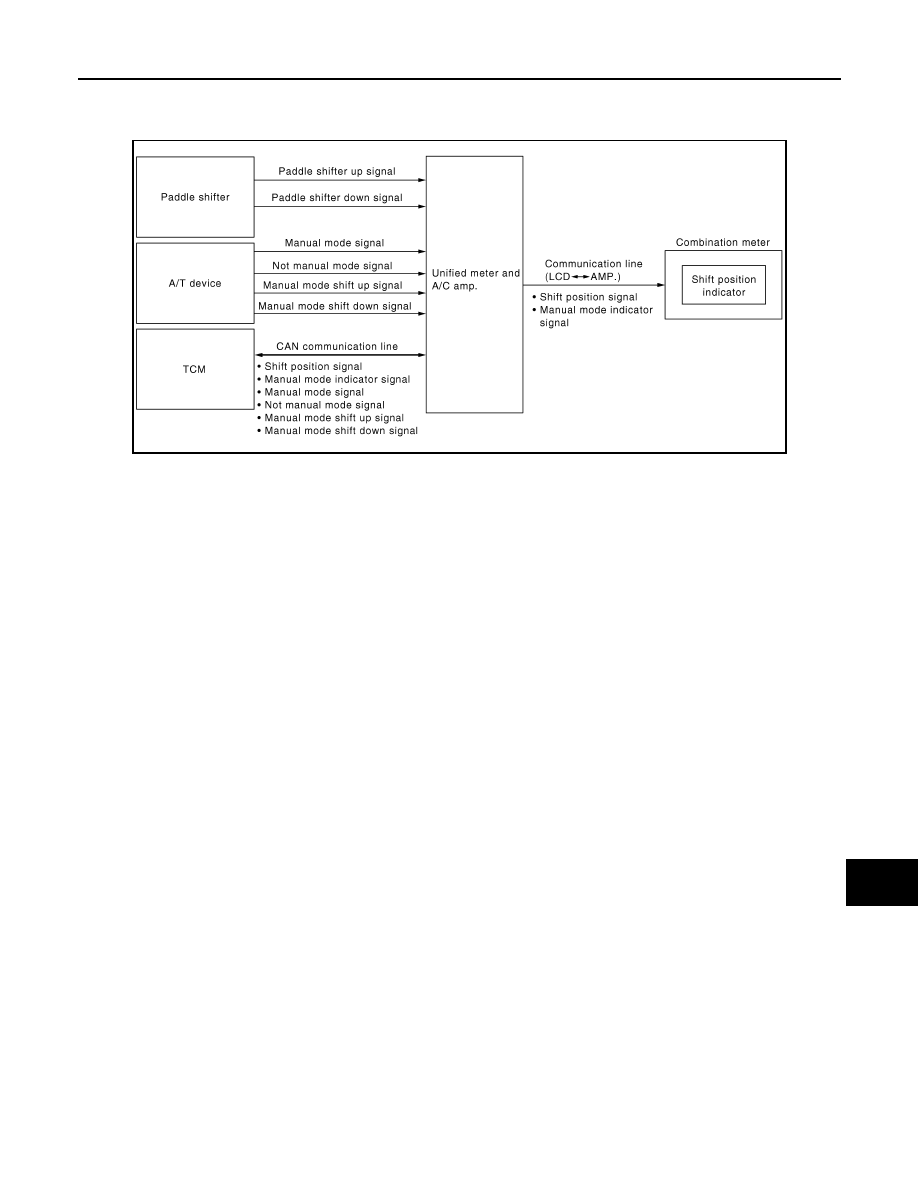

SHIFT POSITION INDICATOR : System Diagram

INFOID:0000000001606626

SHIFT POSITION INDICATOR : System Description

INFOID:0000000001606627

Shift position is displayed in the information display LCD in the combination meter.

MANUAL MODE

When operated with A/T device

• Unified meter and A/C amp. inputs manual mode signal and manual mode shift-up/down signal from A/T

device (manual mode switch), and transmits the signals to TCM with CAN communication line.

• TCM processes manual mode signal and manual mode shift-up/down signal, and transmits manual mode

indicator signal and shift position signal to unified meter and A/C amp. with CAN communication line.

• Unified meter and A/C amp. transmits manual mode indicator signal and shift position signal to combination

meter with the communication line.

• Combination meter indicates A/T gear position and manual mode indicator, when receiving manual mode

indicator signal and shift position signal.

When operated with paddle shifter

• Unified meter and A/C amp. inputs manual mode signal from A/T device (manual mode switch) or the paddle

shifter-up/down signal from the paddle shifter, and transmits the signals to TCM with CAN communication
line.

• TCM processes manual mode signal and paddle shifter-up/down signal, and transmits manual mode indica-

tor signal and shift position signal to unified meter and A/C amp. with CAN communication line.

• Unified meter and A/C amp. transmits manual mode indicator signal and shift position signal to combination

meter with the communication line.

• Combination meter indicates A/T gear position and manual mode indicator, when receiving manual mode

indicator signal and shift position signal.

NOT MANUAL MODE

• Unified meter and A/C amp. inputs not manual mode signal from A/T device (manual mode switch), and

transmits the signals to TCM with CAN communication line.

• TCM transmits shift position signal to unified meter and A/C amp. with CAN communication line.
• Unified meter and A/C amp. transmits shift position signal to combination meter with the communication line.
• Combination meter indicates shift position when receiving shift position signal.

JSNIA0614GB
