Infiniti G37 Coupe. Manual - part 903





AUTOMATIC DRIVE POSITIONER CONTROL UNIT

MIR-31

< ECU DIAGNOSIS >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

11

Ground

GR

Telescopic switch for-
ward signal

Input

Telescopic
switch

Operate
(forward)

0

Other than
above

5

12

Ground

O

Memory indictor 1 signal

Out-

put

Memory indictor
1

Illuminate

0

Other than
above

Battery voltage

13

Ground

P

Memory indictor 2 signal

Out-

put

Memory indictor
2

Illuminate

0

Other than
above

Battery voltage

14

Ground

W

*1

BR

*2

Door mirror motor (RH)
upward output

Out-

put

Door mirror RH

Operate
(upward)

Battery voltage

Other than
above

0

15

Ground

O

Door mirror motor (RH)
leftward output

Out-

put

Door mirror RH

Operate
(leftward)

Battery voltage

Other than
above

0

16

Ground

Y

Door mirror motor (LH)
downward output

Out-

put

Door mirror (LH)

Operate
(down-
ward)

Battery voltage

Other than
above

0

Door mirror motor (LH)
rightward output

Operate
(rightward)

Battery voltage

Other than
above

0

17

Ground

BR

Tilt switch downward
signal

Input

Tilt switch

Operate
(down-
ward)

0

Other than
above

5

18

Ground

P

Changeover switch LH
signal

Input

Changeover
switch position

LH

0

Neutral or
RH

5

19

Ground

SB

Mirror switch downward
signal

Input

Mirror switch

Operate
(down-
ward)

0

Other than
above

5

20

Ground

BR

Mirror switch rightward
signal

Input

Mirror switch

Operate
(rightward)

0

Other than
above

5

21

Ground

L

Door mirror sensor (RH)
leftward/rightward signal

Input

Door mirror RH position

Change between 3.4 (close to left

edge) 0.6 (close to right edge)

22

Ground

SB

Door mirror sensor (LH)
leftward/rightward signal

Input

Door mirror LH position

Change between 0.6 (close to left

edge) 3.4 (close to right edge)

23

Ground

P

Telescopic sensor signal

Input

Telescopic position

Change between 0.8 (close to top)

3.4 (close to bottom)

Terminal No.

Wire

color

Description

Condition

Voltage (V)

(Approx.)

+

-

Signal name

Input/

Out-

put

MIR-32

< ECU DIAGNOSIS >

[WITH ADP]

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

24

Ground

R

Set switch signal

Input

Set switch

Press

0

Other than
above

5

25

Ground

LG

Memory switch 2 signal

Input

Memory switch 2

Press

0

Other than
above

5

26

Ground

P

UART communication
(RX)

Input

Ignition switch ON

27

Ground

G

Telescopic switch back-
ward signal

Input

Telescopic
switch

Operate
(back-
ward)

0

Other than
above

5

30

Ground

SB

Door mirror motor (RH)
downward output

Out-

put

Door mirror (RH)

Operate
(down-
ward)

Battery voltage

Other than
above

0

Door mirror motor (RH)
rightward output

Operate
(rightward)

Battery voltage

Other than
above

0

31

Ground

G

Door mirror motor (LH)
upward output

Out-

put

Door mirror (LH)

Operate
(upward)

Battery voltage

Other than
above

0

32

Ground

L

Door mirror motor (LH)
leftward output

Out-

put

Door mirror (LH)

Operate
(leftward)

Battery voltage

Other than
above

0

33

Ground

W

Sensor power supply

Input

34

Ground

V

Power source (Fuse)

Input

Battery voltage

35

Ground

L

Tilt motor upward output

Out-

put

Steering tilt

Operate
(upward)

Battery voltage

Other than
above

0

36

Ground

GR

Telescopic motor for-
ward output signal

Out-

put

Steering tele-
scopic

Operate
(forward)

Battery voltage

Other than
above

0

39

Ground

W

Power source (C/B)

Input

Battery voltage

40

Ground

B

Ground

0

41

Ground

Y

Sensor ground

0

Terminal No.

Wire

color

Description

Condition

Voltage (V)

(Approx.)

+

-

Signal name

Input/

Out-

put

JMJIA0121ZZ

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

MIR-33

< ECU DIAGNOSIS >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

*1

: A/T models

*2

: M/T models

42

Ground

O

Tilt motor downward
output

Out-

put

Steering tilt

Operate
(down-
ward)

Battery voltage

Other than
above

0

44

Ground

G

Telescopic motor back-
ward output

Out-

put

Steering tele-
scopic

Operate
(back-
ward)

Battery voltage

Other than
above

0

48

Ground

B

Ground

0

Terminal No.

Wire

color

Description

Condition

Voltage (V)

(Approx.)

+

-

Signal name

Input/

Out-

put

MIR-34

< ECU DIAGNOSIS >

[WITH ADP]

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

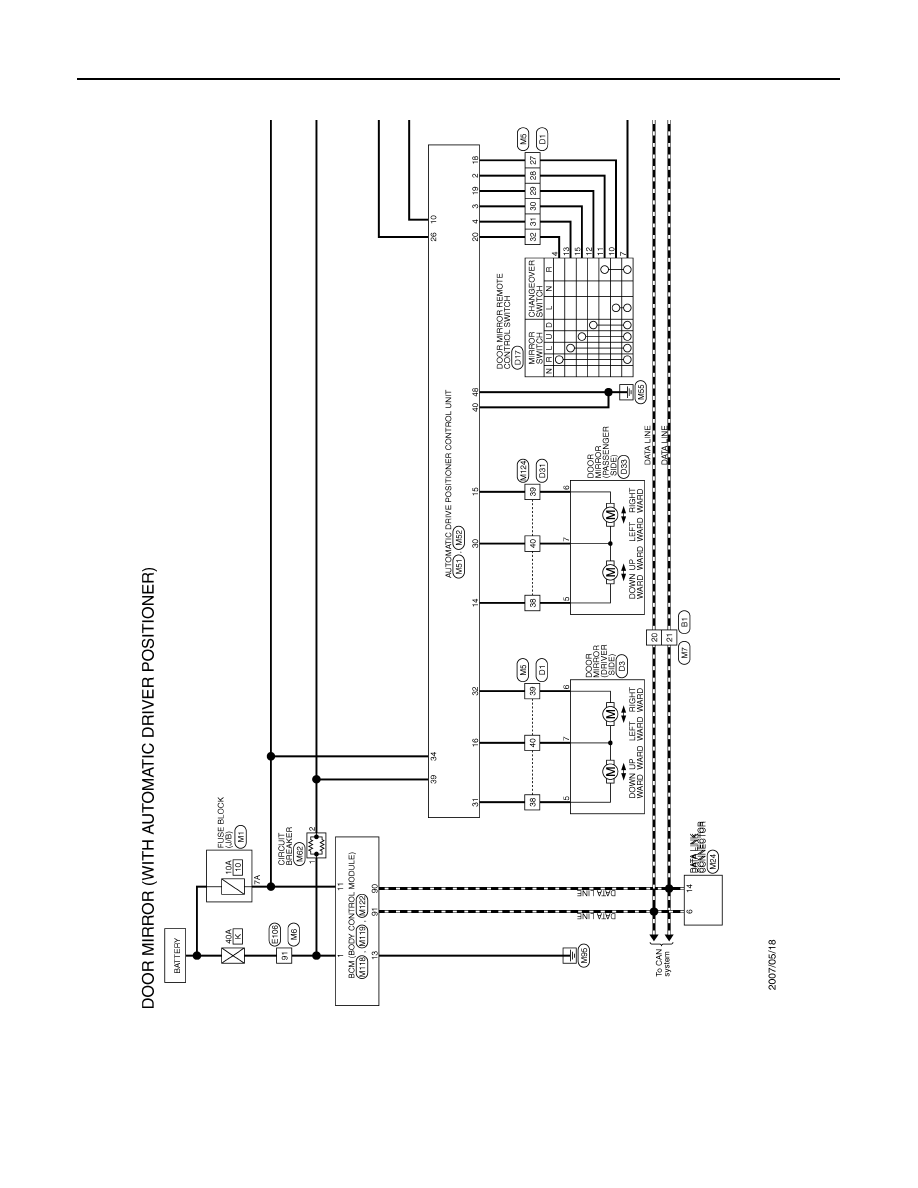

Wiring Diagram - AUTOMATIC DRIVE POSITIONER CONTROL SYSTEM -

INFOID:0000000001840250

JCLWA0718GB
