TRUNK ROOM TRIM

INT-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

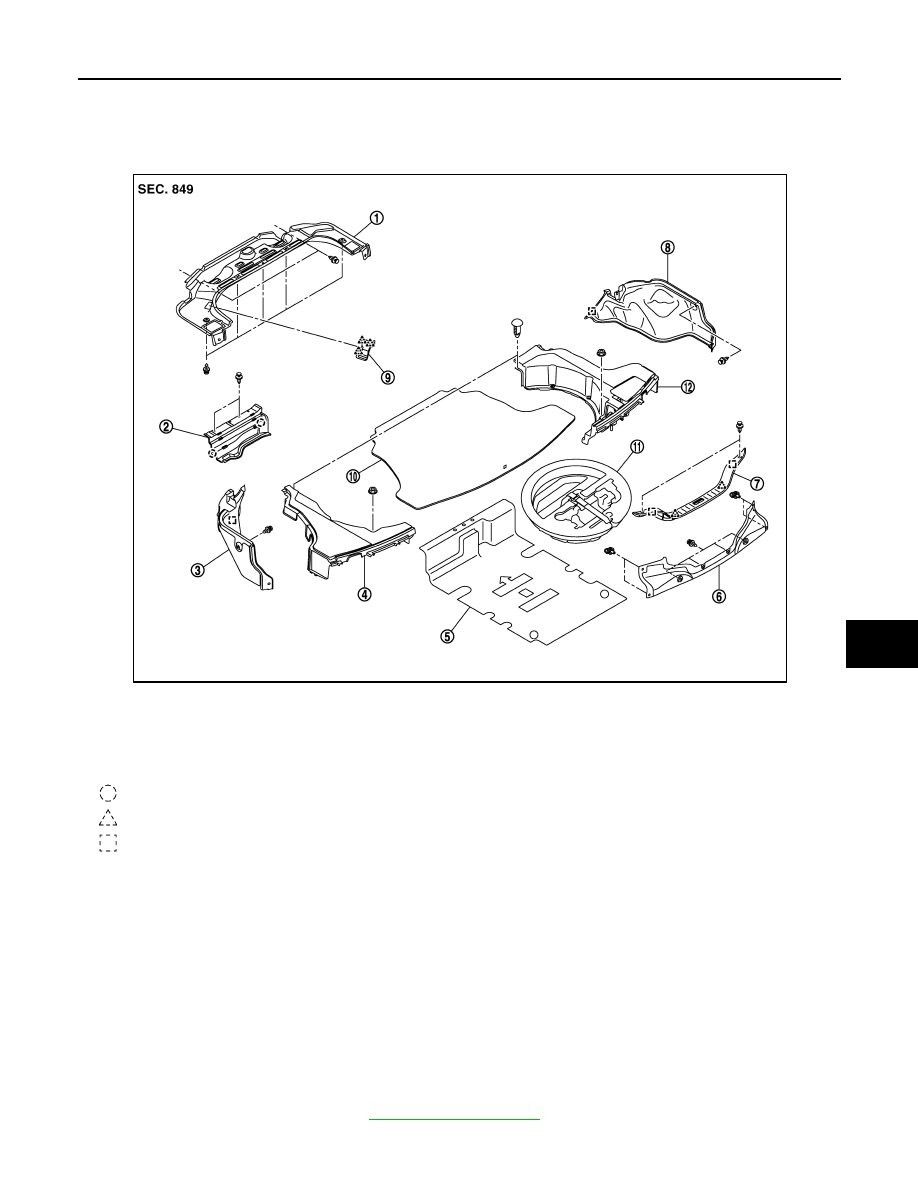

TRUNK ROOM TRIM

Exploded View

INFOID:0000000001722851

Removal and Installation

INFOID:0000000001722852

REMOVAL

1.

Fully open trunk lid assembly.

2.

Remove trunk floor carpet.

3.

Remove trunk rear plate mounting pawls and metal clips, and then remove trunk rear plate.

4.

Remove trunk floor cover mounting clips, and then remove trunk floor cover.

5.

Remove trunk weather-strip.

6.

Remove trunk rear finisher mounting clips and trunk net hook, and then remove trunk rear finisher.

7.

Remove trunk center box.

8.

Remove spare tire.

9.

Remove rear seatback welt. Refer to

INT-17, "Exploded View"

.

10. Remove trunk front finisher mounting clips and metal clips, and then remove trunk front finisher.

1.

Trunk front finisher upper

2.

Trunk floor cover

3.

Rear wheel house finisher (LH)

4.

Trunk floor spacer LH

5.

Trunk floor felt

6.

Trunk rear finisher

7.

Trunk rear plate

8.

Rear wheel house finisher (RH)

9.

Rear seat control lever escutcheon

10. Trunk floor carpet

11. Trunk center box

12. Trunk floor spacer RH

: Clip

: Pawl

: Metal clip

JMJIA0973ZZ

INT-28

< ON-VEHICLE REPAIR >

TRUNK ROOM TRIM

11. Remove trunk side finisher mounting clip and metal clip, and then remove trunk side finisher (LH/RH).

12. Remove jack.
13. Remove trunk floor spacer mounting nuts, and then remove trunk floor spacer (LH/RH).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check that clips, pawls, metal clips are securely fitted in panel holes on body when installing, and then
press them in.

TRUNK LID TRIM

INT-29

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

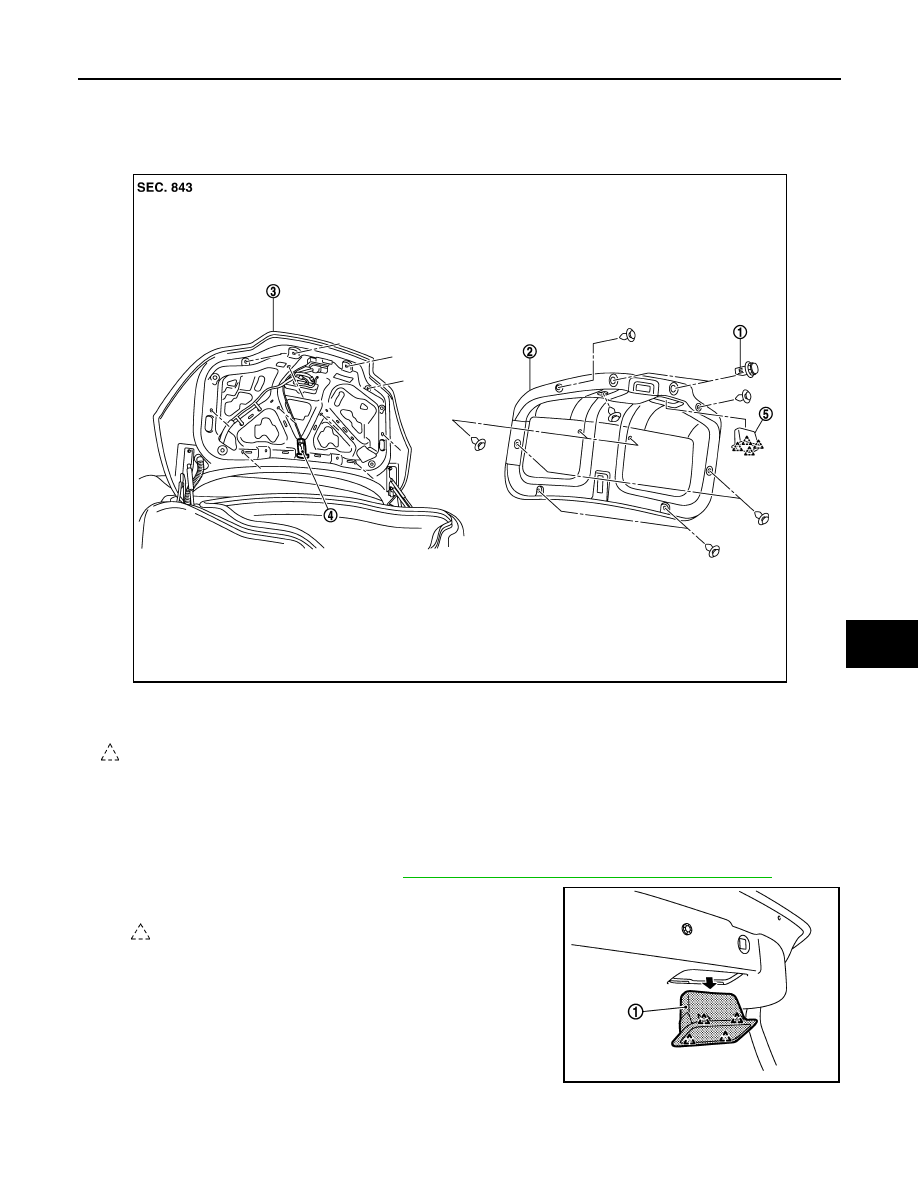

TRUNK LID TRIM

Exploded View

INFOID:0000000001722854

Removal and Installation

INFOID:0000000001722855

REMOVAL

1.

Fully open trunk lid assembly.

2.

Remove trunk lid bumper rubber. Refer to

DLK-223, "TRUNK LID ASSEMBLY : Exploded View"

.

3.

Remove trunk lid pull handle (1).

1.

Trunk lid bumper rubber

2.

Trunk lid finisher inner

3.

Trunk lid assembly

4.

Emergency handle

5.

Trunk lid pull handle

: Pawl

JMJIA0974ZZ

: Pawl

JMJIA0104GB

INT-30

< ON-VEHICLE REPAIR >

TRUNK LID TRIM

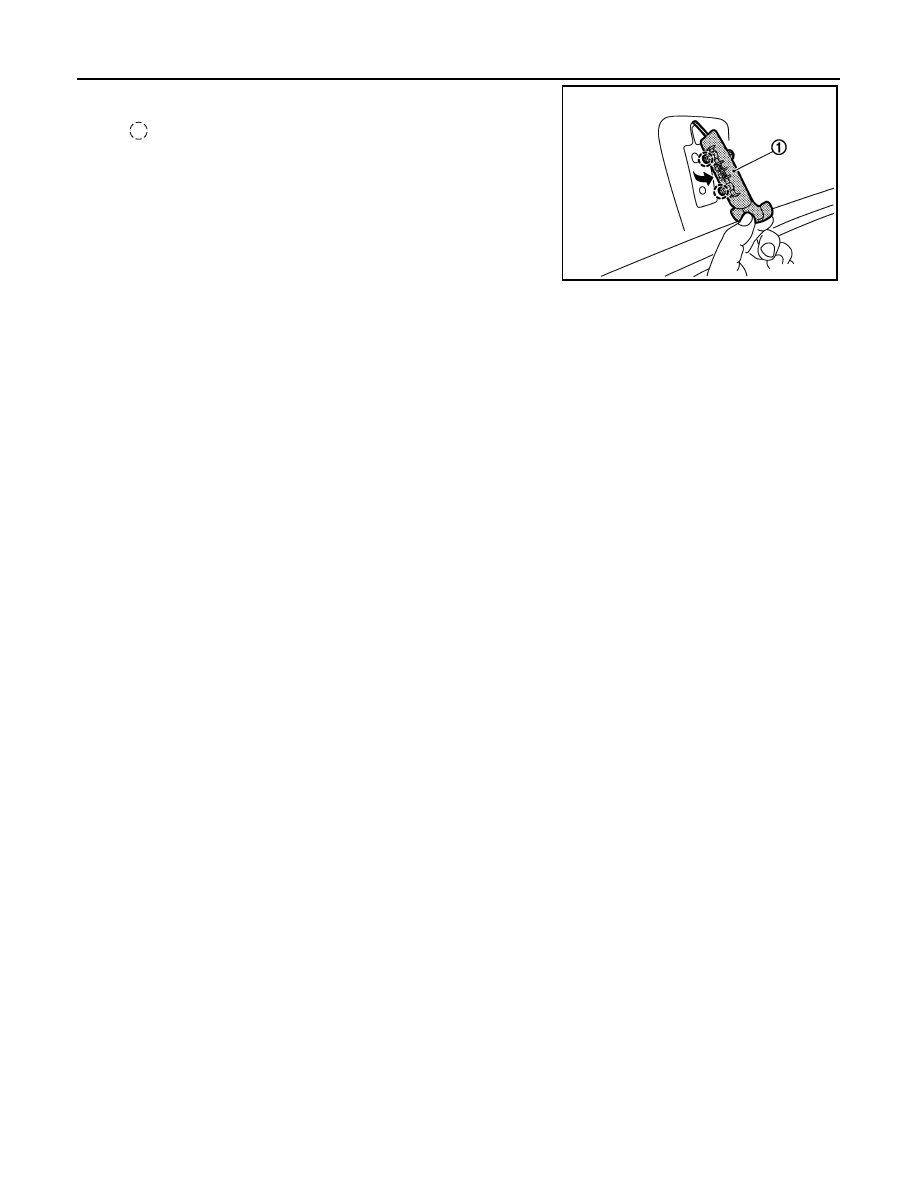

4.

Remove trunk lid emergency handle holder (1).

5.

Remove trunk lid finisher mounting clips, and then remove trunk lid finisher inner.

INSTALLATION

Install in the reverse order of removal.

: Clip

JMJIA0105GB
