INL-102

< ON-VEHICLE REPAIR >

TRUNK ROOM LAMP

TRUNK ROOM LAMP

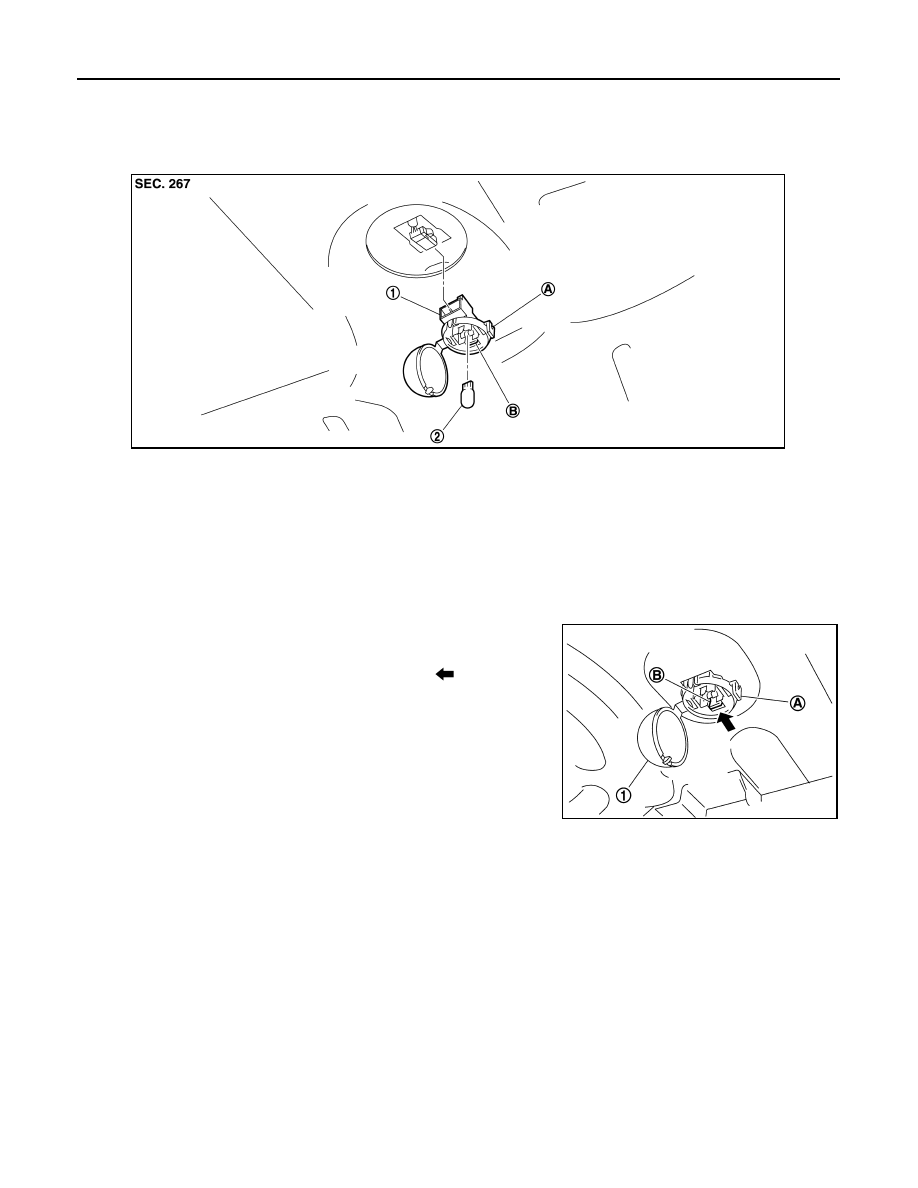

Exploded View

INFOID:0000000001604870

Removal and Installation

INFOID:0000000001604871

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Widen the pawl (A). Open the lens (1).

2.

Remove the bulb.

3.

Pressing the pawl (B) to the arrow direction (

). Pull out the

trunk room lamp.

4.

Disconnect the connector.

5.

Remove the trunk room lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000001604872

CAUTION:

Disconnect the battery negative terminal or the fuse.

TRUNK ROOM LAMP BULB

1.

Widen the lens pawl. Open the lens.

2.

Remove the bulb.

1.

Trunk room lamp

2.

Bulb

A

Pawl (for lens fixing)

B.

Pawl (for case installation)

JPLIA0065ZZ

SKIB8336J

SERVICE DATA AND SPECIFICATIONS (SDS)

INL-103

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000001604873

Item

Type

Wattage (W)

Push-button ignition switch illumination

LED

—

Map lamp

Wedge

8

Center console indirect illumination
(Integrated into the map lamp assembly)

LED

—

Vanity mirror lamp

—

2

Glove box lamp

—

1.4

Cigarette lighter illumination
(Shared with ash tray illumination)

—

1.4

Step lamp

Wedge

8

Trunk room lamp

Wedge

3.4

INT-1

BODY INTERIOR

C

D

E

F

G

H

I

K

L

M

SECTION

INT

A

B

INT

N

O

P

CONTENTS

INTERIOR

SYMPTOM DIAGNOSIS  ...............................

2

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

2

Work Flow  .................................................................

2

Inspection Procedure  ................................................

4

Diagnostic Worksheet  ...............................................

6

PRECAUTION ...............................................

8

PRECAUTIONS ...................................................

8

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

8

Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect  .....................................

8

Precaution for Procedure without Cowl Top Cover

......

9

Precaution for Work  ..................................................

9

PREPARATION ...........................................

10

PREPARATION ..................................................

10

Special Service Tools ..............................................

10

Commercial Service Tools  ......................................

10

ON-VEHICLE REPAIR .................................

11

DOOR FINISHER  ...............................................

11

Exploded View  ........................................................

11

Removal and Installation .........................................

11

BODY SIDE TRIM  .............................................

14

Exploded View .........................................................

14

Removal and Installation  .........................................

14

REAR PARCEL SHELF FINISHER  ..................

17

Exploded View .........................................................

17

Removal and Installation  .........................................

17

FLOOR TRIM  ....................................................

19

Exploded View .........................................................

19

Removal and Installation  .........................................

19

HEADLINING ....................................................

21

NORMAL ROOF  ........................................................

21

NORMAL ROOF : Exploded View  ...........................

21

NORMAL ROOF : Removal and Installation  ...........

21

SUNROOF ..................................................................

23

SUNROOF : Exploded View ....................................

24

SUNROOF : Removal and Installation  ....................

24

TRUNK ROOM TRIM ........................................

27

Exploded View .........................................................

27

Removal and Installation  .........................................

27

TRUNK LID TRIM ..............................................

29

Exploded View .........................................................

29

Removal and Installation  .........................................

29

INT-2

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SYMPTOM DIAGNOSIS

SQUEAK AND RATTLE TROUBLE DIAGNOSES

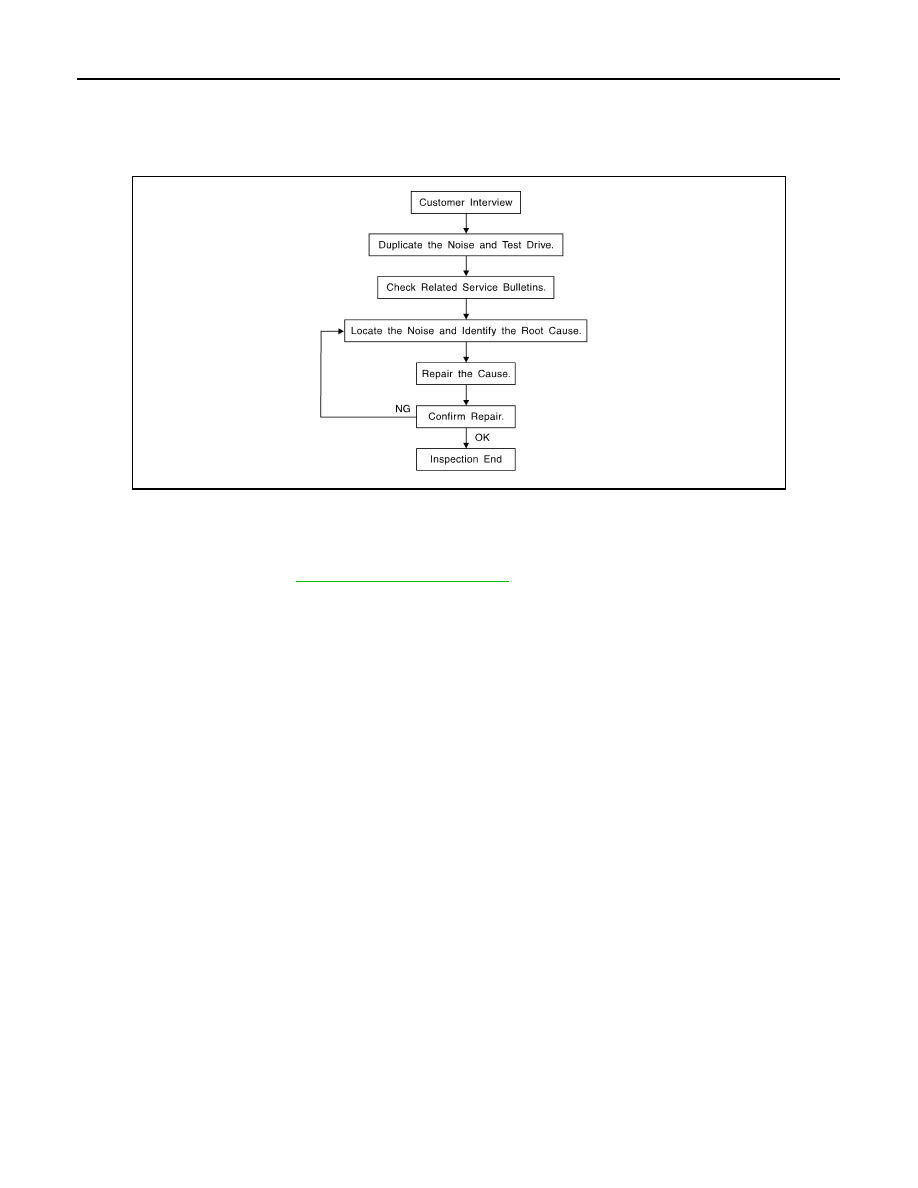

Work Flow

INFOID:0000000001722833

CUSTOMER INTERVIEW

Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any of
customer's comments; refer to

INT-6, "Diagnostic Worksheet"

. This information is necessary to duplicate the

conditions that exist when the noise occurs.
• The customer may not be able to provide a detailed description or the location of the noise. Attempt to obtain

all the facts and conditions that exist when the noise occurs (or does not occur).

• If there is more than one noise in the vehicle, perform a diagnosis and repair the noise that the customer is

concerned about. This can be accomplished by performing a cruise test on the vehicle with the customer.

• After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics

are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

• Squeak – (Like tennis shoes on a clean floor)

Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard surfaces
= higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping

• Creak – (Like walking on an old wooden floor)

Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch depen-
dent on materials/often brought on by activity.

• Rattle –(Like shaking a baby rattle)

Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

• Knock –(Like a knock on a door)

Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

• Tick –(Like a clock second hand)

Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

• Thump – (Heavy, muffled knock noise)

Thump characteristics include softer knock/dead sound often brought on by activity.

• Buzz –(Like a bumblebee)

Buzz characteristics include high frequency rattle/firm contact.

• Often the degree of acceptable noise level will vary depending up on the person. A noise that you may judge

as acceptable may be very irritating to the customer.

• Weather conditions, especially humidity and temperature, may have a great effect on noise level.

DUPLICATE THE NOISE AND TEST DRIVE
