BCM (BODY CONTROL MODULE)

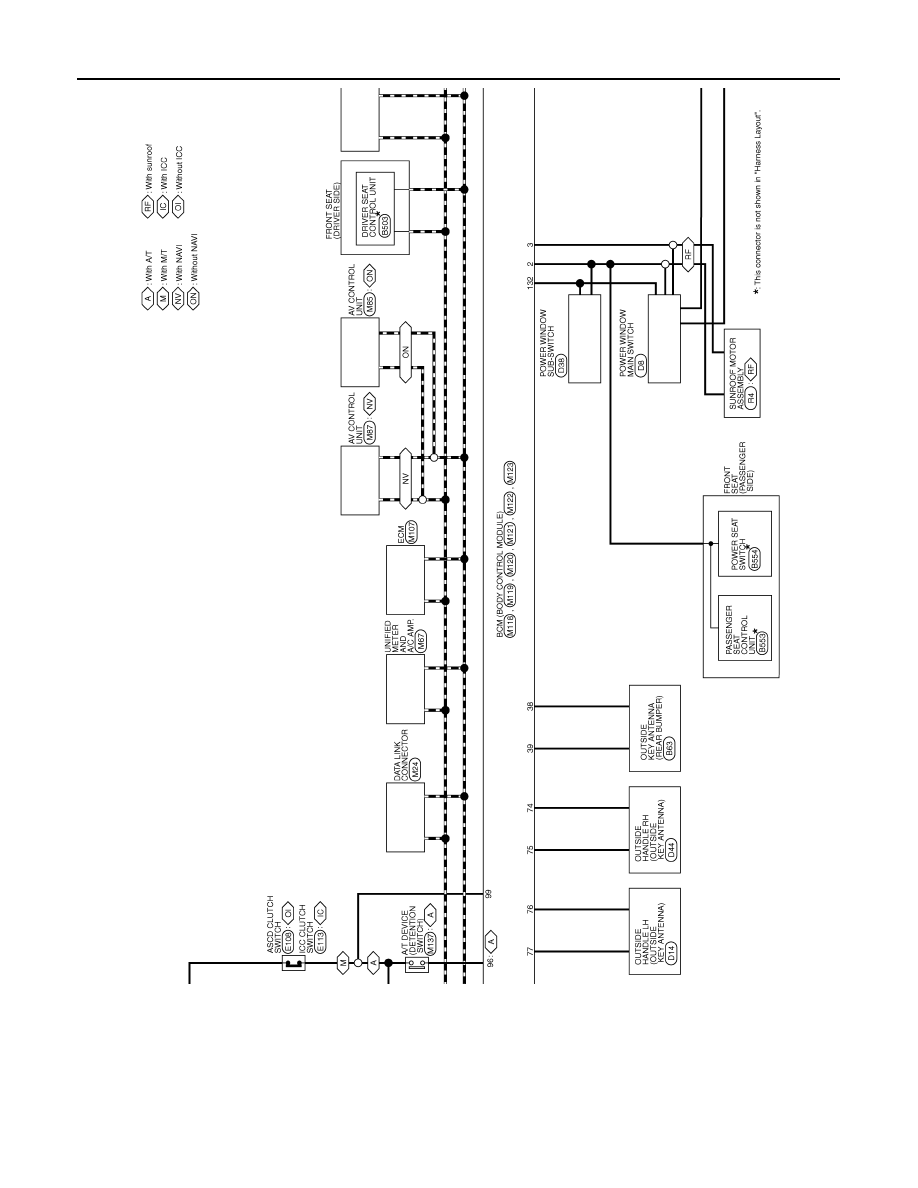

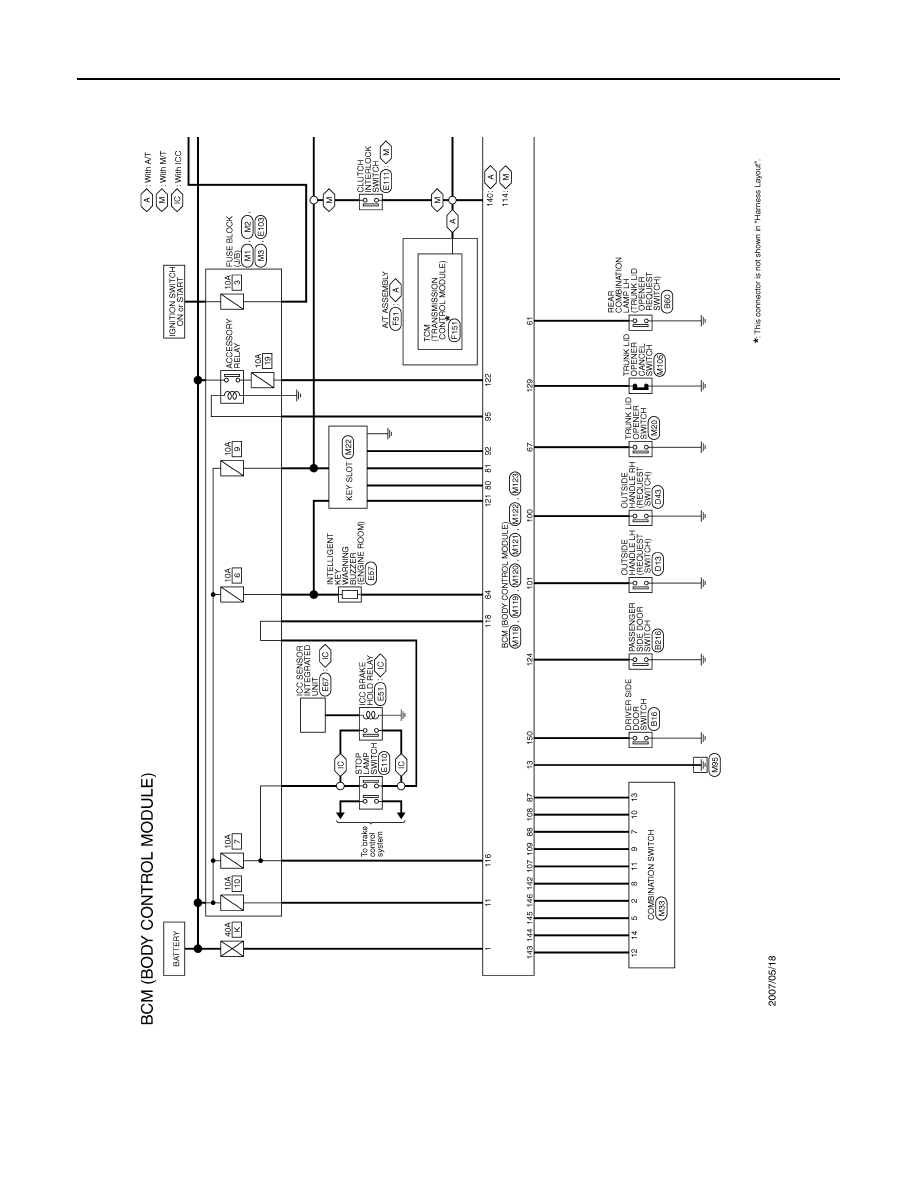

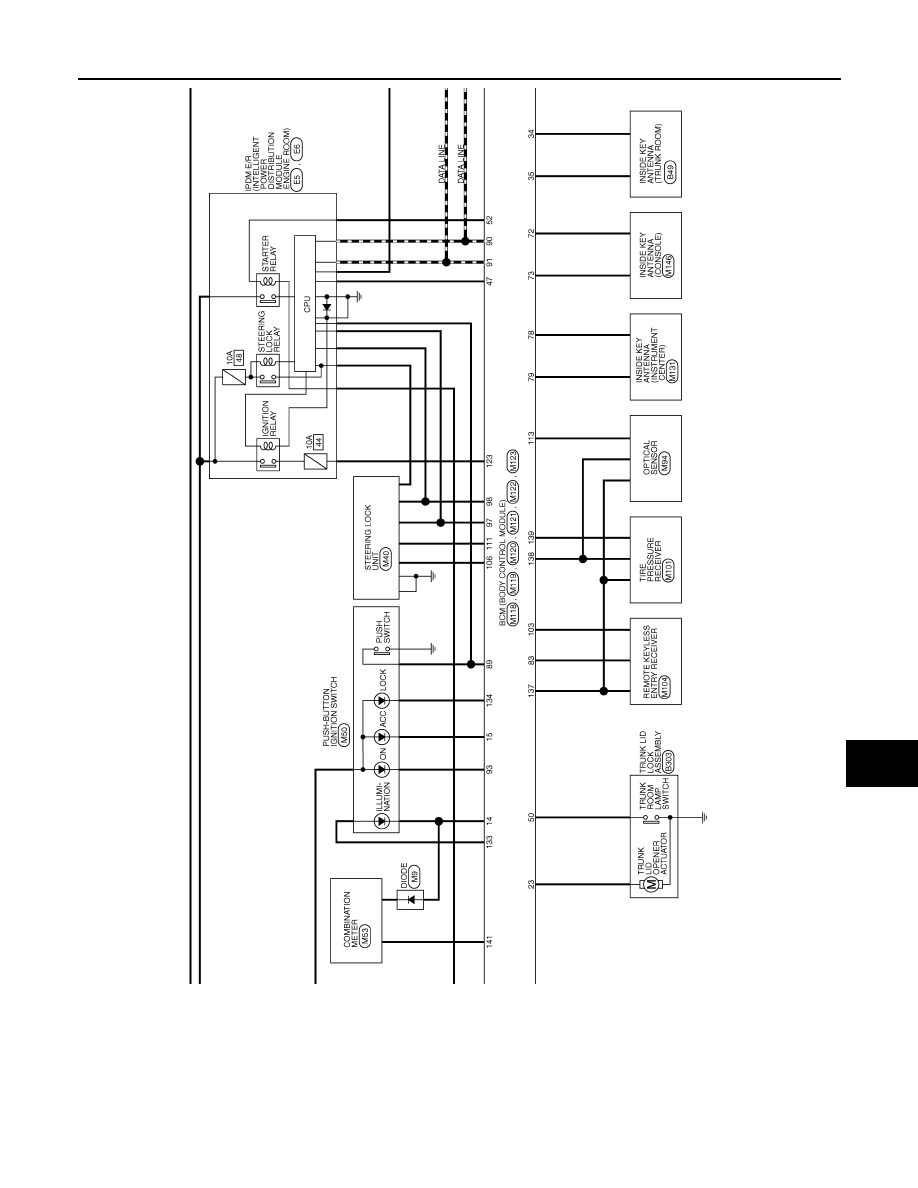

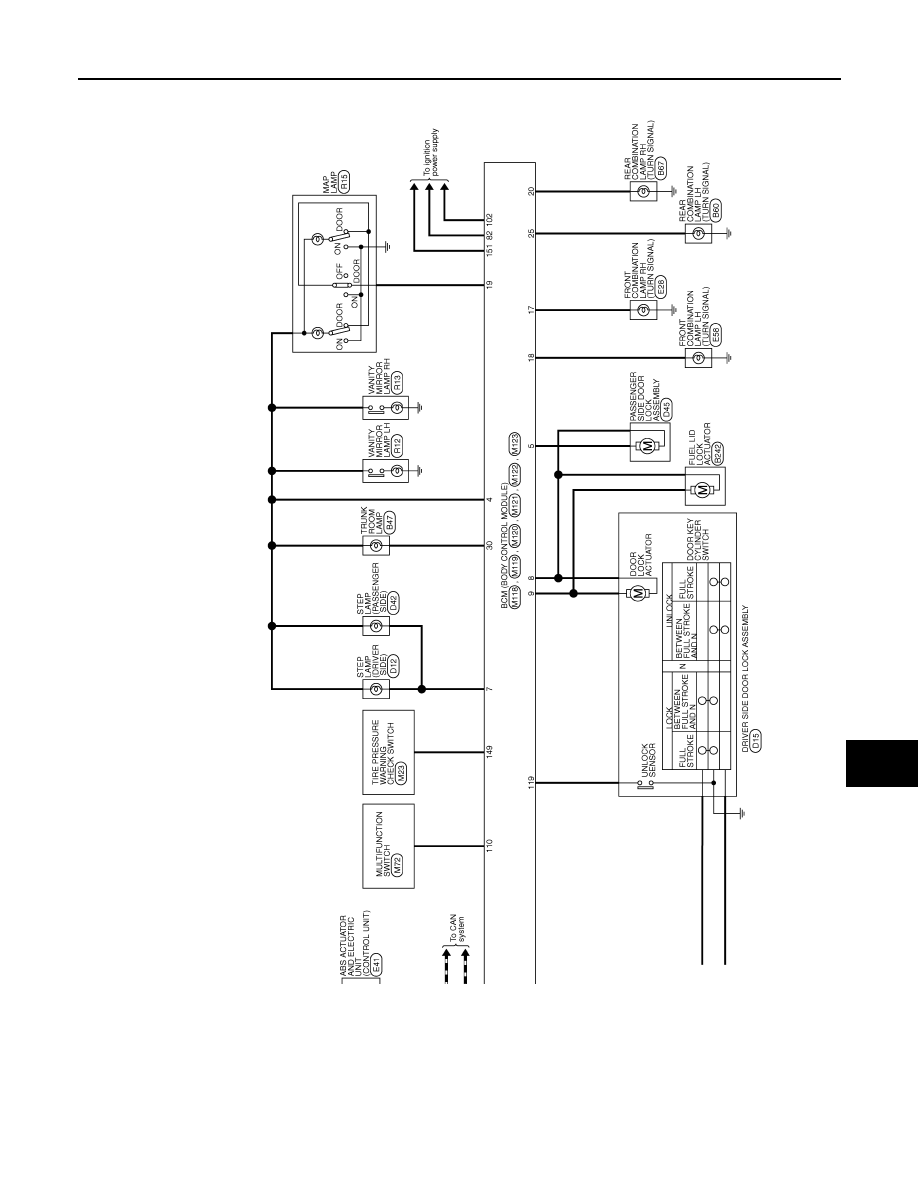

Wiring Diagram - BCM -

INFOID:0000000001830722

Click here to view the eWD.

JCMWA0834GB
