EXT-38

< ON-VEHICLE REPAIR >

TRUNK LID FINISHER

3.

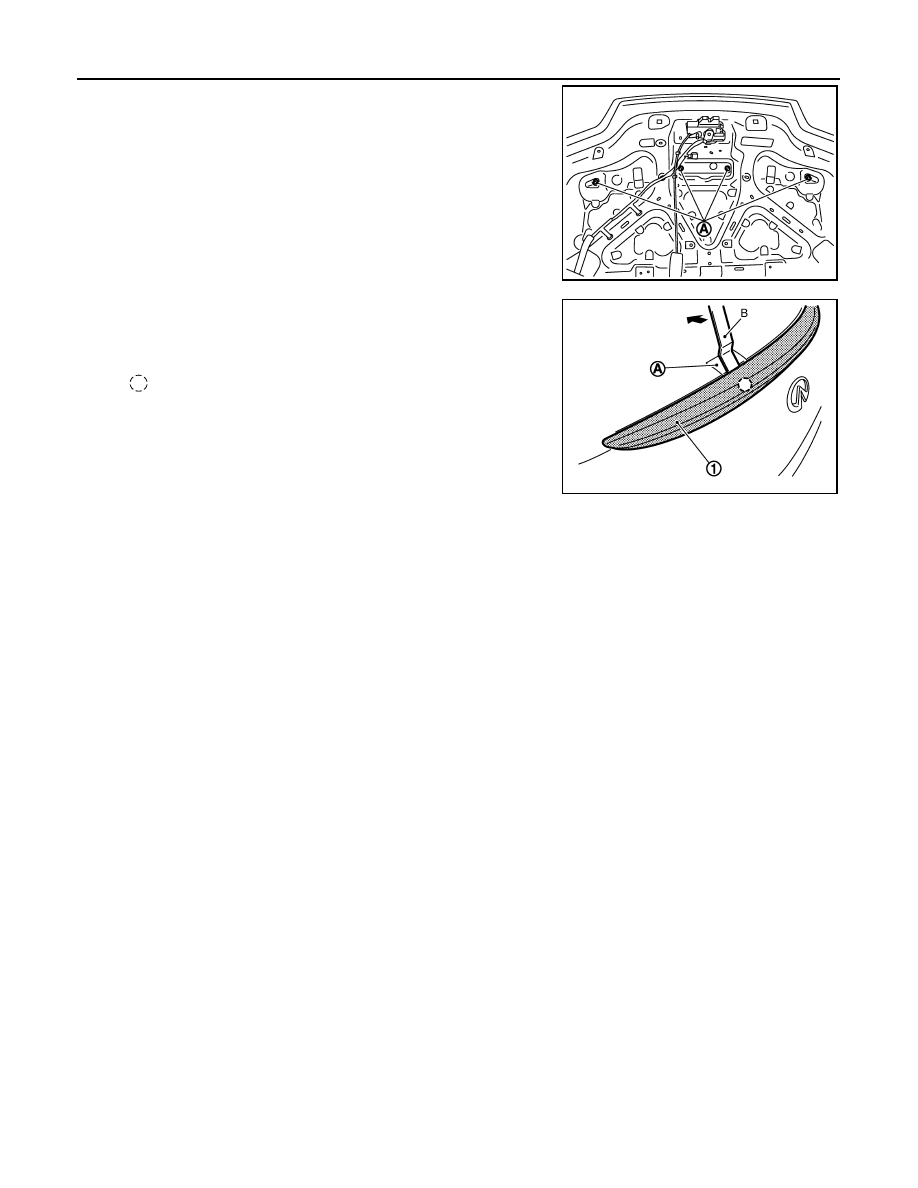

Remove trunk lid finisher outer mounting nuts (A).

4.

Apply protection tape (A) around outer circumference of trunk lid
finisher outer (1).

5.

Remove trunk lid finisher outer (1), using remover tool (B).

CAUTION:

Be careful not to damage the body.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Install after cleaning adhesive parts of body side and back of finisher outer.
• When installing door finisher, check that clips are securely fitted in panel holes on body, and then-

press them in.

TRUNK DRIP COVER

JMKIA1253ZZ

: Clip

JMKIA1254ZZ

TRUNK LID FINISHER

EXT-39

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

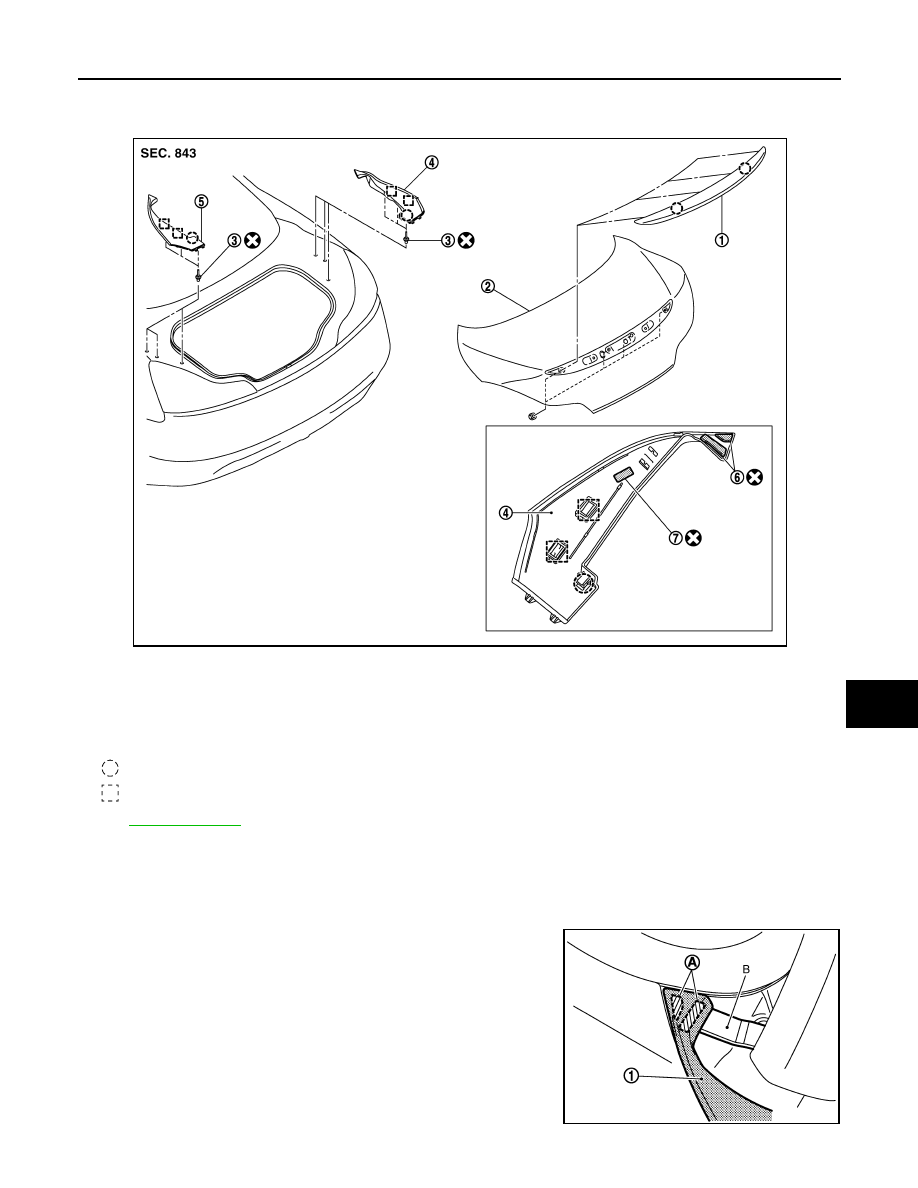

TRUNK DRIP COVER : Exploded View

INFOID:0000000001737292

Refer to

GI-4, "Components"

 for symbols in the figure.

TRUNK DRIP COVER : Removal and Installation

INFOID:0000000001737291

REMOVAL

1.

Fully open trunk lid.

2.

Remove double-faced adhesive tape (A) of trunk drip cover (1)
with remover tool (B).

1.

Trunk lid finisher outer

2.

Trunk lid panel assembly

3.

Rivet

4.

Trunk drip cover RH

5.

Trunk drip cover LH

6.

Double-faced adhesive tape
[t: 4.0 mm (0.157 in)]

7.

Double-faced adhesive tape
[t: 2.5 mm (0.098 in)]

: Clip

: Metal clip

JMKIA1252ZZ

JMKIA1258ZZ

EXT-40

< ON-VEHICLE REPAIR >

TRUNK LID FINISHER

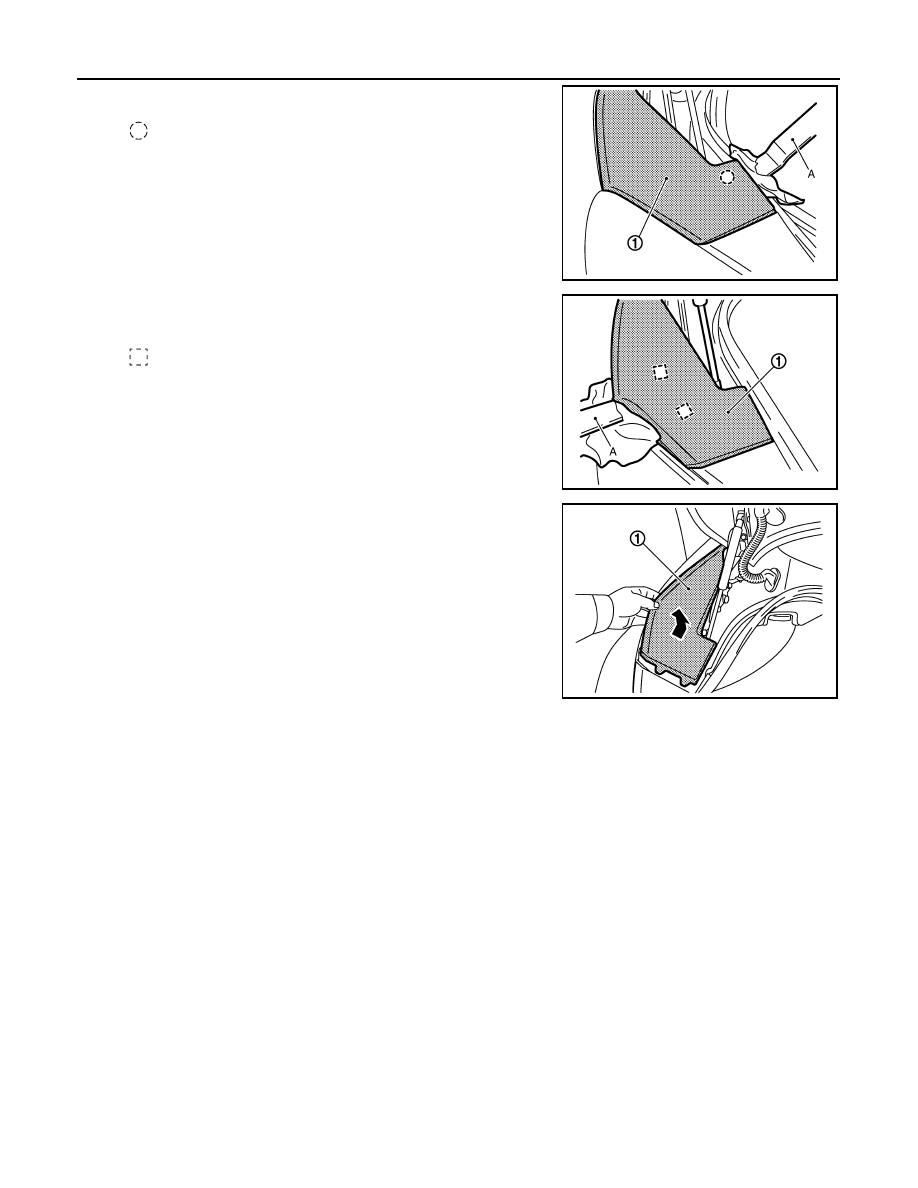

3.

Disengage trunk drip cover (1) fixing clip using remover tool (A).

4.

Disengage trunk drip cover (1) fixing metal clip using remover
tool (A).

5.

Slide forward then remove drip cover (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Double-faced adhesive tape is not reusable, always use new double-faced adhesive tape.
• To secure contact, do not wash vehicle with in 24 hours after installation.

: Clip

JMKIA1262ZZ

: Metal clip

JMKIA1263ZZ

JMKIA1264ZZ

REAR SPOILER

EXT-41

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

REAR SPOILER

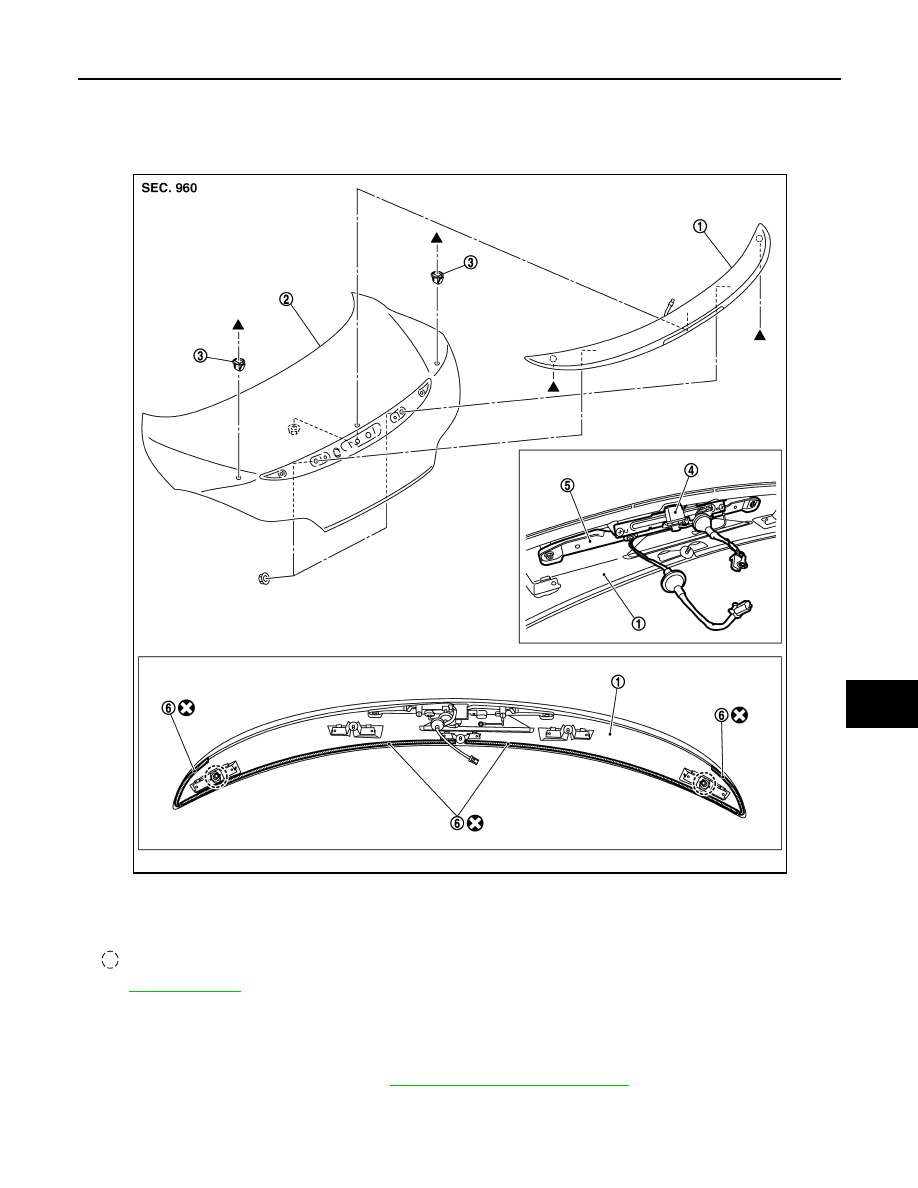

Exploded View

INFOID:0000000001677500

Refer to

GI-4, "Components"

 for symbols in the figure.

Removal and Installation

INFOID:0000000001677501

REMOVAL

1.

Remove trunk lid finisher inner. Refer to

INT-29, "Removal and Installation"

.

1.

Rear spoiler assembly

2.

Trunk lid panel assembly

3.

Grommet

4.

Rear view camera assembly

5.

High-mounted stop lamp

6.

Double-faced adhesive tape
[t: 2.0mm (0.079 in)]

: Clip

JMKIA1259ZZ
