Infiniti G37 Coupe. Manual - part 705





EXT-34

< ON-VEHICLE REPAIR >

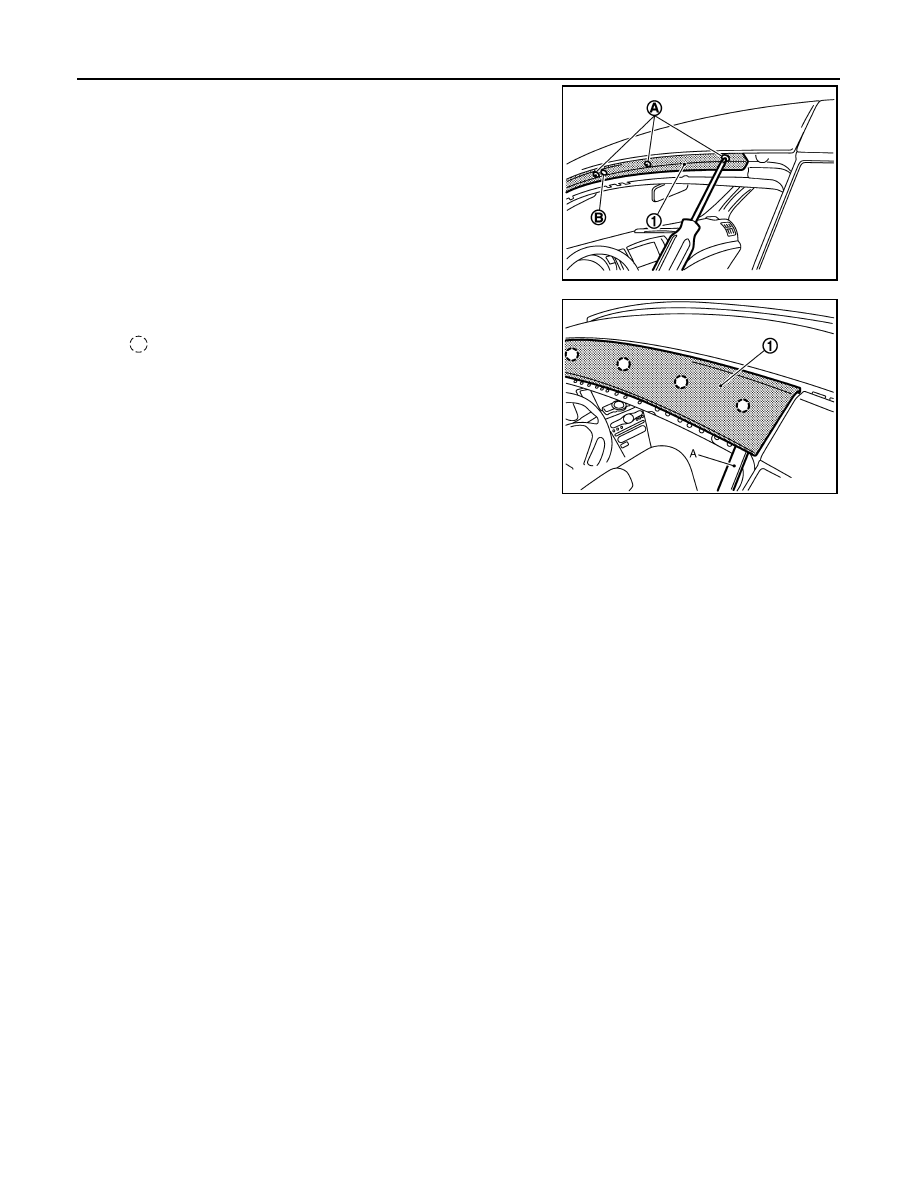

FRONT PILLAR FINISHER

3.

Remove body side weather-strip retainer (1) mounting screws
(A) and clip (B), and then remove body side weather-strip
retainer (1).

4.

Remove front pillar finisher (1) fixing clips with remover tool (A).

5.

Remove front pillar finisher.

Installation

Install in the reverse order of removal.
NOTE:
If body side weather-strip is reused, remove double-faced adhesive tape from molding and body sides, clean
the applied area, and then install the parts shown in the figure into the body after applying new double-faced
adhesive tape to it.

CAUTION:

• Do not let air between contact surfaces when installing.
• To secure contact, do not wash vehicle within 24 hours after installation.

JMKIA1248ZZ

: Clip

JMKIA1249ZZ

DOOR OUTSIDE MOLDING

EXT-35

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

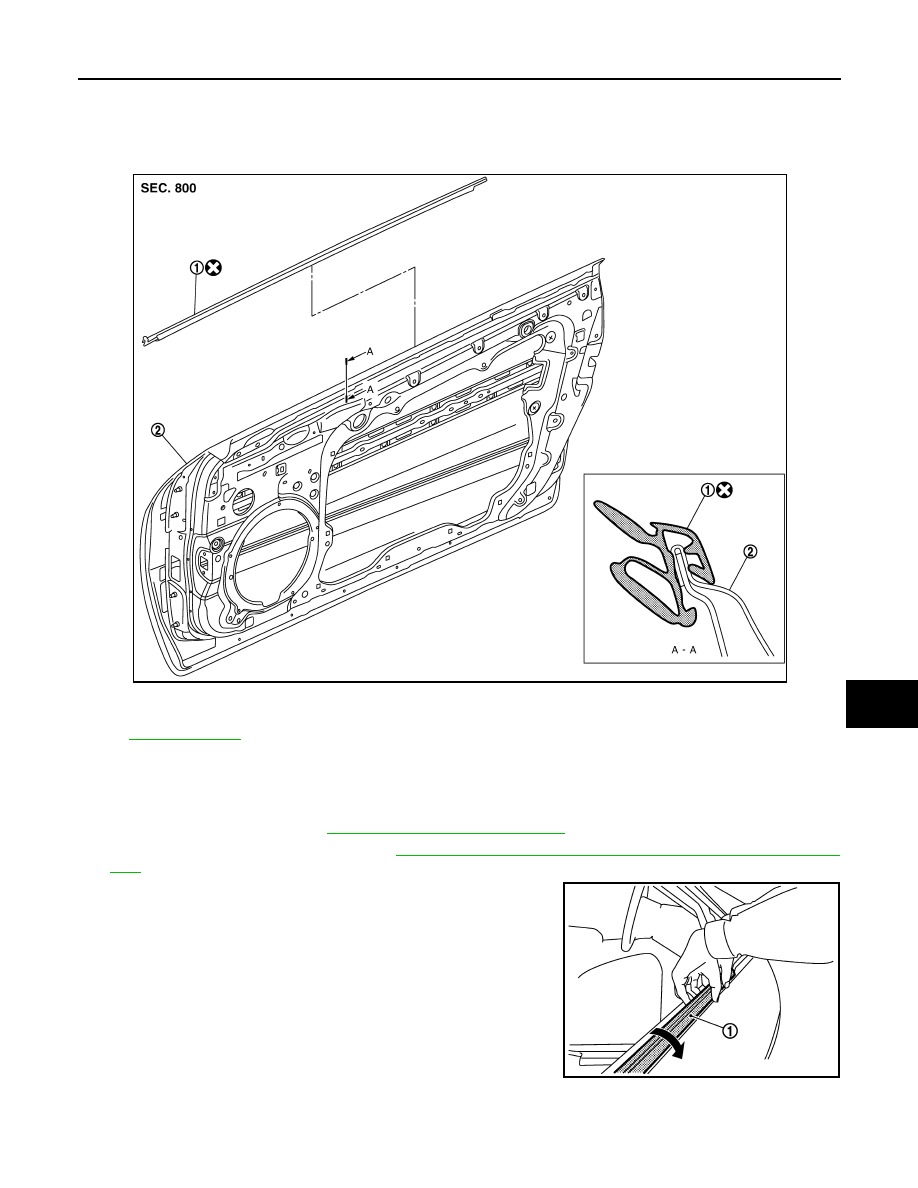

DOOR OUTSIDE MOLDING

Exploded View

INFOID:0000000001677494

Refer to

GI-4, "Components"

 for symbols in the figure.

Removal and Installation

INFOID:0000000001677495

REMOVAL

1.

Remove door finisher. Refer to

INT-11, "Removal and Installation"

.

2.

Remove door mirror assembly. Refer to

MIR-50, "DOOR MIRROR ASSEMBLY : Removal and Installa-

tion"

.

3.

Twists and pull up to upper side, and then remove front door out-
side molding (1).

INSTALLATION

Install in the reverse order of removal.

1.

Door outside molding

2.

Door panel assembly

JMKIA1250ZZ

JMKIA0116GB

EXT-36

< ON-VEHICLE REPAIR >

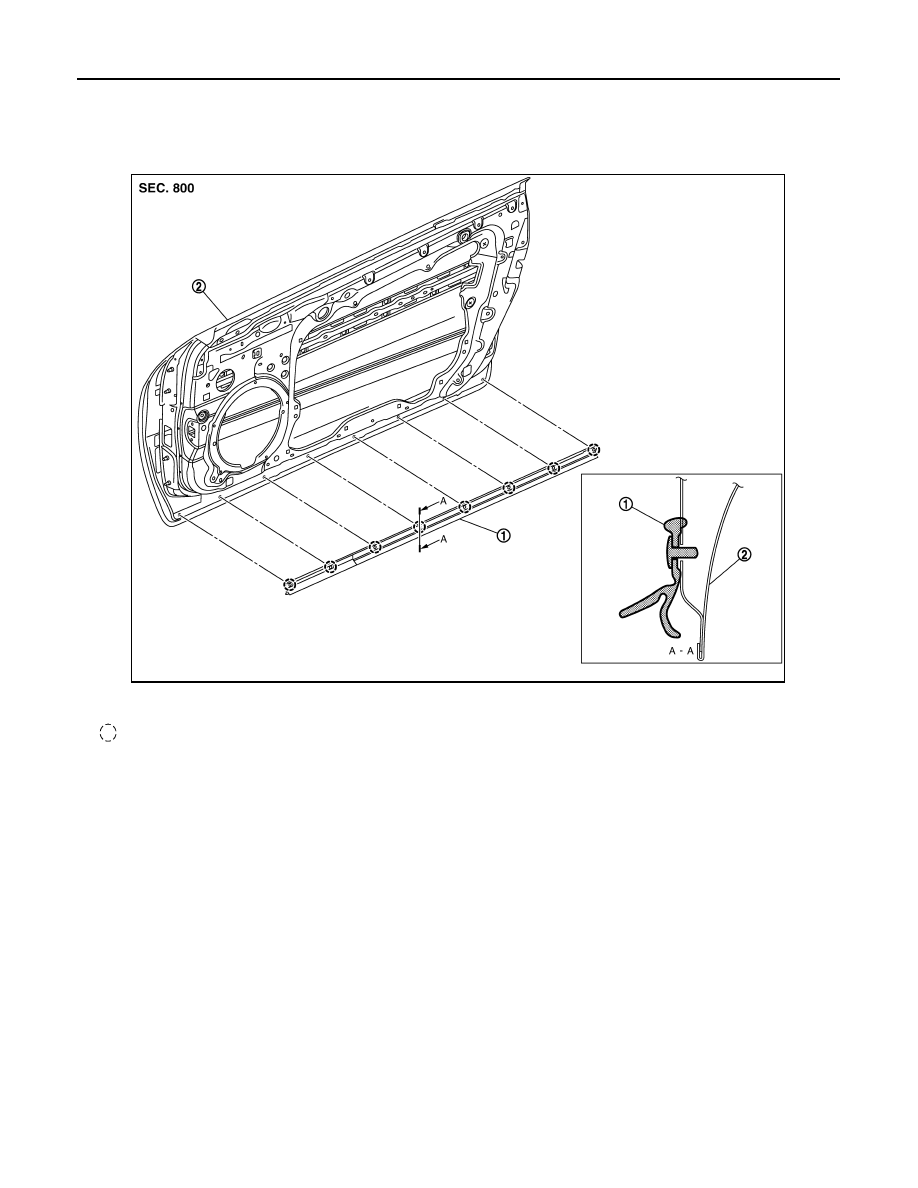

DOOR PARTING SEAL

DOOR PARTING SEAL

Exploded View

INFOID:0000000001677496

Removal and Installation

INFOID:0000000001677497

REMOVAL

1.

Fully open door.

2.

Remove door parting seal mounting plastic clips with remover tool.

3.

Remove door parting seal.

INSTALLATION

Install in the reverse order of removal.

1.

Door parting seal

2.

Door panel assembly

: Clip

JMKIA1251ZZ

TRUNK LID FINISHER

EXT-37

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

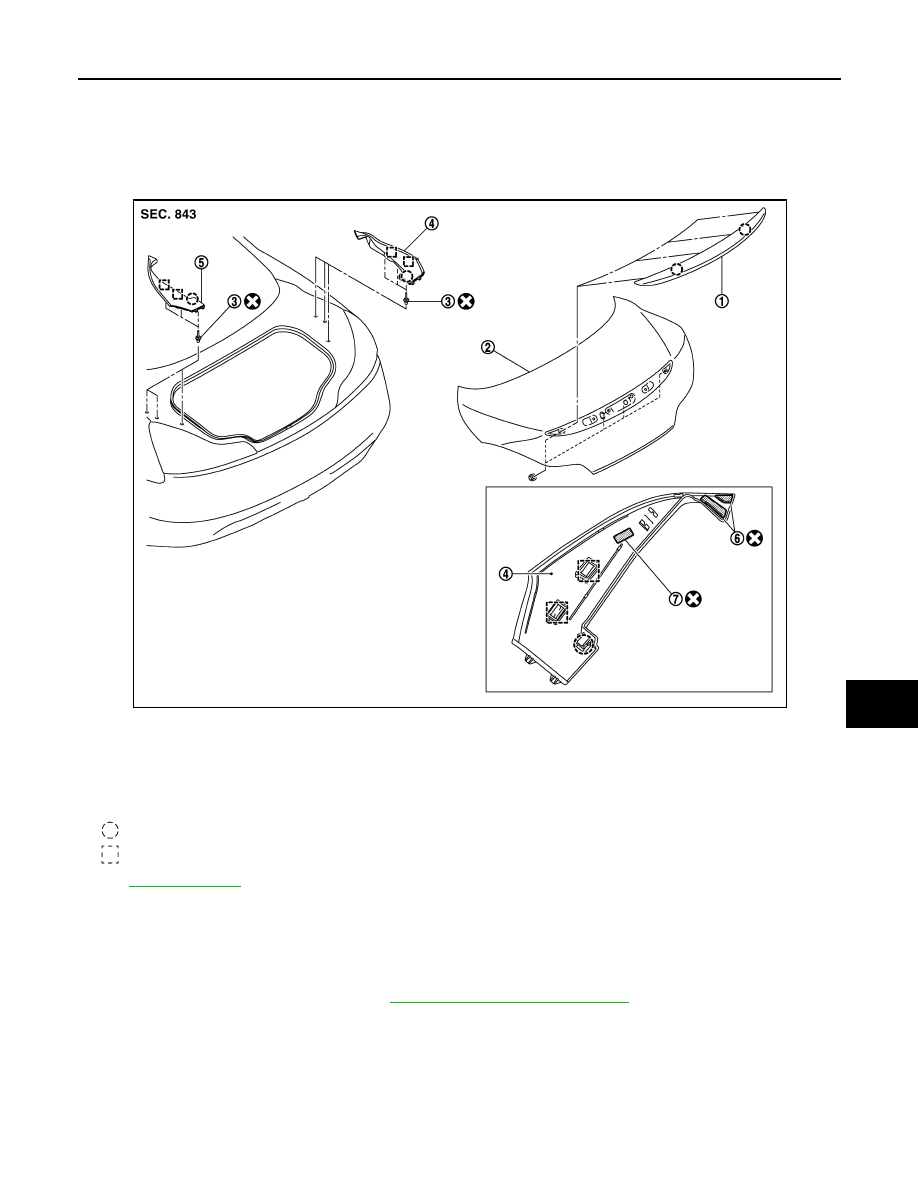

TRUNK LID FINISHER

TRUNK LID OUTER FINISHER

TRUNK LID OUTER FINISHER : Exploded View

INFOID:0000000001677498

Refer to

GI-4, "Components"

 for symbols in the figure.

TRUNK LID OUTER FINISHER : Removal and Installation

INFOID:0000000001677499

REMOVAL

1.

Fully open trunk lid.

2.

Remove trunk lid finisher inner. Refer to

INT-29, "Removal and Installation"

.

1.

Trunk lid finisher outer

2.

Trunk lid panel assembly

3.

Rivet

4.

Trunk drip cover RH

5.

Trunk drip cover LH

6.

Double-faced adhesive tape
[t: 4.0 mm (0.157 in)]

7.

Double-faced adhesive tape
[t: 2.5 mm (0.098 in)]

: Clip

: Metal clip

JMKIA1252ZZ
