EXT-30

< ON-VEHICLE REPAIR >

FLOOR SIDE FAIRING

2.

Remove rear under cover.

INSTALLATION

Install in the reverse order of removal.

ROOF SIDE MOLDING

EXT-31

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

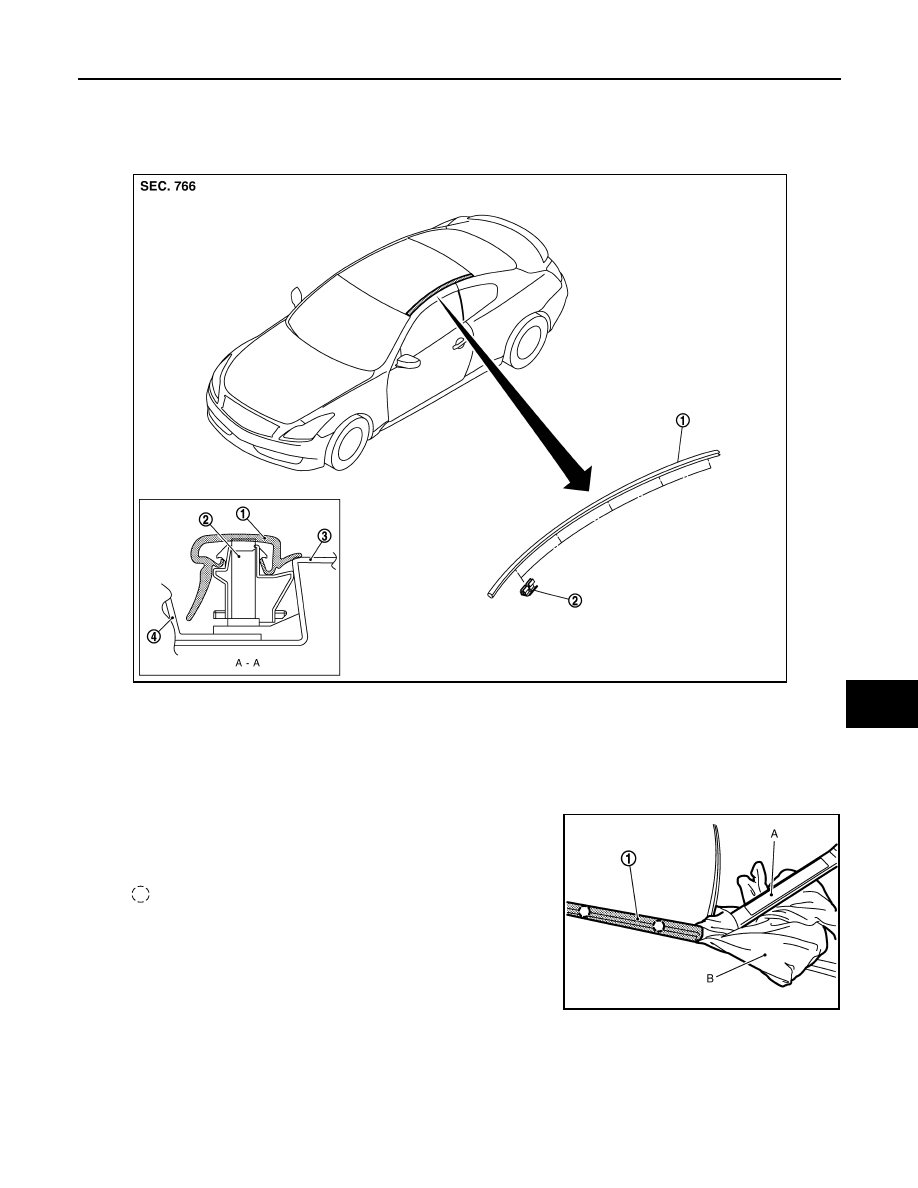

ROOF SIDE MOLDING

Exploded View

INFOID:0000000001677490

Removal and Installation

INFOID:0000000001677491

REMOVAL

Disengage roof side molding (1) fixing clips with remover tool (A).

CAUTION:

Wrap the tip of remover tool (A) with a cloth (B).

INSTALLATION

Install from roof side molding rear end to front end in this order after temporarily holding.

REMOVAL AND INSTALLATION OF ROOF SIDE MOLDING CLIP

Removal

1.

Remove roof side molding.

1.

Roof side molding

2.

Roof side molding clip

3.

Body side panel

4.

Roof panel

JMKIA1245ZZ

: Clip

JMKIA1246ZZ

EXT-32

< ON-VEHICLE REPAIR >

ROOF SIDE MOLDING

2.

Heat adhesive tape interface using a dryer, and then peel roof side molding clips (body side) using long-
nose pliers.

CAUTION:

Be careful not to damage the body.

Installation

1.

Clean tape removed surface with a shop cloth soaked in white gasoline or IPA.

2.

Use two-part epoxy adhesive.

3.

Apply adhesive evenly to clip tape surface.

4.

Position applied parts to the proper location, and then sufficiently press-fit until the adhesive protrudes to
tape side.

5.

Tape clips after press fit, and temporarily hold it for specified time based on the following.

6.

Install from roof side molding rear end to front end in this order after temporarily holding.

CAUTION:

• Use double-faced adhesive tape after hardening for clips.
• Securely insert molding rear end cap onto roof rear end cutout (installation standard).
• When installing roof side molding of windshield portion, check that molding fastener is securely

inserted and then press in.

• Do not wash the vehicle with in 24 hours so as to keep adhesive.

Adhesive

: 3M–weld DP-100 or equivalent

Thickness

: Approximately 0.5 mm (0.020 in)

Press-fit limit

: 19.6 N

×

 2 seconds

 5 to 10

°

C (41 to 50

°

F)

: 1 hour or more

11 to 23

°

C (52 to 73

°

F)

: 30 minutes or more

24

°

C or more (75

°

F or more)

: 15 minutes or more

FRONT PILLAR FINISHER

EXT-33

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

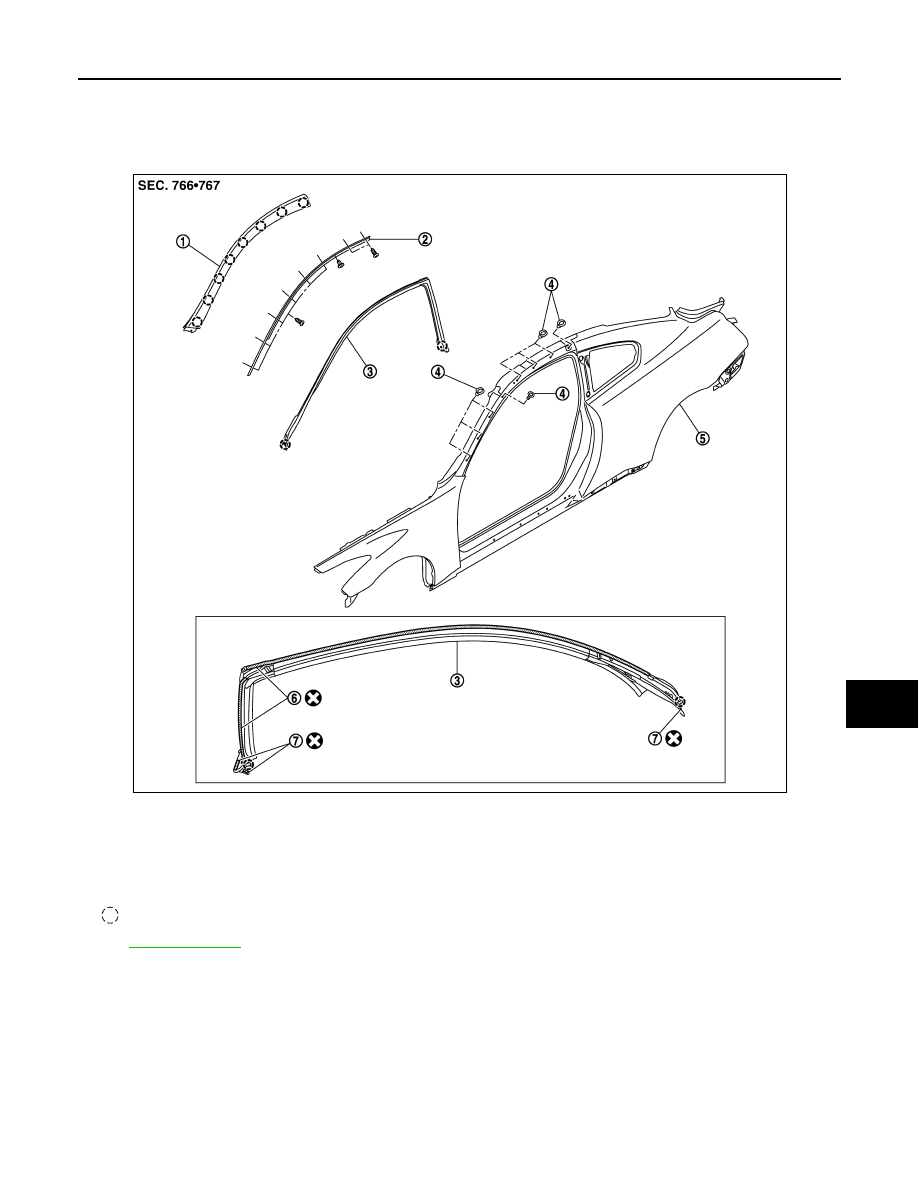

FRONT PILLAR FINISHER

Exploded View

INFOID:0000000001725462

Refer to

GI-4, "Components"

 for symbols in the figure.

Removal and Installation

INFOID:0000000001725463

Removal

1.

Remove clip and double faced adhesive tapes of body side weather-strip.

2.

Remove body side weather-strip.

1.

Front pillar finisher

2.

Body side weather-strip retainer

3.

Body side weather-strip

4.

Grommet

5.

Body side outer

6.

Double-faced adhesive tape
[t: 1.2 mm (0.047 in)]

7.

Double-faced adhesive tape
[t: 0.4 mm (0.016 in)]

: Clip

JMKIA1247ZZ
