Infiniti G37 Coupe. Manual - part 702





EXT-22

< ON-VEHICLE REPAIR >

COWL TOP

3.

Remove battery cover and brake master cylinder cover.

4.

Remove hoodledge cover mounting clips and then remove hoodledge cover (LH/RH) and cowl top cover
seal (LH/RH).

5.

Remove cowl top seal.

6.

Remove cowl top cover mounting clips.

7.

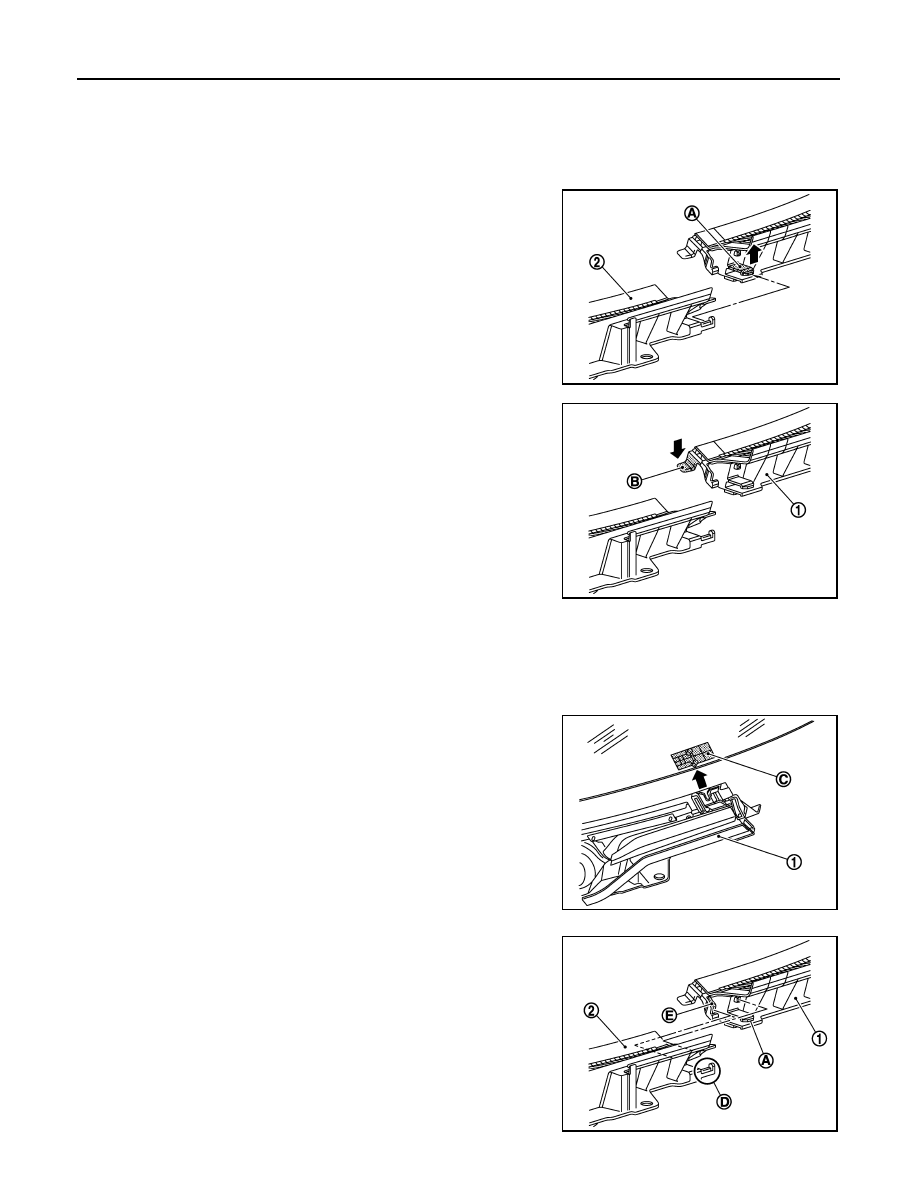

Plastic pawl (A) is pull up and cowl top cover RH (2) is removed
ahead of vehicles.

8.

Plastic pawl (B) is push down and cowl top cover LH (1) is
removed ahead of vehicles.

9.

Remove the following parts after removing cowl top cover.
• Front fender cover (LH/RH).
• EPT sealer.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Install cowl top cover LH (1) with (C) (pin from front windshield

glass) aligned with concave part.

• Slide the pawl while aligning with the concave part of (E).
• Engage the joint of plastic pawl of (A) with (D), and then assemble

cowl top covers LH (1) and RH (2).

JMKIA0099GB

JMKIA0100GB

JMKIA0104GB

JMKIA0105GB

COWL TOP

EXT-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

CAUTION:

After installing, perform adjustment of wiper arm. Refer to

WW-89, "Adjustment"

.

EXT-24

< ON-VEHICLE REPAIR >

FENDER PROTECTOR

FENDER PROTECTOR

FENDER PROTECTOR

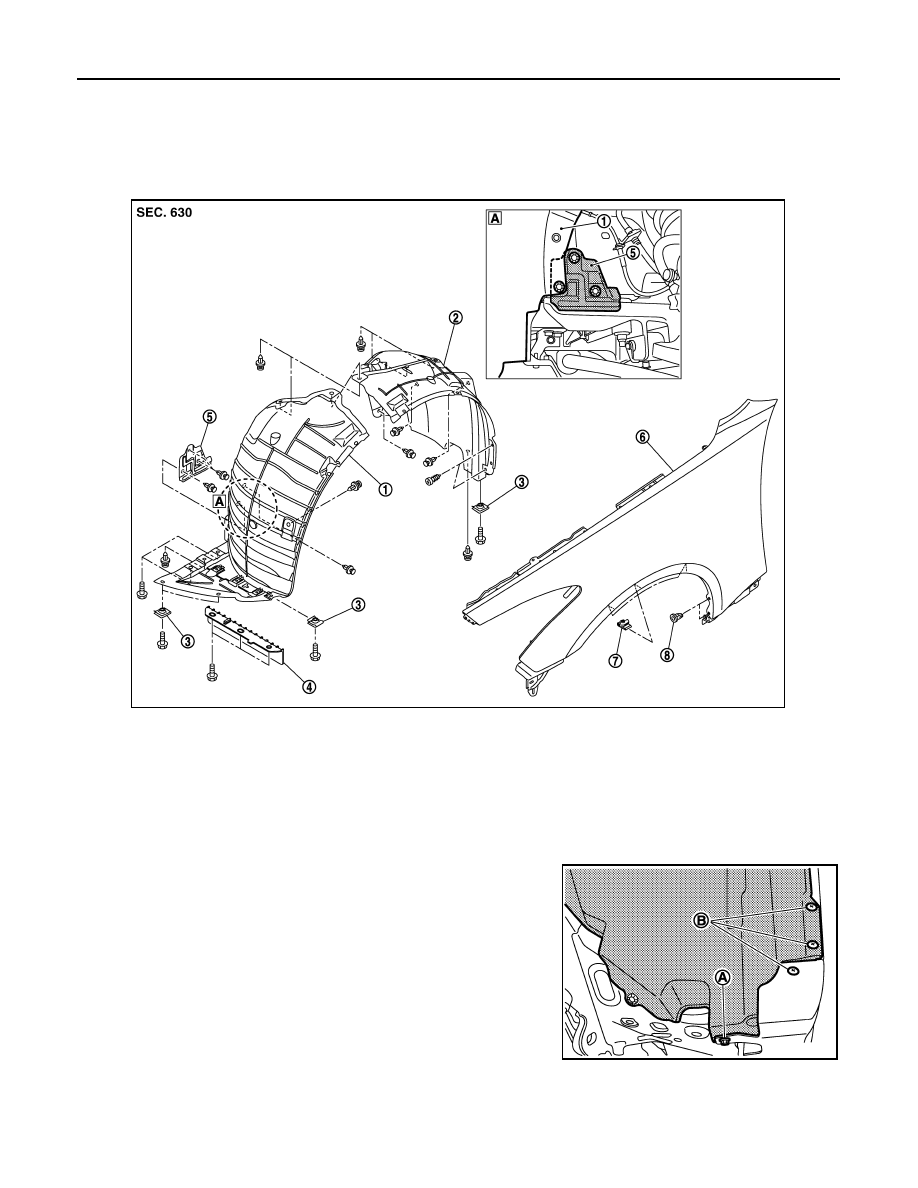

FENDER PROTECTOR : Exploded View

INFOID:0000000001677484

FENDER PROTECTOR : Removal and Installation

INFOID:0000000001677485

REMOVAL

1.

Remove bolt (A) of fender protector (rear) rear end.

2.

Remove screws (B) of fender protector (rear) located center
mud guard and front fender.

3.

Remove clips of fender protector (rear).

4.

Remove fender clip from wheelhouse arches, and then remove fender protector (rear) from wheel house.

1.

Fender protector (front)

2.

Fender protector (rear)

3.

J-nut

4.

Fairing

5.

Splash guard

6.

Front fender

7.

Fender clip

8.

Grommet

JMKIA1237ZZ

JMKIA0106GB

FENDER PROTECTOR

EXT-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

5.

Remove bolts (A) of fender protector (front) located engine
under cover and front bumper.

6.

Remove fender protector (front) mounting clips.

7.

Remove fender clip from wheel house arches, and then remove fender protector (front) from wheel house.

8.

Remove the following parts after removing front fender protector.
• Fairing
• Fender clip

INSTALLATION

Install in the reverse order of removal.

REAR WHEEL HOUSE PROTECTOR

REAR WHEEL HOUSE PROTECTOR : Exploded View

INFOID:0000000001724881

REAR WHEEL HOUSE PROTECTOR : Removal and Installation

INFOID:0000000001724882

REMOVAL

JMKIA0107GB

1.

Rear wheel house protector

JMKIA1238ZZ
