EXT-18
< ON-VEHICLE REPAIR >
REAR BUMPER
8.

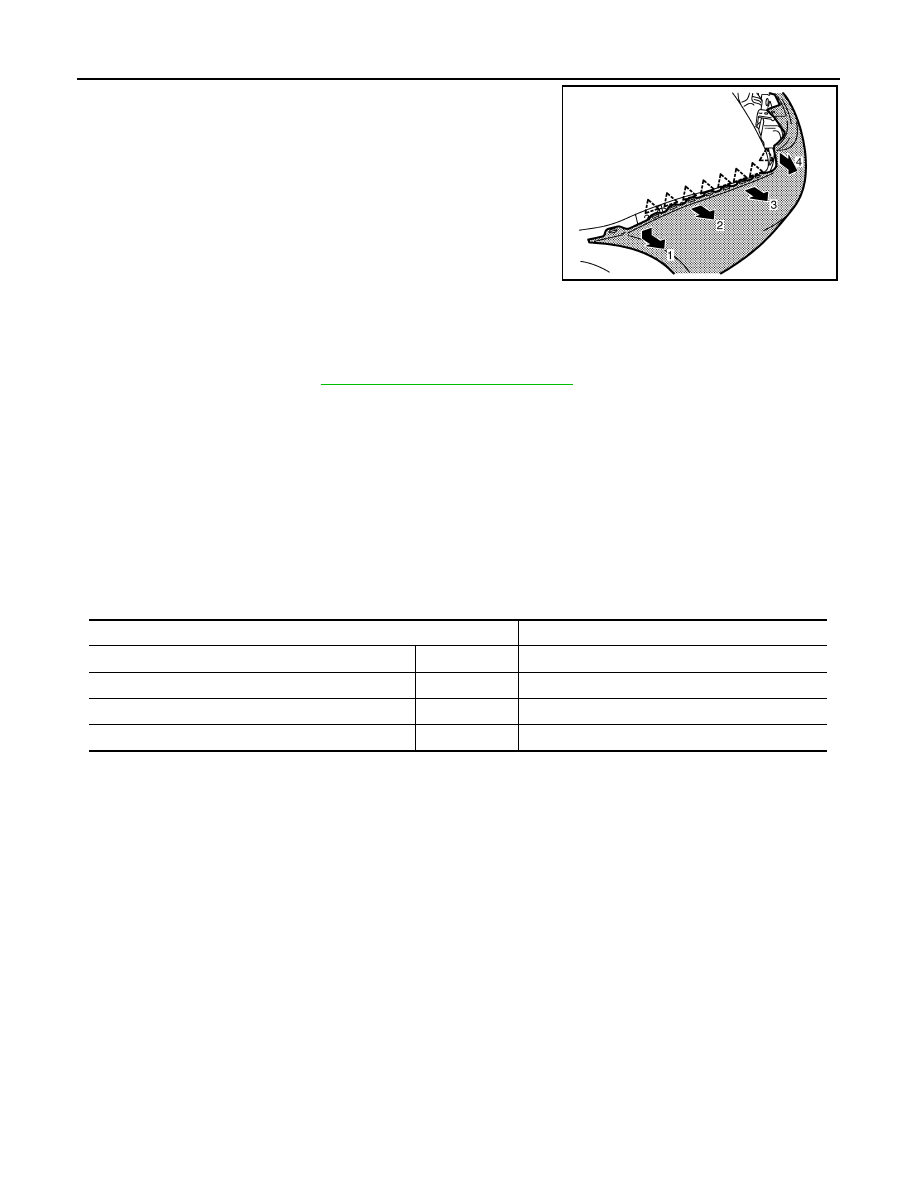

Pull the bumper fascia side toward the vehicle side to disengage
the fitting of bumper side bracket and bumper fascia side.
9.
Remove bumper fascia assembly.
CAUTION:
When removing bumper fascia, 2 workers are required so as to prevent it from dropping.
10. Remove the following parts after removing bumper fascia.
• License plate lamp. Refer to
EXL-204, "Removal and Installation"
.
• License lamp bracket.
• License plate bracket.
• Bumper lower retainer.
11. Remove bumper energy absorber.
12. Remove license lamp harness clamps of bumper reinforcement.
13. Remove bumper reinforcement mounting nuts and bolts, and then remove bumper reinforcement with
power tool.
INSTALLATION
Install in the reverse order of removal.
NOTE:
After installing, perform fitting adjustment.
JMKIA1235ZZ
Portion
Clearance
Rear bumper – Trunk lid
A – A
4.0 – 8.0 mm (0.157 – 0.315 in)
Rear bumper – Rear combination lamp
B – B
0.0 – 3.0 mm (0.000 – 0.118 in)
Rear bumper – Rear fender
C – C
0.0 – 0.8 mm (0.000 – 0.031 in)
Rear bumper – Rear fender
D – D
0.0 – 0.8 mm (0.000 – 0.031 in)
