EXT-14

< ON-VEHICLE REPAIR >

FRONT BUMPER

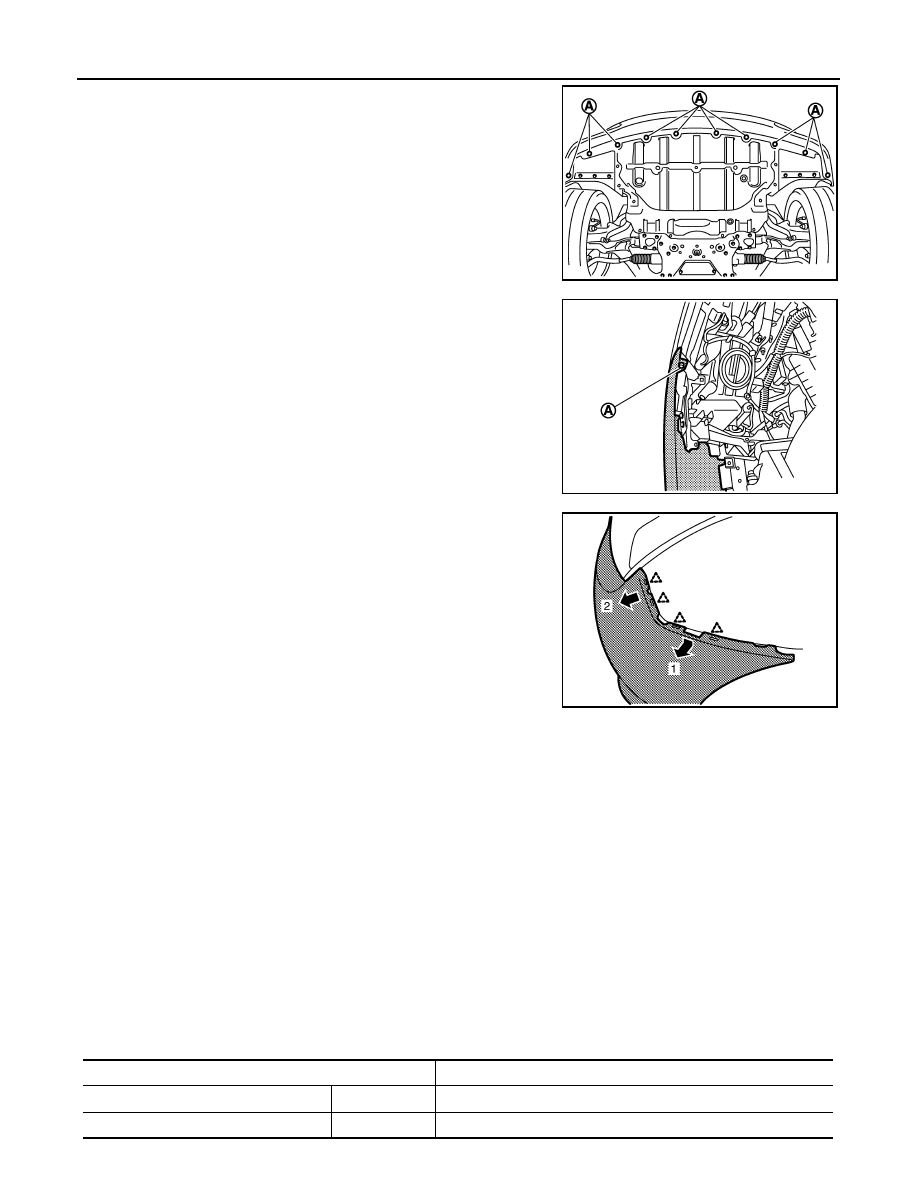

6.

Remove bolts (A) of fixing engine lower cover and front fender
protector.

7.

Remove fender protector (front) mounting bolts and clips, and
then remove screw (A) of fixing bumper fascia left and right side.

8.

Pull the bumper fascia side toward the vehicle side to disengage
the fitting of bumper side bracket and bumper fascia side.

9.

Remove bumper fascia assembly.

CAUTION:

When removing bumper fascia, 2 workers are required so as to prevent it from dropping.

10. Remove the following parts after removing bumper fascia.

• Front grille
• Hood seal assembly (front)
• License plate bracket
• Front bumper side bracket (LH/RH)
• Front bumper side stiffener (LH/RH)
• Front bumper finisher

11. Remove bumper energy absorber.
12. Remove bumper reinforcement mounting nuts and bolts, and then remove bumper reinforcement with

power tool.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installing, perform fitting adjustment.

JMKIA1229ZZ

JMKIA1230ZZ

JMKIA1231ZZ

Portion

Clearance

Front bumper – Hood assembly

A – A

2.0 – 4.5 mm (0.079 – 0.177 in)

Front bumper – Front grille

B – B

0.2 – 2.8 mm (0.008 – 0.110 in)

FRONT BUMPER

EXT-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Front bumper – Headlamp

C – C

0.5 – 3.2 mm (0.020 – 0.126 in)

Front bumper – Front fender

D – D

0.0 – 0.7 mm (0.000 – 0.028 in)

Front bumper – Headlamp

E – E

0.3 – 3.2 mm (0.012 – 0.126 in)

Front bumper – Front fender

F – F

0.0 – 0.7 mm (0.000 – 0.028 in)

Front bumper – Front fender

G – G

0.0 – 0.8 mm (0.000 – 0.031 in)

Portion

Clearance

EXT-16

< ON-VEHICLE REPAIR >

REAR BUMPER

REAR BUMPER

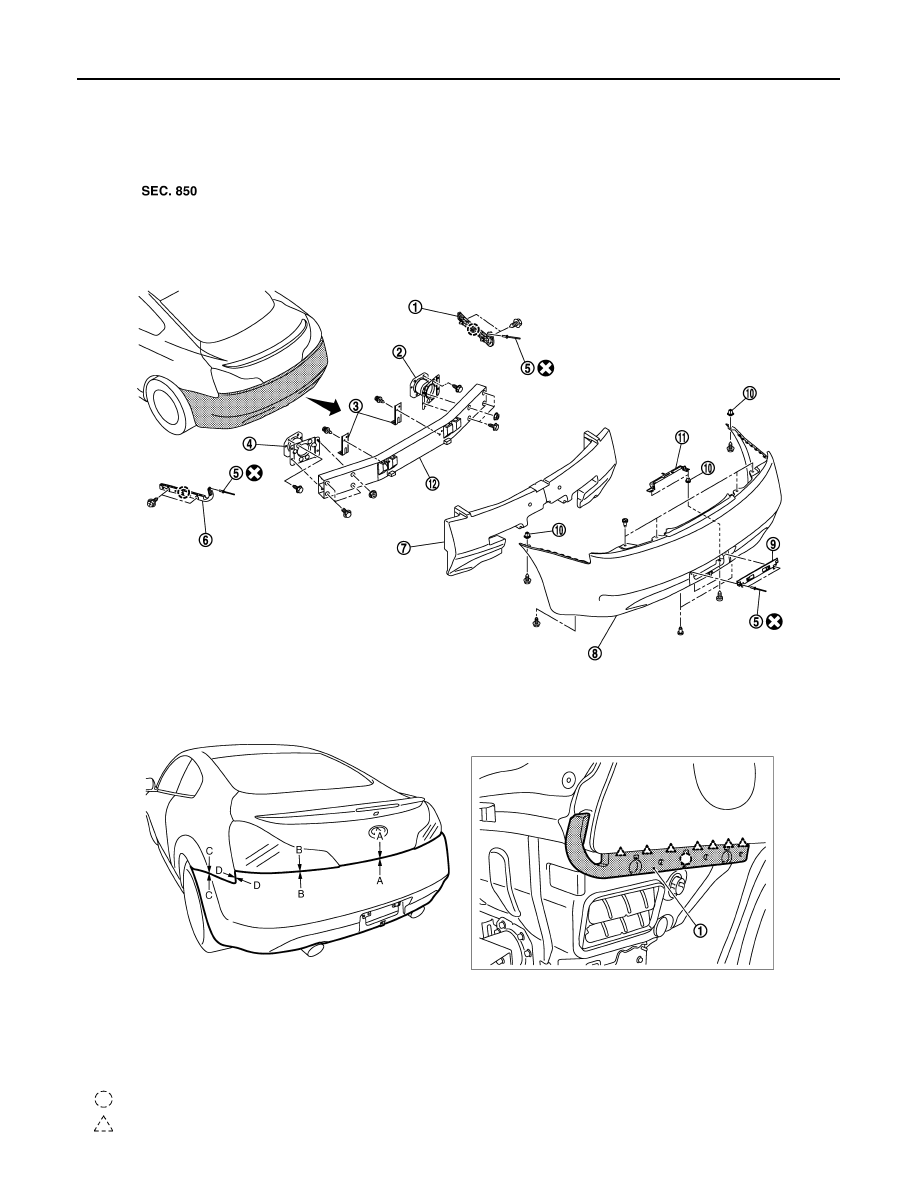

Exploded View

INFOID:0000000001677478

1.

Bumper side bracket RH

2.

Bumper stay RH

3.

Bumper lower retainer

4.

Bumper stay LH

5.

Rivet

6.

Bumper side bracket LH

7.

Bumper energy absorber

8.

Bumper fascia assembly

9.

Rear license plate bracket

10. Grommet

11.

License lamp bracket

12. Bumper reinforcement

: Clip

: Pawl

JMKIA1232ZZ

REAR BUMPER

EXT-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Refer to

GI-4, "Components"

 for symbols in the figure.

Removal and Installation

INFOID:0000000001677479

REMOVAL

CAUTION:

Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with
oil.

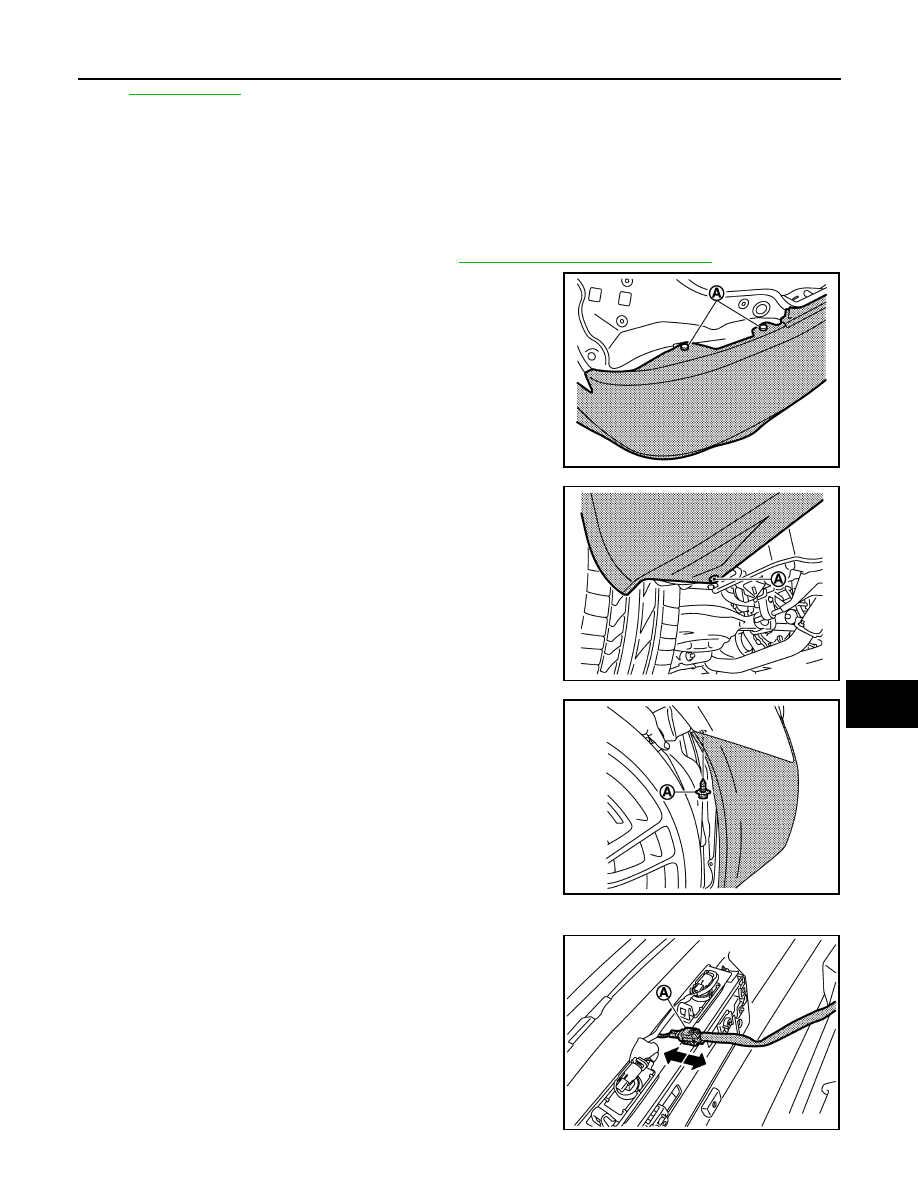

1.

Fully open trunk lid assembly.

2.

Remove rear combination lamp (LH/RH). Refer to

EXL-200, "Removal and Installation"

.

3.

Remove clips (A) located under rear combination lamp (LH/RH).

4.

Remove bolts (A) of bumper fascia underside (LH/RH).

5.

Remove screws (A) of bumper fascia front end upper (LH/RH).

6.

Remove clips of bumper fascia underside, and then pull out bumper fascia toward rear of vehicle.

7.

Disconnect license plate lamp connector (A).

JMKIA1233ZZ

JMKIA1234ZZ

JMKIA0095GB

JMKIA0096GB
