Infiniti G37 Coupe. Manual - part 696

EXL-204

< ON-VEHICLE REPAIR >

[XENON TYPE]

LICENSE PLATE LAMP

LICENSE PLATE LAMP

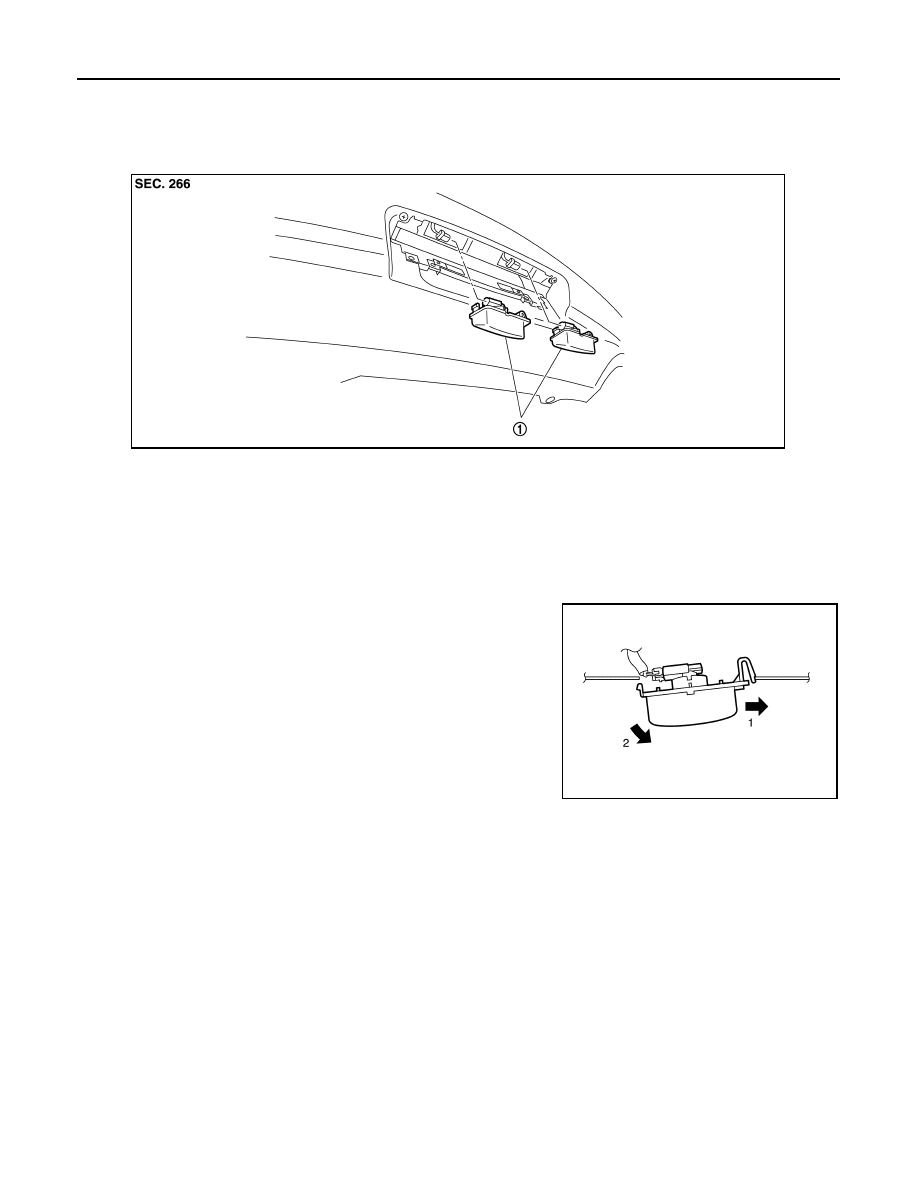

Exploded View

INFOID:0000000001604747

Removal and Installation

INFOID:0000000001604748

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Remove the license plate lamp in numerical order.

2.

Disconnect the connector.

3.

Remove license plate lamp.

INSTALLATION

1.

Connect the connector.

2.

Fix the pawl side. And then push the resin clip side.

Replacement

INFOID:0000000001604749

CAUTION:

Disconnect the battery negative terminal or the fuse.

LICENSE PLATE LAMP BULB

1.

Remove license plate lamp.

1.

License plate lamp

JPLIA0556ZZ

JPLIA0056ZZ

LICENSE PLATE LAMP

EXL-205

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

2.

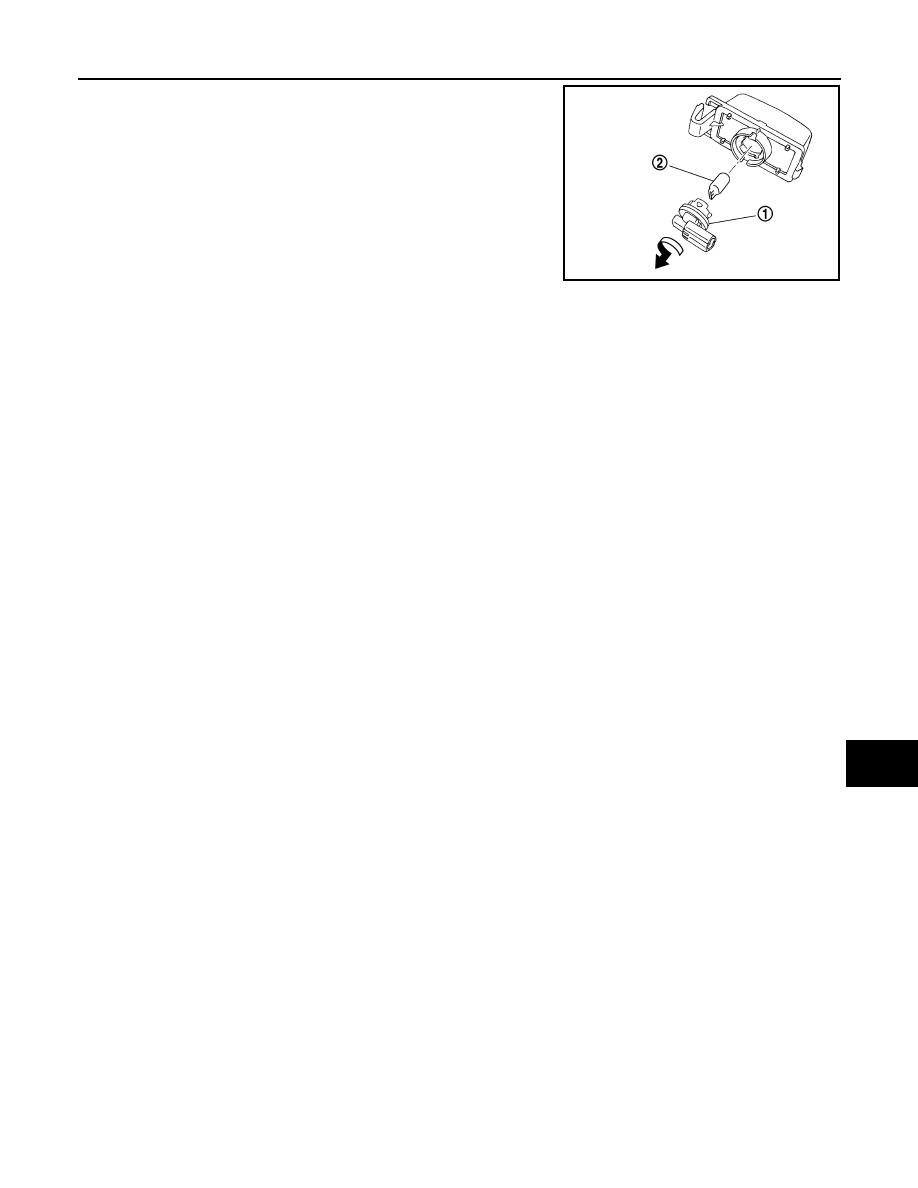

Turn the bulb socket (1) counterclockwise and unlock it.

3.

Remove the bulb (2) from the socket.

JPLIA0055ZZ

EXL-206

< SERVICE DATA AND SPECIFICATIONS (SDS)

[XENON TYPE]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000001604750

Item

Type

Wattage (W)

Front combination lamp

Headlamp (HI/LO)

D2S (XENON)

35

Front turn signal lamp

WY21W (Amber)

21

Parking lamp

W5W

5

Front fog lamp

H1

55

Front side marker lamp

W5W

5

Rear combination lamp

Stop lamp/Tail lamp

LED

—

Rear turn signal lamp

W21W

21

Rear side marker lamp

LED

—

Back-up lamp

W16W

16

License plate lamp

W5W

5

High-mounted stop lamp

LED

—

EXT-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

EXT

A

B

EXT

N

O

P

CONTENTS

EXTERIOR

SYMPTOM DIAGNOSIS  ...............................

3

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

3

Work Flow  .................................................................

3

Inspection Procedure  ................................................

5

Diagnostic Worksheet  ...............................................

7

PRECAUTION ...............................................

9

PRECAUTIONS ...................................................

9

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

9

Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect  .....................................

9

Precaution for Procedure without Cowl Top Cover

....

10

Precaution for Work  ................................................

10

PREPARATION ...........................................

11

PREPARATION ..................................................

11

Special Service Tools ..............................................

11

Commercial Service Tools .....................................

11

ON-VEHICLE REPAIR .................................

12

FRONT BUMPER  ...............................................

12

Exploded View  ........................................................

12

Removal and Installation .........................................

13

REAR BUMPER  .................................................

16

Exploded View  ........................................................

16

Removal and Installation .........................................

17

FRONT GRILLE  .................................................

19

Exploded View  ........................................................

19

Removal and Installation .........................................

19

COWL TOP .........................................................

21

Exploded View  ........................................................

21

Removal and Installation .........................................

21

FENDER PROTECTOR  ....................................

24

FENDER PROTECTOR  .............................................

24

FENDER PROTECTOR : Exploded View  ...............

24

FENDER PROTECTOR : Removal and Installa-
tion ...........................................................................

24

REAR WHEEL HOUSE PROTECTOR  ......................

25

REAR WHEEL HOUSE PROTECTOR : Exploded
View .........................................................................

25

REAR WHEEL HOUSE PROTECTOR : Removal
and Installation  ........................................................

25

CENTER MUD GUARD .....................................

27

Exploded View .........................................................

27

Removal and Installation  .........................................

27

FLOOR SIDE FAIRING  .....................................

29

Exploded View .........................................................

29

Removal and Installation  .........................................

29

ROOF SIDE MOLDING  .....................................

31

Exploded View .........................................................

31

Removal and Installation  .........................................

31

FRONT PILLAR FINISHER ...............................

33

Exploded View .........................................................

33

Removal and Installation  .........................................

33

DOOR OUTSIDE MOLDING  .............................

35

Exploded View .........................................................

35

Removal and Installation  .........................................

35

DOOR PARTING SEAL  ....................................

36

Exploded View .........................................................

36

Removal and Installation  .........................................

36

TRUNK LID FINISHER ......................................

37

TRUNK LID OUTER FINISHER  .................................

37

TRUNK LID OUTER FINISHER : Exploded View ....

37

TRUNK LID OUTER FINISHER : Removal and In-
stallation ..................................................................

37
