Infiniti G37 Coupe. Manual - part 695

EXL-200

< ON-VEHICLE REPAIR >

[XENON TYPE]

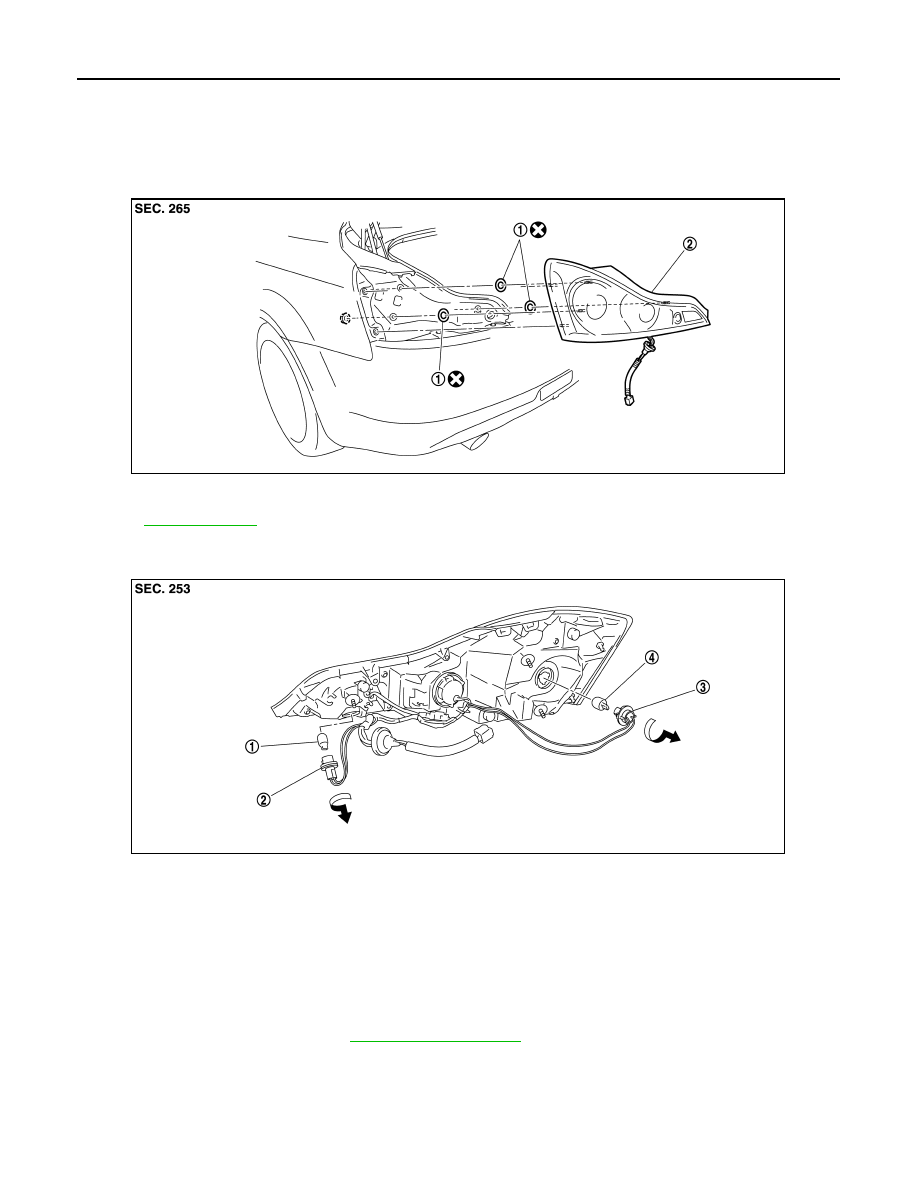

REAR COMBINATION LAMP

REAR COMBINATION LAMP

Exploded View

INFOID:0000000001604737

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000001604738

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Remove Trunk rear plate. Refer to

INT-27, "Exploded View"

.

2.

Remove rear combination lamp mounting nuts.

3.

Pull the rear combination lamp toward rear of the vehicle.

4.

Disconnect rear combination lamp connector.

5.

Remove the rear combination lamp.

1.

Seal packing

2.

Rear combination lamp assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA0552ZZ

1.

Back-up lamp

2.

Back-up lamp bulb socket

3.

Rear turn signal lamp bulb socket

4.

Rear turn signal lamp bulb

JPLIA0553ZZ

REAR COMBINATION LAMP

EXL-201

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Seal packing cannot be reused.

Replacement

INFOID:0000000001604739

REAR TURN SIGNAL LAMP BULB

CAUTION:

Disconnect the battery negative terminal or the fuse.

1.

Remove rear combination lamp assembly.

2.

Turn the rear turn signal lamp bulb socket counterclockwise and unlock it.

3.

Remove the bulb from the socket.

BACK-UP LAMP BULB

1.

Remove rear combination lamp assembly.

2.

Turn the bulb socket counterclockwise and unlock it.

3.

Remove the bulb from the socket.

EXL-202

< ON-VEHICLE REPAIR >

[XENON TYPE]

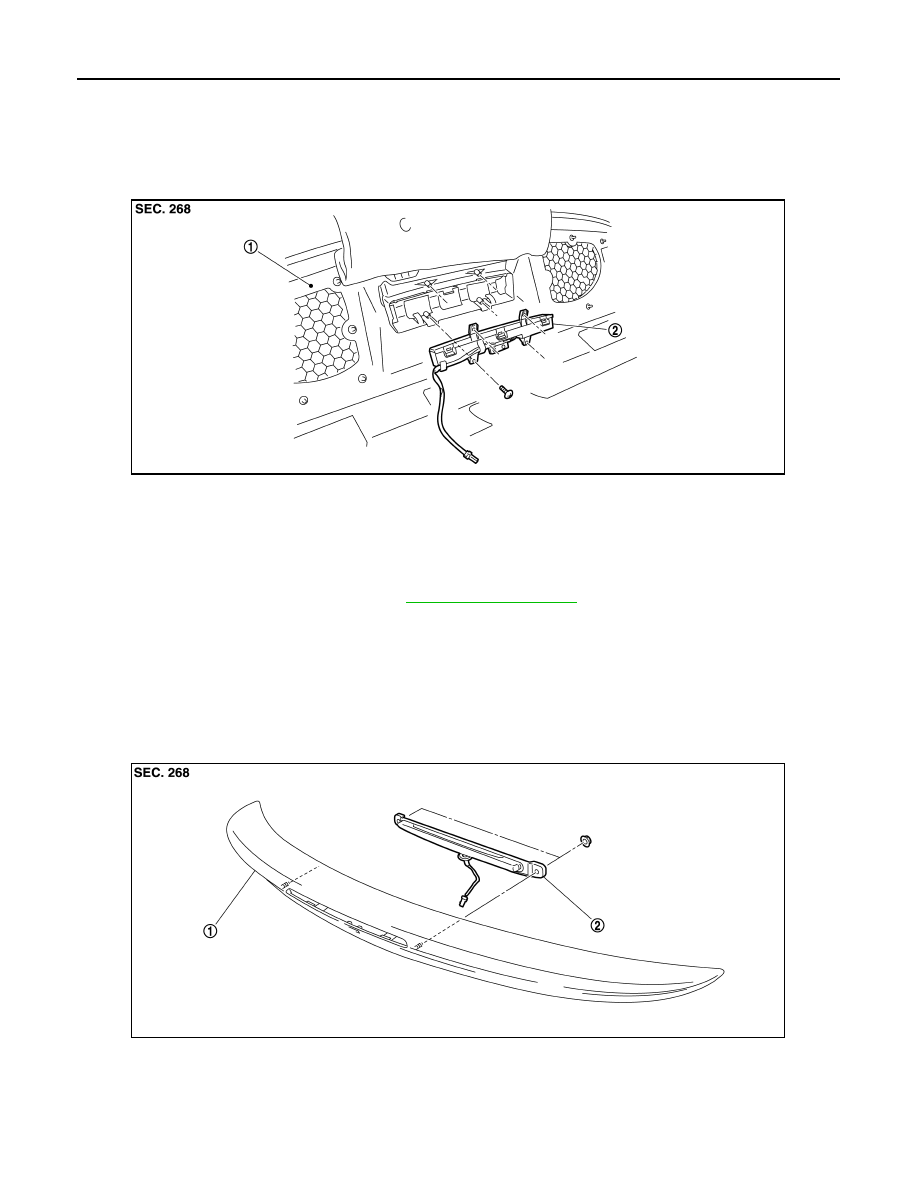

HIGH-MOUNTED STOP LAMP

HIGH-MOUNTED STOP LAMP

WITHOUT REAR SPOILER

WITHOUT REAR SPOILER : Exploded View

INFOID:0000000001604740

WITHOUT REAR SPOILER : Removal and Installation

INFOID:0000000001604741

REMOVAL

1.

Remove rear parcel shelf finisher. Refer to

INT-17, "Exploded View"

.

2.

Remove screws and remove high-mounted stop lamp from rear parcel shelf finisher.

INSTALLATION

Install in the reverse order of removal.

WITH REAR SPOILER

WITH REAR SPOILER : Exploded View

INFOID:0000000001604742

WITH REAR SPOILER : Removal and Installation

INFOID:0000000001604743

REMOVAL

1.

Rear parcel shelf finisher

2.

High-mounted stop lamp

JPLIA0554ZZ

1.

Rear spoiler

2.

High-mounted stop lamp

JPLIA0555ZZ

HIGH-MOUNTED STOP LAMP

EXL-203

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

1.

Remove rear spoiler. Refer to

EXT-41, "Exploded View"

.

2.

Remove the high-mounted stop lamp mounting nut.

3.

Remove rear view camera (if equipped).

4.

Remove the high-mounted stop lamp from rear spoiler.

INSTALLATION

Install in the reverse order of removal.
