FRONT COMBINATION LAMP

ON-VEHICLE REPAIR

FRONT COMBINATION LAMP

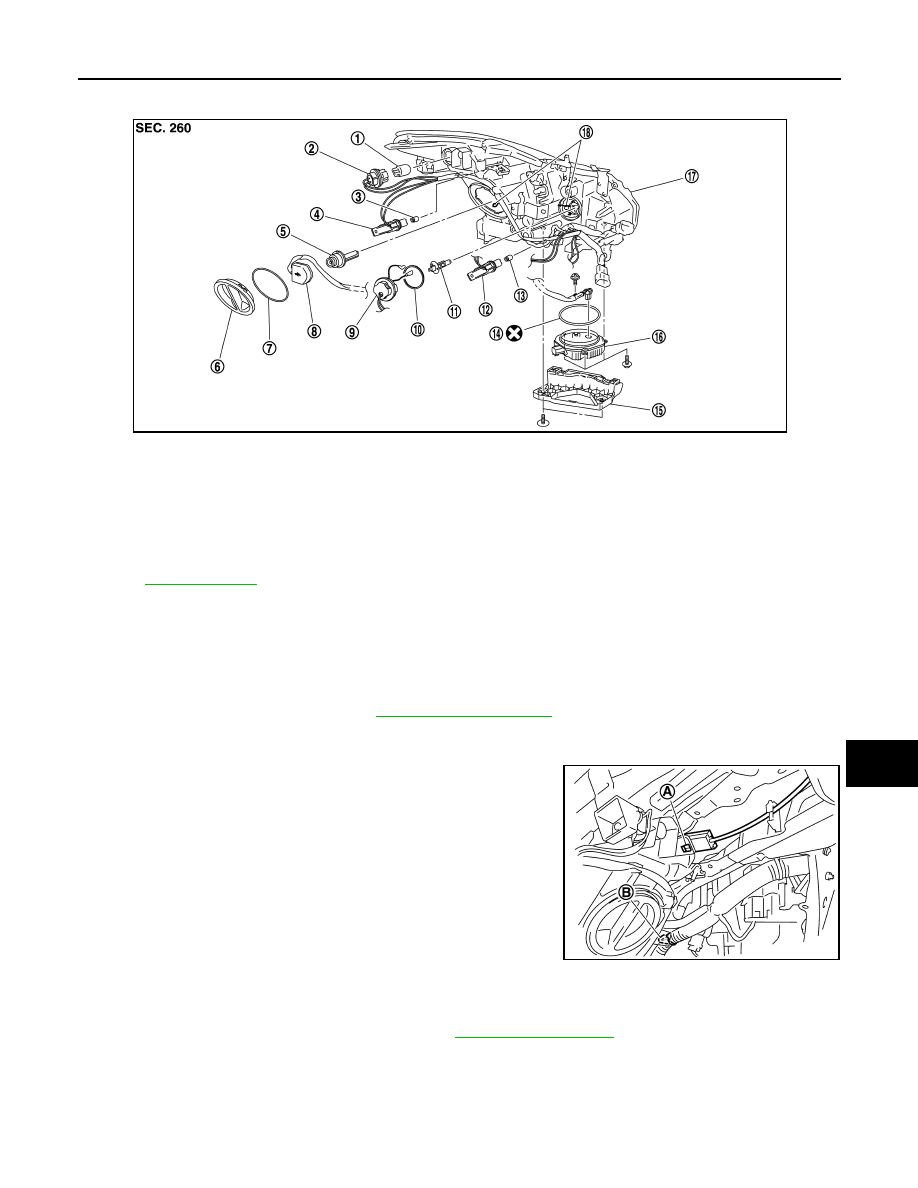

Exploded View

INFOID:0000000001604721

REMOVAL

DISASSEMBLY

Without AFS

1.

Front combination lamp

JPLIA0546ZZ

1.

Front turn signal lamp bulb

2.

Front turn signal lamp bulb socket

3.

Side marker lamp bulb

4.

Side marker lamp bulb socket

5.

Xenon bulb

6.

Resin cap

7.

Seal packing

8.

Xenon bulb socket

9.

Resin cap

10.

Seal packing

11. Front fog lamp bulb

12. Parking lamp bulb socket

13.

Parking lamp bulb

14. Seal packing

15. Bump bracket

16.

HID control unit

17. Headlamp housing assembly

18. Retaining spring

Refer to

GI-4, "Components"

 for symbols not described above.

JPLIA0547ZZ

FRONT COMBINATION LAMP

EXL-189

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

With AFS

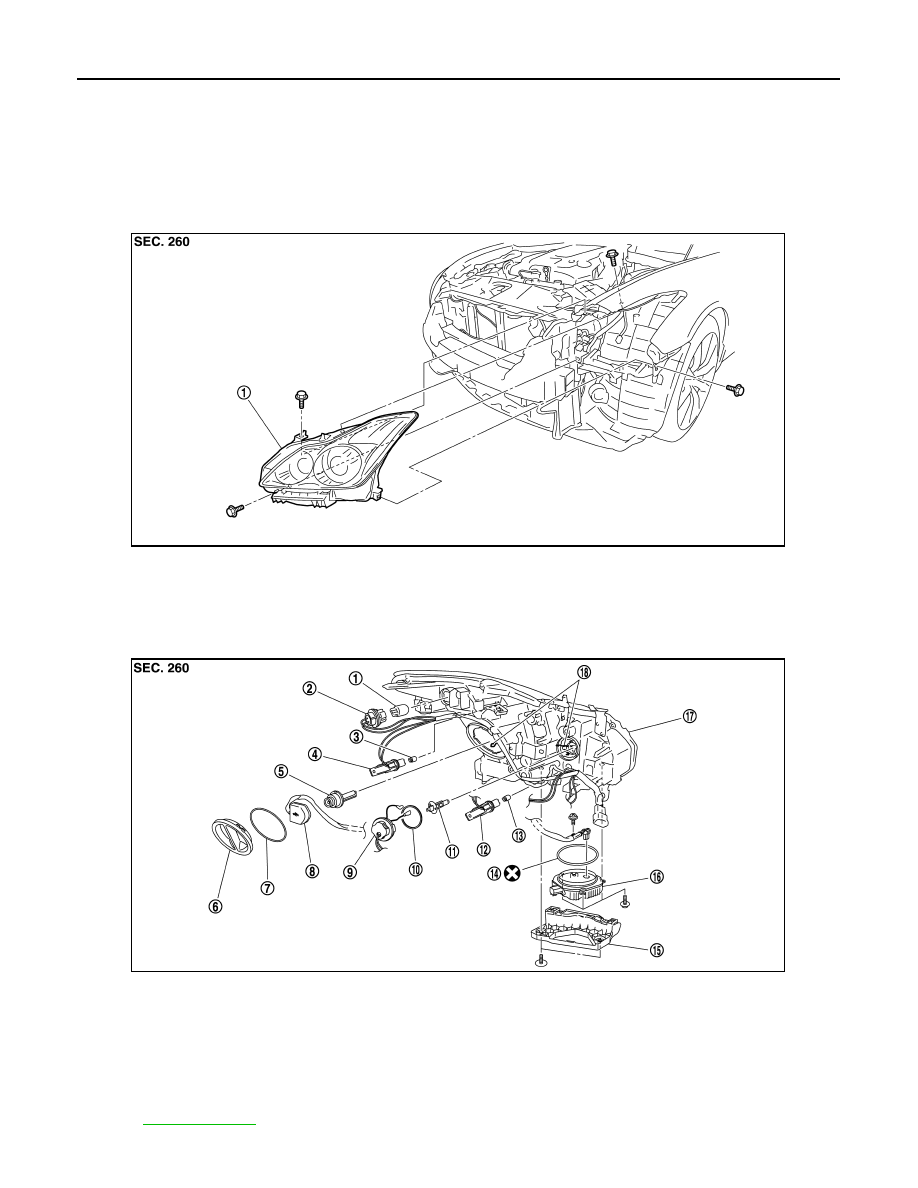

Removal and Installation

INFOID:0000000001604722

REMOVAL

CAUTION:

Disconnect the battery negative terminal or the fuse.
1.

Remove front bumper fascia. Refer to

EXT-12, "Exploded View"

.

2.

Remove the mounting bolts.

3.

Remove the holding clip (A)* and the harness clip (B).
*: Right side only

4.

Pull out the headlamp assembly forward the vehicle.

5.

Disconnect the connector before removing the headlamp hous-
ing assembly.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to

EXL-183, "Description"

.

Replacement

INFOID:0000000001604723

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• After installing the bulb, install the resin cap and the bulb socket securely for watertightness.

1.

Front turn signal lamp bulb

2.

Front turn signal lamp bulb socket

3.

Side marker lamp bulb

4.

Side marker lamp bulb socket

5.

Xenon bulb

6.

Resin cap

7.

Seal packing

8.

Xenon bulb socket

9.

Resin cap

10.

Seal packing

11. Front fog lamp bulb

12. Parking lamp bulb socket

13.

Parking lamp bulb

14. Seal packing

15. Bump bracket

16.

HID control unit

17. Headlamp housing assembly

18. Retaining spring

Refer to

GI-4, "Components"

 for symbols not described above.

JPLIA0548ZZ

JPLIA0549ZZ

EXL-190

< ON-VEHICLE REPAIR >

[XENON TYPE]

FRONT COMBINATION LAMP

HEADLAMP BULB

1.

Remove the fender protector. Keep a service area.

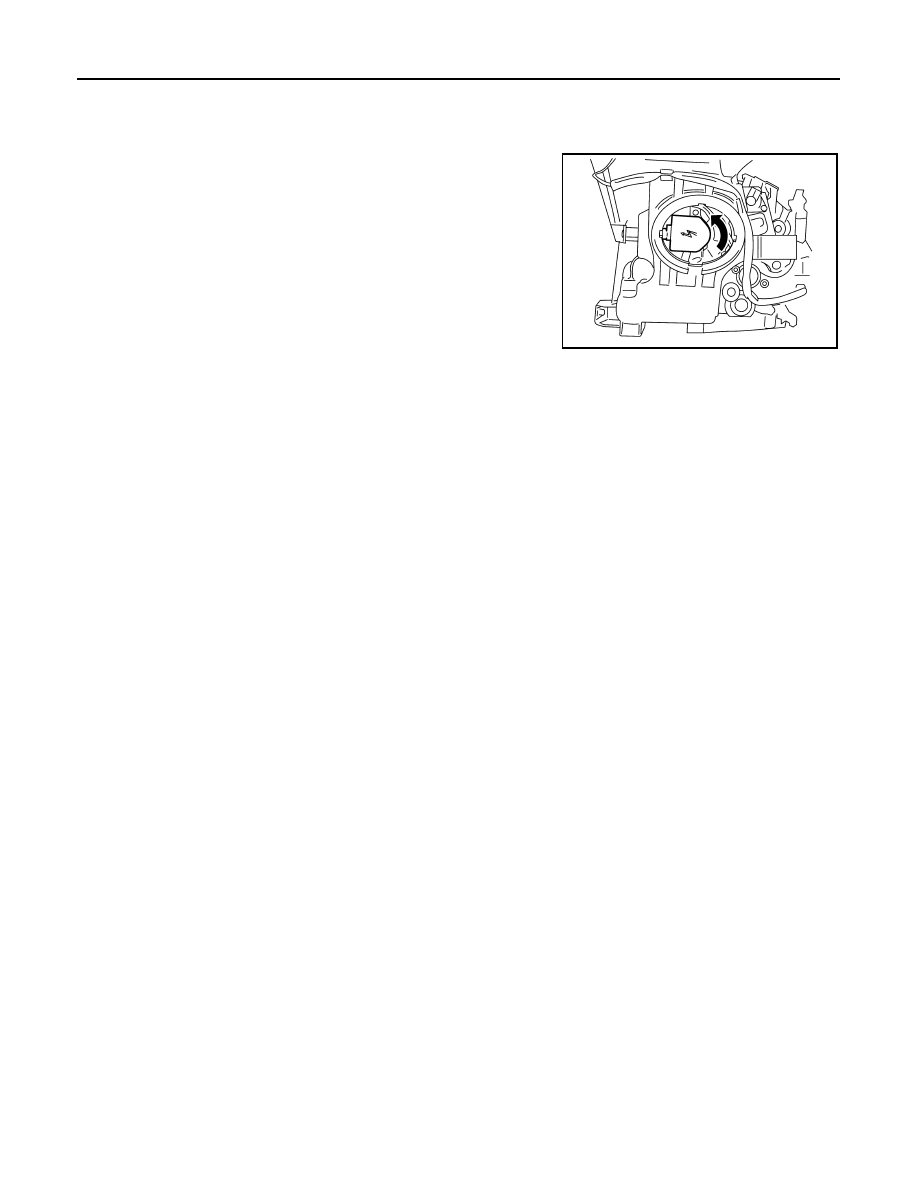

2.

Rotate the resin cap counterclockwise and unlock it.

3.

Rotate the bulb socket counterclockwise and unlock it.

4.

Remove the retaining spring lock. Remove the bulb from the
headlamp housing assembly.

CAUTION:

Never break the xenon bulb ceramic tube when replacing
the bulb.

PARKING LAMP BULB

1.

Remove the air cleaner case.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb from the bulb socket.

FRONT TURN SIGNAL LAMP BULB

1.

Remove the fender protector. Keep a service area.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb from the bulb socket.

FRONT FOG LAMP BULB

1.

Remove the air cleaner case.

2.

Rotate the resin cap counterclockwise and unlock it.

3.

Disconnect front fog lamp bulb terminals.

4.

Remove the retaining spring lock. Remove the bulb.

SIDE MARKER LAMP BULB

1.

Remove the fender protector. Keep a service area.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb from the bulb socket.

Disassembly and Assembly

INFOID:0000000001604724

DISASSEMBLY

1.

Rotate the resin cap counterclockwise and unlock it.

2.

Rotate the xenon bulb socket counterclockwise and unlock it.

3.

Remove the retaining spring lock. Remove the xenon bulb.

4.

Remove the bump bracket.

5.

Remove the HID control unit installation screw.

6.

Remove the screw. Disconnect the connector from HID control unit.

7.

Pull out the xenon bulb socket from the headlamp housing assembly.

8.

Rotate the parking lamp bulb socket counterclockwise and unlock it.

9.

Remove the bulb from the parking lamp bulb socket.

10. Rotate the front turn signal lamp bulb socket counterclockwise and unlock it.

11. Remove the bulb from the front turn signal lamp bulb socket.

12. Rotate the side marker lamp bulb socket counterclockwise and unlock it.

13. Remove the bulb from the side marker lamp bulb socket.
14. Rotate the resin cap counterclockwise and unlock it.

15. Disconnect front fog lamp bulb terminals.

JPLIA0550ZZ

FRONT COMBINATION LAMP

EXL-191

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

16. Remove the retaining spring lock. Remove the bulb.

ASSEMBLY

Assemble in the reverse order of disassembly.

CAUTION:

• Install HID control unit securely.
• After installing the bulb, install the resin cap and the bulb socket securely for watertightness.
