Infiniti G37 Coupe. Manual - part 604





PRECAUTIONS

EC-597

< PRECAUTION >

[VQ37VHR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

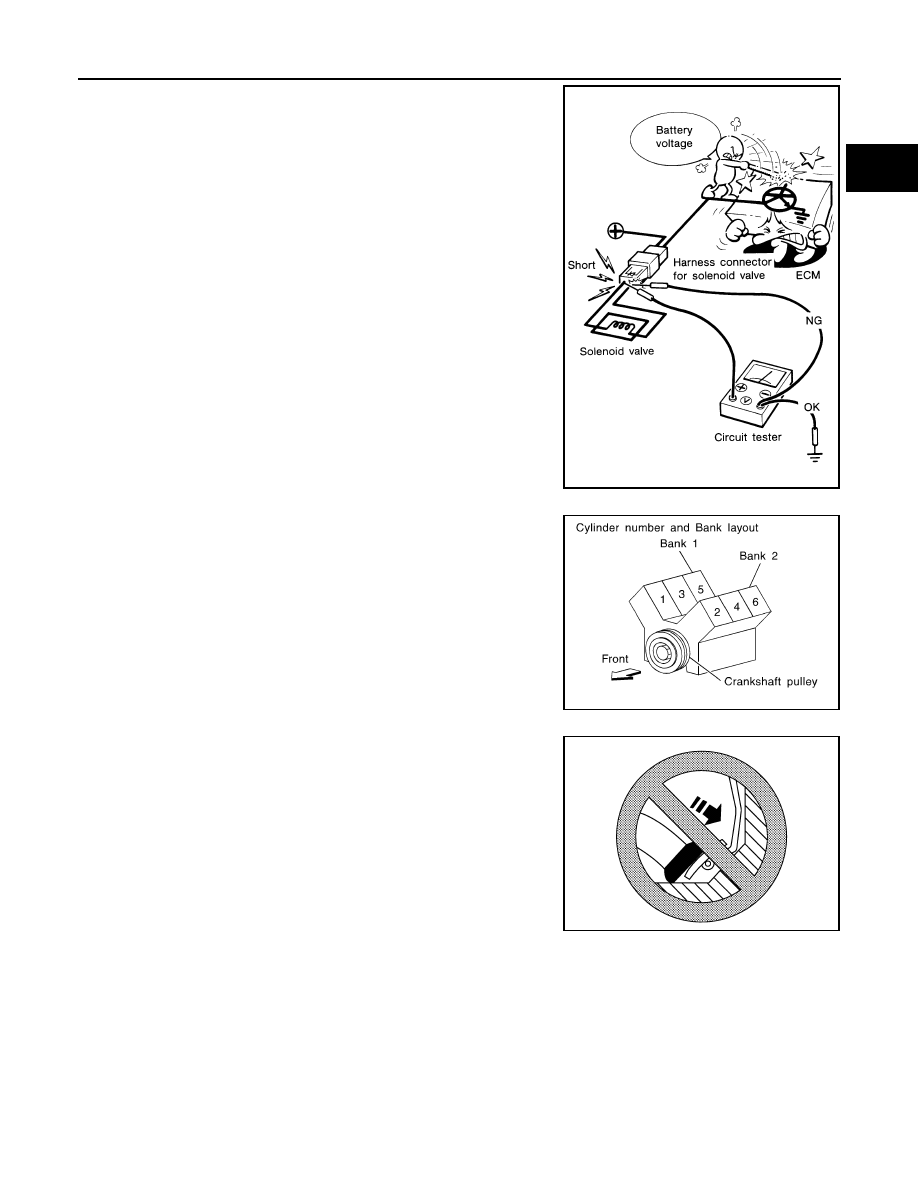

• When measuring ECM signals with a circuit tester, never allow

the two tester probes to contact.
Accidental contact of probes will cause a short circuit and
damage the ECM power transistor.

• Do not use ECM ground terminals when measuring input/out-

put voltage. Doing so may result in damage to the ECM’s tran-
sistor. Use a ground other than ECM terminals, such as the
ground.

• B1 indicates the bank 1, B2 indicates the bank 2 as shown in

the figure.

• Do not operate fuel pump when there is no fuel in lines.
• Tighten fuel hose clamps to the specified torque.

• Do not depress accelerator pedal when starting.
• Immediately after starting, do not rev up engine unnecessar-

ily.

• Do not rev up engine just prior to shutdown.

SEF348N

SEC893C

SEF709Y

EC-598

< PRECAUTION >

[VQ37VHR]

PRECAUTIONS

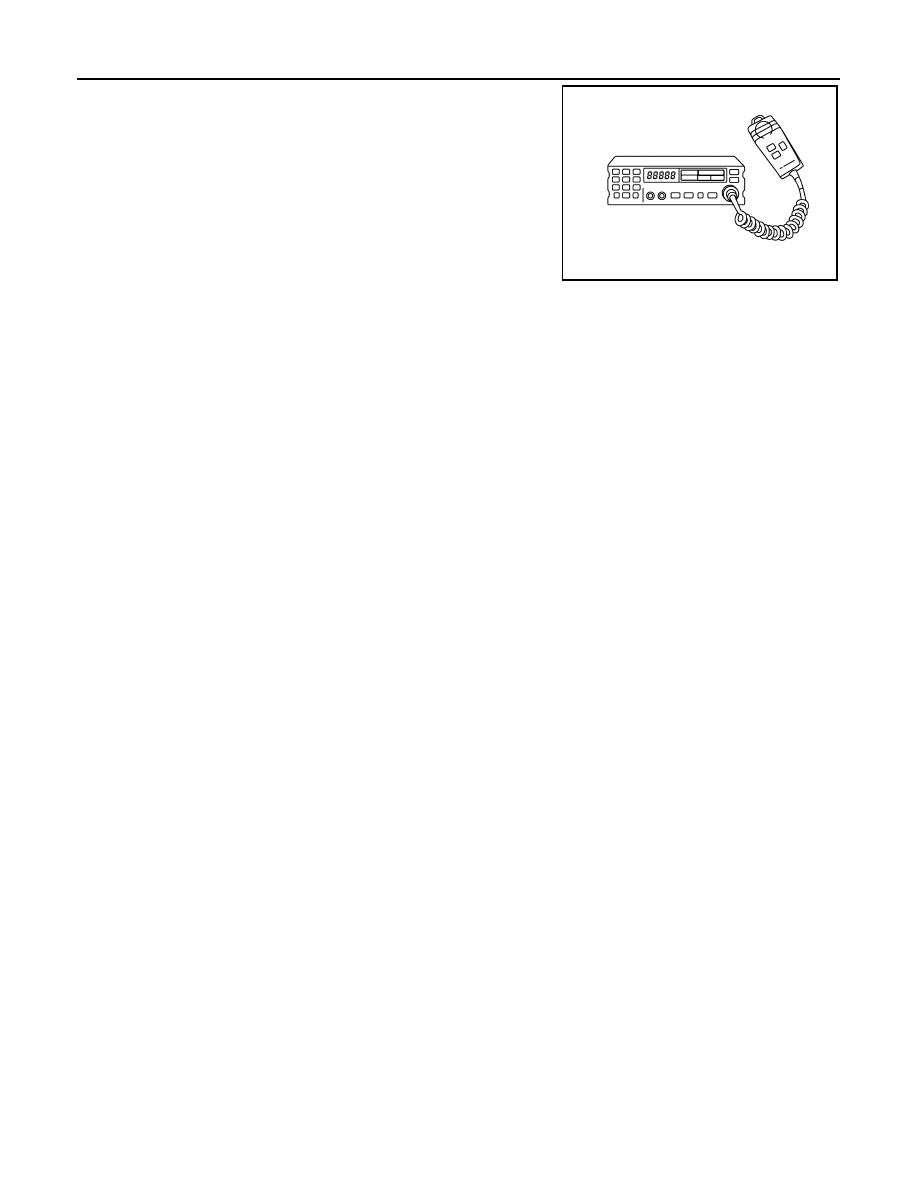

• When installing C.B. ham radio or a mobile phone, be sure to

observe the following as it may adversely affect electronic
control systems depending on installation location.

Keep the antenna as far as possible from the electronic con-

trol units.

Keep the antenna feeder line more than 20 cm (8 in) away

from the harness of electronic controls.
Do not let them run parallel for a long distance.

Adjust the antenna and feeder line so that the standing-wave

ratio can be kept smaller.

Be sure to ground the radio to vehicle body.

SEF708Y

PREPARATION

EC-599

< PREPARATION >

[VQ37VHR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000001734361

NOTE:
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000001734362

Tool number
(Kent-Moore No.)
Tool name

Description

(J-44321)
Fuel pressure gauge
kit

Checking fuel pressure

LEC642

Tool name
(Kent-Moore No.)

Description

Leak detector
i.e.: (J-41416)

Locating the EVAP leak

EVAP service port
adapter
i.e.: (J-41413-OBD)

Applying positive pressure through EVAP service
port

Fuel filler cap adapter
i.e.: (MLR-8382)

Checking fuel tank vacuum relief valve opening
pressure

Socket wrench

Removing and installing engine coolant tempera-
ture sensor

S-NT703

S-NT704

S-NT815

S-NT705

EC-600

< PREPARATION >

[VQ37VHR]

PREPARATION

Oxygen sensor thread
cleaner
i.e.: (J-43897-18)
(J-43897-12)

Reconditioning the exhaust system threads before
installing a new oxygen sensor. Use with anti-
seize lubricant shown below.
a: 18 mm diameter with pitch 1.5 mm for Zirco-
nia Oxygen Sensor
b: 12 mm diameter with pitch 1.25 mm for Tita-
nia Oxygen Sensor

Anti-seize lubricant

i.e.: (Permatex

TM



133AR or equivalent
meeting MIL specifica-
tion MIL-A-907)

Lubricating oxygen sensor thread cleaning tool
when reconditioning exhaust system threads.

Tool name
(Kent-Moore No.)

Description

AEM488

S-NT779
