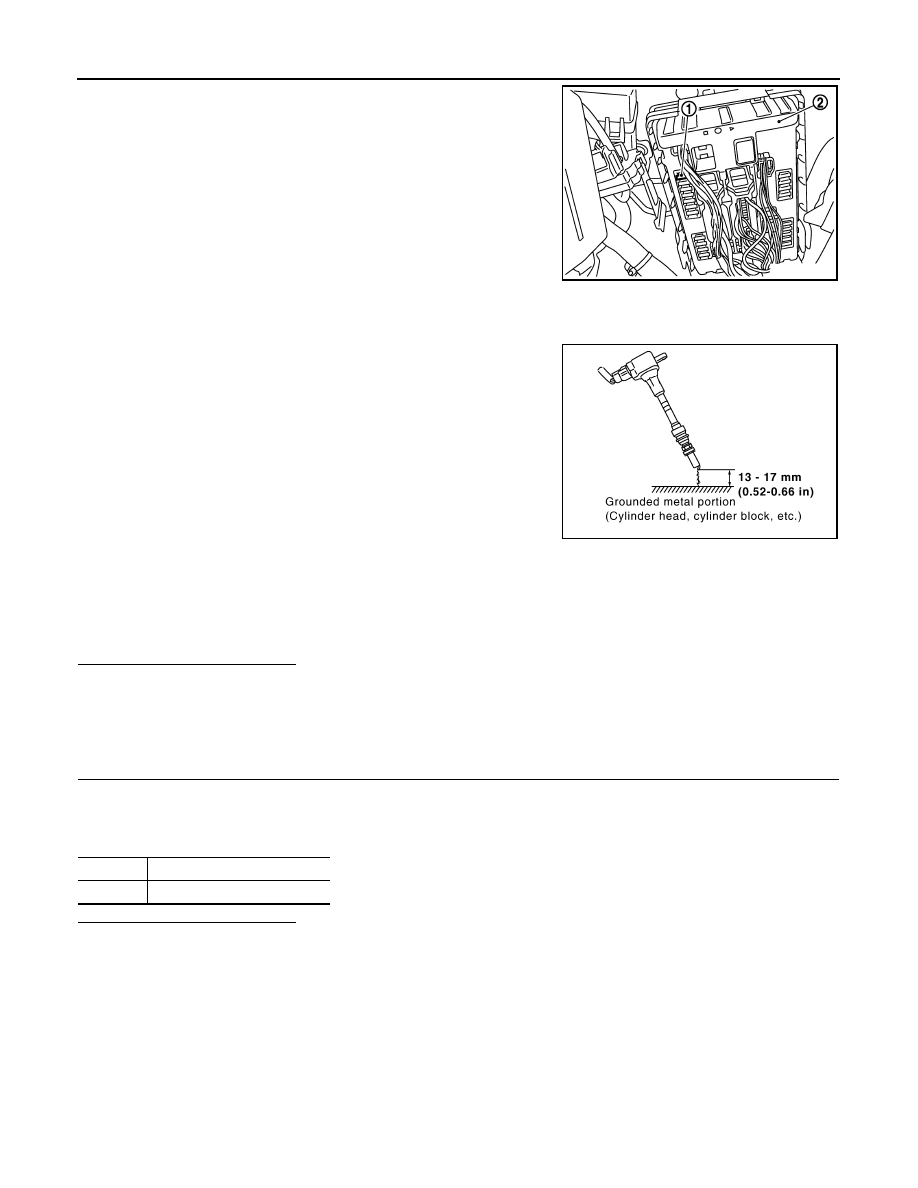

IGNITION SIGNAL EC-501 < COMPONENT DIAGNOSIS > [VQ37VHR] C D E F G H I J K L M A EC N P O 3. Also check harness for short to ground and short to power. Is the inspection result normal? YES >> GO TO 12. NO >> GO TO 11. 11. DETECT MALFUNCTIONING PART Check the following. >> Repair open circuit or short to ground or short to power in harness or connectors. 12. CHECK IGNITION COIL WITH POWER TRANSISTOR EC-501, "Component Inspection (Ignition Coil with Power Transistor)" . Is the inspection result normal? YES >> GO TO 13. NO >> Replace malfunctioning ignition coil with power transistor. 13. CHECK INTERMITTENT INCIDENT GI-38, "Intermittent Incident" . >> INSPECTION END Component Inspection (Ignition Coil with Power Transistor) INFOID:0000000001734329 1. CHECK IGNITION COIL WITH POWER TRANSISTOR-I 1. Turn ignition switch OFF. 2. Disconnect ignition coil harness connector. 3. Check resistance between ignition coil terminals as follows. Is the inspection result normal? YES >> GO TO 2. NO >> Replace malfunctioning ignition coil with power transistor. 2. CHECK IGNITION COIL WITH POWER TRANSISTOR-II CAUTION: Do the following procedure in the place where ventilation is good without the combustible. Turn ignition switch OFF. 2. Reconnect all harness connectors disconnected. Ignition coil ECM Continuity Cylinder Connector Terminal Connector Terminal 1 F11 1 F101 20 Existed 2 F12 1 16 3 F13 1 12 4 F14 1 11 5 F15 1 15 6 F16 1 19 Terminals Resistance [at 25 ° C (77 ° F)] 1 and 2 Except 0 or ∞Ω 1 and 3 Except 0 Ω 2 and 3 |
