P0011, P0021 IVT CONTROL

EC-153

< COMPONENT DIAGNOSIS >

[VQ37VHR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

5.

CHECK CAMSHAFT (INTAKE)

Check the following.
• Accumulation of debris to the signal plate of camshaft front end
• Chipping signal plate of camshaft front end

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Remove debris and clean the signal plate of camshaft

front end or replace camshaft.

6.

CHECK TIMING CHAIN INSTALLATION

Check service records for any recent repairs that may cause timing chain misaligned.

Are there any service records that may cause timing chain misaligned?

YES

>> Check timing chain installation. Refer to

EM-49, "Removal and Installation"

.

NO

>> GO TO 7.

7.

CHECK LUBRICATION CIRCUIT

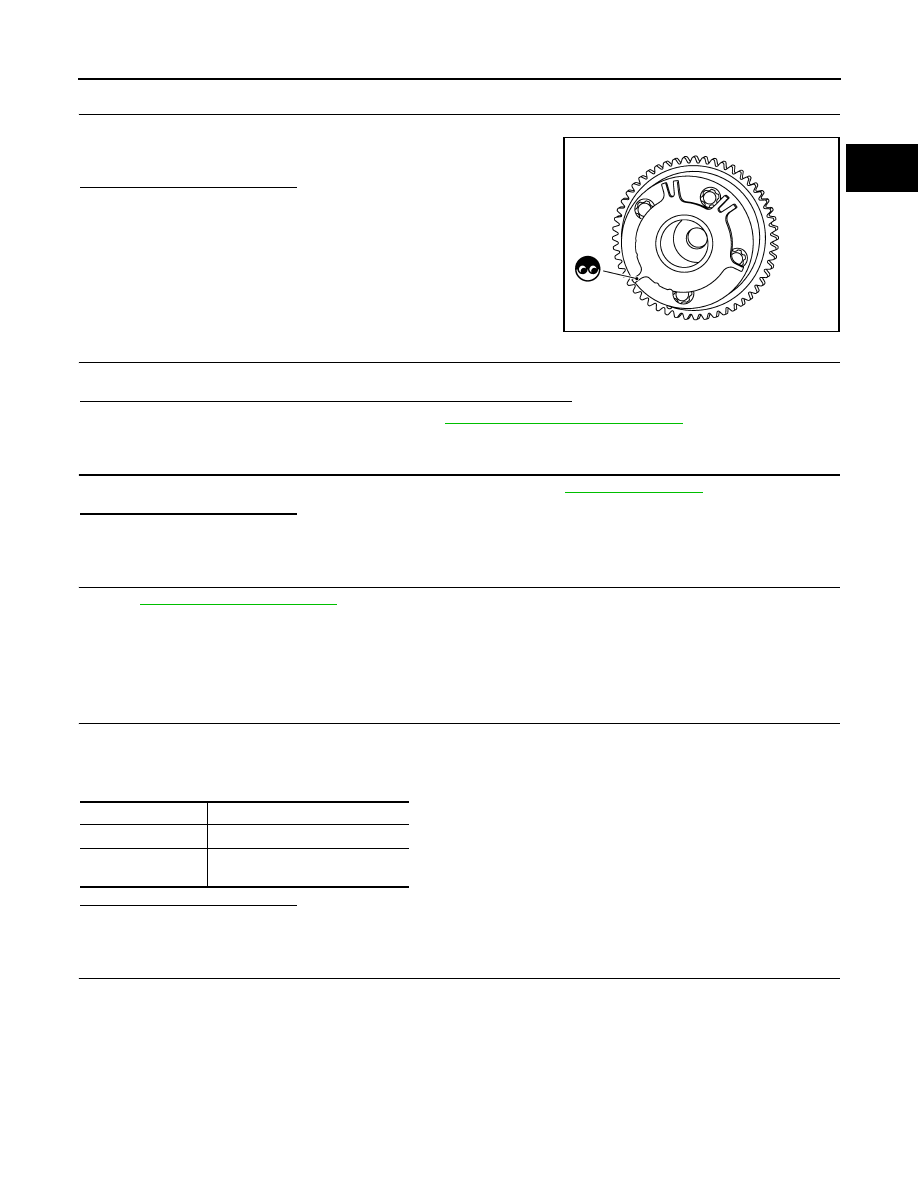

Perform “Inspection of Camshaft Sprocket (INT) Oil Groove”. Refer to

EM-93, "Inspection"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Clean lubrication line.

8.

CHECK INTERMITTENT INCIDENT

Refer to

GI-38, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000001733979

1.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-I

1.

Turn ignition switch OFF.

2.

Disconnect intake valve timing control solenoid valve harness connector.

3.

Check resistance between intake valve timing control solenoid valve terminals as follows.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace malfunctioning intake valve timing control solenoid valve.

2.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-II

1.

Remove intake valve timing control solenoid valve.

JMBIA0962ZZ

Terminals

Resistance

1 and 2

7.0 - 7.7

 [at 20

°

C (68

°

F)]

1 or 2 and ground

∞Ω

(Continuity should not exist)

EC-154

< COMPONENT DIAGNOSIS >

[VQ37VHR]

P0011, P0021 IVT CONTROL

2.

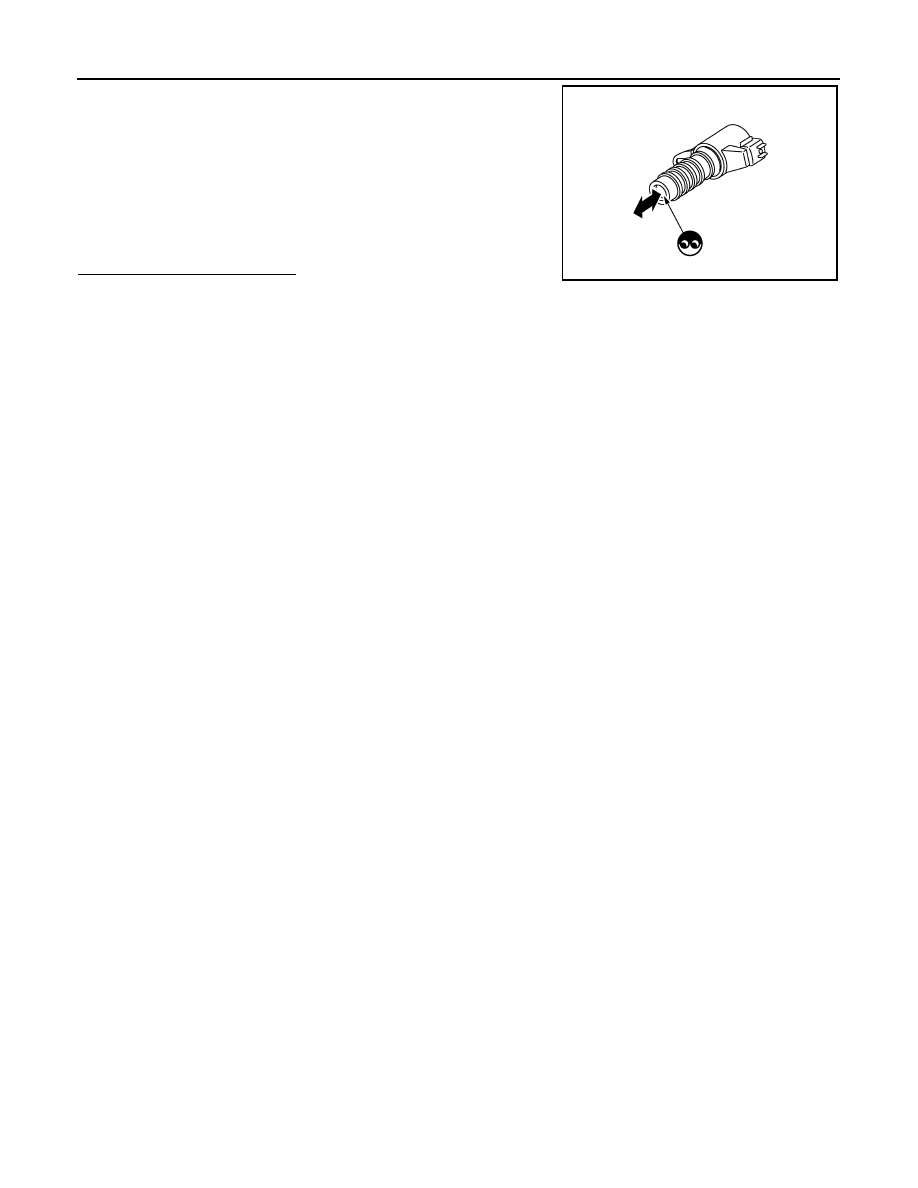

Provide 12V DC between intake valve timing control solenoid
valve terminals 1 and 2, and then interrupt it. Make sure that the
plunger moves as shown in the figure.

CAUTION:

Do not apply 12V DC continuously for 5 seconds or more.
Doing so may result in damage to the coil in intake valve
timing control solenoid valve.
NOTE:
Always replace O-ring when intake valve timing control
solenoid valve is removed.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace malfunctioning intake valve timing control solenoid valve.

JMBIA0079ZZ

P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER

EC-155

< COMPONENT DIAGNOSIS >

[VQ37VHR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER

Description

INFOID:0000000001733983

SYSTEM DESCRIPTION

The ECM performs ON/OFF duty control of the A/F sensor 1 heater corresponding to the engine operating
condition to keep the temperature of A/F sensor 1 element at the specified range.

DTC Logic

INFOID:0000000001733984

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next test.
1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10.5V and 16V at
idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Start engine and let it idle for at least 10 seconds.

2.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-156, "Diagnosis Procedure"

.

NG

>> INSPECTION END

Sensor

Input Signal to ECM

ECM function

Actuator

Camshaft position sensor (PHASE)
Crankshaft position sensor (POS)

Engine speed

Air fuel ratio (A/F) sensor 1
heater control

Air fuel ratio (A/F) sensor 1
heater

Mass air flow sensor

Amount of intake air

 DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0031

Air fuel ratio (A/F) sensor
1 heater (bank 1) control
circuit low

The current amperage in the A/F sensor 1 heater
circuit is out of the normal range.
(An excessively low voltage signal is sent to ECM
through the A/F sensor 1 heater.)

• Harness or connectors

(The A/F sensor 1 heater circuit is
open or shorted.)

• A/F sensor 1 heater

P0032

Air fuel ratio (A/F) sensor
1 heater (bank 1) control
circuit high

The current amperage in the A/F sensor 1 heater
circuit is out of the normal range.
(An excessively high voltage signal is sent to ECM
through the A/F sensor 1 heater.)

• Harness or connectors

(The A/F sensor 1 heater circuit is
shorted.)

• A/F sensor 1 heater

P0051

Air fuel ratio (A/F) sensor
1 heater (bank 2) control
circuit low

The current amperage in the A/F sensor 1 heater
circuit is out of the normal range.
(An excessively low voltage signal is sent to ECM
through the A/F sensor 1 heater.)

• Harness or connectors

(The A/F sensor 1 heater circuit is
open or shorted.)

• A/F sensor 1 heater

P0052

Air fuel ratio (A/F) sensor
1 heater (bank 2) control
circuit high

The current amperage in the A/F sensor 1 heater
circuit is out of the normal range.
(An excessively high voltage signal is sent to ECM
through the A/F sensor 1 heater.)

• Harness or connectors

(The A/F sensor 1 heater circuit is
shorted.)

• A/F sensor 1 heater

EC-156

< COMPONENT DIAGNOSIS >

[VQ37VHR]

P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER

Diagnosis Procedure

INFOID:0000000001733985

1.

CHECK GROUND CONNECTION

1.

Turn ignition switch OFF.

2.

Check ground connection M95. Refer to Ground Inspection in

GI-41, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT

1.

Disconnect air fuel ratio (A/F) sensor 1 harness connector.

2.

Turn ignition switch ON.

3.

Check the voltage between A/F sensor 1 harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E3, F1
• IPDM E/R harness connector E7
• 15A fuse (No. 46)
• Harness for open or short between A/F sensor 1 and fuse

>> Repair or replace harness or connectors.

4.

CHECK A/F SENSOR 1 HEATER OUTPUT SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between A/F sensor 1 harness connector and ECM harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK A/F SENSOR 1 HEATER

Refer to

EC-157, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 6.

6.

REPLACE AIR FUEL RATIO (A/F) SENSOR 1

Replace malfunctioning air fuel ratio (A/F) sensor 1.

CAUTION:

DTC

A/F sensor 1

Ground

Voltage

Bank

Connector

Terminal

P0031, P0032

1

F3

4

Ground

Battery voltage

P0051, P0052

2

F20

4

DTC

A/F sensor 1

ECM

Continuity

Bank

Connector

Terminal

Connector

Terminal

P0031, P0032

1

F3

3

F101

1

Existed

P0051, P0052

2

F20

3

5
