Infiniti G37 Coupe. Manual - part 477

EVAPORATIVE EMISSION SYSTEM

EC-89

< FUNCTION DIAGNOSIS >

[VQ37VHR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

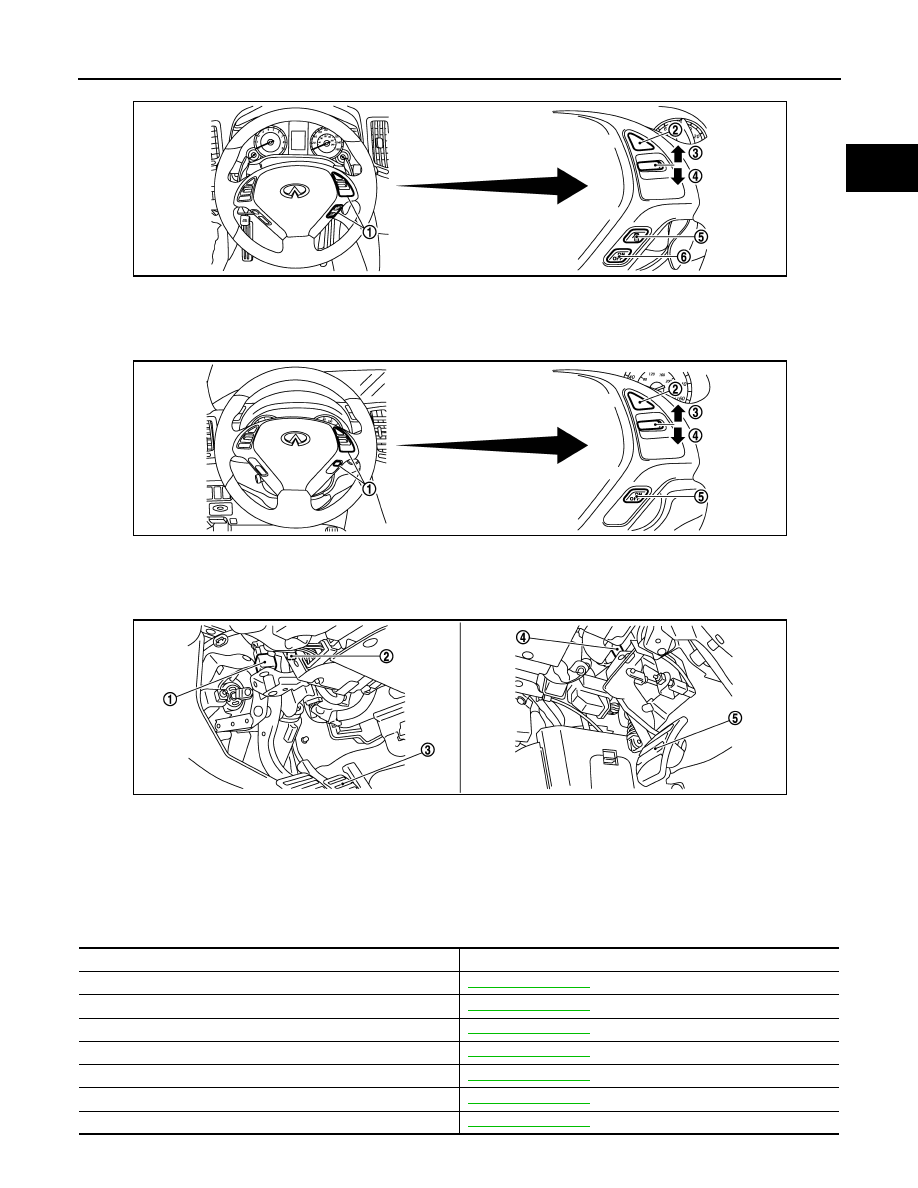

Component Description

INFOID:0000000001733955

1.

ICC steering switch

2.

CANCEL switch

3.

RESUME/ACCELERATE switch

4.

SET/COAST switch

5.

DISTANCE switch

6.

MAIN switch

1.

ASCD steering switch

2.

CANCEL switch

3.

RESUME/ACCELERATE switch

4.

SET/COAST switch

5.

MAIN switch

1.

Stop lamp switch

2.

ASCD brake switch (ASCD models)
ICC brake switch (ICC models)

3.

Brake pedal

4.

ASCD clutch switch (ASCD models)
ICC clutch switch (ICC models)

5.

Clutch pedal

JMBIA0016ZZ

JMBIA0017ZZ

JMBIA0051ZZ

Component

Reference

A/F sensor 1

EC-197, "Description"

Accelerator pedal position sensor

EC-458, "Description"

Camshaft position sensor (PHASE)

EC-268, "Description"

Crankshaft position sensor (POS)

EC-264, "Description"

Engine coolant temperature sensor

EC-184, "Description"

EVAP canister purge volume control solenoid valve

EC-288, "Description"

EVAP control system pressure sensor

EC-304, "Description"

EC-90

< FUNCTION DIAGNOSIS >

[VQ37VHR]

EVAPORATIVE EMISSION SYSTEM

Fuel tank temperature sensor

EC-240, "Description"

Mass air flow sensor

EC-165, "Description"

Throttle position sensor

EC-187, "Description"

Vehicle speed sensor

EC-337, "Description"

Component

Reference

INTAKE VALVE TIMING CONTROL

EC-91

< FUNCTION DIAGNOSIS >

[VQ37VHR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

INTAKE VALVE TIMING CONTROL

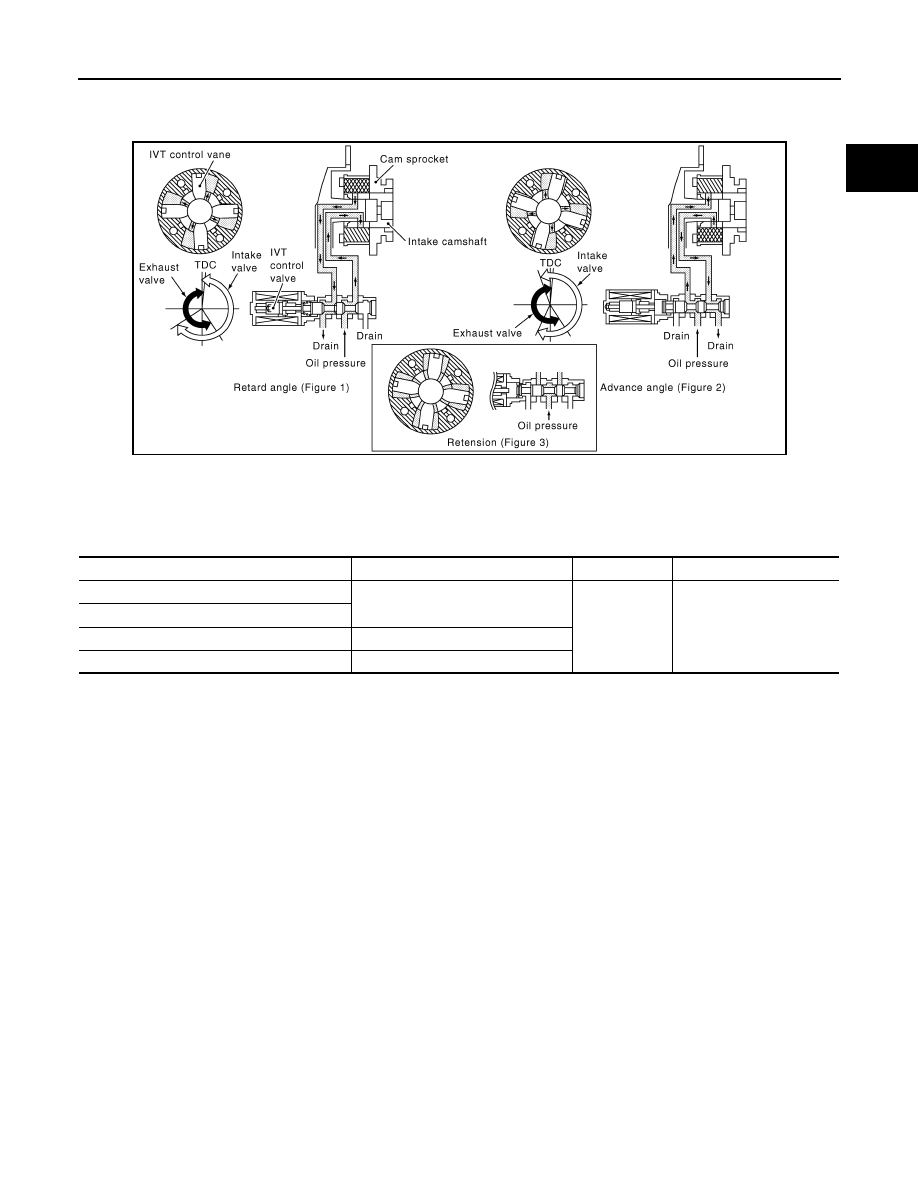

System Diagram

INFOID:0000000001733960

System Description

INFOID:0000000001733961

INPUT/OUTPUT SIGNAL CHART

*: This signal is sent to the ECM through CAN communication line

SYSTEM DESCRIPTION

This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the intake
valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant
temperature. Then, the ECM sends ON/OFF pulse duty signals to the intake valve timing (IVT) control sole-
noid valve depending on driving status. This makes it possible to control the shut/open timing of the intake
valve to increase engine torque in low/mid speed range and output in high-speed range.

JMBIA0060GB

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)

Engine speed and piston position

Intake valve
timing control

Intake valve timing control
solenoid valve

Camshaft position sensor (PHASE)

Engine coolant temperature sensor

Engine coolant temperature

Unified meter and A/C amp.

Vehicle speed*

EC-92

< FUNCTION DIAGNOSIS >

[VQ37VHR]

INTAKE VALVE TIMING CONTROL

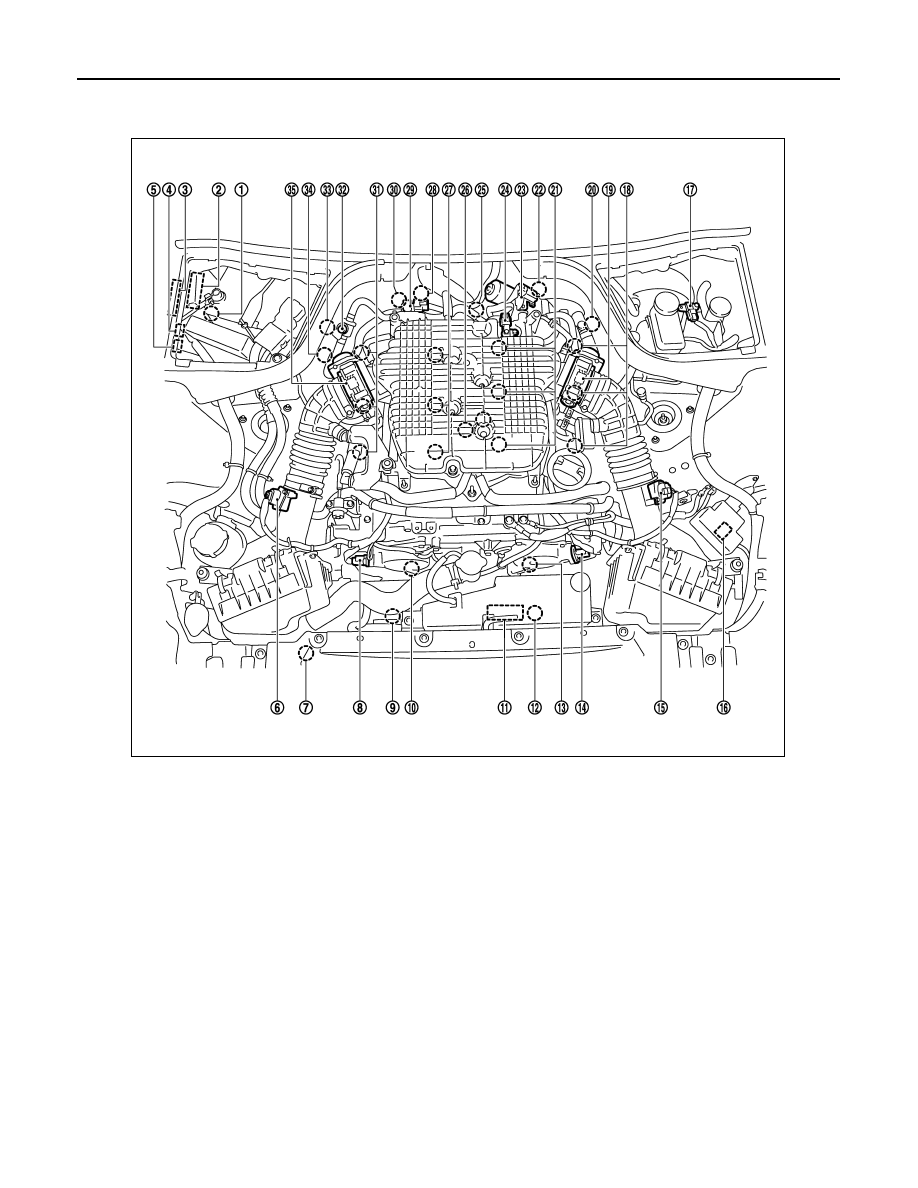

Component Parts Location

INFOID:0000000001910709

1.

Battery current sensor

2.

IPDM E/R

3.

VVEL control module

4.

Cooling fan relay

5.

VVEL actuator motor relay

6.

Mass air flow sensor (with intake air
temperature sensor) (bank 1)

7.

Refrigerant pressure sensor

8.

Camshaft position sensor (PHASE)
(bank 1)

9.

Cooling fan motor-2

10. Intake valve timing control solenoid

valve (bank 1)

11.

Cooling fan control module

12. Cooling fan motor-1

13. Intake valve timing control solenoid

valve (bank 2)

14. Camshaft position sensor (PHASE)

(bank 2)

15. Mass air flow sensor (with intake air

temperature sensor) (bank 2)

16. ICC brake hold relay (ICC models)

17. Brake booster pressure sensor

18. Ignition coil (with power transistor)

and spark plug (bank 2)

19. Electric throttle control actuator

(bank 2)

20. A/F sensor 1 (bank 2)

21. Fuel injector (bank 2)

22. VVEL control shaft position sensor

(bank 2)

23. VVEL actuator motor (bank 2)

24. Manifold absolute pressure (MAP)

sensor

25. Engine coolant temperature sensor

26. Knock sensor

27. Fuel injector (bank 1)

28. VVEL actuator motor (bank 1)

29. EVAP canister purge volume control

solenoid valve

30. VVEL control shaft position sensor

(bank 1)

JMBIA0837ZZ
