DLN-98

< DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R200V]

DIFFERENTIAL ASSEMBLY

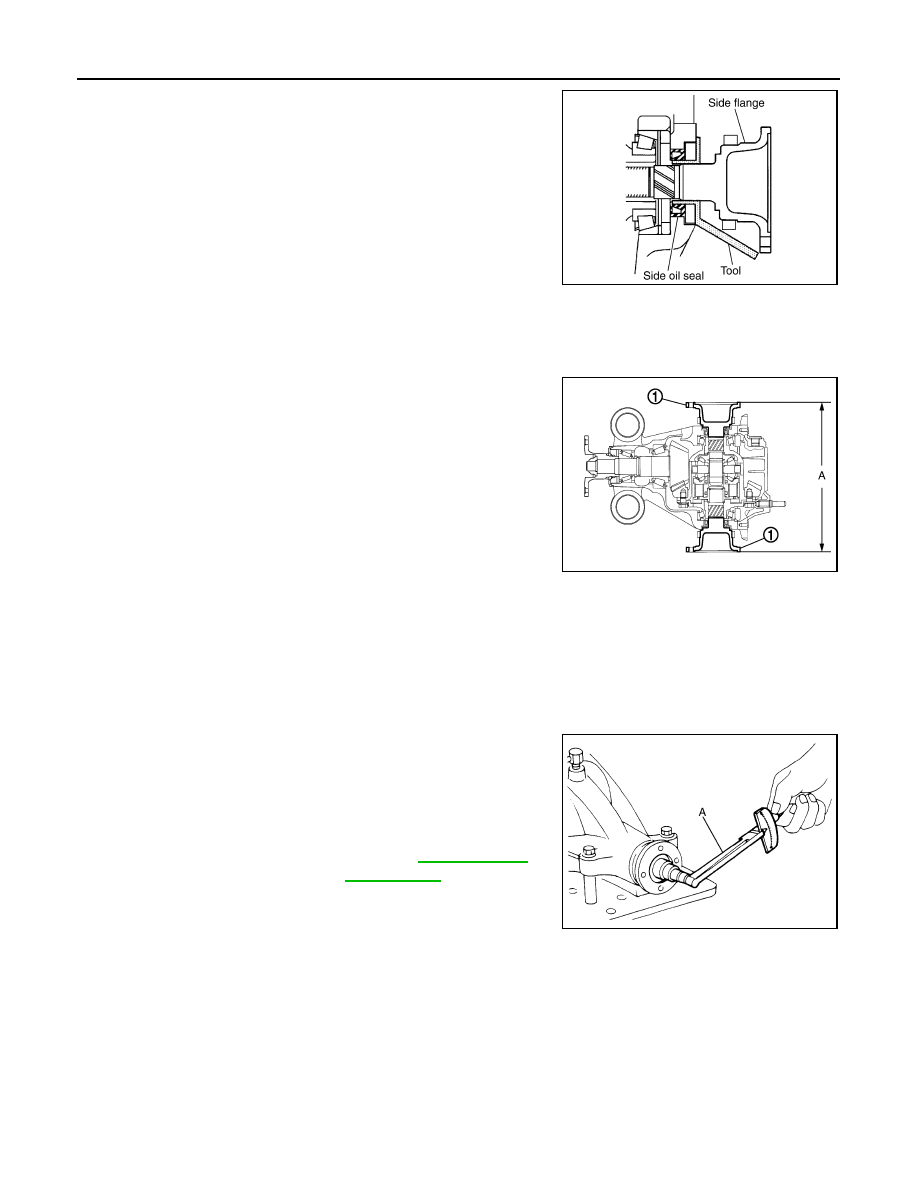

21. Install side flange with the following procedure.

a.

Attach the protector [SST: KV38107900 (J-39352)] to side oil
seal.

b.

After the side flange is inserted and the serrated part of side
gear has engaged the serrated part of flange, remove the pro-
tector.

c.

Put a suitable drift on the center of side flange, then drive it until sound changes.
NOTE:
When installation is completed, driving sound of the side flange turns into a sound that seems to affect the
whole final drive.

d.

Confirm that the dimension of the side flange (1) installation
(Measurement A) in the figure comes into the following.

M/T : Adjustment

INFOID:0000000001714275

TOTAL PRELOAD TORQUE

• Before inspection and adjustment, drain gear oil.

1.

Secure final drive assembly onto an attachment [SST: KV38100800 (J-25604-01)].

2.

Remove side flanges.

3.

Rotate drive pinion back and forth 2 to 3 times to check for unusual noise and rotation malfunction.

4.

Rotate drive pinion at least 20 times to check for smooth opera-
tion of the bearing.

5.

Measure total preload with the preload gauge (A) [SST:
ST3127S000 (J-25765-A)].

NOTE:
Total preload torque = Pinion bearing preload torque + Side
bearing preload torque
• If measured value is out of the specification, disassemble it to check and adjust each part. Adjust the

pinion bearing preload and side bearing preload.
Adjust the pinion bearing preload first, then adjust the side bearing preload.

SDIA0822E

Measurement “A”

: 326 – 328 mm (12.83 –
12.91 in)

JSDIA0109ZZ

Standard

Total preload torque

: Refer to

DLN-132, "Pre-

load Torque"

.

JSDIA0042ZZ

When the preload torque is large

On pinion bearings:

Replace the collapsible spacer.

On side bearings:

Use thinner side bearing adjusting washers by the same amount to
each side.

DIFFERENTIAL ASSEMBLY

DLN-99

< DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R200V]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

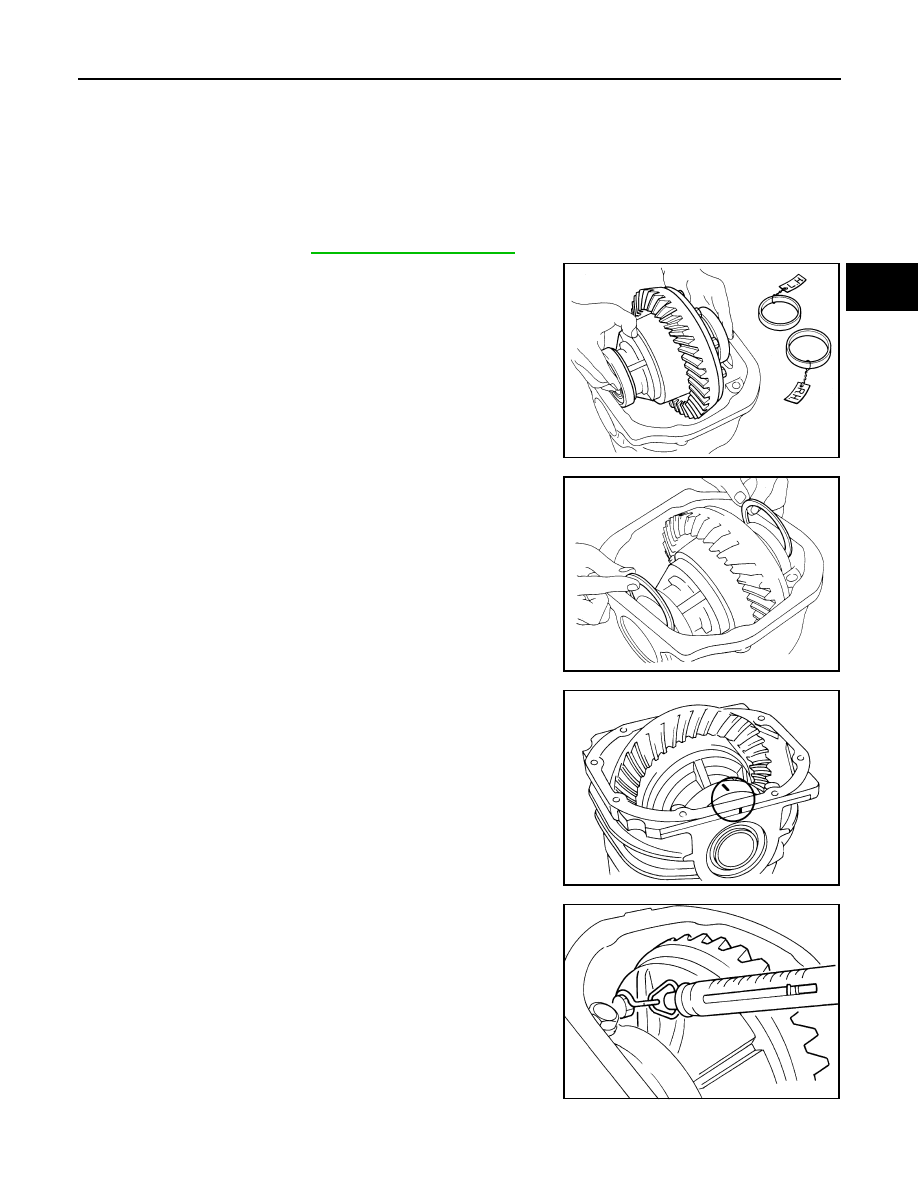

SIDE BEARING PRELOAD

• Before inspection and adjustment, drain gear oil.

1.

Remove rear cover. Refer to

DLN-92, "M/T : Disassembly"

.

2.

Make sure all parts are clean. Also, make sure the bearings are
well lubricated with gear oil.

3.

Place the differential case, with side bearings and bearing races
installed, into gear carrier.

4.

Insert left and right original side bearing adjusting washers in
place between side bearings and gear carrier.

5.

Install bearing caps in their correct locations and tighten bearing
cap mounting bolts.

6.

Turn the carrier several times to seat the bearings.

7.

Measure the turning torque of the carrier at the drive gear
mounting bolts with a spring gauge [SST:

—

 (J-8129)].

When the preload is small

On pinion bearings:

Tighten the drive pinion lock nut.

On side bearings:

Use thicker side bearing adjusting washers by the same amount to
each side.

SPD919

SPD924

PDIA0069E

Specification

: 34.2 – 39.2 N (3.5 – 4.0 kg,
7.7 – 8.8 lb) of pulling force
at the drive gear bolt

SPD194A

DLN-100

< DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R200V]

DIFFERENTIAL ASSEMBLY

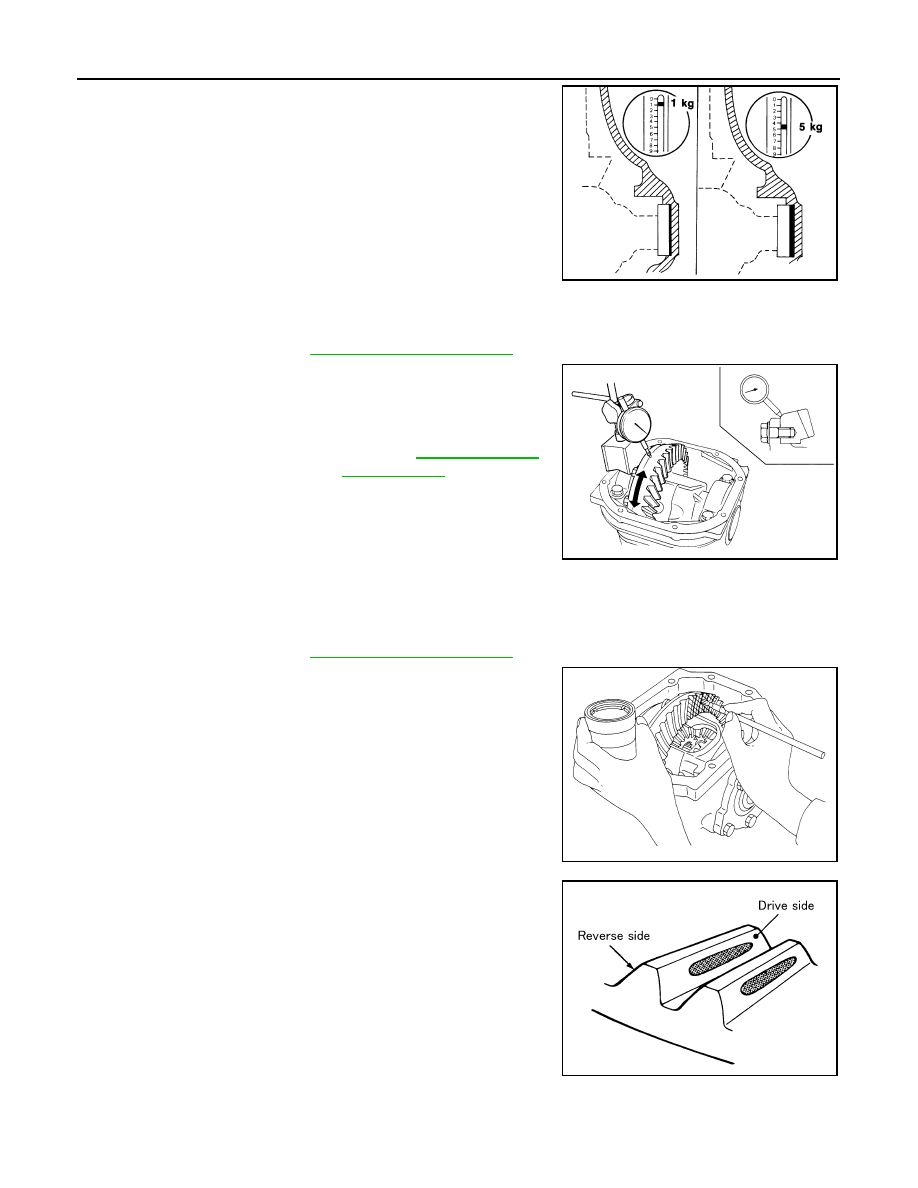

8.

If the turning torque is outside the specification, use a thicker/
thinner side bearing adjusting washer to adjust.

CAUTION:

Select a side bearing adjusting washer for right and left
individually.

9.

Record the total amount of washer thickness required for the correct carrier side bearing preload.

DRIVE GEAR RUNOUT

1.

Remove rear cover. Refer to

DLN-92, "M/T : Disassembly"

.

2.

Fit a dial indicator to the drive gear back face.

3.

Rotate the drive gear to measure runout.

• If the runout is outside of the repair limit, check drive gear

assembly condition; foreign material may be caught between
drive gear and differential case, or differential case or drive
gear may be deformed, etc.

CAUTION:

Replace drive gear and drive pinion gear as a set.

TOOTH CONTACT

• Before inspection and adjustment, drain gear oil.
1.

Remove rear cover. Refer to

DLN-92, "M/T : Disassembly"

.

2.

Apply red lead to drive gear.

CAUTION:

Apply red lead to both the faces of 3 to 4 gears at 4 loca-
tions evenly spaced on drive gear.

3.

Rotate drive gear back and forth several times, check drive pin-
ion gear to drive gear tooth contact.

CAUTION:

Check tooth contact on drive side and reverse side.

If the turning torque is less than the specified range:

Use a thicker thrust washer.

If the turning torque is greater than the specification:

Use a thinner thrust washer.

SPD772

Limit

Drive gear runout

: Refer to

DLN-132, "Drive

Gear Runout"

.

SPD886

SPD357

SDIA0570E

DIFFERENTIAL ASSEMBLY

DLN-101

< DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R200V]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

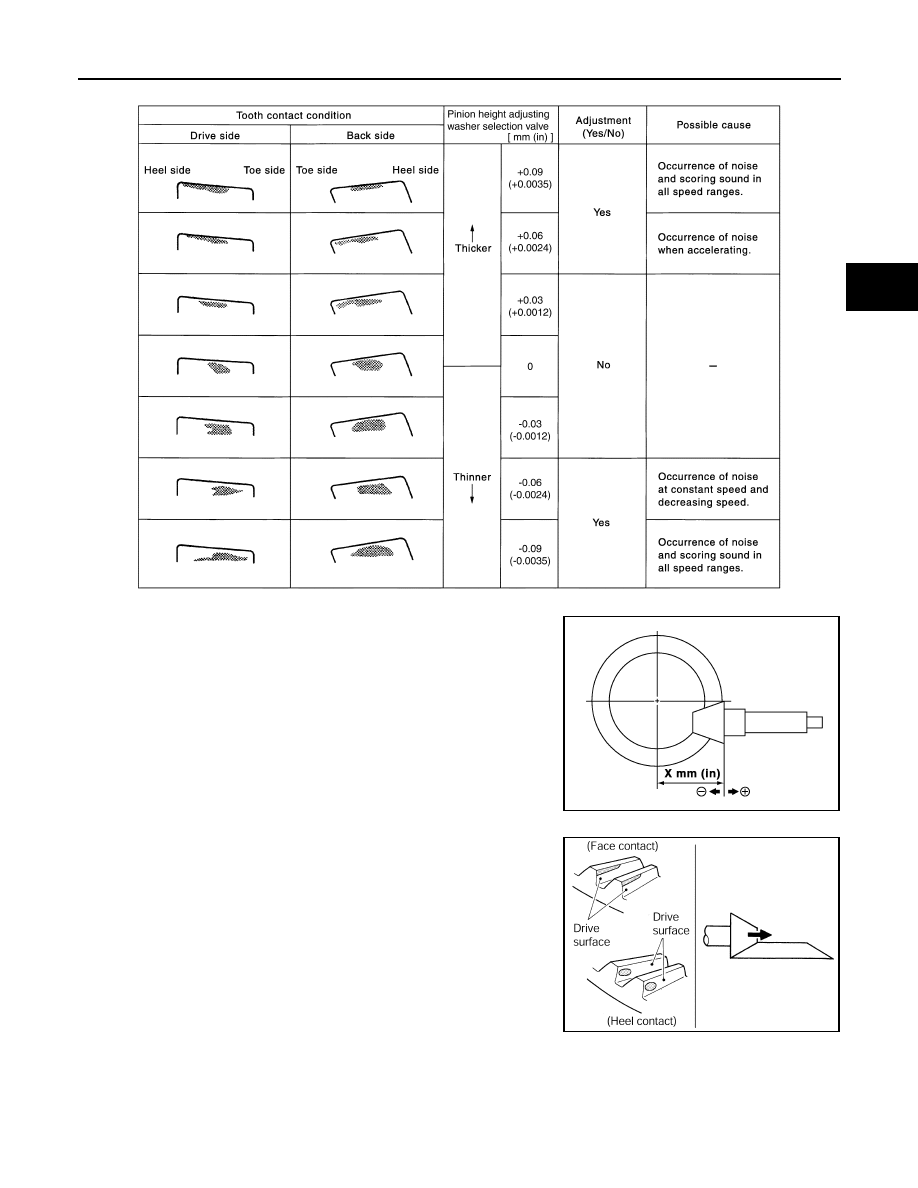

4.

If tooth contact is improperly adjusted, follow the procedure
below to adjust the pinion height (dimension X).

• If the tooth contact is near the face (face contact), or near the

heel (heel contact), thicken pinion height adjusting washers to
move drive pinion closer to drive gear.

SDIA0207E

SDIA0517E

PDIA0440E
