OUTSIDE KEY ANTENNA

DLK-241

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

OUTSIDE KEY ANTENNA

DRIVER SIDE

DRIVER SIDE : Exploded View

INFOID:0000000001683218

Refer to

DLK-230, "DOOR LOCK : Exploded View"

.

DRIVER SIDE : Removal and Installation

INFOID:0000000001683219

REMOVAL

Remove the front outside handle LH. Refer to

DLK-230, "DOOR LOCK : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

PASSENGER SIDE

PASSENGER SIDE : Exploded View

INFOID:0000000001683220

Refer to

DLK-230, "DOOR LOCK : Exploded View"

.

PASSENGER SIDE : Removal and Installation

INFOID:0000000001683221

REMOVAL

Remove the front outside handle RH. Refer to

DLK-230, "DOOR LOCK : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

REAR BUMPER

REAR BUMPER : Exploded View

INFOID:0000000001683222

Refer to

EXT-16, "Exploded View"

.

REAR BUMPER : Removal and Installation

INFOID:0000000001683223

REMOVAL

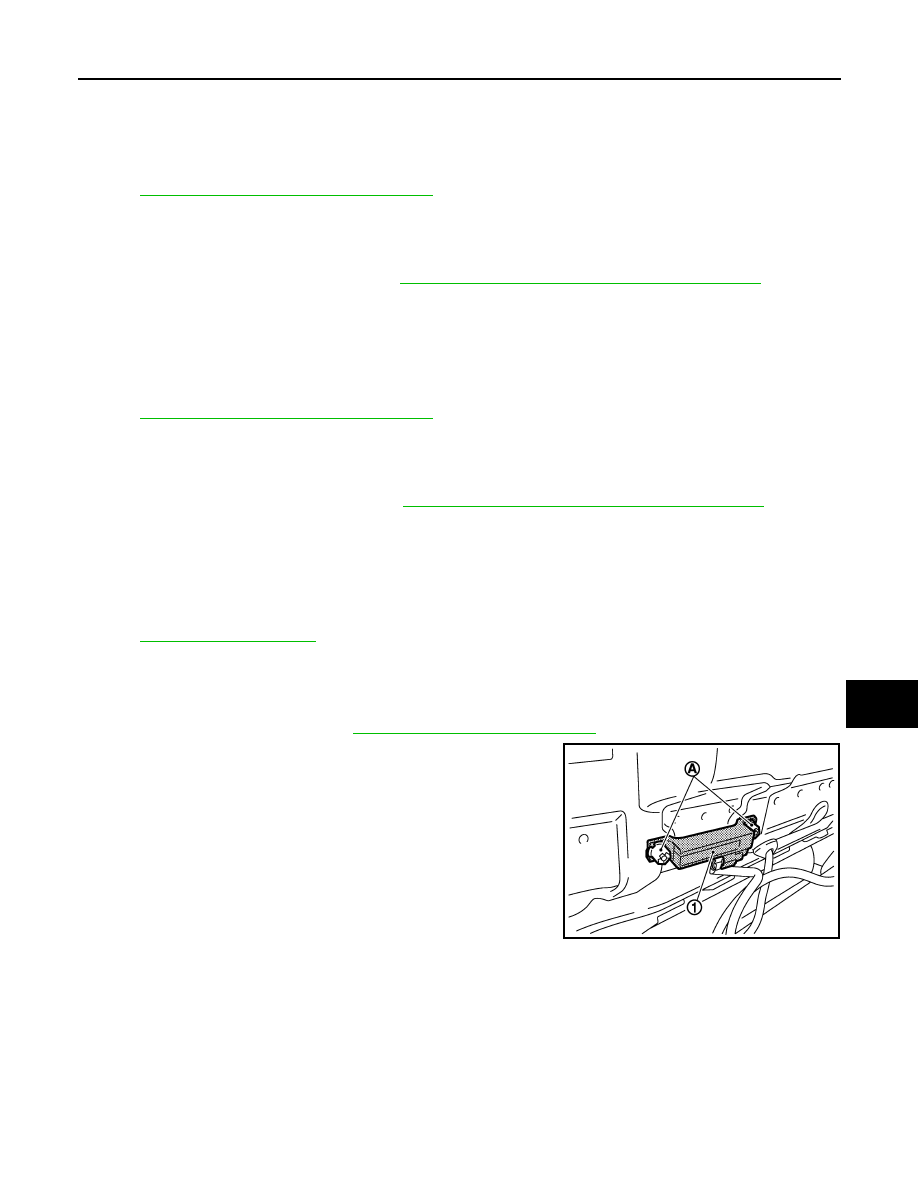

1.

Remove the rear bumper. Refer to

EXT-17, "Removal and Installation"

.

2.

Remove the outside key antenna (rear bumper) mounting nuts
(A), and then remove outside key antenna (rear bumper) (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA1131ZZ

DLK-242

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY WARNING BUZZER

INTELLIGENT KEY WARNING BUZZER

Exploded View

INFOID:0000000001683224

Refer to

DLK-217, "Exploded View"

.

Removal and Installation

INFOID:0000000001683225

REMOVAL

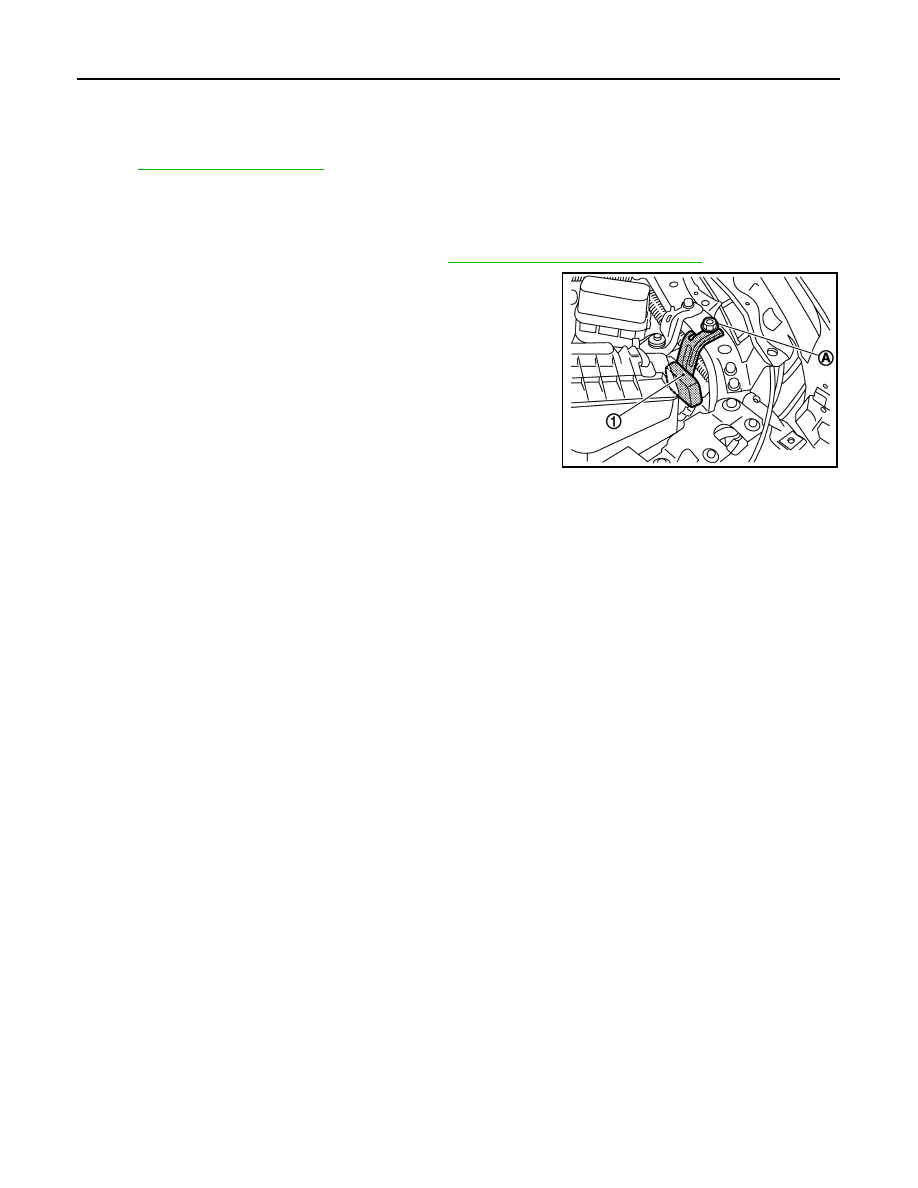

1.

Remove the hood seal assembly (side). Refer to

DLK-217, "Removal and Installation"

.

2.

Remove the Intelligent Key warning buzzer mounting bolt (A),
and then remove the Intelligent Key warning buzzer (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA0169ZZ

KEY SLOT

DLK-243

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

KEY SLOT

Exploded View

INFOID:0000000001683226

Refer to

IP-11, "Exploded View"

.

Removal and Installation

INFOID:0000000001683227

REMOVAL

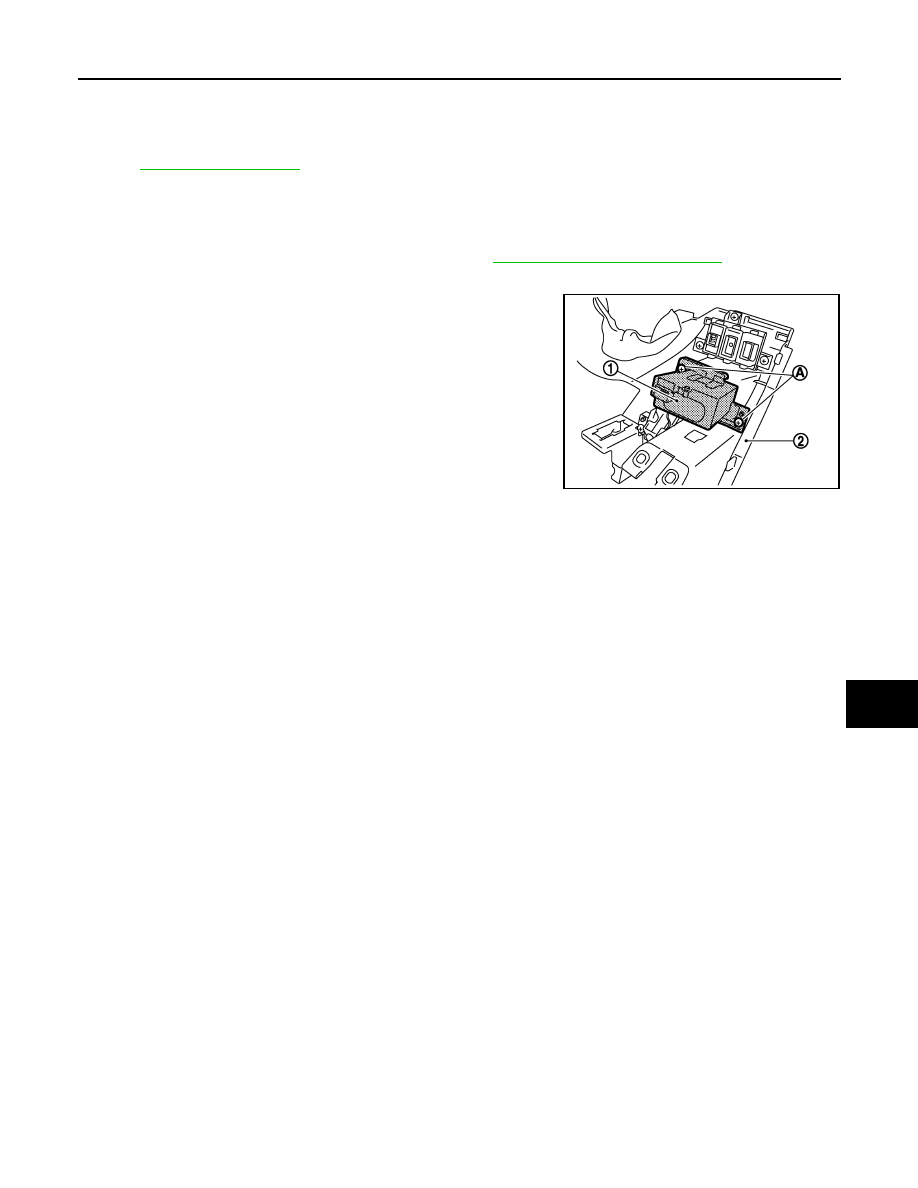

1.

Remove the instrument driver lower panel (2). Refer to

IP-12, "Removal and Installation"

.

2.

Disconnect key slot connector.

3.

Remove the key slot mounting screw (A), and then remove key
slot (1) from instrument driver lower panel (2).

INSTALLATION

Install in the reverse order of removal.

JMKIA0146ZZ

DLK-244

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

TRUNK LID OPENER REQUEST SWITCH

TRUNK LID OPENER REQUEST SWITCH

Exploded View

INFOID:0000000001683228

Refer to

EXL-200, "Exploded View"

.

Removal and Installation

INFOID:0000000001683229

REMOVAL

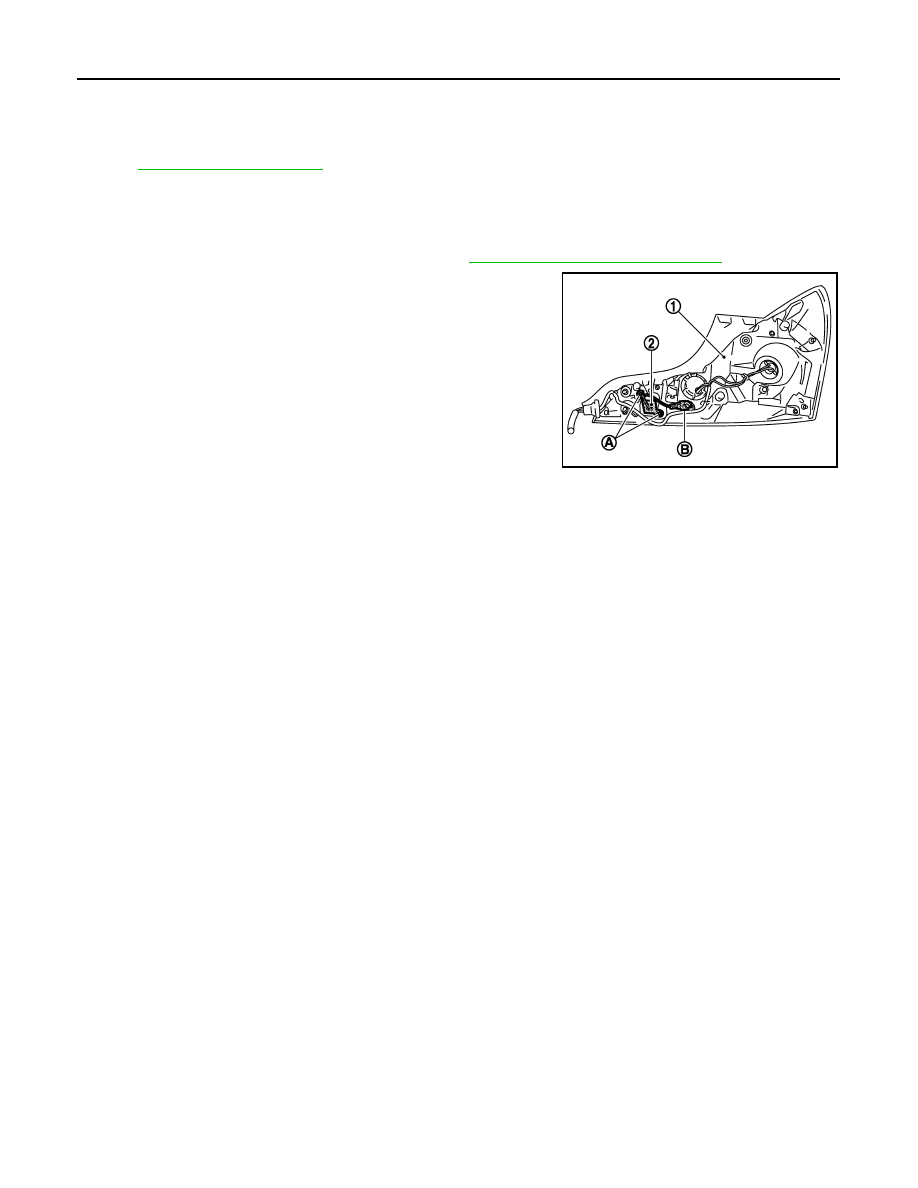

1.

Remove the rear combination lamp LH (1). Refer to

EXL-200, "Removal and Installation"

.

2.

Remove the trunk lid opener request switch connector (B).

3.

Remove the trunk lid opener request switch mounting screw (A), and then remove trunk lid opener
request switch (2) from rear combination lamp LH (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA1163ZZ
