DOOR

DLK-221

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR STRIKER : Removal and Installation

INFOID:0000000001722620

REMOVAL

1.

Remove the door striker cover.

2.

Remove the TORX bolts, and then remove the door striker.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check the door open/close operation after installation.
• When removing and installing the door striker, be sure to perform the fitting adjustment. Refer to

DLK-219, "DOOR ASSEMBLY : Adjustment"

.

DOOR HINGE

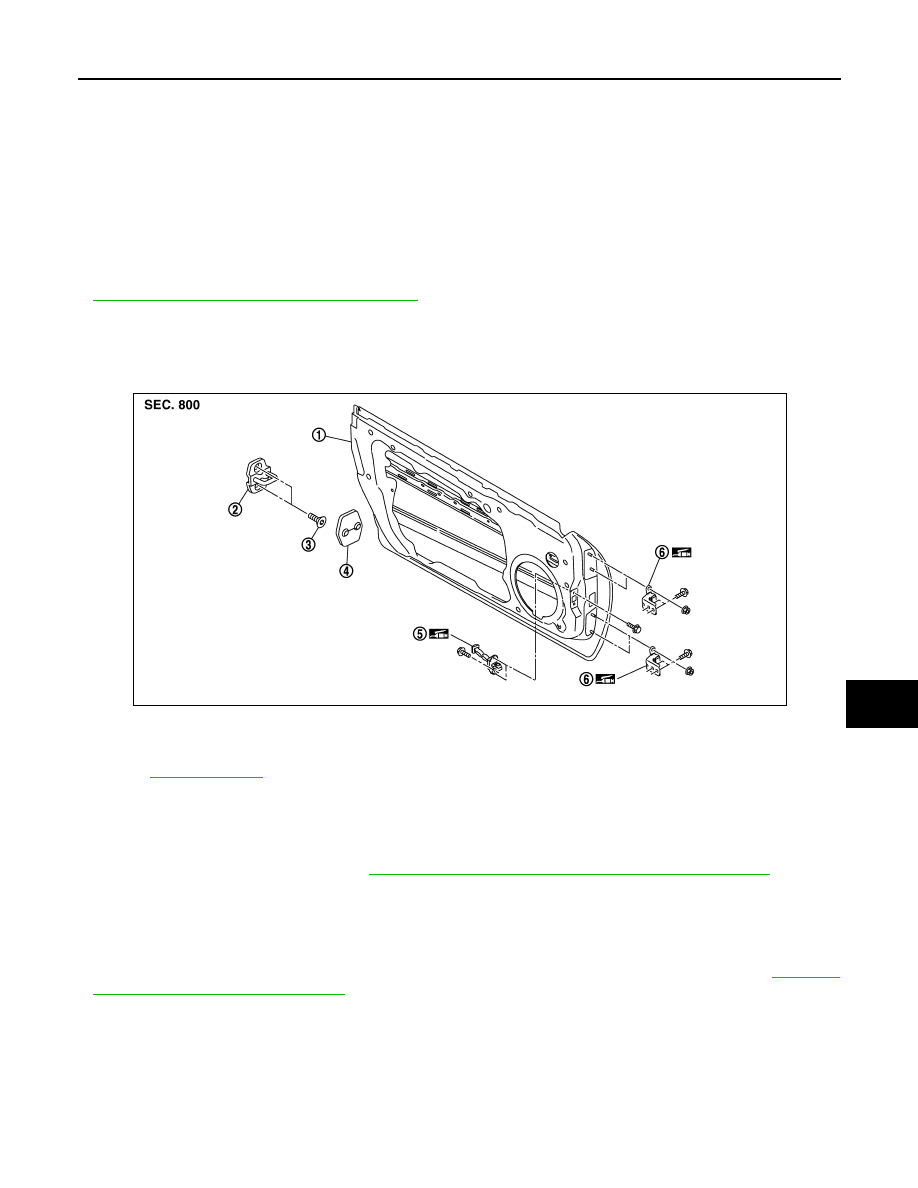

DOOR HINGE : Exploded View

INFOID:0000000001736637

DOOR HINGE : Removal and Installation

INFOID:0000000001722600

REMOVAL

1.

Remove the door assembly. Refer to

DLK-219, "DOOR ASSEMBLY : Removal and Installation"

.

2.

Remove the door hinge mounting bolts, and then remove the door hinge.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• When removing and installing the door assembly, perform the fitting adjustment. Refer to

DLK-219,

"DOOR ASSEMBLY : Adjustment"

.

• After installation, apply touch-up paint (the body color) onto the head of the door hinge mounting

nuts.

• Check the door hinge rotating part for poor lubrication. If necessary, apply body grease.
• Check the door open/close operation after installation.

DOOR CHECK LINK

1.

Door panel

2.

Door striker

3.

TORX bolt

4.

Door striker cover

5.

Check link

6.

Door hinge (upper, lower)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA1216ZZ

DLK-222

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

DOOR

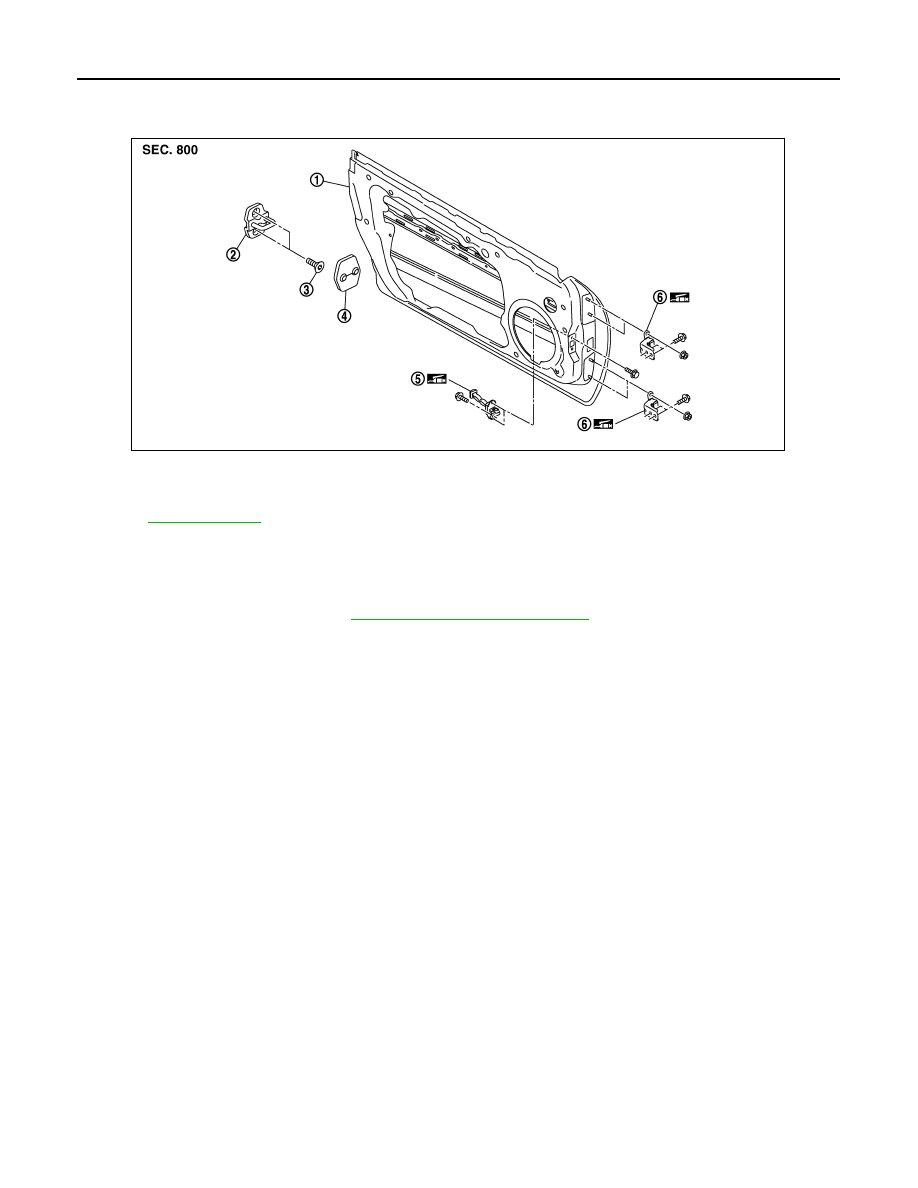

DOOR CHECK LINK : Exploded View

INFOID:0000000001736638

DOOR CHECK LINK : Removal and Installation

INFOID:0000000001722602

REMOVAL

1.

Remove the door finisher. Refer to

INT-11, "Removal and Installation"

.

2.

Remove the door speaker.

3.

Remove the mounting bolt of the door check link on the vehicle.

4.

Remove the door check link mounting bolts on the door side.

5.

Remove the door check link.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check the door open/close operation after installation.

1.

Door panel

2.

Door striker

3.

TORX bolt

4.

Door striker cover

5.

Check link

6.

Door hinge (upper, lower)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA1216ZZ

TRUNK LID

DLK-223

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TRUNK LID

TRUNK LID ASSEMBLY

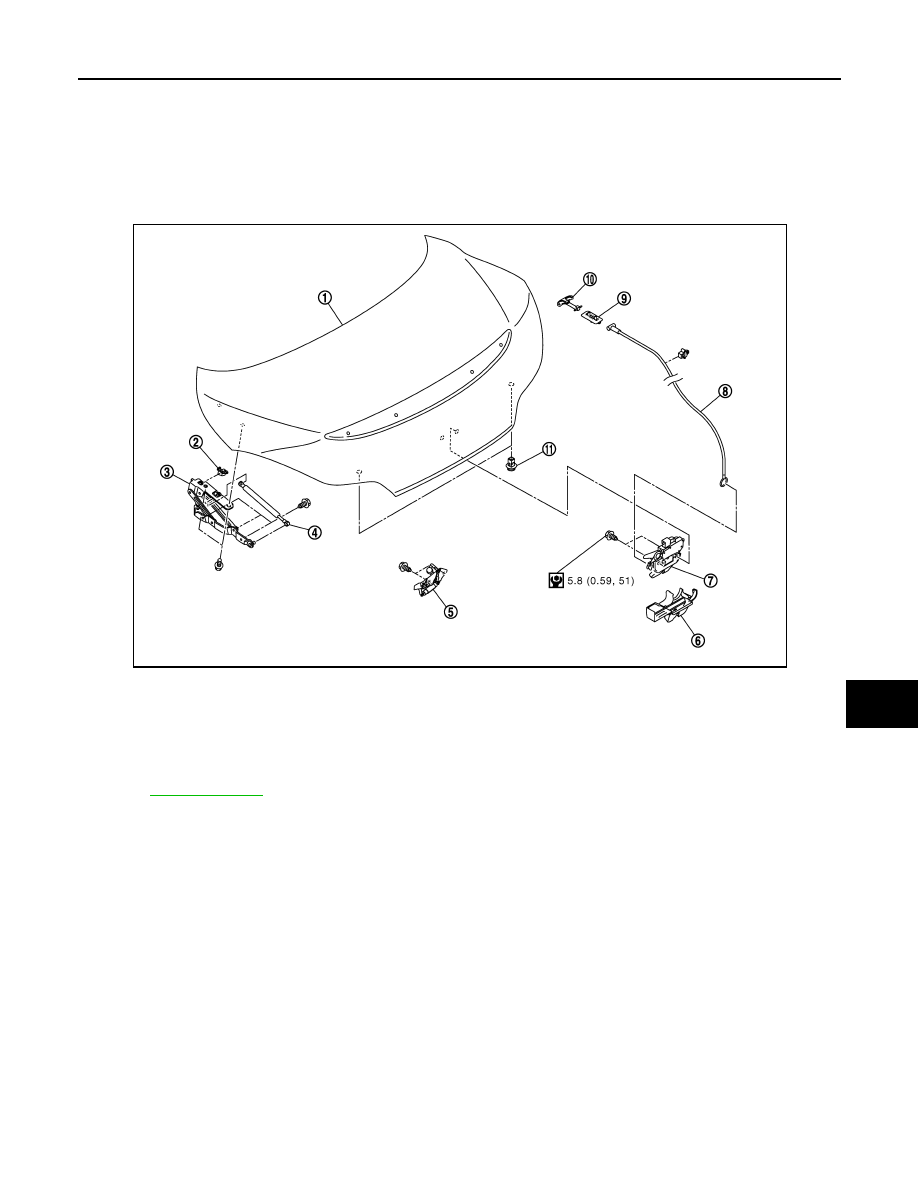

TRUNK LID ASSEMBLY : Exploded View

INFOID:0000000001722610

REMOVAL

ADJUSTMENT

1.

Trunk lid assembly

2.

Trunk lid hinge stopper

3.

Trunk lid hinge

4.

Trunk lid stay

5.

Trunk lid striker

6.

Trunk lid lock cover

7.

Trunk lid lock assembly

8.

Trunk lid opener cable

9.

Trunk lid emergency opener lever
holder

10. Trunk lid emergency opener lever

11.

Bumper rubber

Refer to

GI-4, "Components"

 for the symbols in the figure.

JMKIA1218GB

DLK-224

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

TRUNK LID

TRUNK LID ASSEMBLY : Removal and Installation

INFOID:0000000001722611

REMOVAL

1.

Remove the trunk lid finisher inner. Refer to

INT-29, "Removal and Installation"

.

2.

Disconnect the connectors in the trunk lid, and remove the harness clamps to pull the harness out of the
trunk lid.

3.

Remove trunk lid stay at trunk lid side.
NOTE:
Insert flat-bladed screwdriver into the gap and remove holder.

WARNING:

Body injury may occur if no supporting rod is holding the trunk lid open when removing the stay.

CAUTION:

While removing use a shop cloth or tape to protect from damaging.

4.

Remove the trunk lid hinge mounting bolts on trunk lid side and remove the trunk lid assembly.

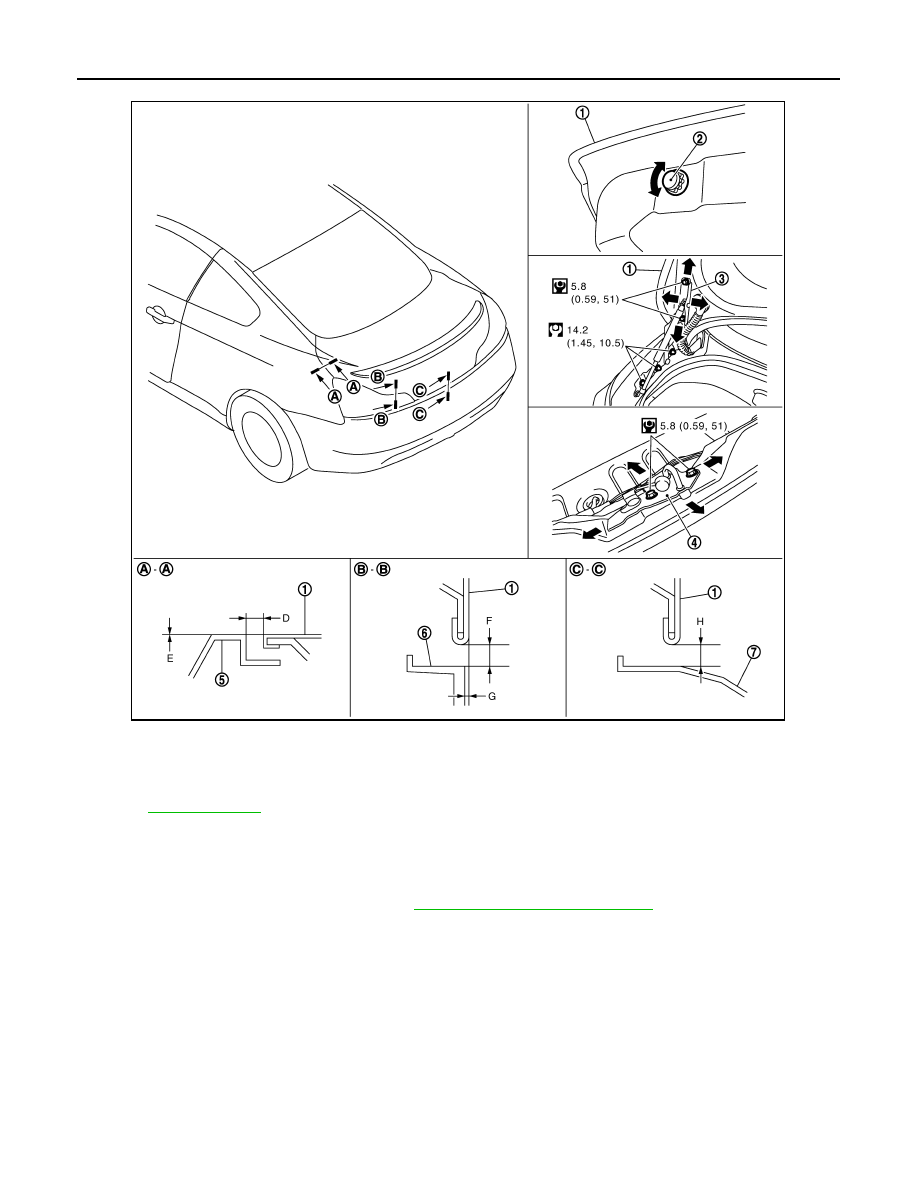

INSTALLATION

1.

Trunk lid assembly

2.

Bumper rubber

3.

Trunk lid hinge

4.

Trunk lid striker

5.

Rear fender

6.

Rear combination lamp

7.

Rear bumper

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA1219GB
