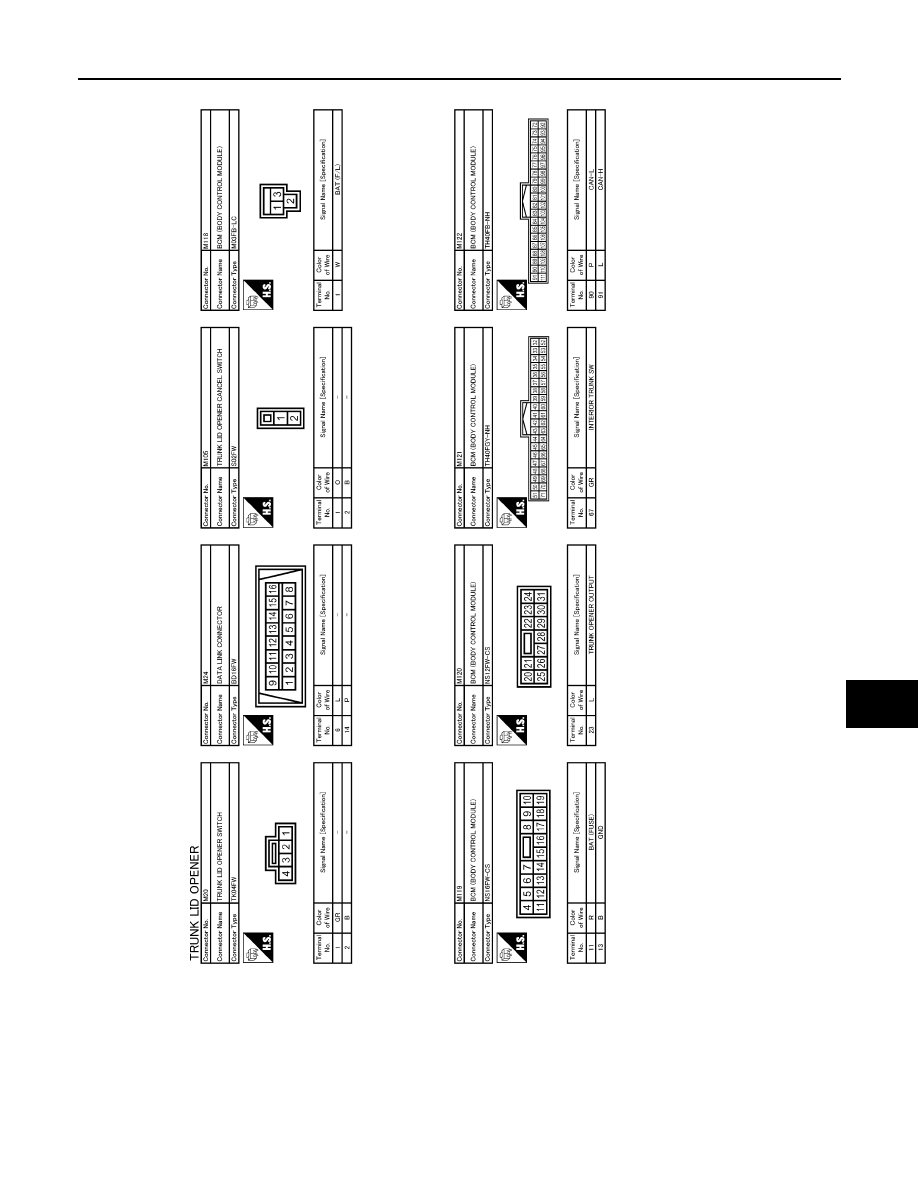

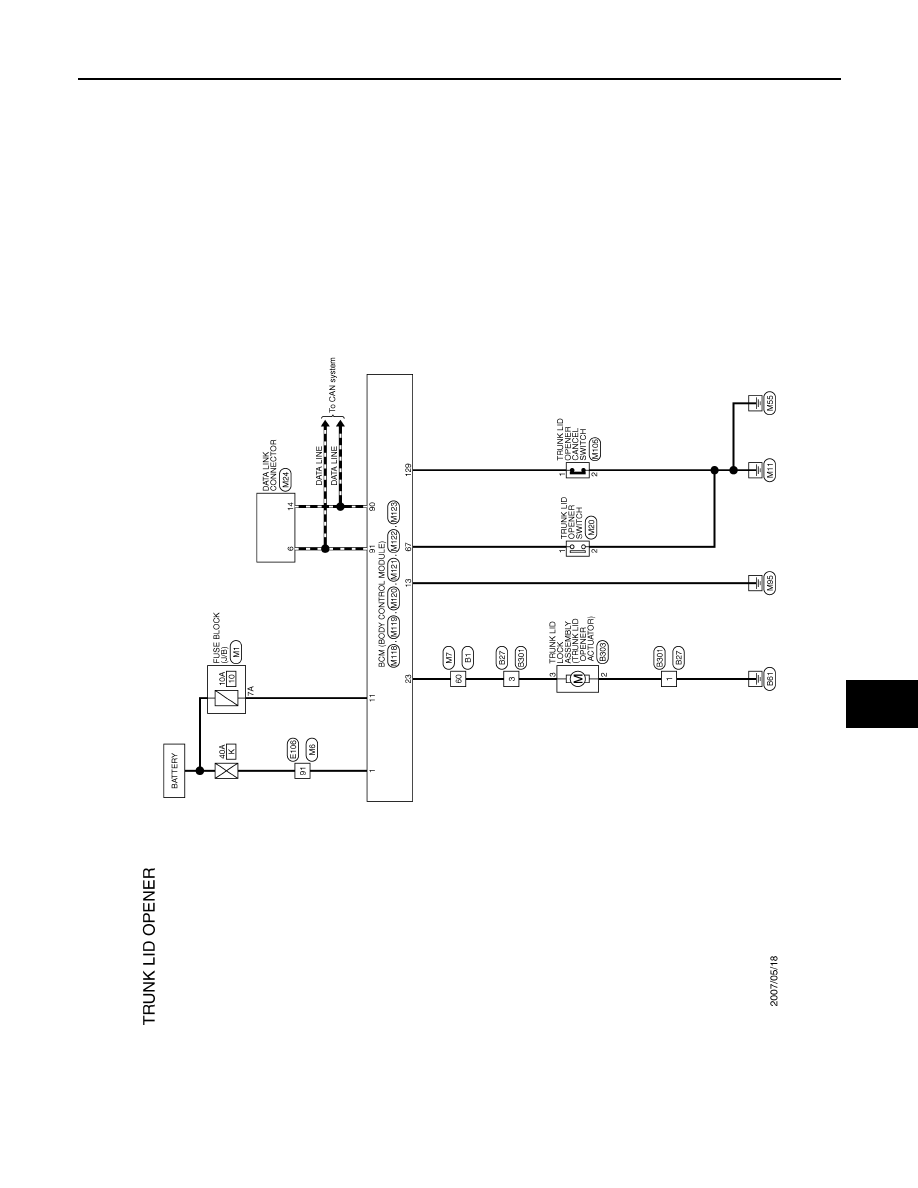

Wiring Diagram - TRUNK LID OPENER SYSTEM -

INFOID:0000000001683159

Click here to view the eWD.

JCKWA0626GB

DLK-150

< ECU DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

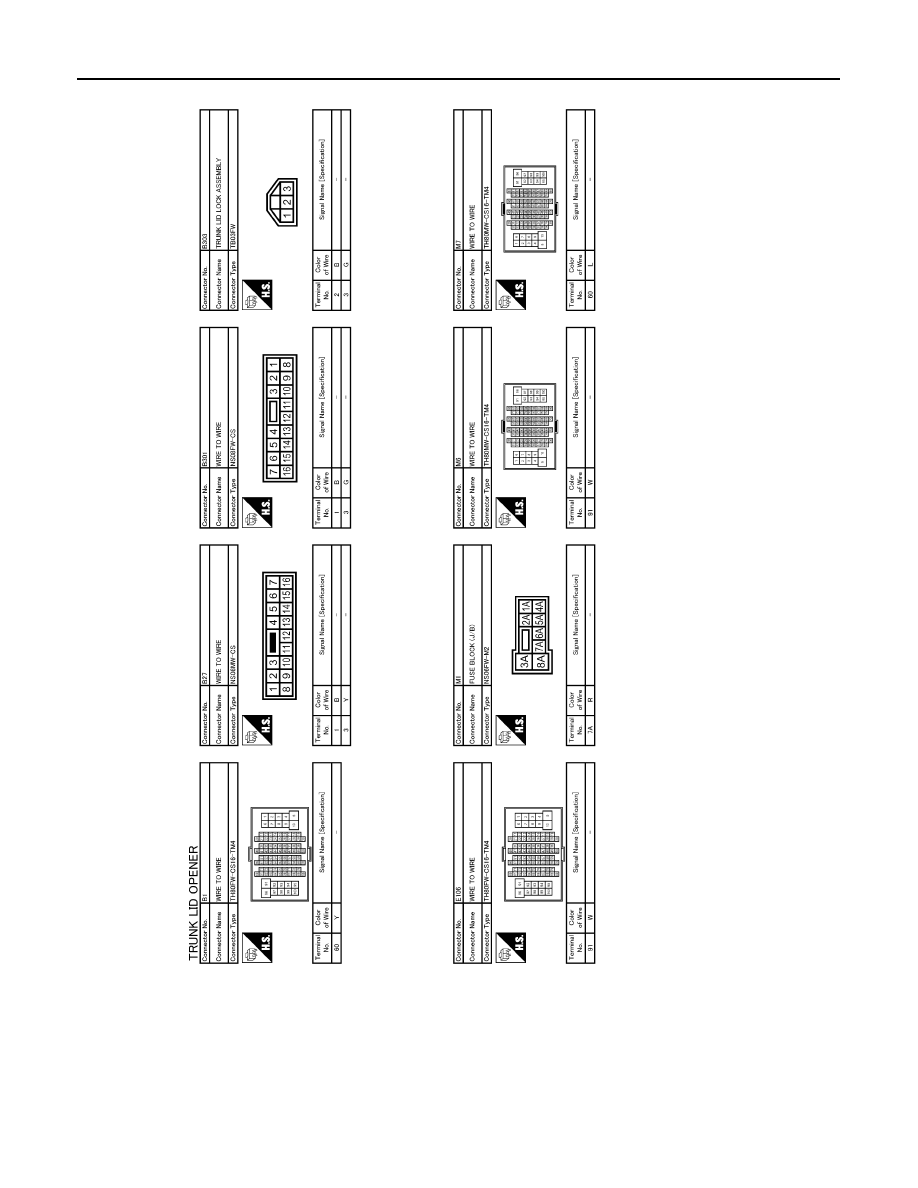

BCM (BODY CONTROL MODULE)

JCKWA0627GB

BCM (BODY CONTROL MODULE)

DLK-151

< ECU DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

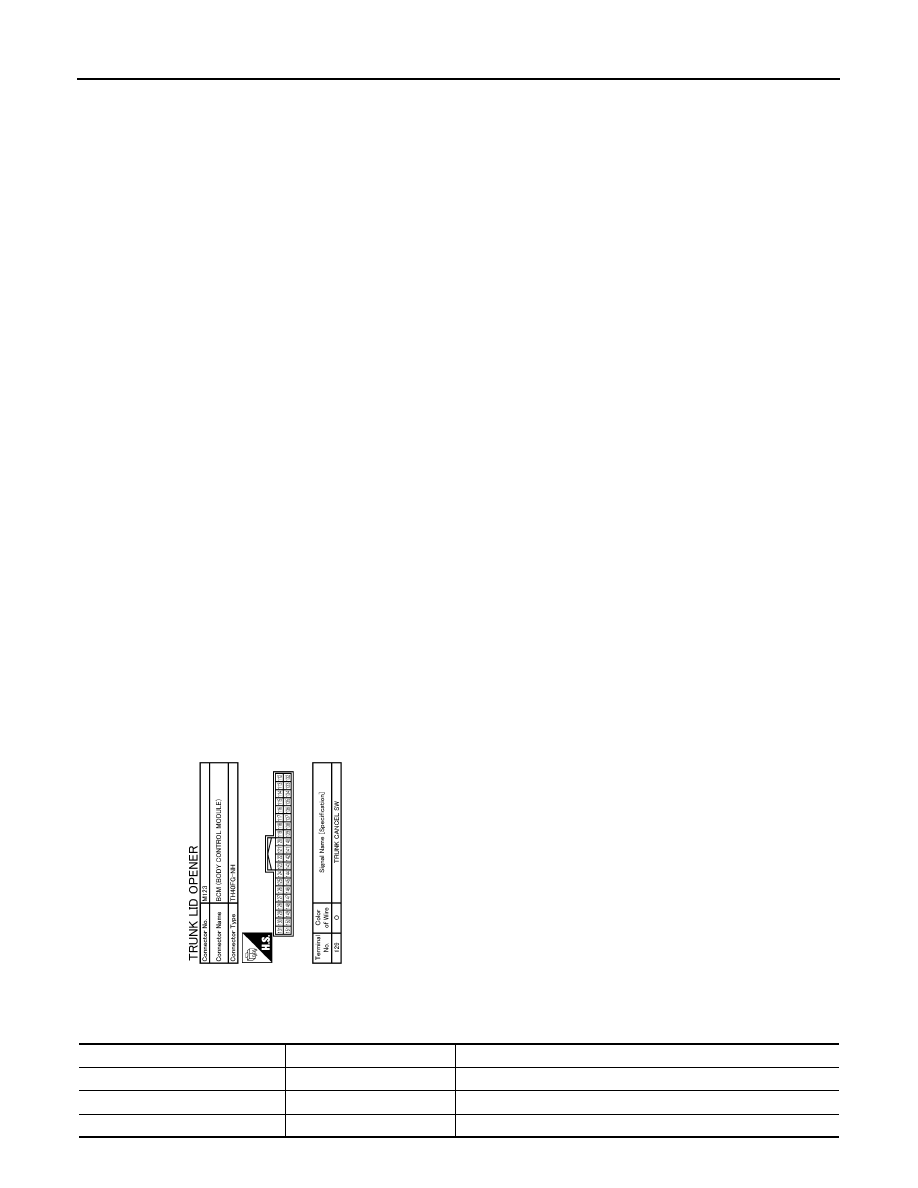

JCKWA0628GB

DLK-152

< ECU DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

Fail Safe

INFOID:0000000001911531

JCKWA0629GB

Display contents of CONSULT

Fail-safe

Cancellation

B2013: ID DISCORD BCM-S/L

Inhibit engine cranking

Erase DTC

B2014: CHAIN OF S/L-BCM

Inhibit engine cranking

Erase DTC

B2190: NATS ANTTENA AMP

Inhibit engine cranking

Erase DTC
