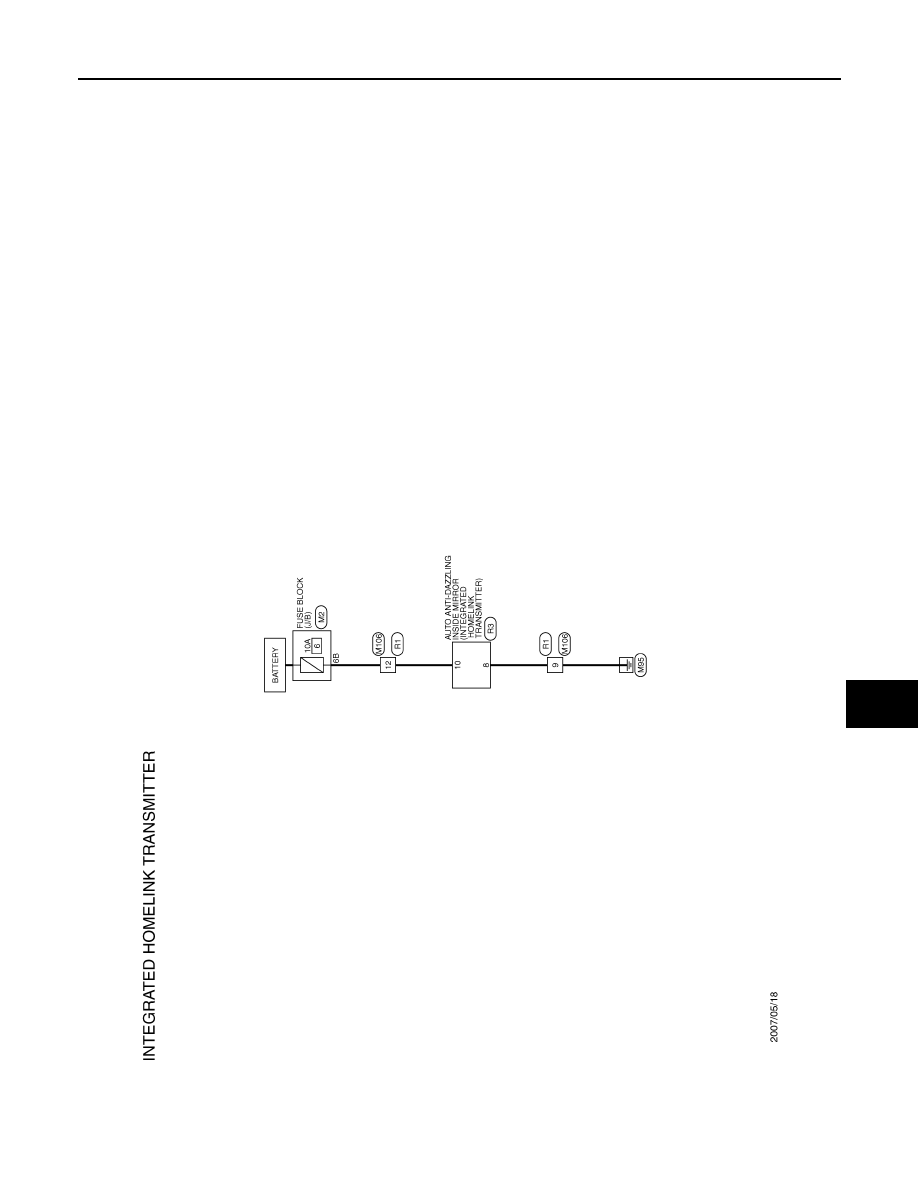

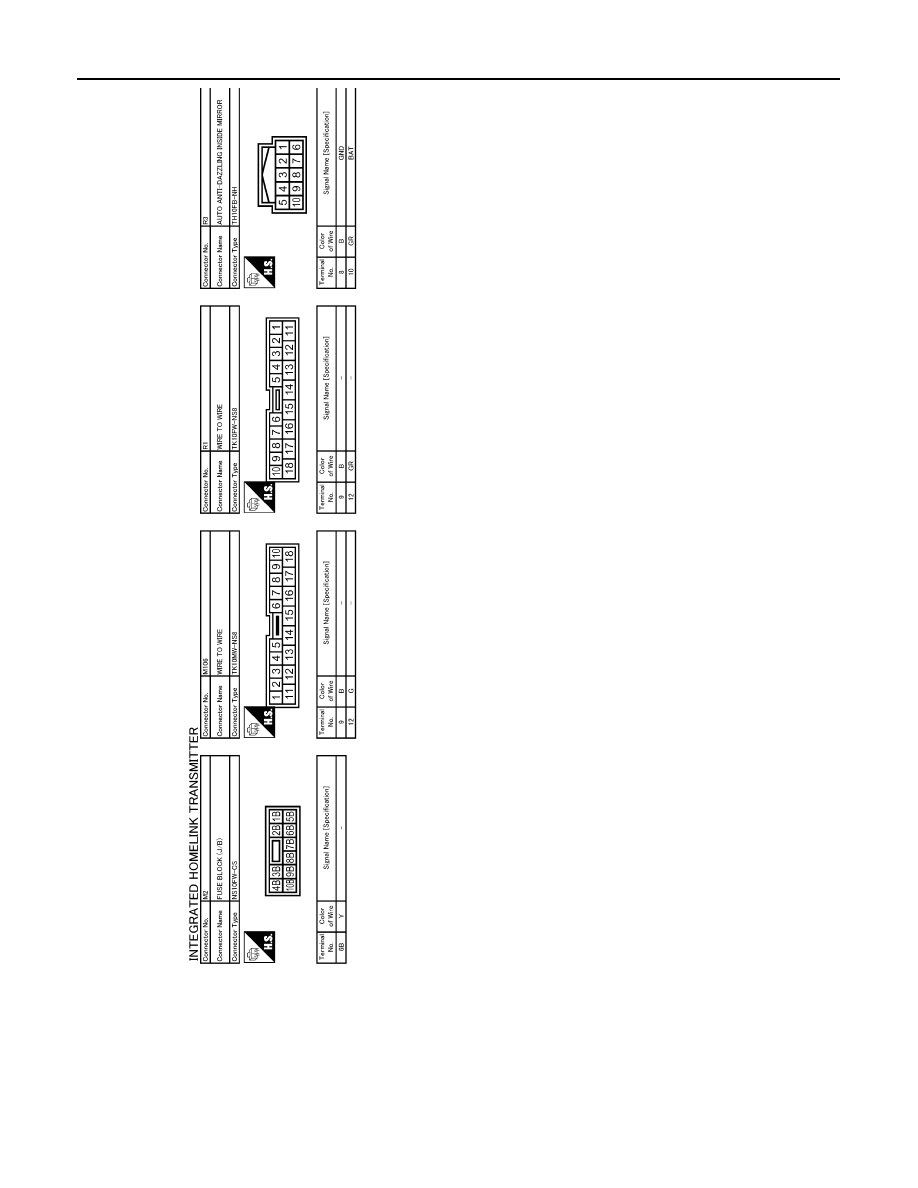

INTEGRATED HOMELINK TRANSMITTER DLK-109 < COMPONENT DIAGNOSIS > [INTELLIGENT KEY SYSTEM] C D E F G H I J L M A B DLK N O P INTEGRATED HOMELINK TRANSMITTER Description INFOID:0000000001683152 Integrated Homelink Transmitter can store and transmit a maximum of 3 radio signals. Component Function Check INFOID:0000000001683153 1. CHECK FUNCTION Check that system receiver (garage door opener, etc.) operates with original hand-held transmitter. Is the inspection result normal? YES >> GO TO 2. NO >> Receiver or hand-held transmitter is malfunctioning. 2. CHECK ILLUMINATION 1. Turn ignition switch “OFF”. 2. Does red light of transmitter illuminate when any transmitter button is pressed? Is the inspection result normal? YES >> GO TO 3. NO >> Refer to DLK-109, "Diagnosis Procedure" 3. CHECK TRANSMITTER Check transmitter with Tool*. Is the inspection result normal? YES >> Receiver or hand-held transmitter malfunction, not vehicle related. NO >> Replace auto anti-dazzling inside mirror (integrated homelink transmitter). Refer to . Diagnosis Procedure INFOID:0000000001683154 1. CHECK POWER SUPPLY 1. Disconnect auto anti-dazzling inside mirror (integrated homelink transmitter) connector. 2. Check voltage between auto anti-dazzling inside mirror (integrated homelink transmitter) harness connec- Is the inspection result normal? YES >> GO TO 2. NO >> Check the following. • 10A fuse [No. 6 located in the fuse block (J/B)] homelink transmitter). 2. CHECK GROUND CIRCUIT Check continuity between auto anti-dazzling inside mirror (integrated homelink transmitter) harness connector Auto anti-dazzling inside mirror (Integrated homelink transmitter) connector Terminal Condition Voltage (V) (Approx.) R3 10 Ground Ignition switch position: Battery voltage Ignition switch position: |
