OUTSIDE KEY ANTENNA

Description

INFOID:0000000001683126

Detects whether Intelligent Key is outside the vehicle.
Integrated in front outside handle (driver side, passenger side) and installed in rear bumper.

Component Function Check

INFOID:0000000001683127

1.

CHECK DOOR REQUEST SWITCH

Check that door request switch operates normally.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Inspect door request switch. Refer to

DLK-83, "Component Function Check"

.

2.

CHECK FUNCTION

Be sure that Intelligent Key is in each outside key antenna detection range.

Does door lock/unlock when each request switch is pressed?

YES

>> Outside key antenna is OK.

NO

>> Refer to

DLK-93, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001683128

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1.

Turn ignition switch OFF.

2.

Check signal between BCM harness connector and ground with oscilloscope.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1.

Disconnect BCM connector and front outside handle connector.

2.

Check continuity between BCM harness connector and outside key antenna harness connector.

Terminals

Condition

Signal

(Reference value)

(+)

(–)

BCM connector

Terminal

M122

77

Ground

Request switch

is pushed

When Intelligent Key
is in the antenna de-
tection area.

75

M121

39

When Intelligent Key
is not in the antenna
detection area.

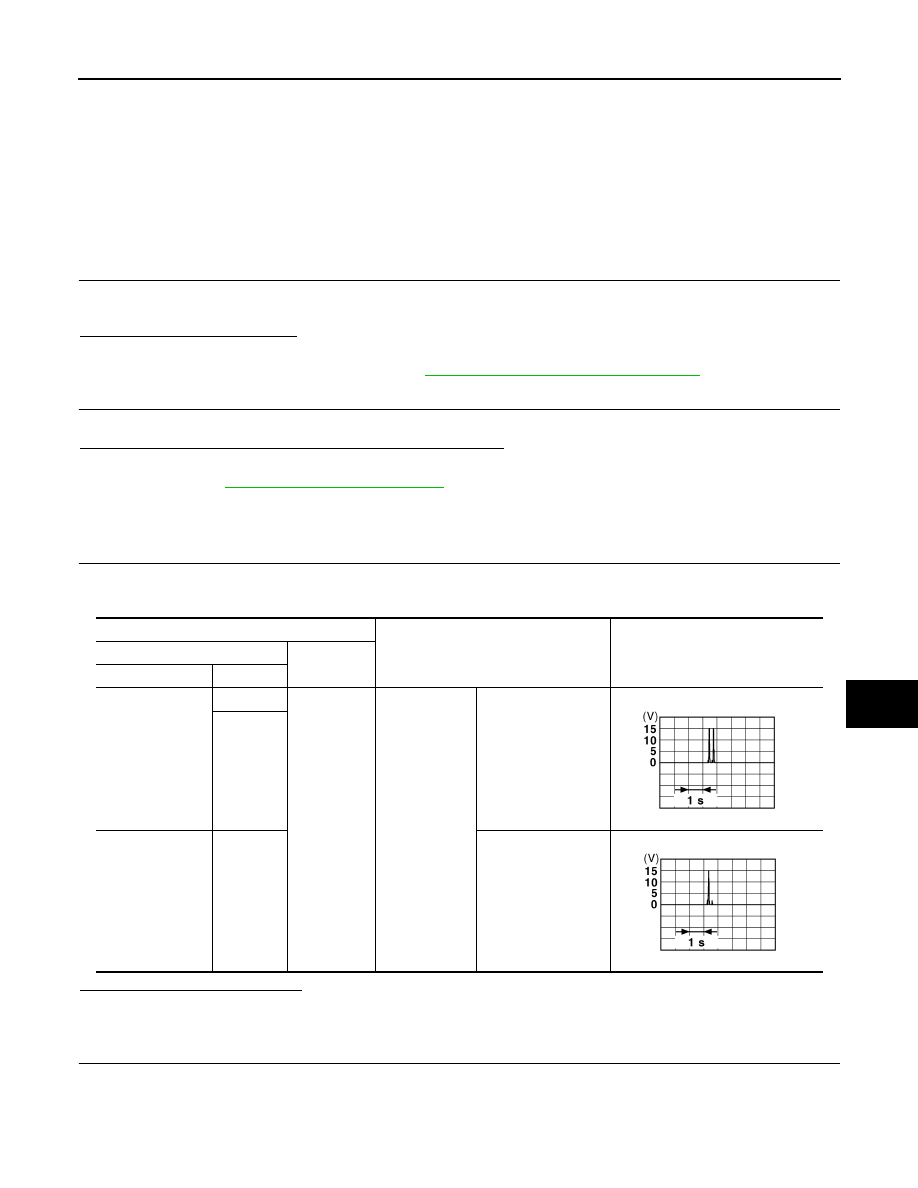

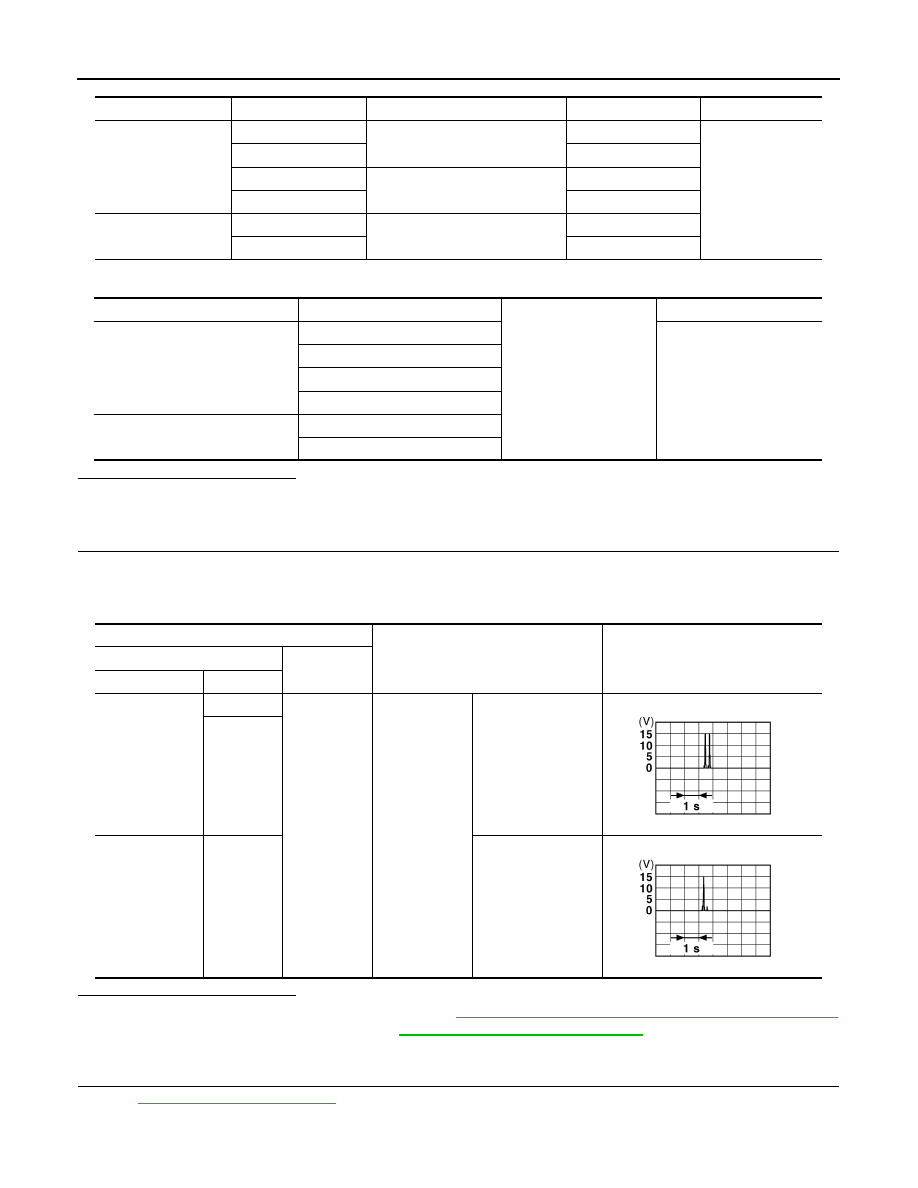

JMKIA0061GB

JMKIA0060GB

DLK-94

< COMPONENT DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

OUTSIDE KEY ANTENNA

3.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness between BCM and outside key antenna.

3.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1.

Replace outside key antenna. (New antenna or other antenna)

2.

Connect BCM connector and outside key antenna connector.

3.

Check signal between BCM harness connector and ground with oscilloscope.

Is the inspection result normal?

YES

>> Replace outside key antenna. Refer to

DLK-230, "DOOR LOCK : Removal and Installation"

(Driver side and passenger side),

EXT-17, "Removal and Installation"

 (Rear bumper)

NO

>> GO TO 4.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-38, "Intermittent Incident"

.

BCM connector

Terminal

 Outside key antenna connector

Terminal

Continuity

M122

77

D14 (driver side)

1

Existed

76

2

75

D44 (passenger side)

1

74

2

M121

39

B63 (rear bumper)

1

38

2

BCM connector

Terminal

Ground

Continuity

M122

74

Not existed

75

76

77

M121

39

38

Terminals

Condition

Signal

(Reference value)

(+)

(–)

BCM connector

Terminal

M122

77

Ground

Door request

switch is

pushed

When Intelligent Key
is in the antenna de-
tection area.

75

M121

39

When Intelligent Key
is not in the antenna
detection area.

JMKIA0061GB

JMKIA0060GB

OUTSIDE KEY ANTENNA

DLK-95

< COMPONENT DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

>> INSPECTION END

DLK-96

< COMPONENT DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

REMOTE KEYLESS ENTRY RECEIVER

REMOTE KEYLESS ENTRY RECEIVER

Description

INFOID:0000000001683129

Receives Intelligent Key operation and transmits to BCM.

Component Function Check

INFOID:0000000001683130

1.

CHECK FUNCTION

With CONSULT-III

Check remote keyless entry receiver (“RKE OPE COUN1”) in Data Monitor mode with CONSULT-III.

Is the inspection result normal?

YES

>> Remote keyless entry receiver is OK.

NO

>> Refer to

DLK-96, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001683131

1.

CHECK REMOTE KEYLESS ENTRY RECEIVER OUTPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Check signal between remote keyless entry receiver harness connector and ground with oscilloscope.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 2.

2.

CHECK REMOTE KEYLESS ENTRY RECEIVER POWER SUPPLY

1.

Disconnect remote keyless entry receiver connector.

2.

Check voltage between remote keyless entry receiver harness connector and ground.

Monitor item

Condition

RKE OPE COUN1

Checks whether value changes when operating Intelligent Key.

Terminals

Condition

Signal

(Reference value)

(+)

(–)

Remote keyless

entry receiver

connector

Terminal

M104

2

Ground

Waiting

(All door closed)

When signal is received

(All door closed)

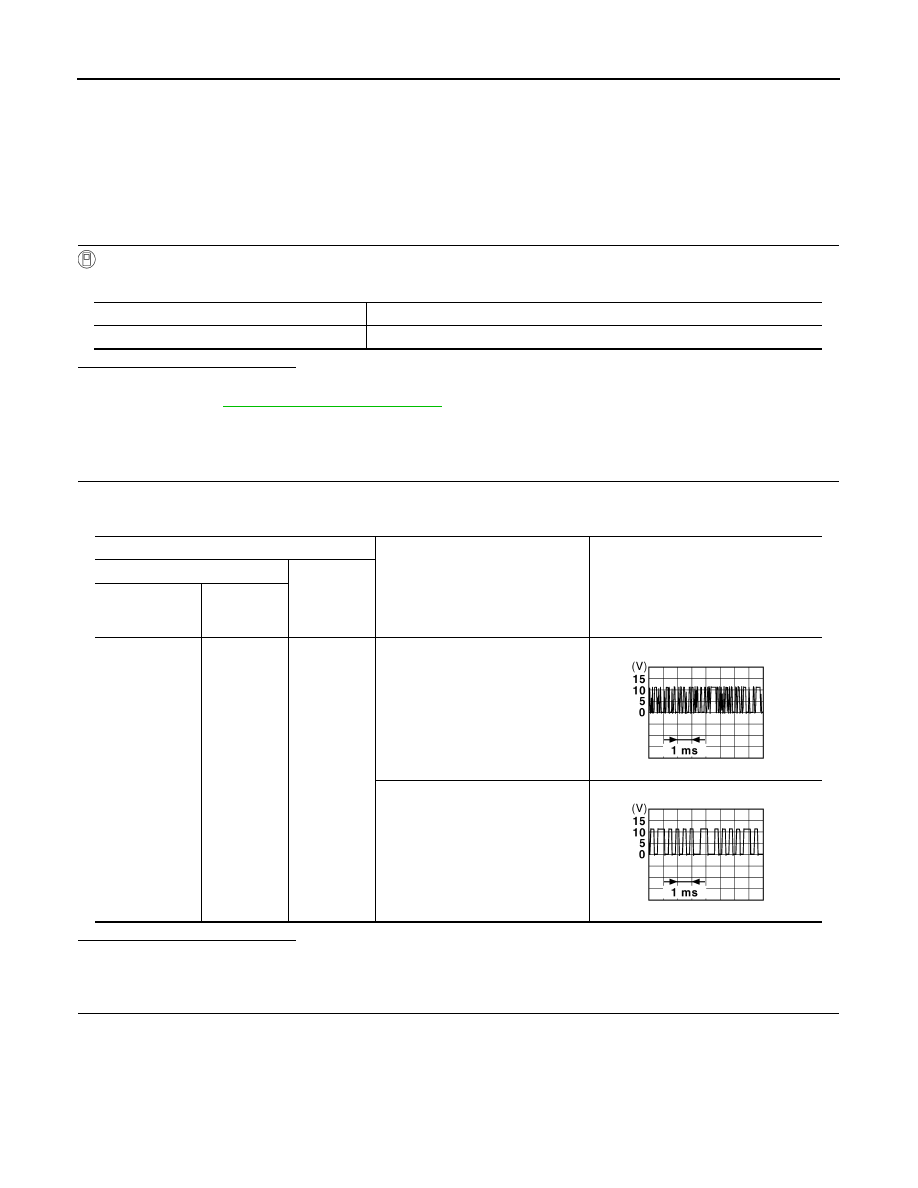

JMKIA0064GB
