U1000 CAN COMM CIRCUIT

DLK-57

< COMPONENT DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

COMPONENT DIAGNOSIS

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000001683043

CAN (Controller Area Network) is a serial communication line for real time applications. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Modern
vehicles are equipped with many electronic control unit, and each control unit shares information and links
with other control units during operation (not independent). In CAN communication, control units are con-
nected with 2 communication lines (CAN H-line, CAN L-line) allowing a high rate of information transmission
with less wiring. Each control unit transmits/receives data but selectively reads required data only.
CAN Communication Signal Chart. Refer to

LAN-25, "CAN Communication Signal Chart"

.

DTC Logic

INFOID:0000000001683044

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000001683045

1.

PERFORM SELF-DIAGNOSTIC

1.

Turn ignition switch ON and wait for 2 seconds or more.

2.

Check “Self Diagnostic Result”.

Is “CAN COMM CIRCUIT” displayed?

YES

>> Refer to

LAN-16, "Trouble Diagnosis Flow Chart"

.

NO

>> Refer to

GI-38, "Intermittent Incident"

.

DTC

CONSULT-III display

description

DTC Detection Condition

Possible cause

U1000

CAN COMM CIRCUIT

When BCM cannot communicate CAN com-
munication signal continuously for 2 sec-
onds or more.

In CAN communication system, any item (or items)
of the following listed below is malfunctioning.
• Transmission
• Receiving (ECM)
• Receiving (VDC/TCS/ABS)
• Receiving (METER/M&A)
• Receiving (TCM)
• Receiving (MULTI AV)
• Receiving (IPDM E/R)

DLK-58

< COMPONENT DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

U1010 CONTROL UNIT (CAN)

U1010 CONTROL UNIT (CAN)

DTC Logic

INFOID:0000000001683046

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000001683047

1.

REPLACE BCM

When DTC [U1010] is detected, replace BCM.

>> Replace BCM.

Special Repair Requirement

INFOID:0000000001683048

1.

REQUIRED WORK WHEN REPLACING BCM

Initialize control unit. Refer to CONSULT-III operation manual NATS-IVIS/NVIS.

>> Work end.

DTC

CONSULT-III display de-

scription

DTC Detection Condition

Possible cause

U1010

CONTROL UNIT (CAN)

BCM detected internal CAN communication circuit malfunction.

BCM

B2621 INSIDE KEY ANTENNA 1

DLK-59

< COMPONENT DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

B2621 INSIDE KEY ANTENNA 1

Description

INFOID:0000000001683049

Detects whether Intelligent Key is inside the vehicle.
Installed in the instrument center.

DTC Logic

INFOID:0000000001683050

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT-III

1.

Perform inside key antenna (“INSIDE ANT DIAGNOSIS”) on Work Support” of “INTELLIGENT KEY”.

2.

Perform “INTELLIGENT KEY” Self Diagnostic Result.

Is inside key antenna DTC detected?

YES

>> Refer to

DLK-59, "Diagnosis Procedure"

.

NO

>> Inside key antenna (instrument center) is OK.

Diagnosis Procedure

INFOID:0000000001683051

1.

CHECK INSIDE KEY ANTENNA INPUT SIGNAL 1

1.

Turn ignition switch OFF.

2.

Check signal between BCM harness connector and ground with oscilloscope.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-38, "Intermittent Incident"

.

NO

>> GO TO 2.

2.

CHECK INSIDE KEY ANTENNA CIRCUIT

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2621

INSIDE ANTENNA 1
CIRCUIT

An excessive high or low voltage from inside anten-
na is sent to BCM.

• Inside key antenna (instrument

center)

• Between BCM and Inside key an-

tenna (instrument center)

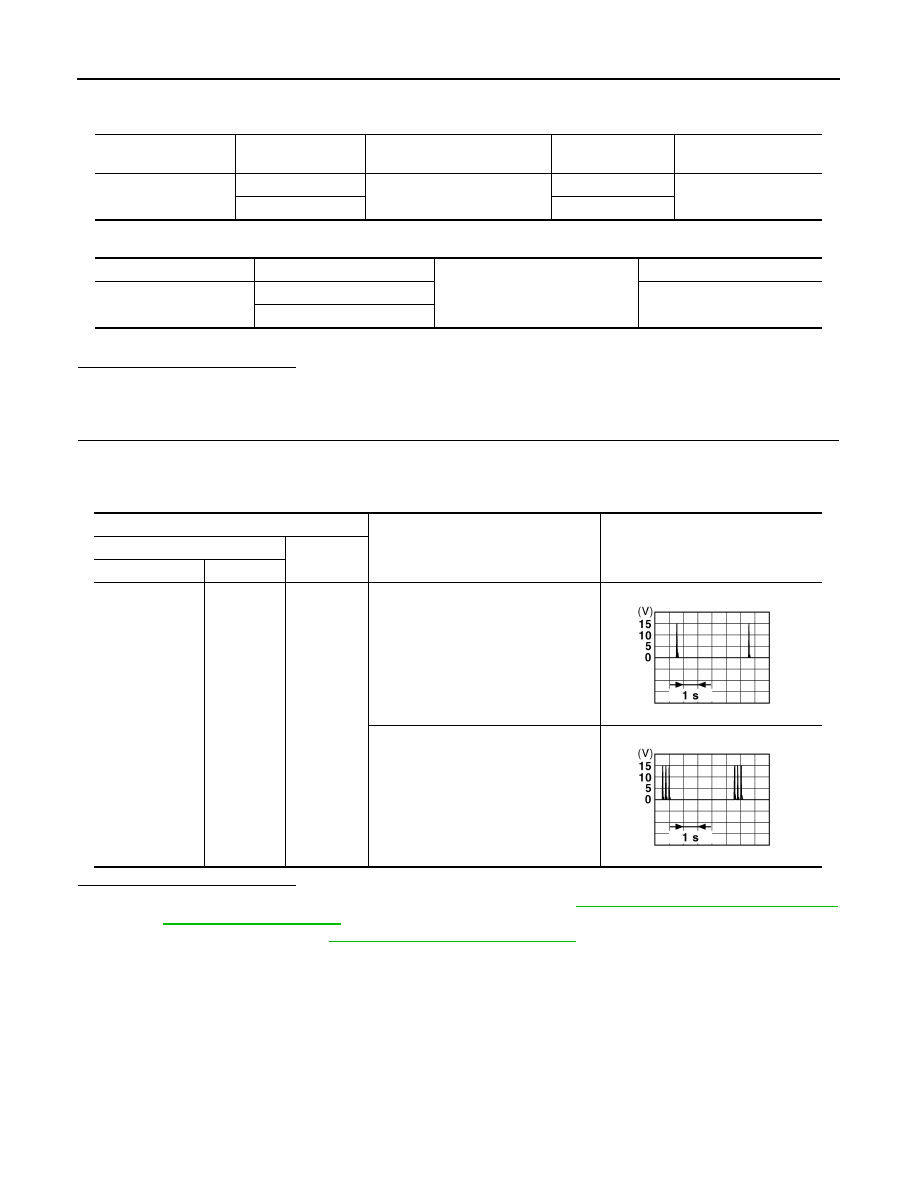

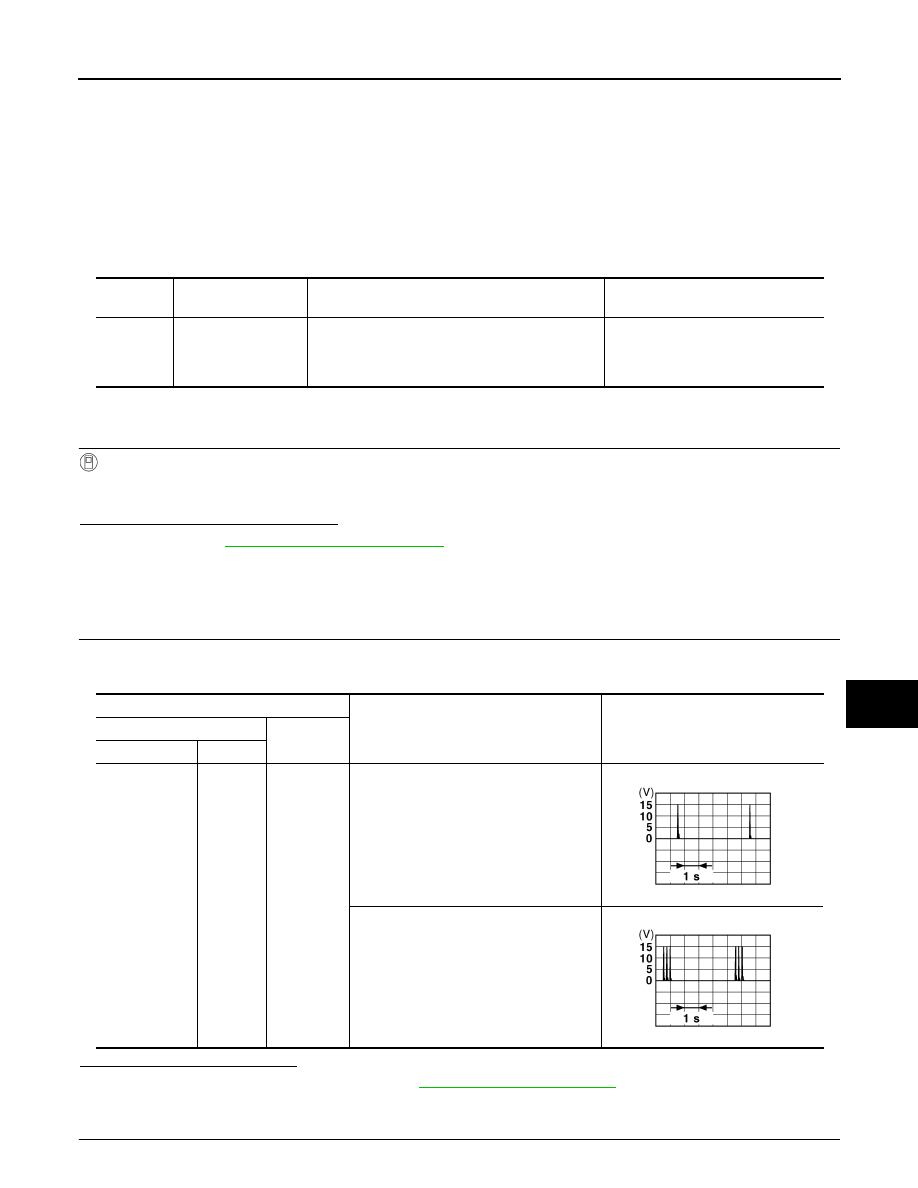

Terminals

Condition

Signal

(Reference value)

(+)

(–)

BCM connector

Terminal

M122

79

Ground

When Intelligent Key is in the passenger
compartment.

When Intelligent Key is not in the passen-
ger compartment.

JMKIA0062GB

JMKIA0063GB

DLK-60

< COMPONENT DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

B2621 INSIDE KEY ANTENNA 1

1.

Disconnect BCM connector and inside key antenna (instrument center) connector.

2.

Check continuity between BCM harness connector and inside key antenna (instrument center) connector.

3.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness between BCM and inside key antenna (instrument center).

3.

CHECK INSIDE KEY ANTENNA INPUT SIGNAL 2

1.

Replace inside key antenna (instrument center). (New antenna or other antenna)

2.

Connect BCM connector and inside key antenna (instrument center) connector.

3.

Check signal between BCM harness connector and ground with oscilloscope.

Is the inspection result normal?

YES

>> Replace inside key antenna (instrument center). Refer to

DLK-239, "INSTRUMENT CENTER :

Removal and Installation"

.

NO

>> Replace BCM. Refer to

BCS-79, "Removal and Installation"

.

BCM connector

Terminal

Inside key antenna

(Instrument center) connector

Terminal

Continuity

M122

78

M131

2

Existed

79

1

BCM connector

Terminal

Ground

Continuity

M122

78

Not existed

79

Terminals

Condition

Signal

(Reference value)

(+)

(–)

BCM connector

Terminal

M122

79

Ground

When Intelligent Key is in the passen-
ger compartment.

When Intelligent Key is not in the pas-
senger compartment.

JMKIA0062GB

JMKIA0063GB
