Infiniti G37 Coupe. Manual - part 369





TRUNK OPEN FUNCTION

DLK-37

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

A.

Dash side lower (Passenger side).

B.

Engine room dash panel (RH).

C.

 View with instrument assist lower
panel removed.

D.

View with console rear finisher removed. E.

View with rear bumper removed.

F.

View with trunk front finisher re-
moved.

G.

View of driver side door LH.

H.

Behind cluster lid C.

I.

View with hood seal assembly re-
moved.

JMKIA1119ZZ

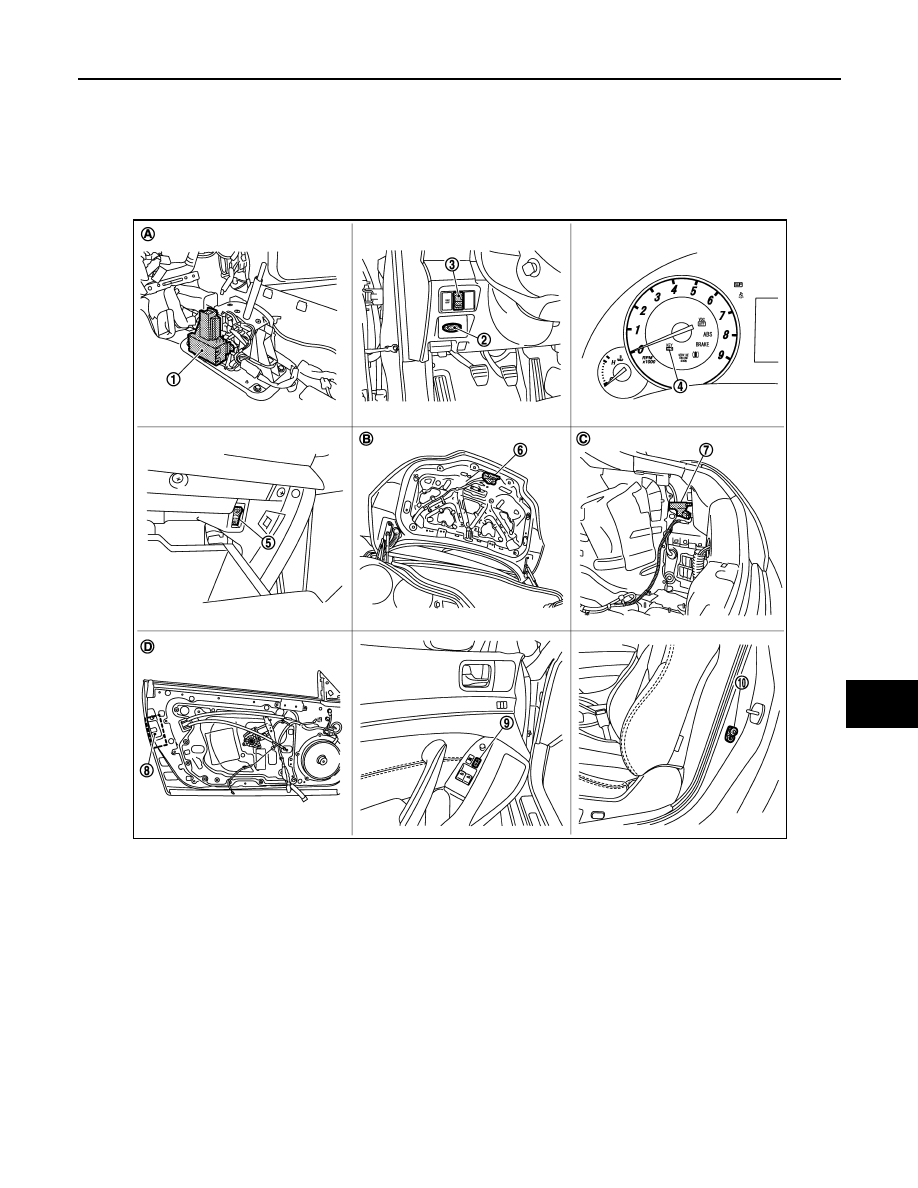

1.

A/T device (detention switch) M137

2.

Key slot M22

3.

Trunk lid opener switch M20

4.

Combination meter (Key warning lamp)
M53

5.

Trunk opener cancel switch M105

6.

Trunk lid lock assembly (trunk lid
opener actuator) B303

7.

Fuel lid lock actuator B242

8.

Door lock assembly (door lock actuator)
D15

9.

Power window main switch (door
lock unlock switch) D8

10. Driver side door switch B16

A.

View with center console assembly re-
moved.

B.

View with trunk lid finisher removed.

C.  View with trunk side finisher re-

moved.

D

View with driver side door finisher re-
moved.

DLK-38

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

TRUNK OPEN FUNCTION

INTELLIGENT KEY : Component Description

INFOID:0000000001683033

Item

Function

BCM

Controls trunk open function.

Trunk lid opener actuator

Opens the trunk with the open signal from BCM.

Remote keyless entry receiver

Receives trunk open signal from the Intelligent Key, and then transmits to BCM.

Intelligent Key

Transmits button operation to remote keyless entry receiver.

Intelligent Key warning buzzer

Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound.

WARNING FUNCTION

DLK-39

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

WARNING FUNCTION

System Description

INFOID:0000000001683034

OPERATION DESCRIPTION

The warning functions are as follows and are given to the user as warning information and warnings using
combinations of Intelligent Key warning buzzer, KEY warning lamp, key slot illumination and combination
meter display in combination meter.
• Intelligent Key system malfunction
• OFF position warning
• P position warning
• ACC warning
• Take away warning
• Door lock operation warning
• Key warning
• Intelligent Key insert information
• Engine start information
• Steering lock information
• Intelligent key low battery warning
• Key ID warning

OPERATION CONDITION

Once the following condition from below is established, alert or warning will be executed.

Warning/Information functions

Operation procedure

Intelligent Key system malfunction

When a malfunction is detected on BCM, “KEY” warning lamp will illuminate.

OFF position warning

For internal

• Ignition switch: ACC position.
• Door switch (driver side): ON (Door is open).

For external

OFF position warning (For internal) is in active mode, driver side door has
been closed.
NOTE:
OFF position (For external) active only when each of the sequence has oc-
curred as below: P position warning

→

 ACC warning

→

 OFF position warning

(For internal)

→

 OFF position warning (For internal)

P position warning

• Shift position: Except P position
• Engine is running to stopped (Ignition switch is ON to OFF)

ACC warning

• During P position warning is in active mode, shift position has changed to P

position.

• Ignition switch: Except OFF position.

Take away warning

Door is open to close

• Ignition switch: Except LOCK position.
• Door switch: ON to OFF (Door is open to close).
• Intelligent Key cannot be detected inside the vehicle.

Door is open

• Door switch: ON (Door is open)
• Key ID verification every 5 seconds when registered Intelligent Key cannot

be detected inside the vehicle.

Push-ignition switch oper-
ation

• Ignition switch: Except LOCK position.
• Press ignition switch.
• Intelligent Key cannot be detected inside the vehicle.

Take away through win-
dow

• Engine is running.
• Key ID verification every 30 seconds when registered Intelligent Key cannot

be detected inside the vehicle.

• After vehicle speed verification, the registered Intelligent Key cannot be de-

tect inside the vehicle.

Intelligent Key is removed
from key slot

• When Intelligent Key is removed from key slot, Intelligent Key cannot be de-

tected inside the vehicle.

DLK-40

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

WARNING FUNCTION

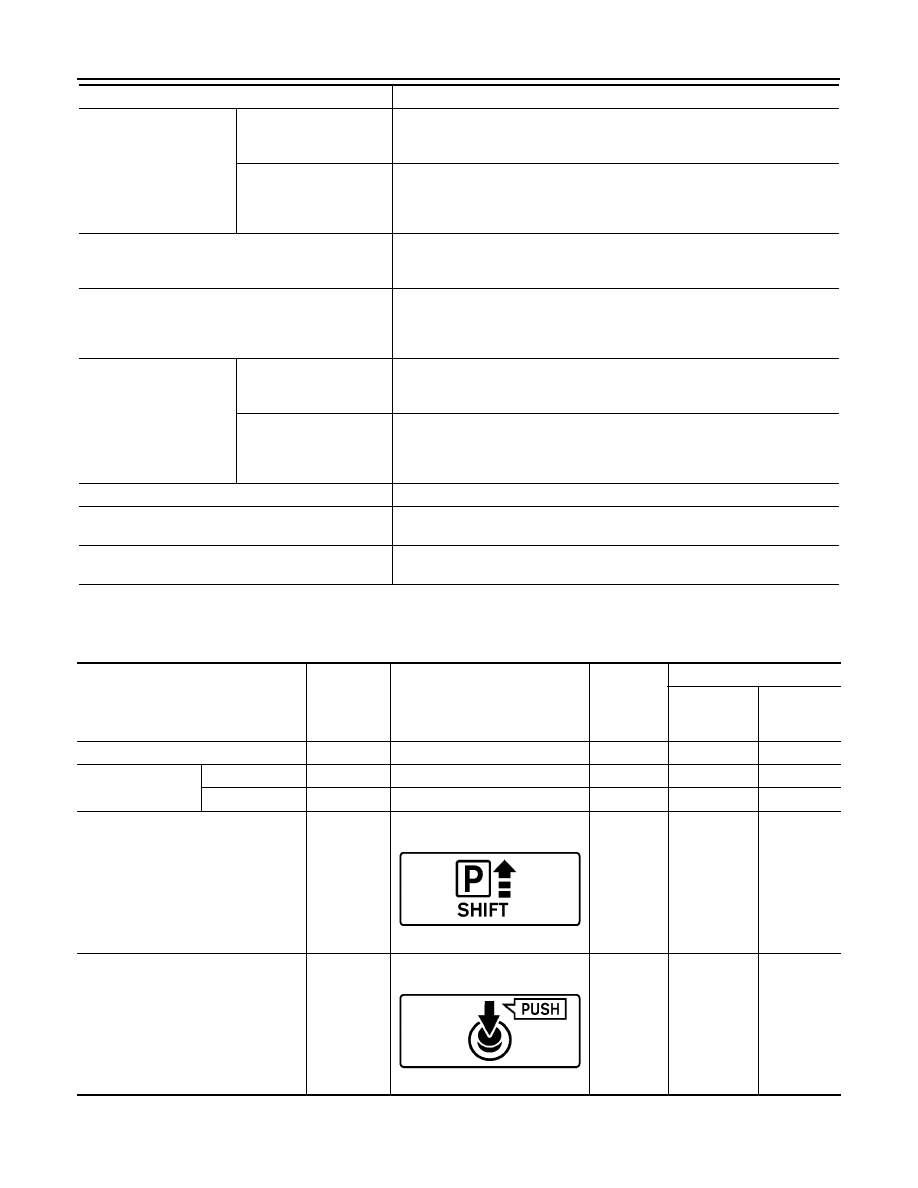

WARNING METHOD

The following table signals the alarm or warning methods with chime.
Meter display, “KEY” indicator or key slot illumination when the warning conditions are met.

Door lock operation warn-
ing

Request switch operation

When request switch is pushed (lock operation) under the following conditions.
• Door switch: ON (Any door is open).
• Intelligent Key is inside vehicle.

Intelligent Key button op-
eration

When Intelligent Key button is pushed (lock operation) under the following con-
ditions.
• Door switch: ON (Any door is open).
• For 3 seconds after Intelligent Key is removed from key slot.

Key warning

• Ignition switch is OFF position.
• Driver side door switch: ON (Driver side door is open).
• Intelligent Key is inserted in key slot.

Intelligent Key insert information

• Door switch: ON to OFF (Door is open to close).
• Ignition switch: OFF to ON position.
• Intelligent Key is out of key slot.
• Intelligent Key cannot be detected inside the vehicle.

Engine start information

Ignition switch is in ON
position

• Ignition switch: ON position.
• Shift position: P position
• Engine is stopped

Ignition switch is in any
position except ON

• Ignition switch: Except ON position.
• Shift position: P position
• Intelligent Key is inserted in key slot.
• Intelligent Key can be detected inside the vehicle.

Steering lock information

When steering lock cannot be released after ignition switch is turned ON.

Intelligent Key low battery warning

When Intelligent Key battery is low, BCM is detected after ignition switch is
turned ON.

Key ID warning

When registered intelligent Key cannot be detected inside the vehicle after ig-
nition switch is turned ON.

Warning/Information functions

Operation procedure

Warning/Information functions

“KEY” warn-

ing lamp

Combination meter display

Key slot il-
lumination

Warning chime

Combination

meter buzzer

Intelligent

Key warning

buzzer

Intelligent Key system malfunction

Illuminate

—

—

—

—

OFF position warn-
ing

For internal

—

—

—

Activate

—

For external

—

—

—

—

Activate

P position warning

—

—

Activate

—

ACC warning

—

—

Activate

—

JMKIA0037GB

JMKIA0047GB
