Infiniti G37 Coupe. Manual - part 368





TRUNK OPEN FUNCTION

DLK-33

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

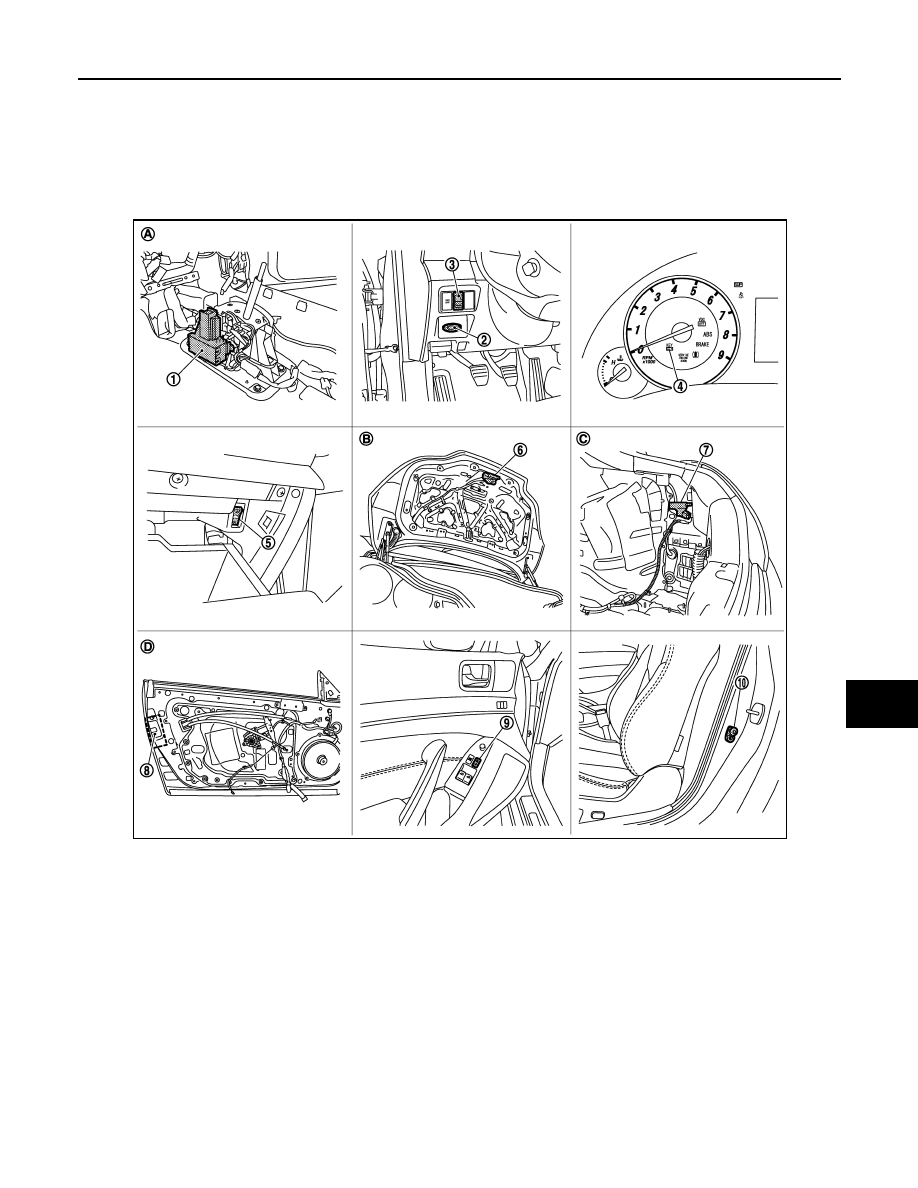

A.

Dash side lower (Passenger side).

B.

Engine room dash panel (RH).

C.

 View with instrument assist lower
panel removed.

D.

View with console rear finisher removed. E.

View with rear bumper removed.

F.

View with trunk front finisher re-
moved.

G.

View of driver side door LH.

H.

Behind cluster lid C.

I.

View with hood seal assembly re-
moved.

JMKIA1119ZZ

1.

A/T device (detention switch) M137

2.

Key slot M22

3.

Trunk lid opener switch M20

4.

Combination meter (Key warning lamp)
M53

5.

Trunk opener cancel switch M105

6.

Trunk lid lock assembly (trunk lid
opener actuator) B303

7.

Fuel lid lock actuator B242

8.

Door lock assembly (door lock actuator)
D15

9.

Power window main switch (door
lock unlock switch) D8

10. Driver side door switch B16

A.

View with center console assembly re-
moved.

B.

View with trunk lid finisher removed.

C.  View with trunk side finisher re-

moved.

D

View with driver side door finisher re-
moved.

DLK-34

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

TRUNK OPEN FUNCTION

TRUNK REQUEST SWITCH : Component Description

INFOID:0000000001683029

INTELLIGENT KEY

INTELLIGENT KEY : System Diagram

INFOID:0000000001683030

INTELLIGENT KEY : System Description

INFOID:0000000001683031

The Intelligent Key has the same functions as the remote control entry system. Therefore, it can be used in the
same manner as the remote controller by operating the trunk open button.

OPERATION DESCRIPTION/TRUNK OPEN FUNCTION

• When trunk button of the Intelligent Key is pressed, the trunk open signal is transmitted from the Intelligent

Key to the BCM via remote keyless entry receiver.

• When BCM receives the trunk open request signal, it operates the trunk lid opener actuator and opens the

trunk.

OPERATION CONDITION

OPERATION AREA

• Operating Range
• To ensure the Intelligent Key works effectively, use within 80 cm range of each door, however the operable

range may differ according to surroundings.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

Item

Function

BCM

Controls trunk open function.

Trunk lid opener actuator

Transmits trunk open operation to BCM.

Remote keyless entry receiver

Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM.

Trunk request switch

Transmits trunk open operation to BCM.

Intelligent Key

Transmits button operation to remote keyless entry receiver.

Outside key antenna

Detects if Intelligent Key is outside the vehicle.

Inside key antenna

Detects if Intelligent Key is inside the vehicle.

Intelligent Key warning buzzer

Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound.

JMKIA0055GB

Remote controller operation

Operation condition

Operation

Trunk open

• Press and hold the trunk open button for 0.5 second or more

Trunk open

TRUNK OPEN FUNCTION

DLK-35

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Remote keyless entry functions

In

te

lli

gen

t K

e

y

Ke

y slo

t

T

run

k ro

om

 l

a

mp s

w

it

c

h

T

run

k l

id

 op

en

er a

ct

ua

tor

In

te

lli

gen

t K

e

y warn

in

g b

u

zze

r

CAN c

o

m

m

uni

ca

tio

n

 sy

st

em

BCM

Com

b

ina

tio

n me

ter

Hazard warning

lamp

Horn

IPDM

 E/

R

Head lamp

Trunk open function by remote control button

×

×

×

×

×

×

Hazard and horn reminder function

×

×

×

×

×

×

×

×

DLK-36

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

TRUNK OPEN FUNCTION

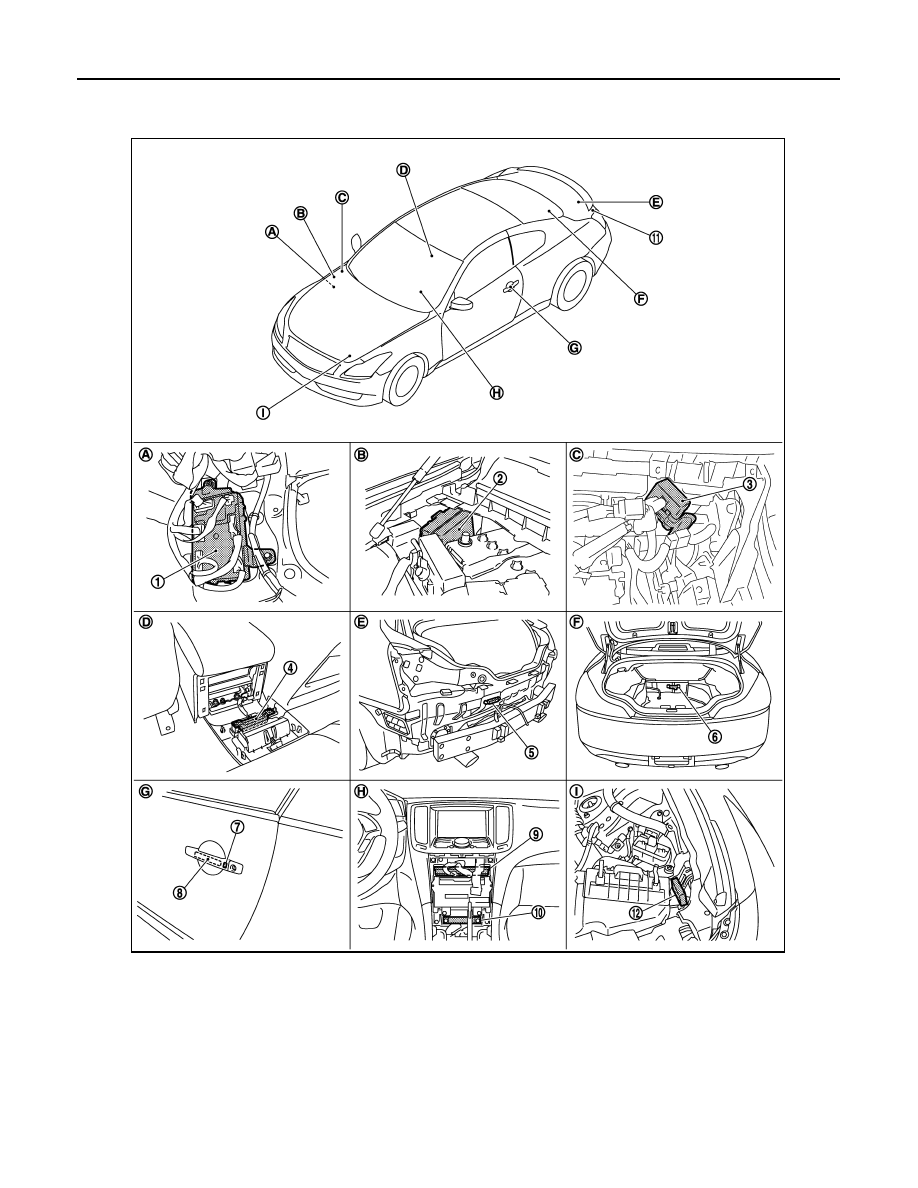

INTELLIGENT KEY : Component Parts Location

INFOID:0000000001826419

1.

BCM
M118,M119,M120,M121,M122,M123

2.

IPDM E/R E5,E6,E7

3.

Remote keyless entry receiver
M104

4.

Inside key antenna (console) M146

5.

Outside key antenna (rear bumper)
B63

6.

Inside key antenna (trunk room)
B49

7.

Outside handle LH (request switch) D13

8.

Outside handle LH (outside key anten-
na) D14

9.

Unified meter and A/C AMP
M66,M67

10. Inside key antenna (instrument center)

M131

11.

Rear combination lamp LH
(Trunk lid opener request switch) B60

12.

Intelligent Key warning buzzer (en-
gine room) E57

JMKIA1118ZZ
