Infiniti G37 Coupe. Manual - part 333

CL-4

< PREPARATION >

PREPARATION

PREPARATION

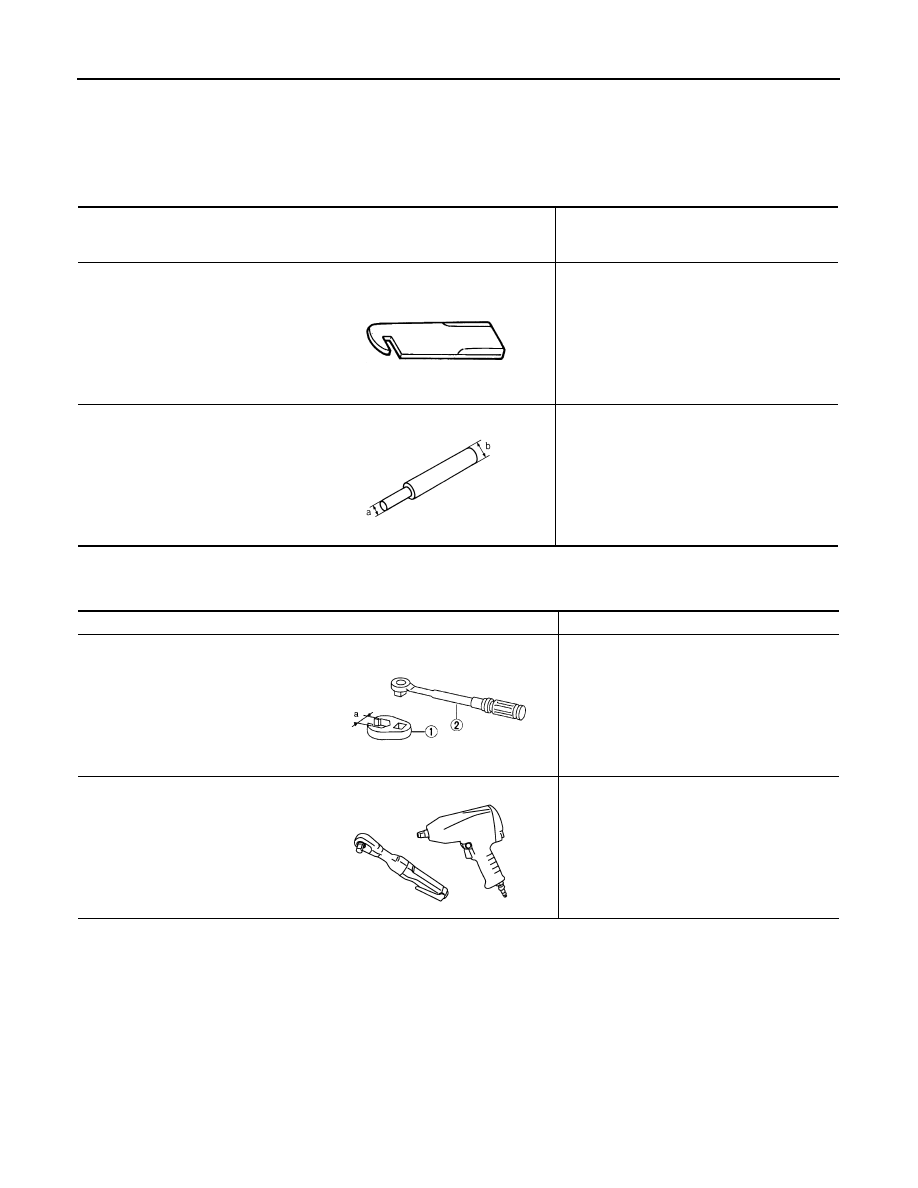

Special Service Tools

INFOID:0000000001731681

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000001731682

Tool number
(Kent-Moore No.)
Tool name

Description

ST20050240
(

—

)

Diaphragm adjusting wrench

Adjusting unevenness of diaphragm spring of
clutch cover

ST20670000
(

—

)

Clutch aligning bar
a: 15 mm (0.59 in) dia.
b: 23 mm (0.91 in) dia.

Installing clutch disc

ZZA0508D

ZZA1178D

Tool name

Description

1. Flare nut crowfoot
a: 10 mm (0.39 in)
2. Torque wrench

Installing clutch tube

Power tool

Loosening bolts and nuts

S-NT360

PBIC0190E

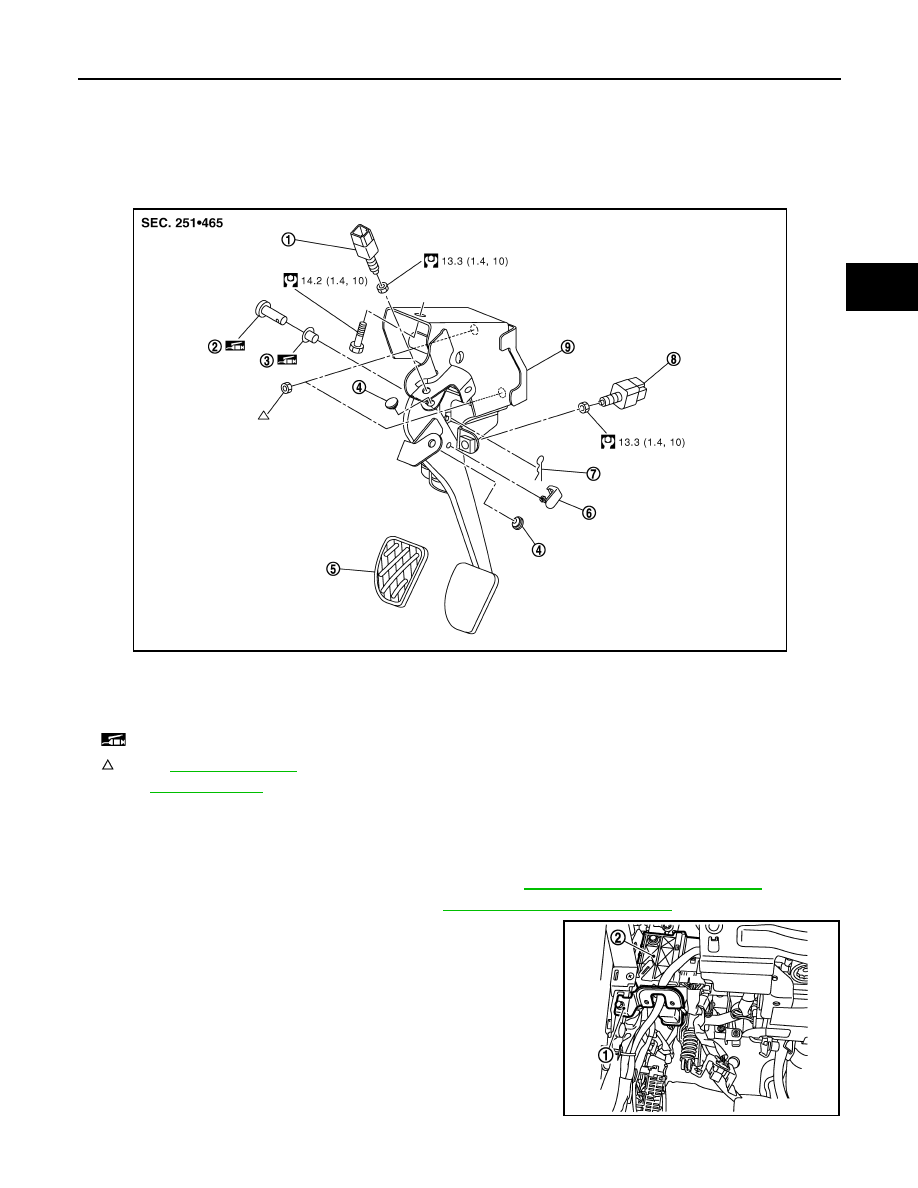

CLUTCH PEDAL

CL-5

< ON-VEHICLE MAINTENANCE >

ON-VEHICLE MAINTENANCE

CLUTCH PEDAL

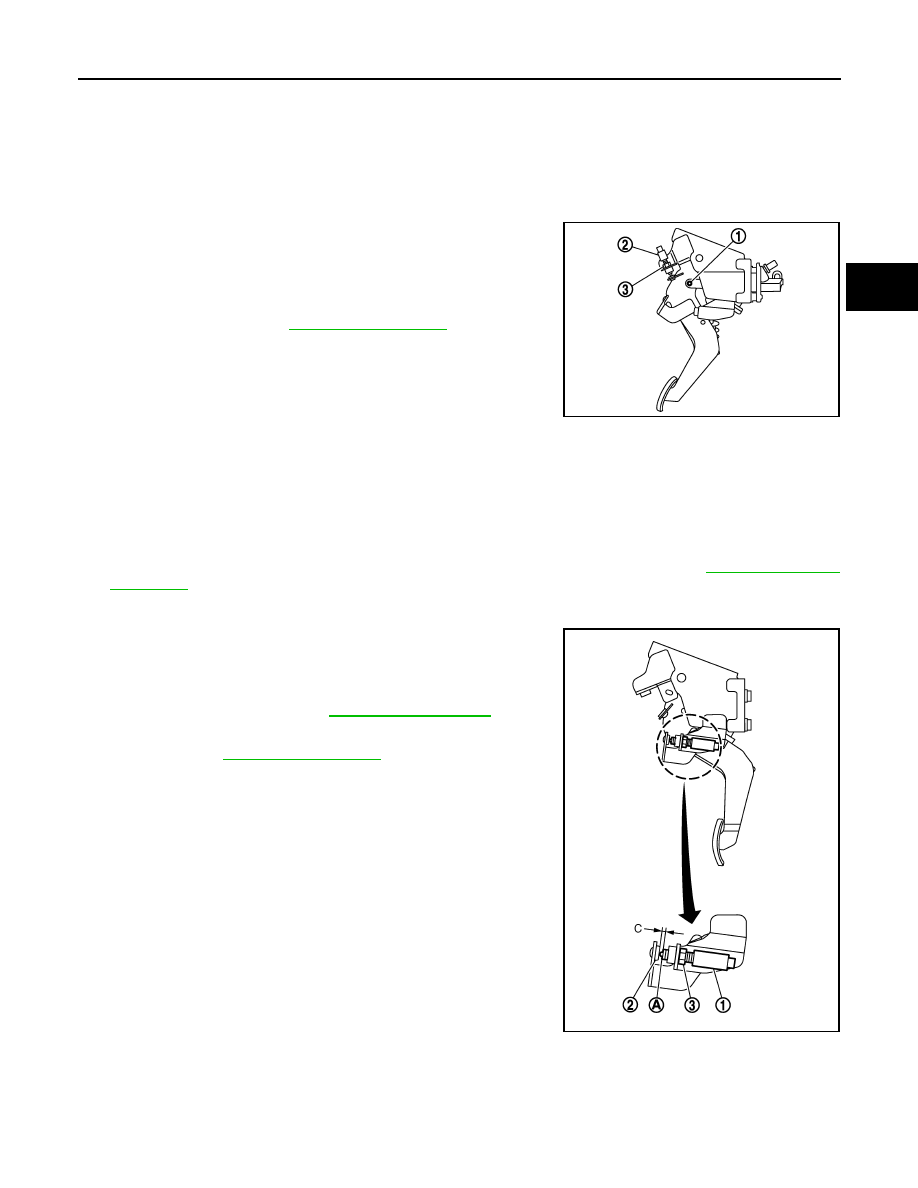

Inspection and Adjustment

INFOID:0000000001731683

INSPECTION

Make sure that clevis pin (1) floats freely in the bore of clutch
pedal. It should not be bound by clevis or clutch pedal.

If clevis pin is not free, make sure that ASCD clutch switch (2) is
not applying pressure to clutch pedal causing clevis pin to bind.
To adjust, loosen lock nut (3) and turn ASCD clutch switch.

Tighten lock nut. Refer to

CL-7, "Exploded View"

Make sure that clevis pin floats in the bore of clutch pedal. It
should not be bound by clutch pedal.

If clevis pin is still not free, remove clevis pin and check for
deformation or damage. Replace clevis pin if necessary. Leave
clevis pin removed for step 2.

Check clutch pedal stroke for free range of movement.

With clevis pin removed, manually move clutch pedal up and down to determine if it moves freely.

If any sticking is found, replace related parts (bushing, clutch pedal assembly, etc.). Reassemble clutch
pedal and again make sure that clevis pin floats freely in the bore of clutch pedal.

Check clutch hydraulic and system components (clutch master cylinder, CSC, etc.) for sticking or binding.

If any sticking or binding is found, repair or replace related parts as necessary.

If hydraulic system repair was necessary, bleed the clutch hydraulic system. Refer to

CL-6, "Air Bleeding

Procedure"

ADJUSTMENT

Adjust clutch interlock switch (1) position so that clearance
between stopper rubber (2) and thread end (A) of clutch inter-
lock switch with clutch pedal depressed is clearance “C”.

After adjusting clearance “C”, tighten lock nut (3) to the specified
torque. Refer to

CL-7, "Exploded View"

JPDIB0001ZZ

Clearance “C”

: Refer to

CL-22, "Clutch Pedal"

JPDIB0002ZZ

CL-6

< ON-VEHICLE MAINTENANCE >

CLUTCH FLUID

CLUTCH FLUID

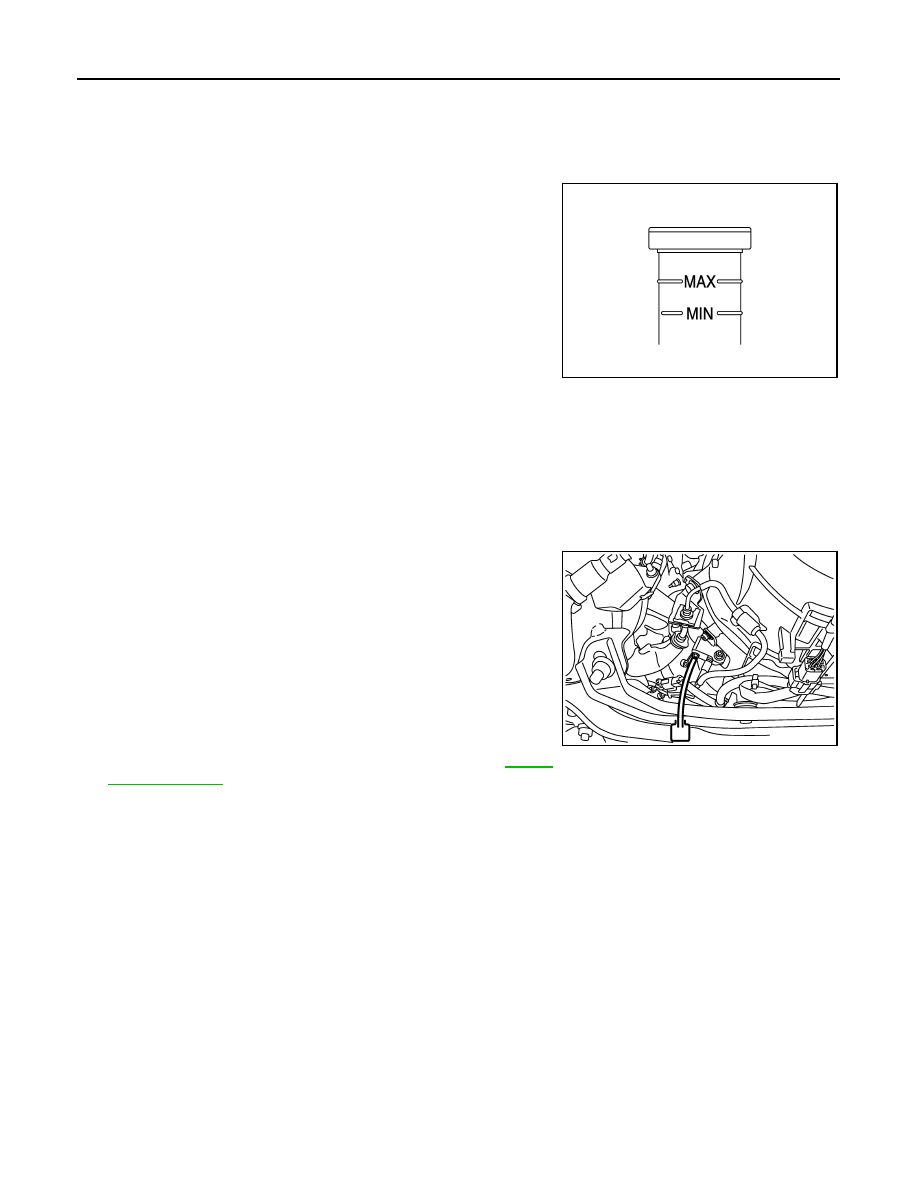

Inspection

INFOID:0000000001731684

CLUTCH FLUID LEVEL

• Check that the fluid level in the reservoir tank is within the specified

range (MAX – MIN lines).

• Visually check for any clutch fluid leakage around the reservoir

tank.

• Check the clutch system for any leakage if the fluid level is

extremely low (lower than MIN).

Air Bleeding Procedure

INFOID:0000000001731685

CAUTION:

• Monitor clutch fluid level in reservoir tank to make sure it does not empty.
• Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately

and wash the affected area with water.

NOTE:
Do not use a vacuum assist or any other type of power bleeder on this system. Use of vacuum assist or power
bleeder will not purge all the air from the system.
1.

Fill master cylinder reservoir tank with new clutch fluid.

Connect a transparent vinyl hose to air bleeder valve.

Depress clutch pedal slowly and fully several times at an interval
of 2 to 3 seconds and hold it.

With clutch pedal depressed, open air bleeder valve to release
air.

Close air bleeder valve.

Release clutch pedal and wait for 5 seconds.

Repeat steps 3 to 6 until no bubbles can be observed in clutch
fluid.

Tighten air bleeder valve to the specified torque. Refer to

CL-15,

"Exploded View"

JPDIB0032ZZ

JPDIB0006ZZ
