Infiniti G37 Coupe. Manual - part 222





BCS-6

< FUNCTION DIAGNOSIS >

COMBINATION SWITCH READING SYSTEM

NOTE:

Headlamp has a dual system switch.

COMBINATION SWITCH READING FUNCTION

Description

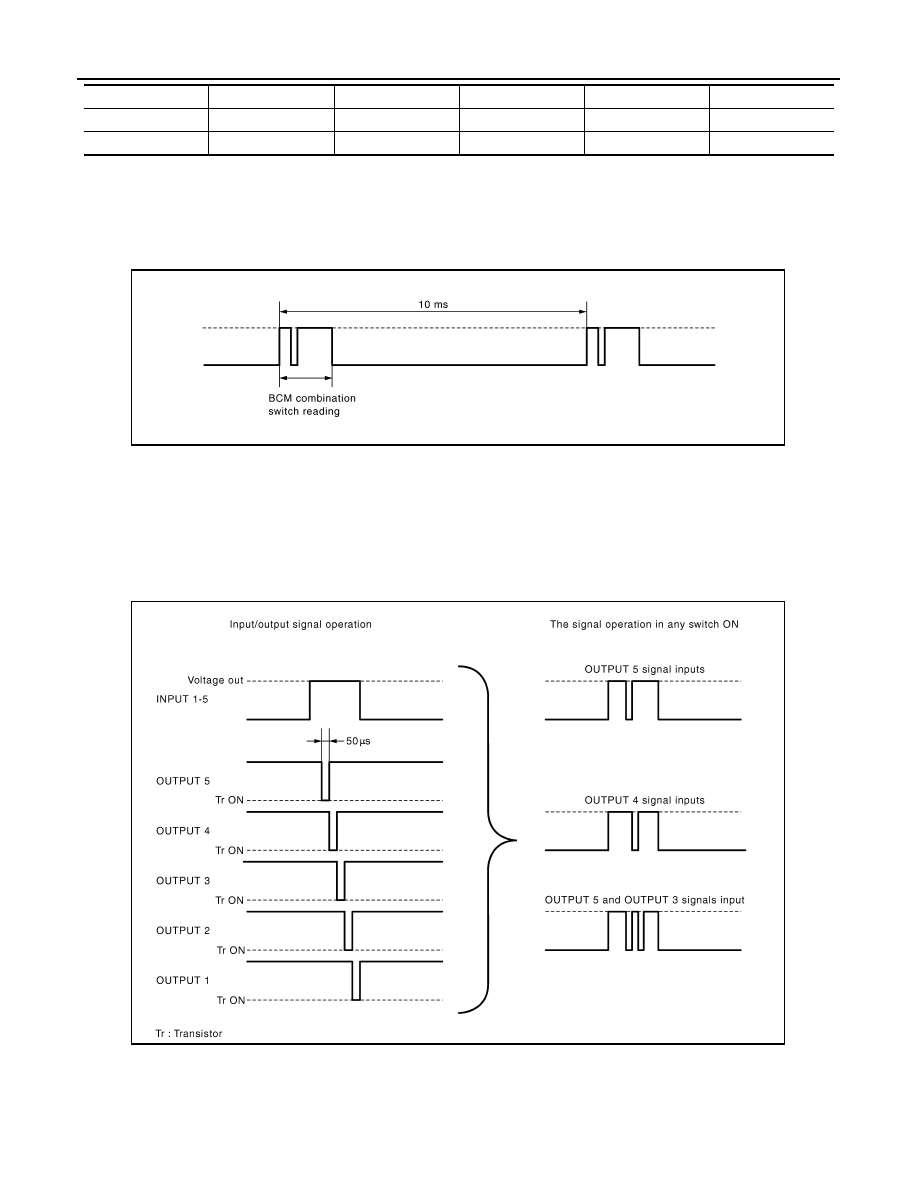

• BCM reads the status of the combination switch at 10 ms interval normally.

NOTE:
BCM reads the status of the combination switch at 60 ms interval when BCM is controlled at low power con-
sumption mode.

• BCM operates as follows and judges the status of the combination switch.
- INPUT 1 - 5 outputs the voltage waveforms of 5 systems simultaneously.
- It operates the transistor on OUTPUT side in the following order: OUTPUT 5

 4

 3

 2

 1.

- The voltage waveform of INPUT corresponding to the formed circuit changes according to the operation of

the transistor on OUTPUT side if any (1 or more) switches are ON.

- It reads this change of the voltage as the status signal of the combination switch.

Operation Example

In the following operation example, the combination of the status signals of the combination switch is replaced
as follows: INPUT 1 - 5 to “1 - 5” and OUTPUT 1 - 5 to “A - E”.

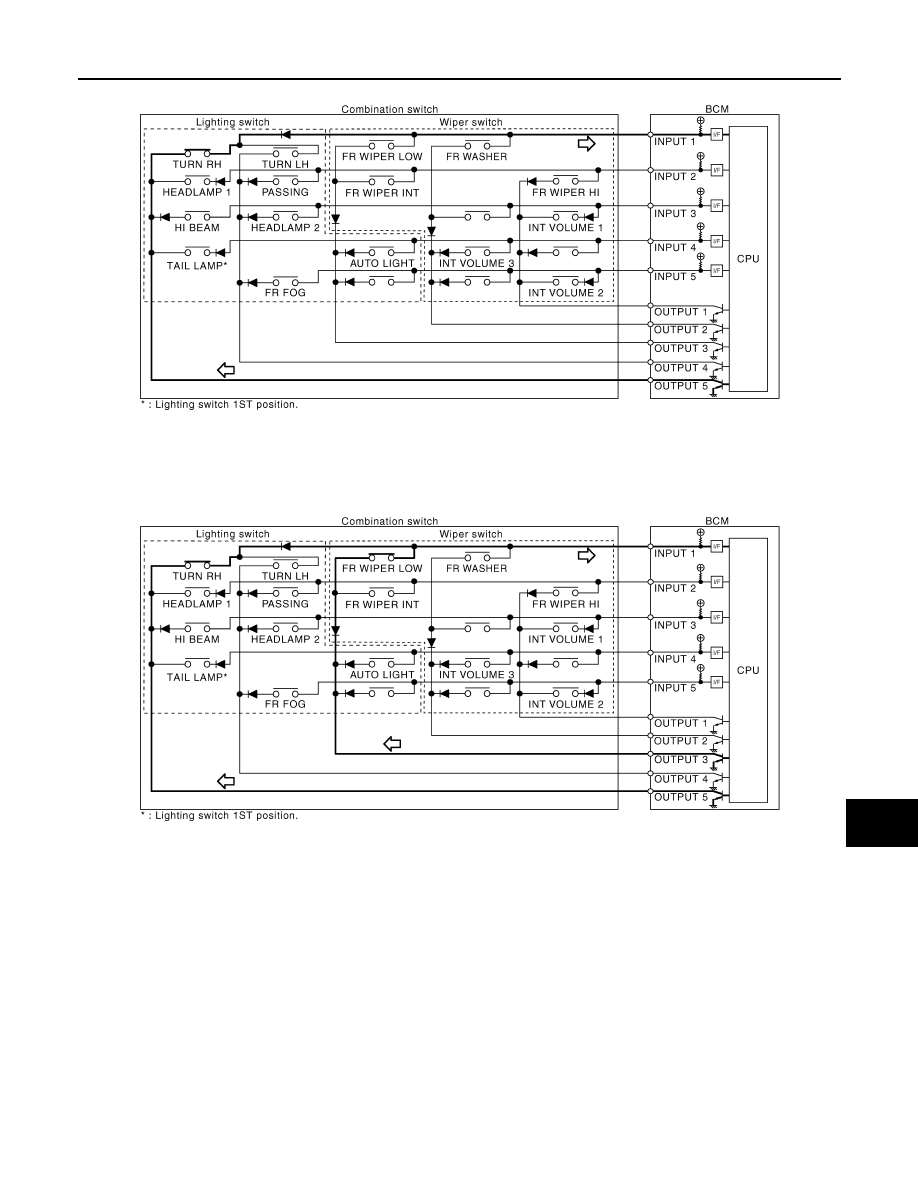

Example 1: When a switch (TURN RH switch) is turned ON

INPUT 4

INT VOLUME 3

AUTO LIGHT

TAIL LAMP

INPUT 5

INT VOLUME 2

FR FOG

System

OUTPUT 1

OUTPUT 2

OUTPUT 3

OUTPUT 4

OUTPUT 5

JPMIA0067GB

JPMIA0068GB

BCS

COMBINATION SWITCH READING SYSTEM

BCS-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

• The circuit between INPUT 1 and OUTPUT 5 is formed when the TURN RH switch is turned ON.

• BCM detects the combination switch status signal “1E” when the signal of OUTPUT 5 is input to INPUT 1.
• BCM judges that the TURN RH switch is ON when the signal “1E” is detected.

Example 2: When some switches (turn RH switch, front wiper LO switch) are turned ON

• The circuits between INPUT 1 and OUTPUT 5 and between INPUT 1 and OUTPUT 3 are formed when the

TURN RH switch and FR WIPER LOW switch are turned ON.

• BCM detects the combination switch status signal “1CE” when the signals of OUTPUT 3 and OUTPUT 5 are

input to INPUT 1.

• BCM judges that the TURN RH switch and FR WIPER LOW switch are ON when the signal “1CE” is

detected.

WIPER INTERMITTENT DIAL POSITION SETTING (FRONT WIPER INTERMITTENT OPERATION)

BCM judges the wiper intermittent dial 1 - 7 by the status of INT VOLUME 1, 2 and 3 switches.

JPMIA0073GB

JPMIA0074GB

BCS-8

< FUNCTION DIAGNOSIS >

COMBINATION SWITCH READING SYSTEM

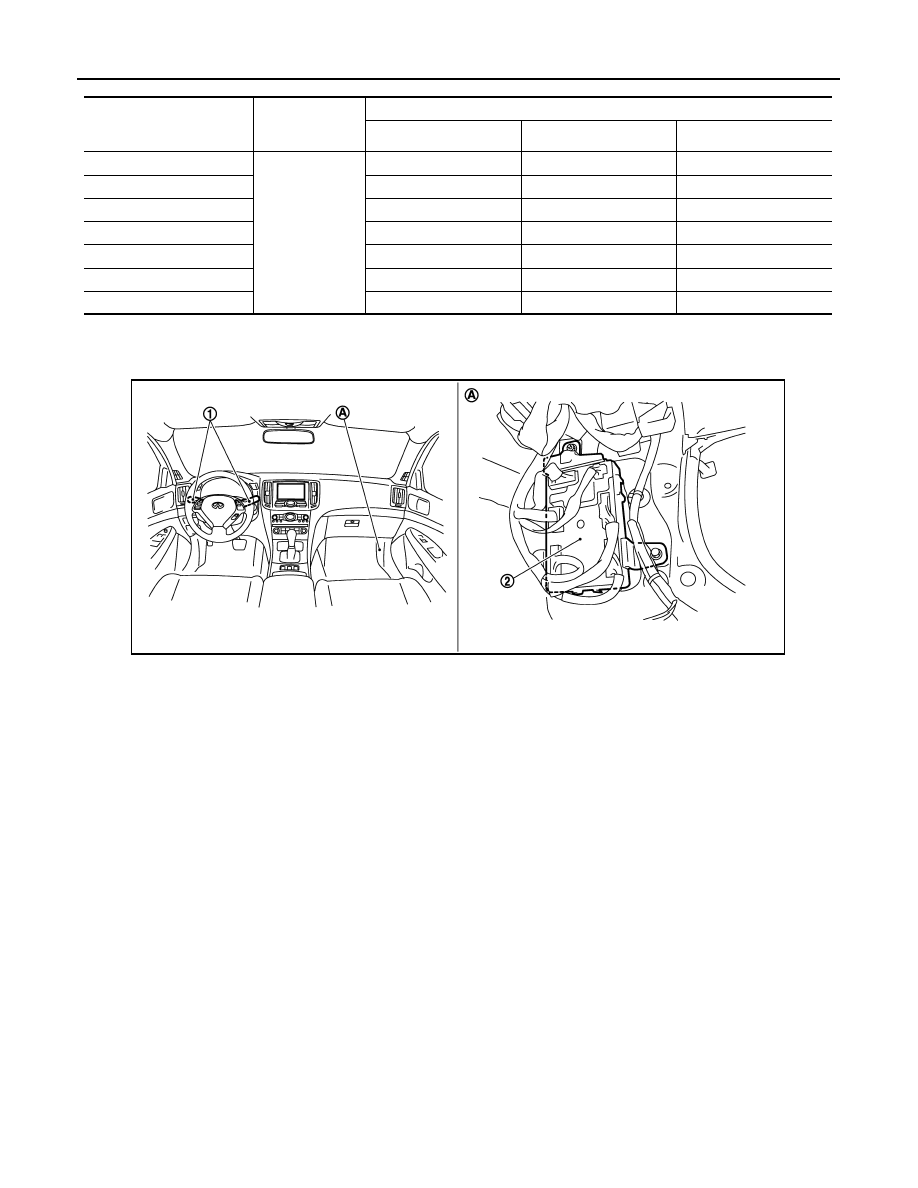

Component Parts Location

INFOID:0000000001612374

Wiper intermittent

dial position

Intermittent

operation delay

interval

INT VOLUME switch ON/OFF status

INT VOLUME 1 switch

INT VOLUME 2 switch

INT VOLUME 3 switch

1

Short

Long

ON

ON

ON

2

ON

ON

OFF

3

ON

OFF

OFF

4

OFF

OFF

OFF

5

OFF

OFF

ON

6

OFF

ON

ON

7

OFF

ON

OFF

1.

Combination switch

2.

BCM

A.

Dash side lower (passenger side)

JPMIA0071ZZ

BCS

SIGNAL BUFFER SYSTEM

BCS-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

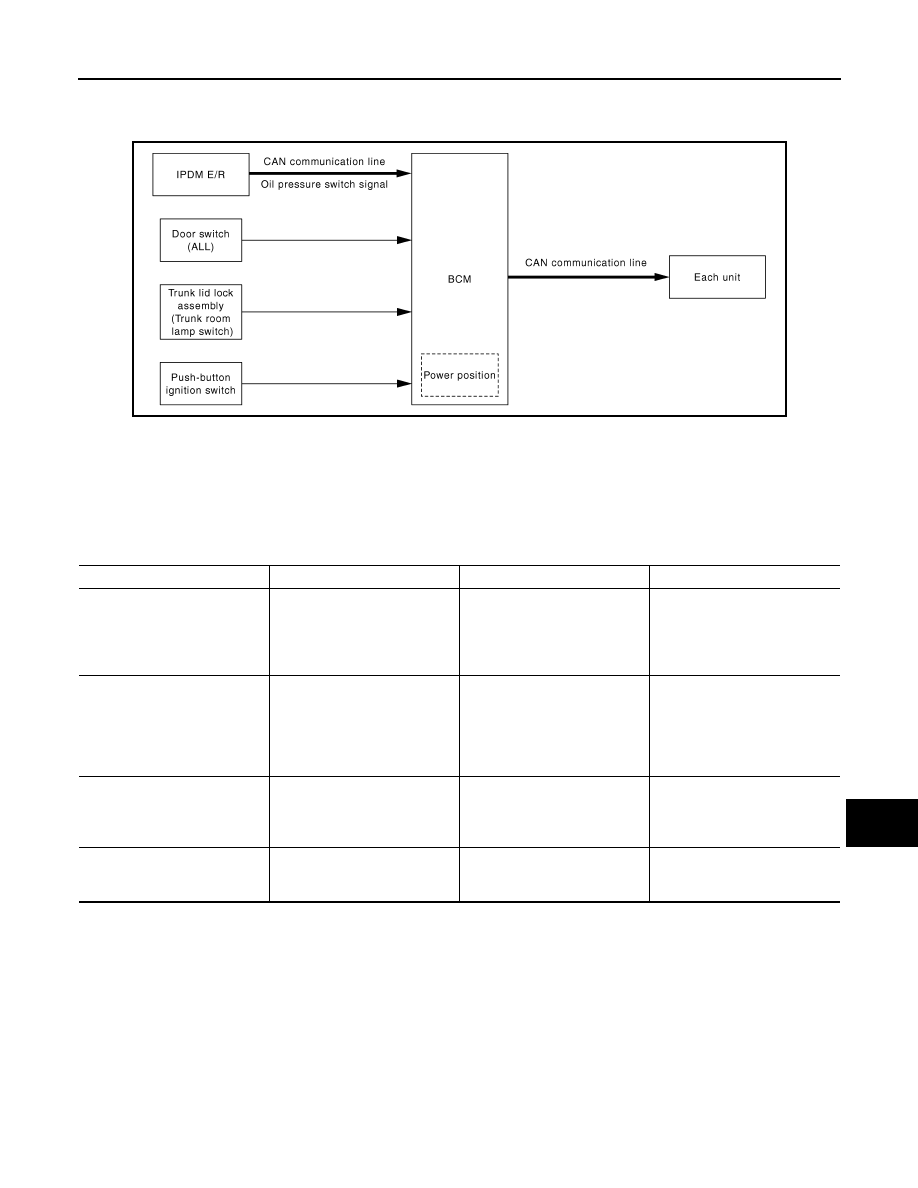

SIGNAL BUFFER SYSTEM

System Diagram

INFOID:0000000001612375

System Description

INFOID:0000000001612376

OUTLINE

BCM has the signal transmission function that outputs/transmits each input/received signal to each unit.

Signal transmission function list

JPMIA0070GB

Signal name

Input

Output

Description

• Ignition switch ON signal
• Ignition switch signal

Push-button ignition switch
(push switch)

• IPDM E/R (CAN)
• Driver seat control unit (CAN)

Inputs the push-button ignition
switch (push switch) signal and
transmits the ignition switch sta-
tus judged with BCM via CAN
communication.

Door switch signal

Any door switch

• Combination meter (via uni-

fied meter and A/C amp.)
(CAN)

• IPDM E/R (CAN)
• Driver seat control unit (CAN)
• AV control unit (CAN)

Inputs the door switch signal
and transmits it via CAN com-
munication.

Trunk switch signal

Trunk room lamp switch

• Combination meter (via uni-

fied meter and A/C amp.)
(CAN)

• AV control unit (CAN)

Inputs the trunk room lamp
switch signal and transmits the
trunk switch signal via CAN
communication.

Oil pressure switch signal

IPDM E/R (CAN)

Combination meter (via unified
meter and A/C amp.) (CAN)

Transmits the received oil pres-
sure switch signal via CAN
communication.
