DISPLAY UNIT

Exploded View

INFOID:0000000001558929

Refer to

IP-11, "Exploded View"

.

Removal and Installation

INFOID:0000000001558930

REMOVAL

1.

Remove cluster lid D. Refer to

IP-11, "Exploded View"

.

2.

Remove display unit with bracket as a single unit.

INSTALLATION

Install in the reverse order of removal.

AV-610

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

DOOR SQUAWKER

DOOR SQUAWKER

Exploded View

INFOID:0000000001558931

Removal and Installation

INFOID:0000000001558932

REMOVAL

1.

Remove door finisher. Refer to

INT-11, "Exploded View"

.

2.

Remove door squawker from door finisher.

INSTALLATION

Install in the reverse order of removal.

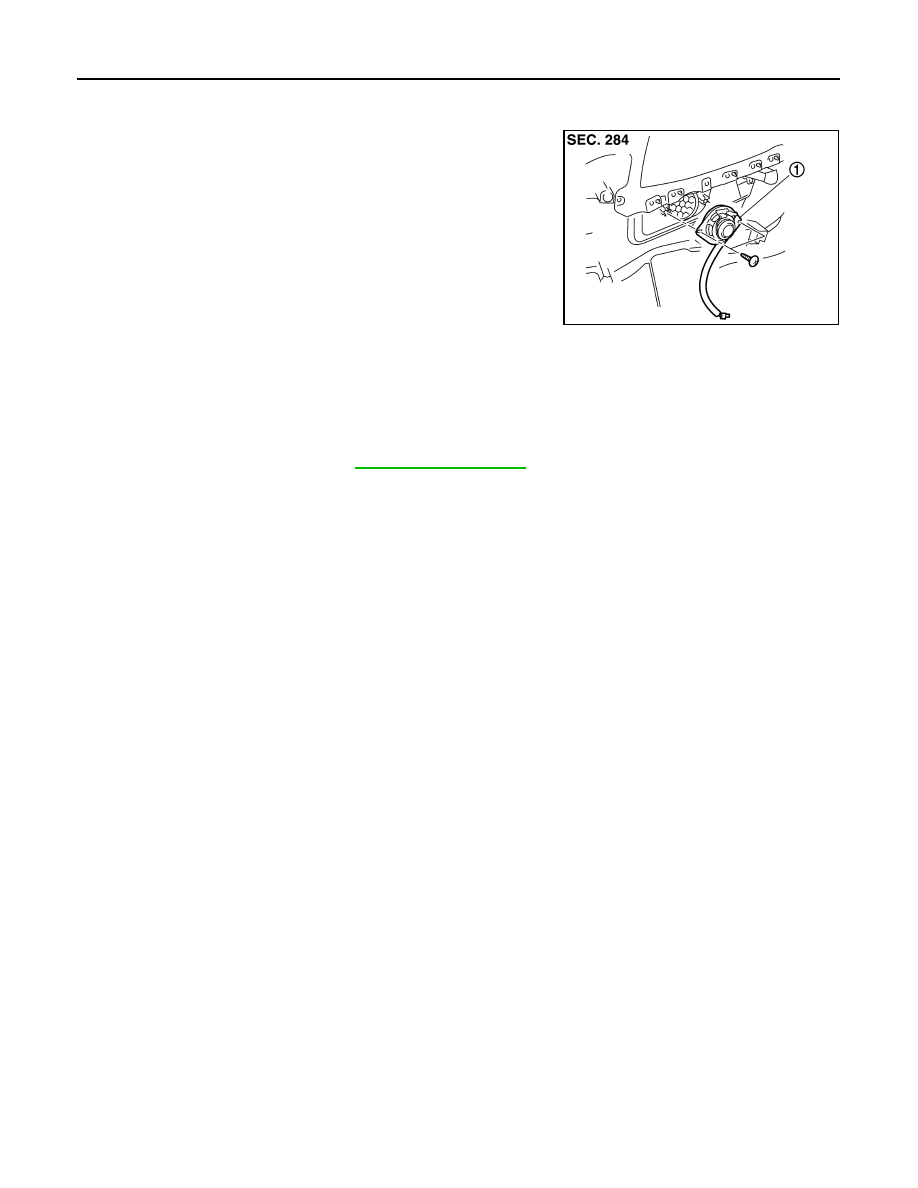

JPNIA0480ZZ

1.

Door finisher

2.

Door squawker

AV

DOOR WOOFER

AV-611

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DOOR WOOFER

Exploded View

INFOID:0000000001558933

Removal and Installation

INFOID:0000000001558934

REMOVAL

1.

Remove door finisher. Refer to

INT-11, "Exploded View"

.

2.

Remove door woofer from woofer bracket.

INSTALLATION

Install in the reverse order of removal.

JPNIA0481ZZ

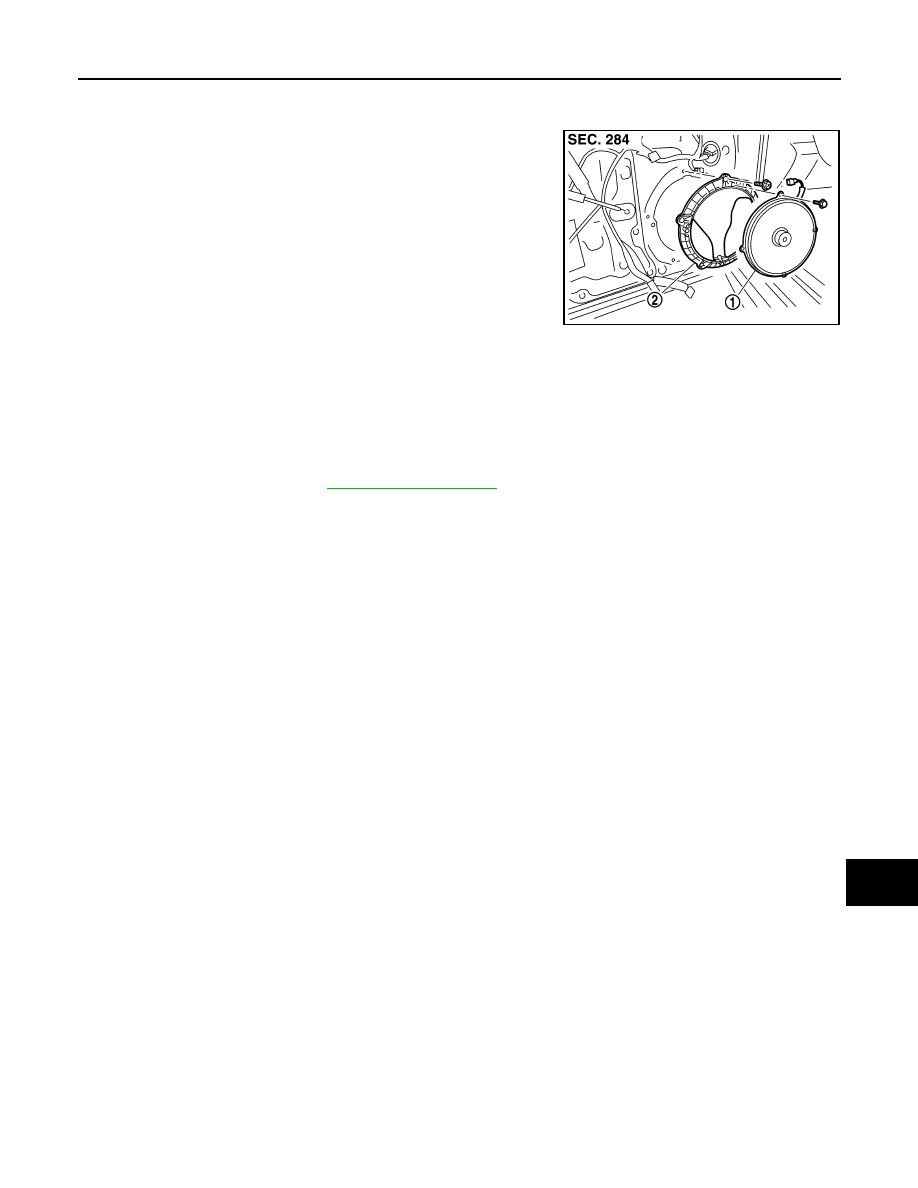

1.

Door woofer

2.

Woofer bracket

AV-612

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

REAR SPEAKER

REAR SPEAKER

Exploded View

INFOID:0000000001558935

Removal and Installation

INFOID:0000000001558936

REMOVAL

1.

Remove rear side finisher. Refer to

INT-14, "Exploded View"

.

2.

Remove rear speaker from rear side finisher.

INSTALLATION

Install in the reverse order of removal.

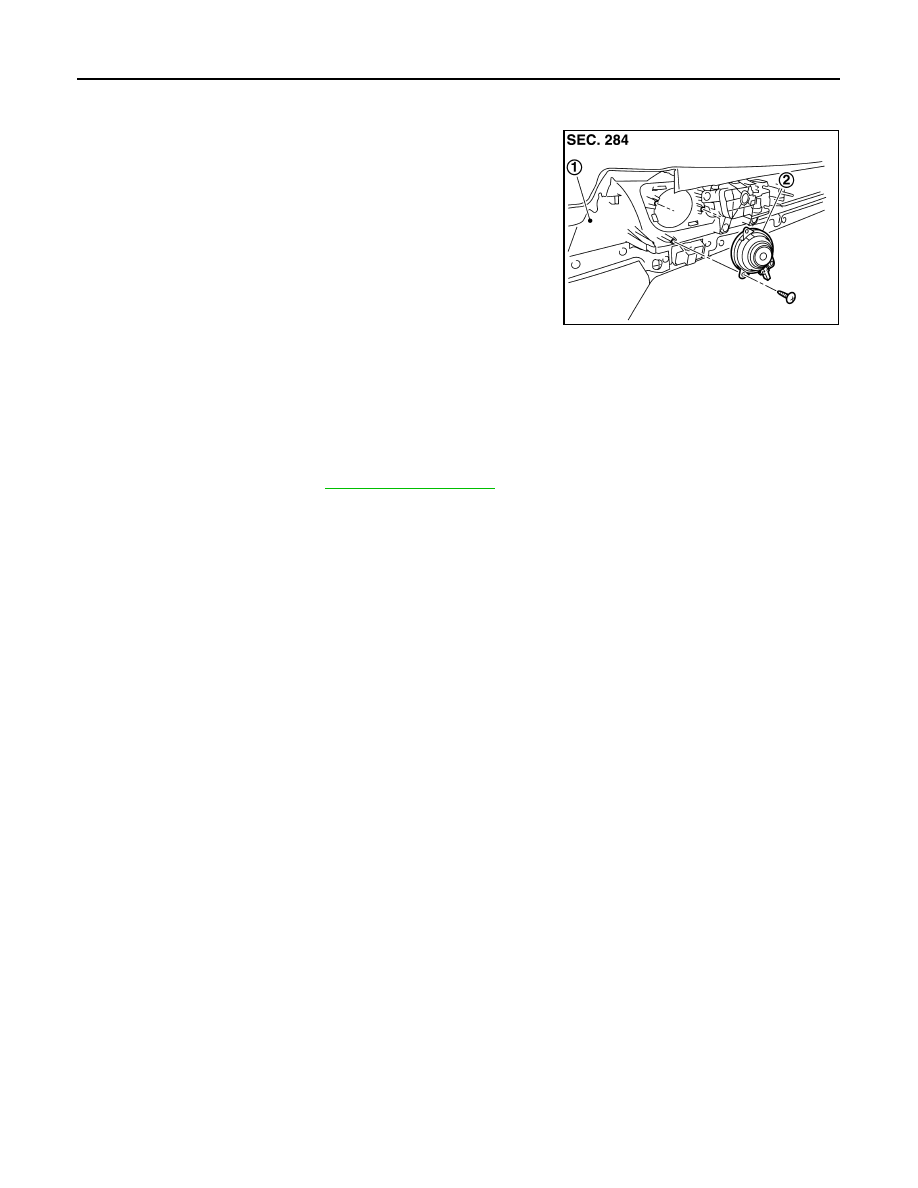

JPNIA0482ZZ

1.

Rear speaker
