NORMAL OPERATING CONDITION

AV-605

< SYMPTOM DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

RELATED TO VOICE GUIDANCE

RELATED TO TRAFFIC INFORMATION

The landmark information
does not correspond to the ac-
tual information.

This may be caused by insufficient or incorrect map data.

Updated information will be included
in the next version of the data.

The suggested route does not
exactly connect to the starting
point, waypoints, or destina-
tion.

There is no data for route calculation closes to these loca-
tions.

Set the starting point, waypoints and
destination on a main road, and per-
form route calculation.

Symptom

Possible cause

Possible solution

Symptom

Possible cause

Possible solution

Voice guidance is not available

Voice guidance is only available at certain intersections
marked with? In some case, voice guidance is not
available even when the vehicle should make a turn.

This is not a malfunction.

The vehicle has deviated from the suggested route.

Go back to the suggested route or request
route calculation again

Voice guide is set to off.

Turn on voice guidance.

Route guidance is set to off.

Turn on voice guidance.

The guidance contact does not
correspond to the actual condi-
tion.

The contact of voice guidance may vary, depending on
the types of intersections at which turn are made.

Follow all traffic rules and regulations.

Symptom

Possible cause

Possible solution

The traffic information
is not displayed

The traffic information is not set to on.

Set the traffic information to on.

You are in an area where traffic information is not avail-
able

Scroll to an area where traffic information is
available

You have not subscribed to XM NavTraffic or, your sub-
scription to XM NavTraffic has expired.

Check your subscription status of XM NavTraffic.

The map scale is set at a level where the display of
icons is impossible.

Check that the map scale is set at a level in which
the display of icons is possible.

With the automatic de-
tour route search ON,
no detour route is set to
avoid congested areas.

There is no faster route compared to the current route,
based on the road network and traffic information.

The automatic detour search is not intended for
avoiding traffic jams. It searches for the fastest
route taking into consideration such things as
traffic jams.

The route does not
avoid road section with
traffic information stat-
ing it is closed due to
road construction.

The navigation system is designed not to avoid this
event because the actual period of closure may differ
from the declared roadwork period.

Observe the actual road condition and follow the
instructions on road for detour when necessary.
If the road closure is for certain, use detour func-
tion and set the detour distance to avoid the
closed road section.

Traffic information dis-
played differs from in-
formation from other
media (e.g. radio).

Other media may use different information sources.

Observe the actual road conditions and regula-
tions. Always observe safe driving practices and
follow all traffic regulations.

AV-606

< PRECAUTION >

[BOSE AUDIO WITH NAVIGATION]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001836877

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIRBAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution for Trouble Diagnosis

INFOID:0000000001558924

AV COMMUNICATION SYSTEM

• Do not apply voltage of 7.0 V or higher to the measurement terminals.
• Use the tester with its open terminal voltage being 7.0 V or less.
• Be sure to turn ignition switch OFF and disconnect the battery cable from the negative terminal before

checking the circuit.

Precaution for Harness Repair

INFOID:0000000001558925

AV COMMUNICATION SYSTEM

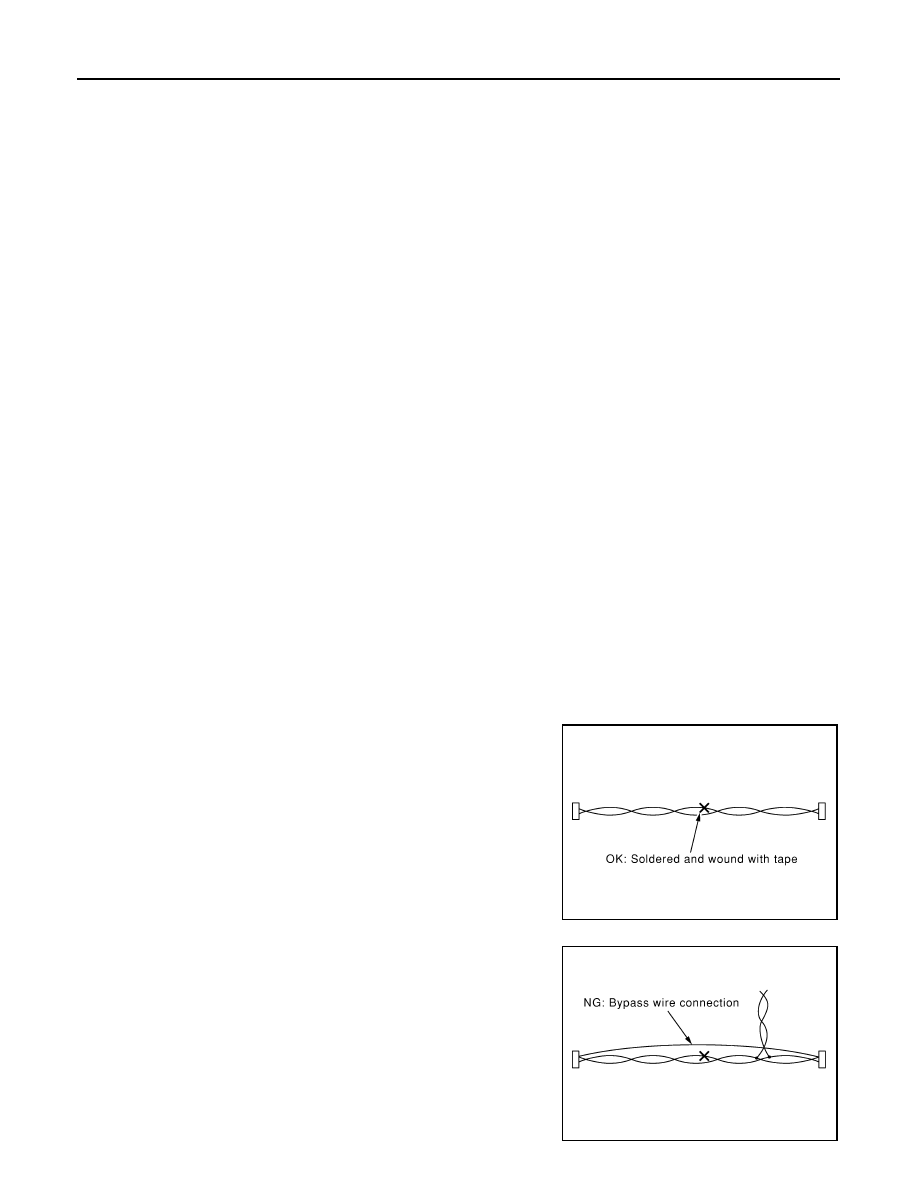

• Solder the repaired parts, and wrap with tape. [Frays of twisted line

must be within 110 mm (4.33 in).]

• Do not perform bypass wire connections for the repair parts. (The

spliced wire will become separated and the characteristics of
twisted line will be lost.)

PKIA0306E

PKIA0307E

AV

PREPARATION

AV-607

< PREPARATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000001558926

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0191E

AV-608

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

AV CONTROL UNIT

ON-VEHICLE REPAIR

AV CONTROL UNIT

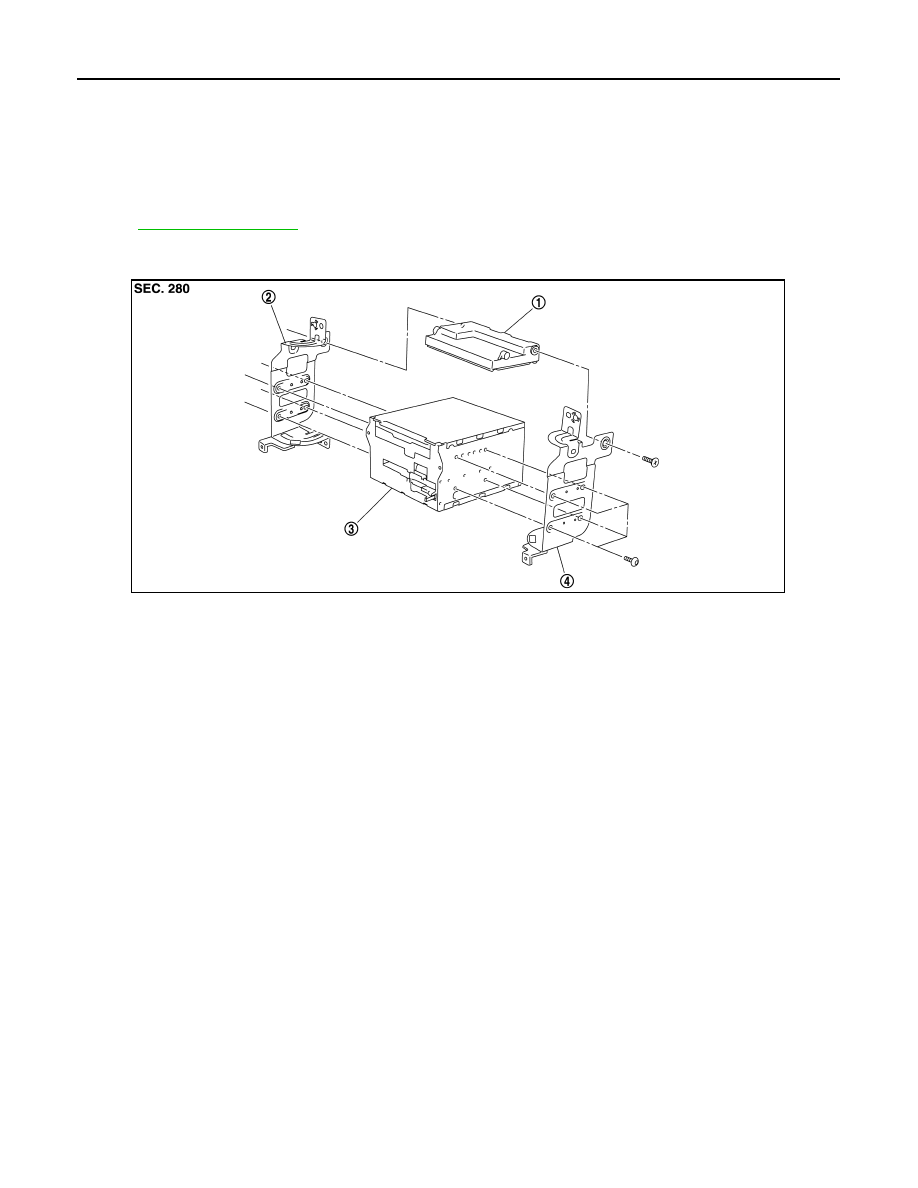

Exploded View

INFOID:0000000001558927

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000001558928

REMOVAL

1.

Remove Display unit.

2.

Remove AV control unit with a unified meter and A/C amp. as a single unit from the body.

3.

Remove bracket screws, and then remove AV control unit.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Since AV control unit connector and unified meter and A/C amp. connector have the same form, be
careful not to insert them wrongly.

1.

Unified meter and A/C amp.

2.

Bracket LH

3.

AV control unit

4.

Bracket RH

JPNIA0494ZZ
