Infiniti G37 Coupe. Manual - part 206

AV

CAMERA CONTROL UNIT

AV-577

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

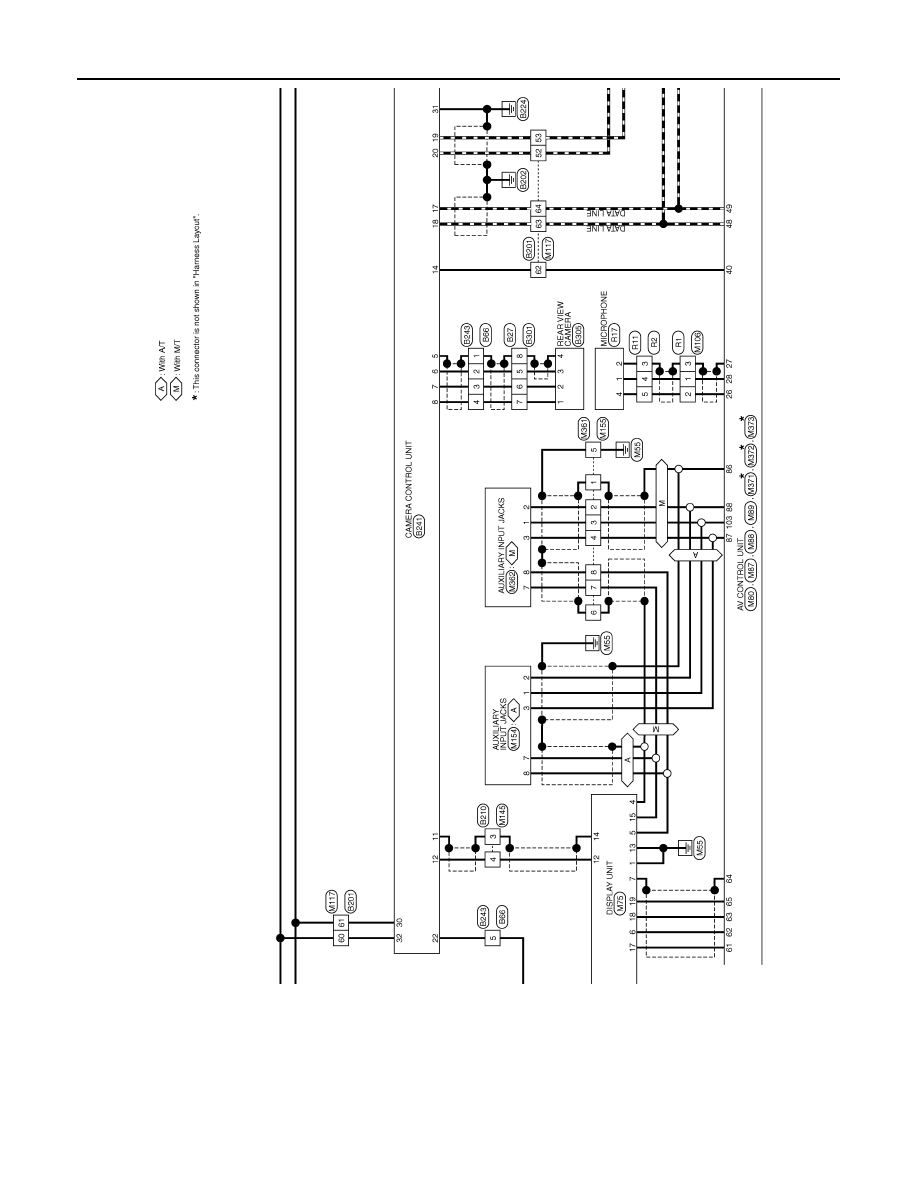

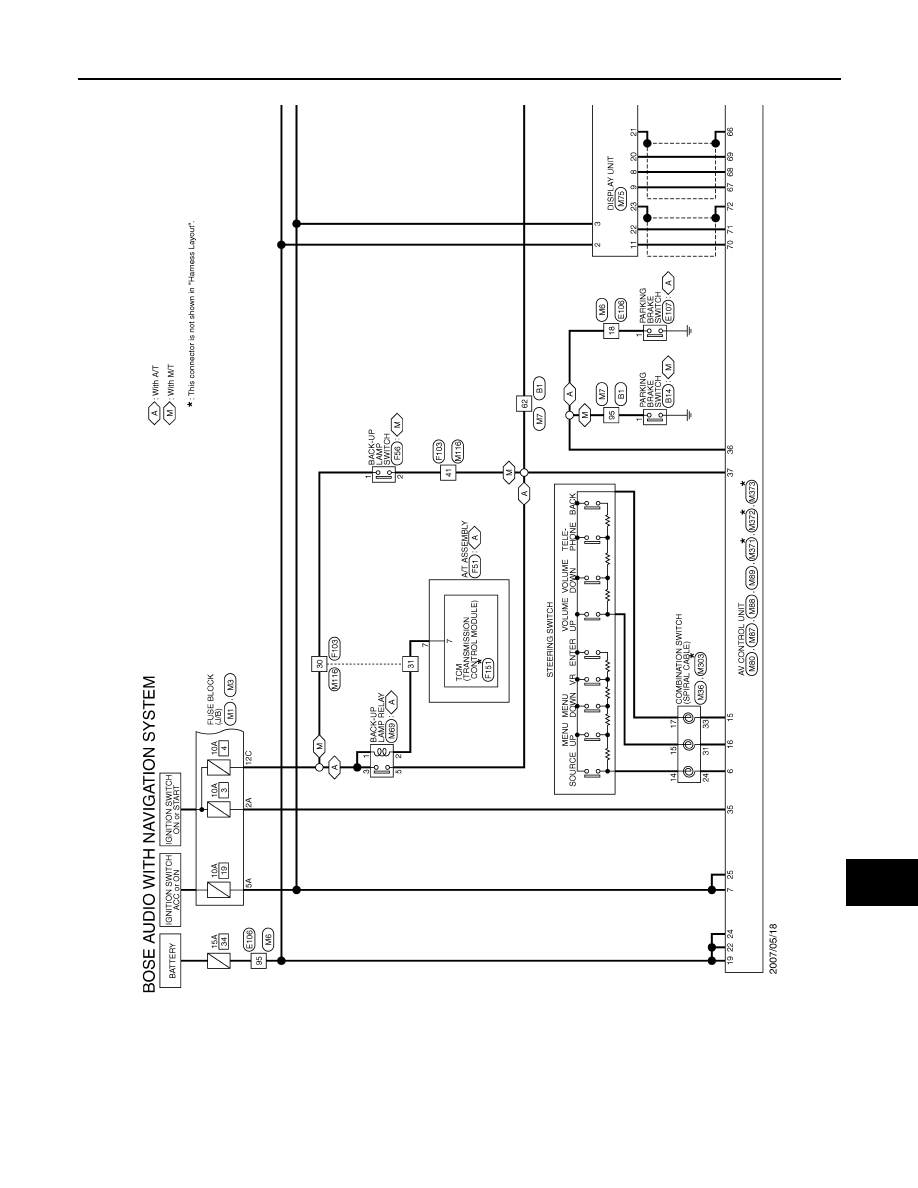

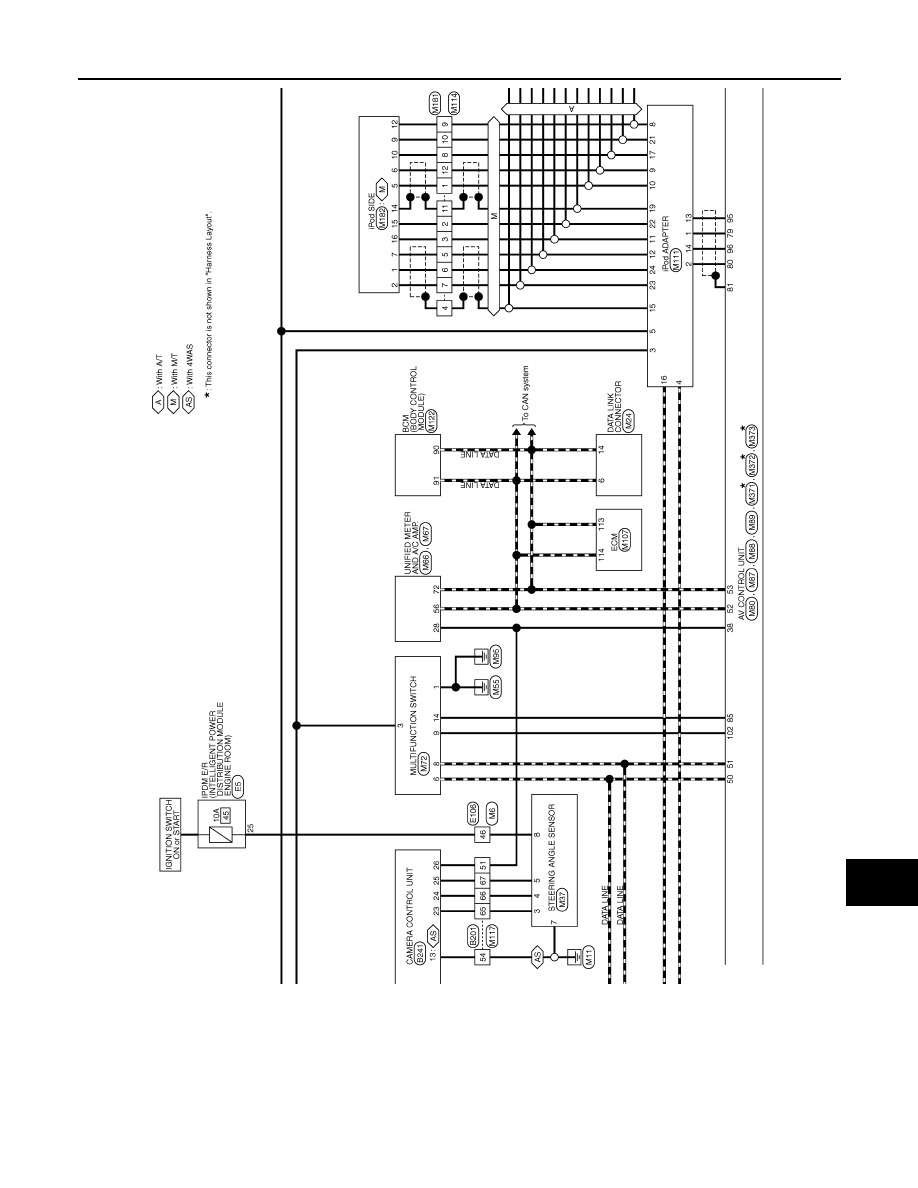

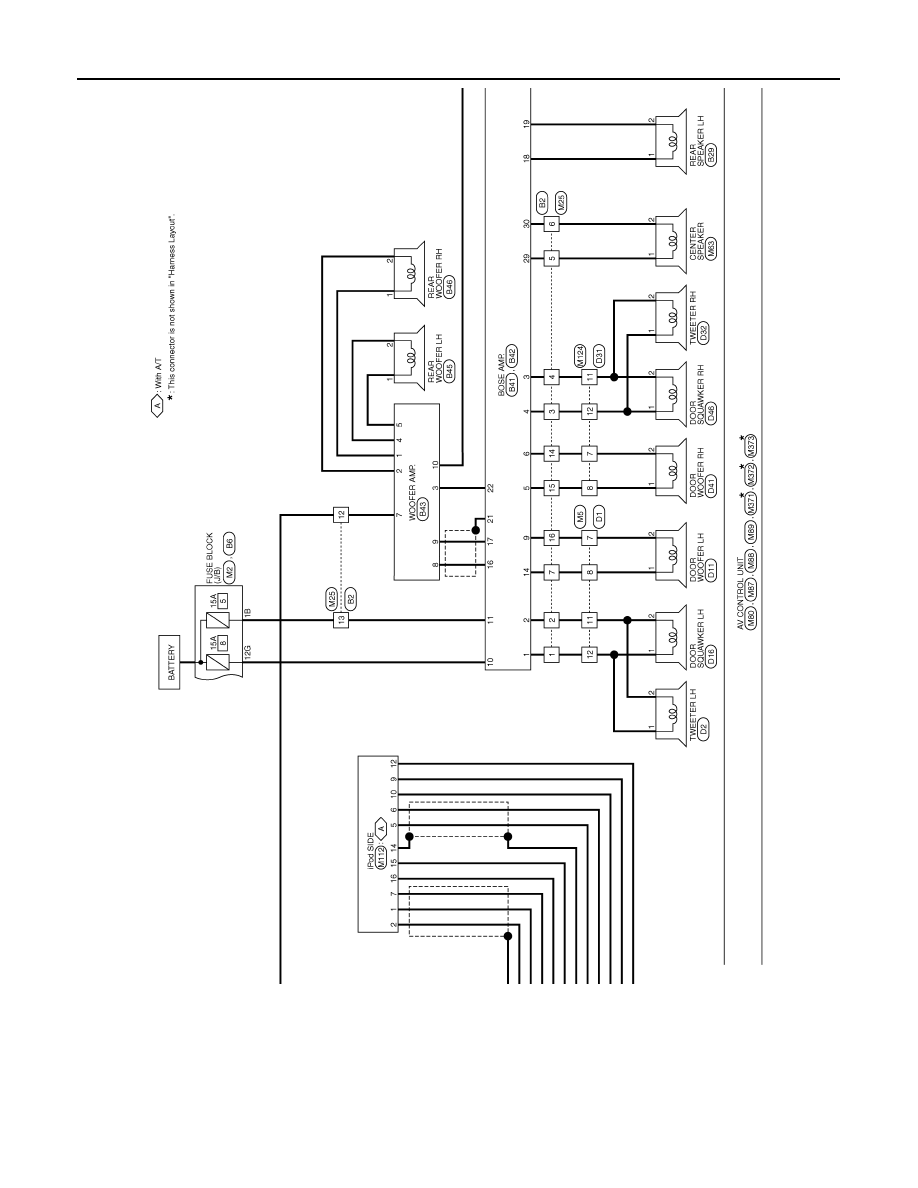

Wiring Diagram - BOSE AUDIO WITH NAVIGATION SYSTEM -

INFOID:0000000001689698

JCNWA0480GB

AV-578

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

CAMERA CONTROL UNIT

JCNWA0481GB

AV

CAMERA CONTROL UNIT

AV-579

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JCNWA0482GB

AV-580

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

CAMERA CONTROL UNIT

JCNWA0483GB
