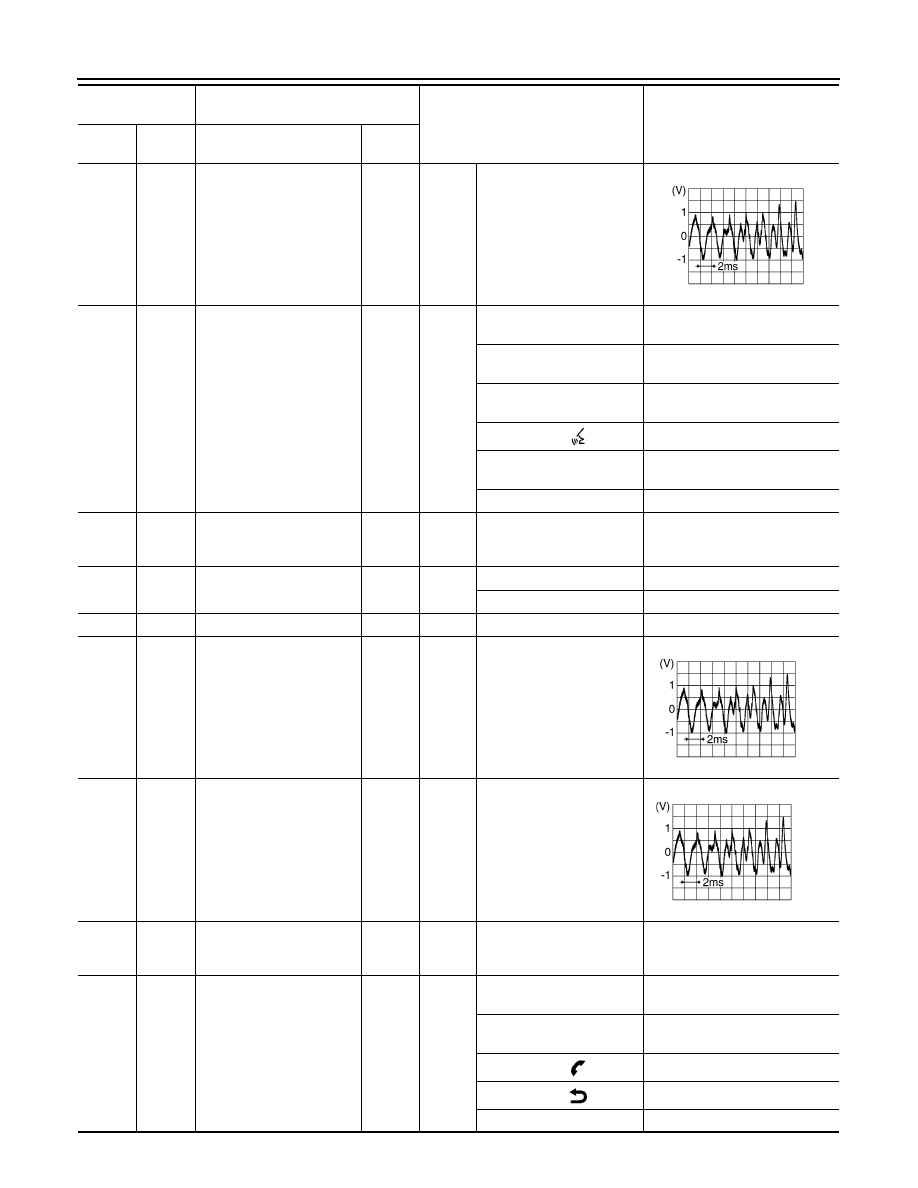

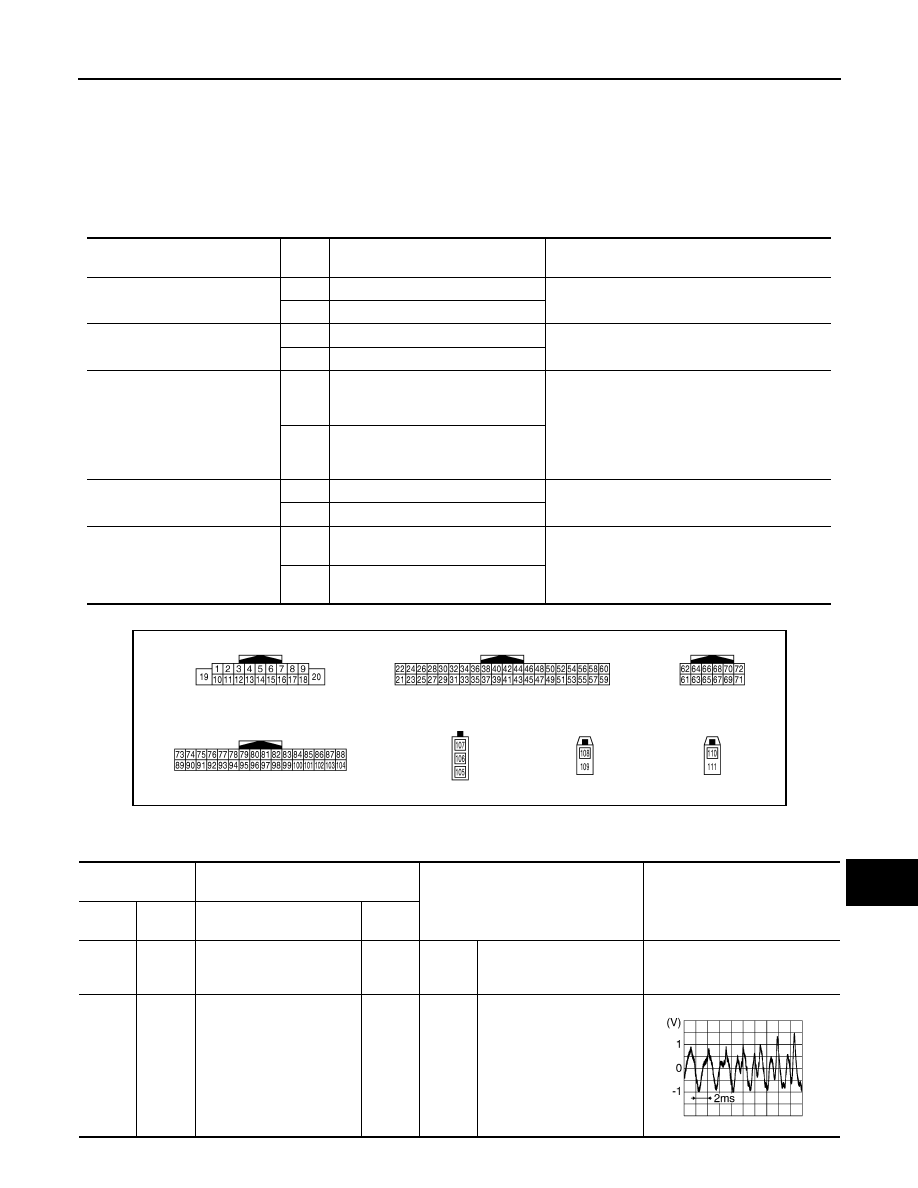

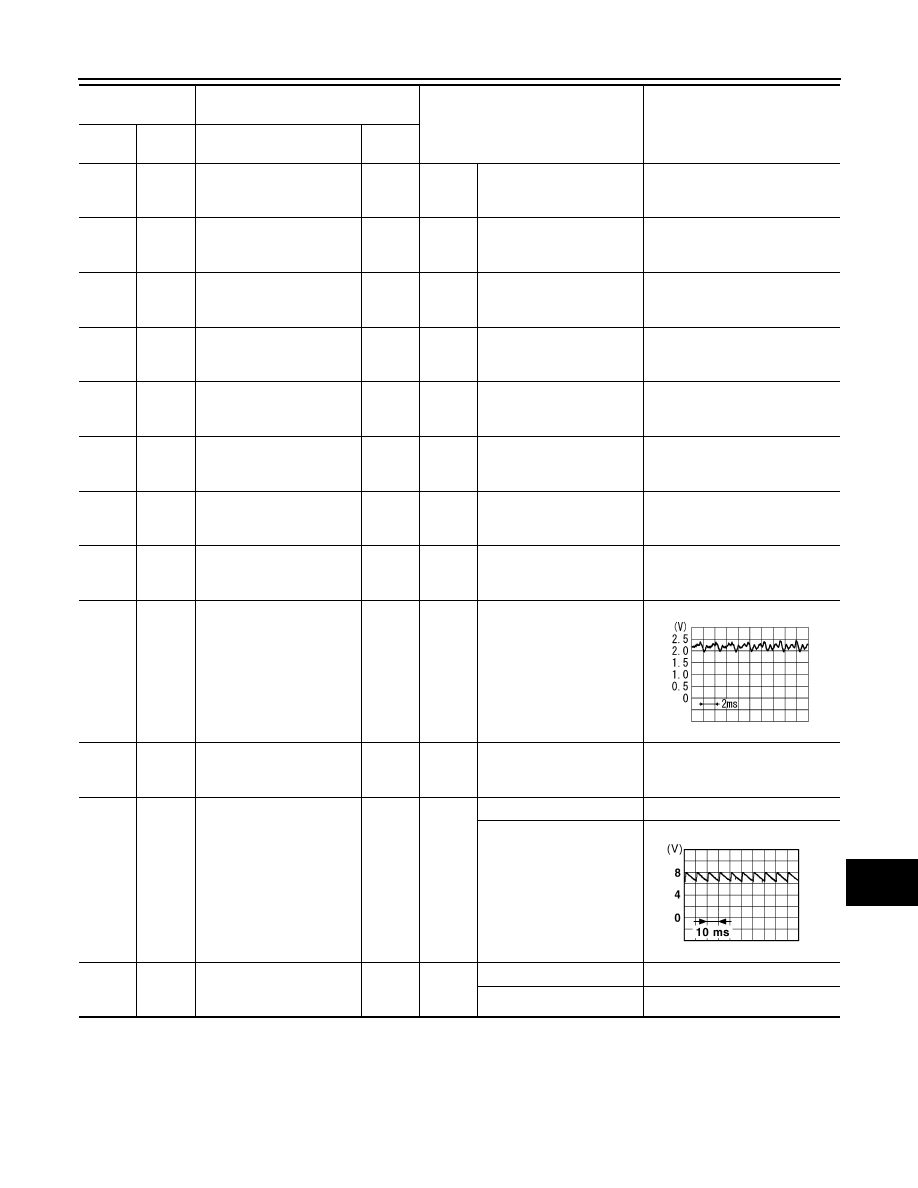

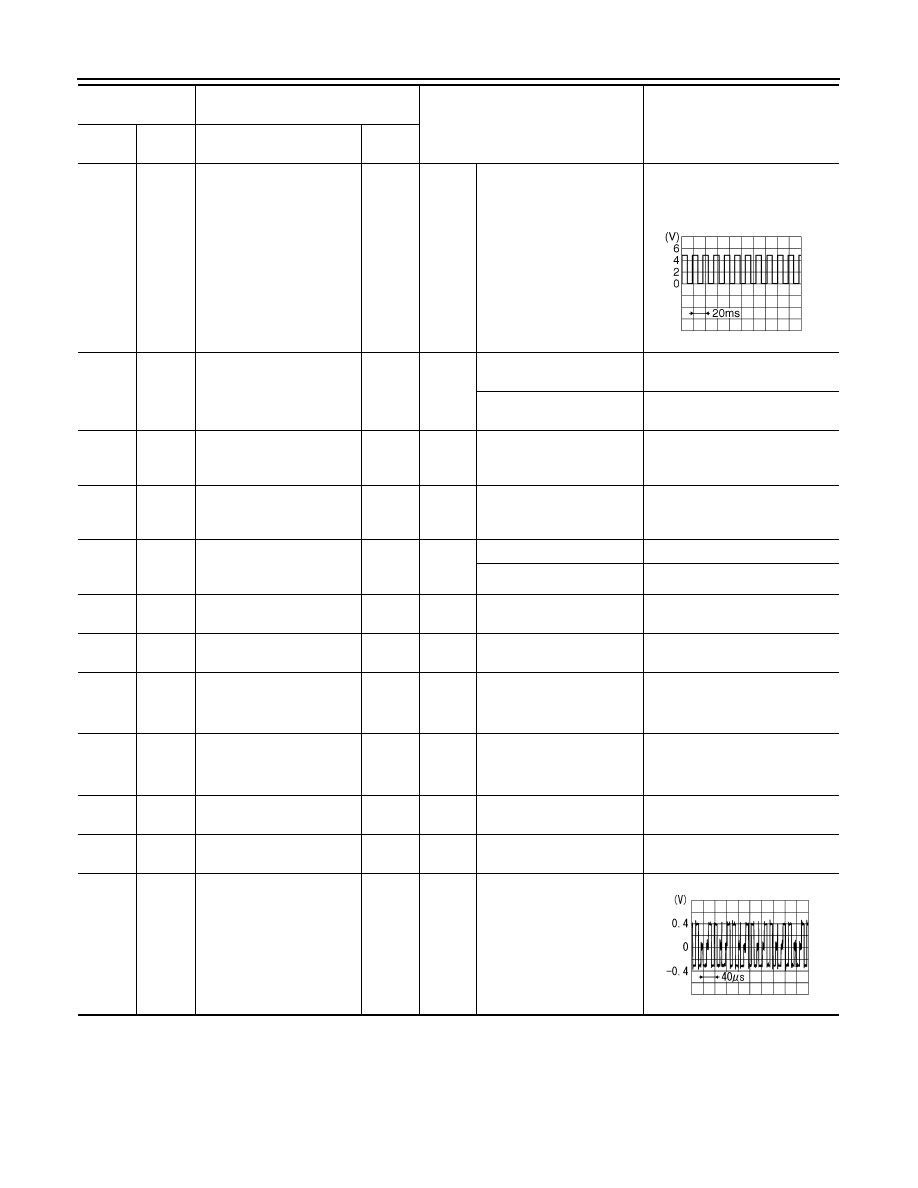

AV AV CONTROL UNIT AV-461 < ECU DIAGNOSIS > [BOSE AUDIO WITH NAVIGATION] C D E F G H I J K L M B A O P ECU DIAGNOSIS AV CONTROL UNIT Reference Value INFOID:0000000001558906 VALUES ON THE DIAGNOSIS TOOL CONSULT-III MONITOR ITEM TERMINAL LAYOUT PHYSICAL VALUES Display Item Dis- Vehicle status Remarks VHCL SPD SIG On Vehicle speed >0 km/h (0 MPH) Changes in indication may be delayed. This is Off Vehicle speed =0 km/h (0 MPH) PKB SIG On Parking brake is applied. Changes in indication may be delayed. This is Off Parking brake is released. ILLUM SIG On Block the light beam from the auto — Off Expose the auto light optical sensor IGN SIG On Ignition switch ON — Off Ignition switch in ACC position REV SIG On Shift the selector lever to “R” posi- Changes in indication may be delayed. This is Off Shift the selector lever other than “R” JPNIA0004ZZ Terminal (Wire color) Description Condition Reference value (Approx.) + – Signal name Input/ Output 1 (V) Ground Amp. ON signal Output Ignition switch ON — 10 V 2 (P) 3 (L) Sound signal front LH Output Ignition switch ON Voice output SKIB3609E |
