Infiniti G37 Coupe. Manual - part 174





AV

CAMERA IMAGE SIGNAL CIRCUIT (REAR VIEW CAMERA TO CAMERA CON-

TROL UNIT)

AV-449

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CAMERA IMAGE SIGNAL CIRCUIT (REAR VIEW CAMERA TO CAMERA
CONTROL UNIT)

Description

INFOID:0000000001558879

• Camera control unit outputs camera ON signal to rear view camera and inputs rear view camera image sig-

nal from rear view camera when the reverse signal is input.

• The camera control unit that inputs the camera image signal transmits the camera image signal to the dis-

play unit.

Diagnosis Procedure

INFOID:0000000001558880

1.

CHECK CONTINUITY CAMERA IMAGE SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect camera control unit connector and rear view camera connector.

3.

Check continuity between camera control unit harness connector terminal 6 and rear view camera har-
ness connector terminal 3.

4.

Check continuity between camera control unit harness connector terminal 6 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK CAMERA IMAGE SIGNAL

1.

Connect camera control unit connector and rear view camera connector.

2.

Turn ignition switch ON.

3.

Check signal between camera control unit harness connector terminal 6 and ground.

Is the inspection result normal?

YES

>> Replace camera control unit.

NO

>> Replace rear view camera.

6 - 3

: Continuity should exist.

6 - Ground

: Continuity should not exist.

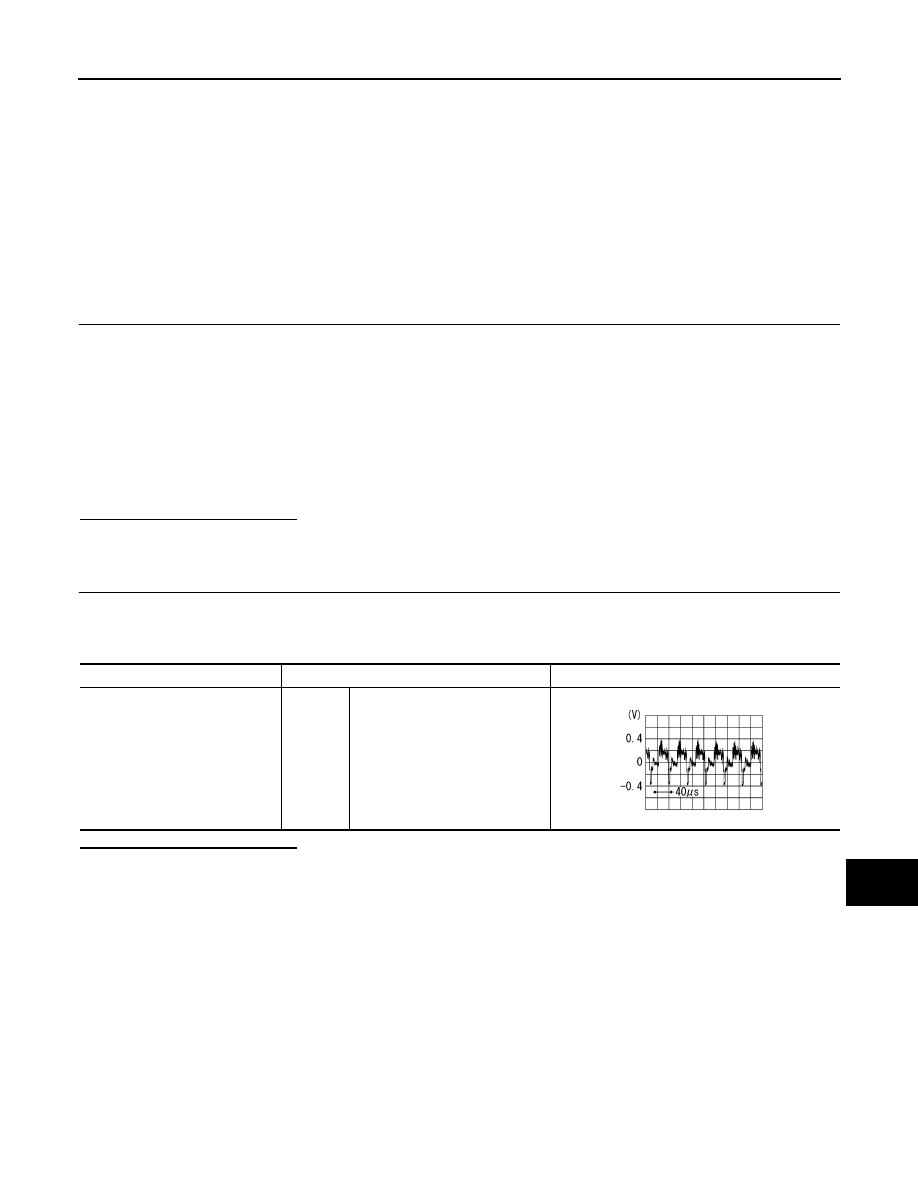

Terminal

Condition

Reference value

6 - Ground

Ignition

switch

ON

At rear view camera image is dis-
played.

SKIB2251J

AV-450

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

CAMERA ON SIGNAL CIRCUIT

CAMERA ON SIGNAL CIRCUIT

Description

INFOID:0000000001558881

• Camera control unit outputs camera ON signal to rear view camera and inputs rear view camera image sig-

nal from rear view camera when the reverse signal is input.

• The camera control unit that inputs the camera image signal transmits the camera image signal to the dis-

play unit.

Diagnosis Procedure

INFOID:0000000001558882

1.

CHECK CONTINUITY CAMERA ON SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect camera control unit connector and rear view camera connector.

3.

Check continuity between camera control unit harness connector terminal 8 and rear view camera har-
ness connector terminal 1.

4.

Check continuity between camera control unit harness connector terminal 8 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK VOLTAGE CAMERA ON SIGNAL

1.

Connect camera control unit connector and rear view camera connector.

2.

Turn ignition switch ON.

3.

Check signal between camera control unit harness connector terminal 8 and ground.

Is the inspection result normal?

YES

>> Replace rear view camera.

NO

>> Replace camera control unit.

8 - 1

: Continuity should exist.

8 - Ground

: Continuity should not exist.

8 - Ground

Shift the selector lever to “R” position
: Approx. 6 V

AV

CAMERA IMAGE SIGNAL CIRCUIT (CAMERA CONTROL UNIT TO DISPLAY

UNIT)

AV-451

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CAMERA IMAGE SIGNAL CIRCUIT (CAMERA CONTROL UNIT TO DIS-
PLAY UNIT)

Description

INFOID:0000000001558883

• Camera control unit outputs camera ON signal to rear view camera and inputs rear view camera image sig-

nal from rear view camera when the reverse signal is input.

• The camera control unit that inputs the camera image signal transmits the camera image signal to the dis-

play unit.

Diagnosis Procedure

INFOID:0000000001558884

1.

CHECK CONTINUITY CAMERA IMAGE SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect camera control unit connector and display unit connector.

3.

Check continuity between camera control unit harness connector terminal 12 and display unit harness
connector terminal 12.

4.

Check continuity between camera control unit harness connector terminal 12 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK CAMERA IMAGE SIGNAL

1.

Connect camera control unit connector and display unit connector.

2.

Turn ignition switch ON.

3.

Check signal between camera control unit harness connector terminal 12 and ground.

Is the inspection result normal?

YES

>> Replace display unit.

NO

>> Replace camera control unit.

12 - 12

: Continuity should exist.

12 - Ground

: Continuity should not exist.

Terminal

Condition

Reference value

12 - Ground

Ignition

switch

ON

At rear view camera image is dis-
played.

SKIB2251J

AV-452

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

STEERING ANGLE SENSOR SIGNAL 1, 2 CIRCUIT

STEERING ANGLE SENSOR SIGNAL 1, 2 CIRCUIT

Description

INFOID:0000000001558889

• Steering angle sensor signal 1, 2 detects the turning direction and quantity of the steering and transmits it to

the camera control unit.

• Steering angle sensor signal 3 detects the neutral position of the steering and transmits it to the camera con-

trol unit.

• Camera control unit performs the correction of neutral position with sensor signal 1, 2, 3 and vehicle speed

signal.

Diagnosis Procedure

INFOID:0000000001558890

1.

CHECK CONTINUITY STEERING ANGLE SENSOR SIGNAL 1, 2 CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect camera control unit connector and steering angle sensor connector.

3.

Check continuity between camera control unit harness connector terminals 23, 24 and steering angle sen-
sor harness connector terminals 3, 4.

4.

Check continuity between camera control unit harness connector terminals 23, 24 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK SENSOR SIGNAL 1, 2

1.

Connect camera control unit connector.

2.

Turn ignition switch ON.

3.

Check voltage between camera control unit harness connector terminals 23, 24 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace camera control unit.

3.

CHECK SENSOR SIGNAL 1, 2

1.

Connect steering angle sensor connector.

2.

Check signal between camera control unit harness connector terminal 23, 24 and ground.

23 - 3

: Continuity should exist.

24 - 4

: Continuity should exist.

23, 24 - Ground

: Continuity should not exist.

23 - Ground

: Approx. 5 V

24 - Ground

: Approx. 5 V
